ASRS System Warehouse Automated Stacker Crane Storage Automatic Retrieval Racking System

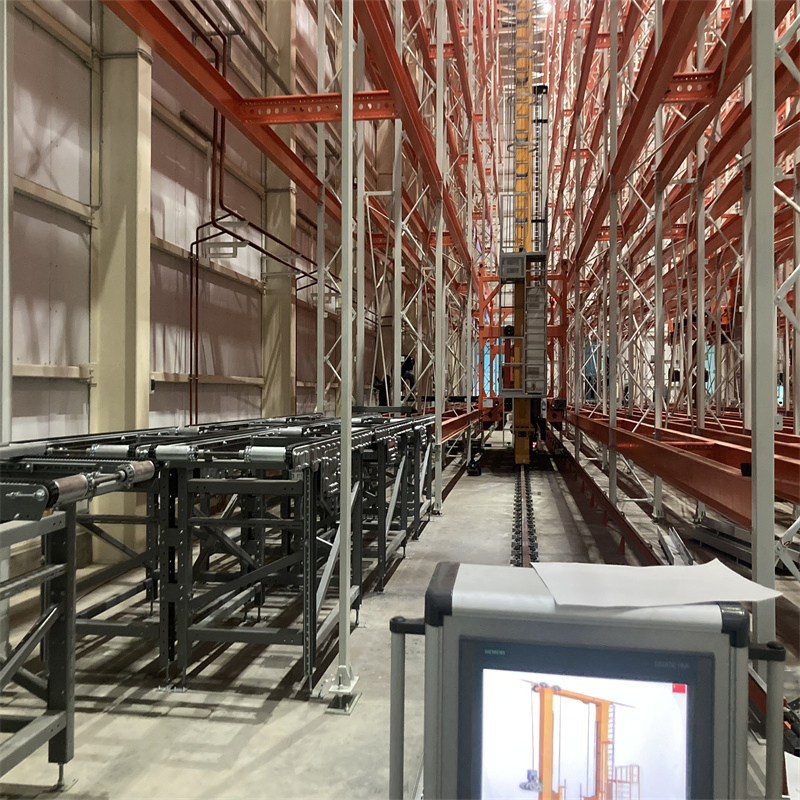

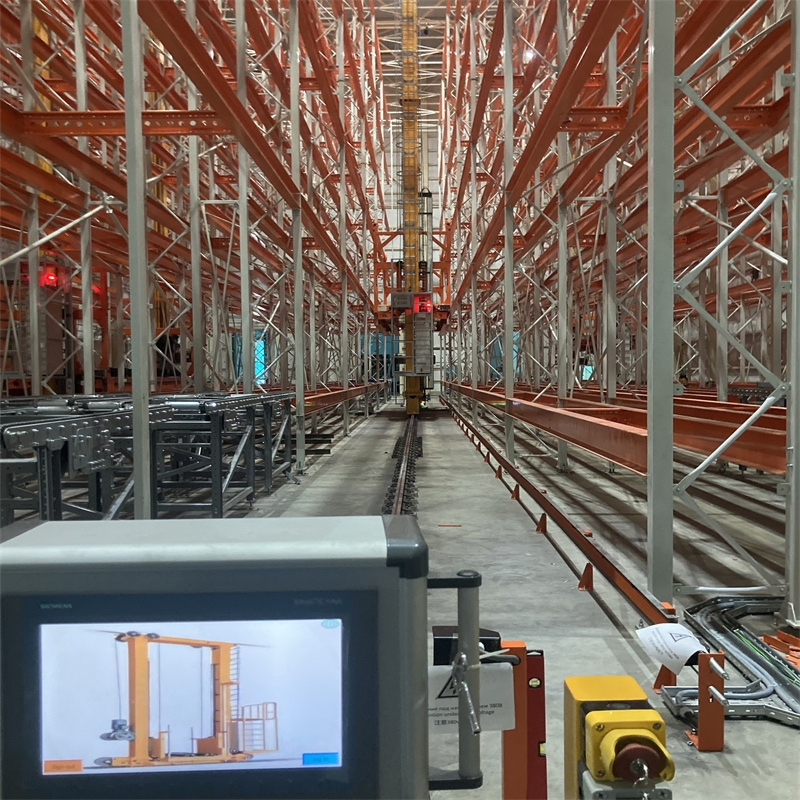

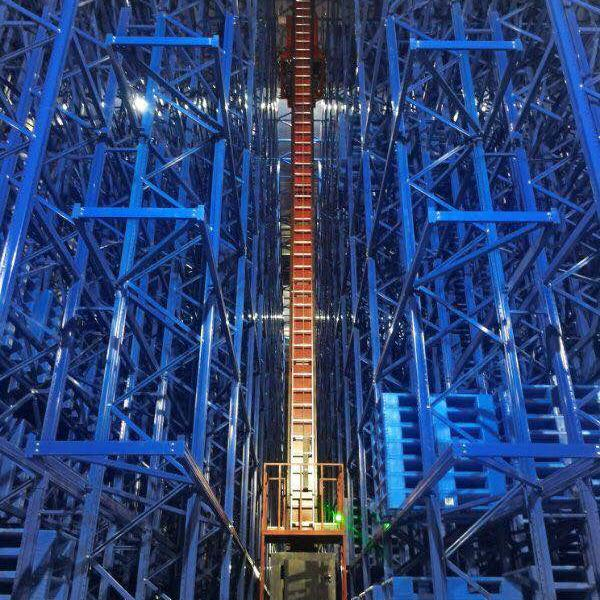

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.
Stacker cranes are machines designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner. These systems are equipped with state-of-the-art technology, significantly increasing warehouse productivity and maximizing space utilization.
As a premier designer and manufacturer of material handling systems, our stacker cranes offer several core advantages:
Enables efficient horizontal and vertical positioning movement. Features a Double Mast Design for added stability for heavier loads and heights up to 140 feet. Achieves horizontal speeds up to 900 ft./min.
Ensures seamless integration with S/RMs and other devices like stretch-wrappers and label applicators. Engineered for high throughput and durability to meet rigorous order fulfillment schedules.

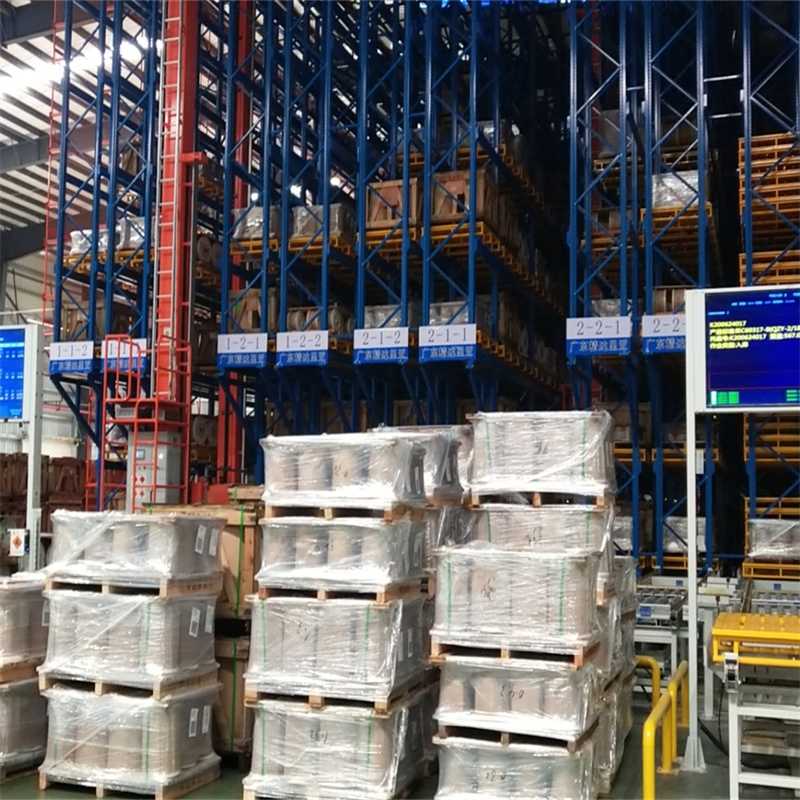

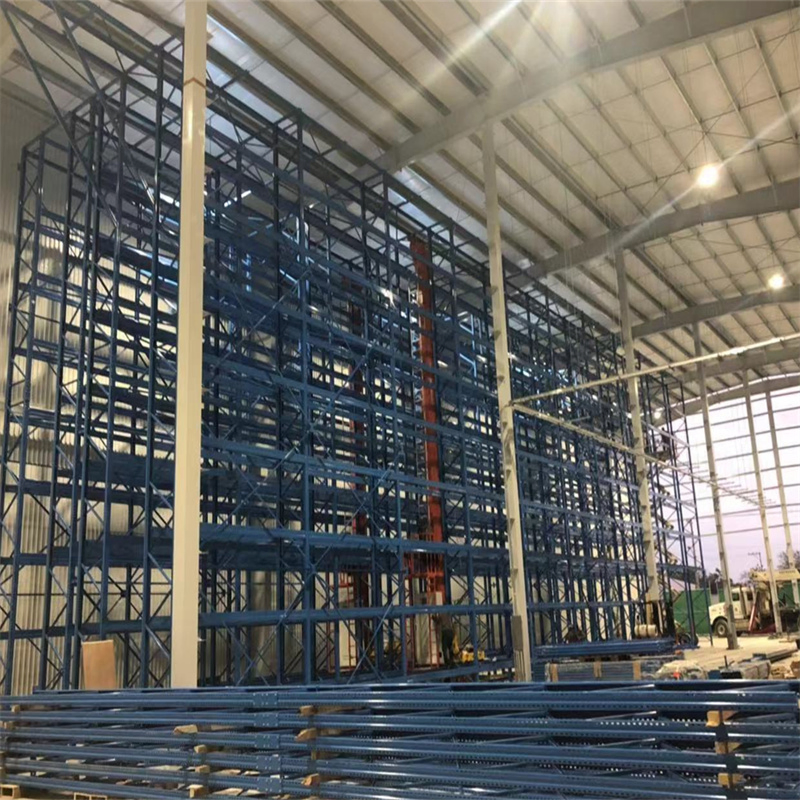

Compact storage for high bay warehouses. Optimized for precision and structural integrity, these fully bolted structures handle crane forces and environmental loads reliably.

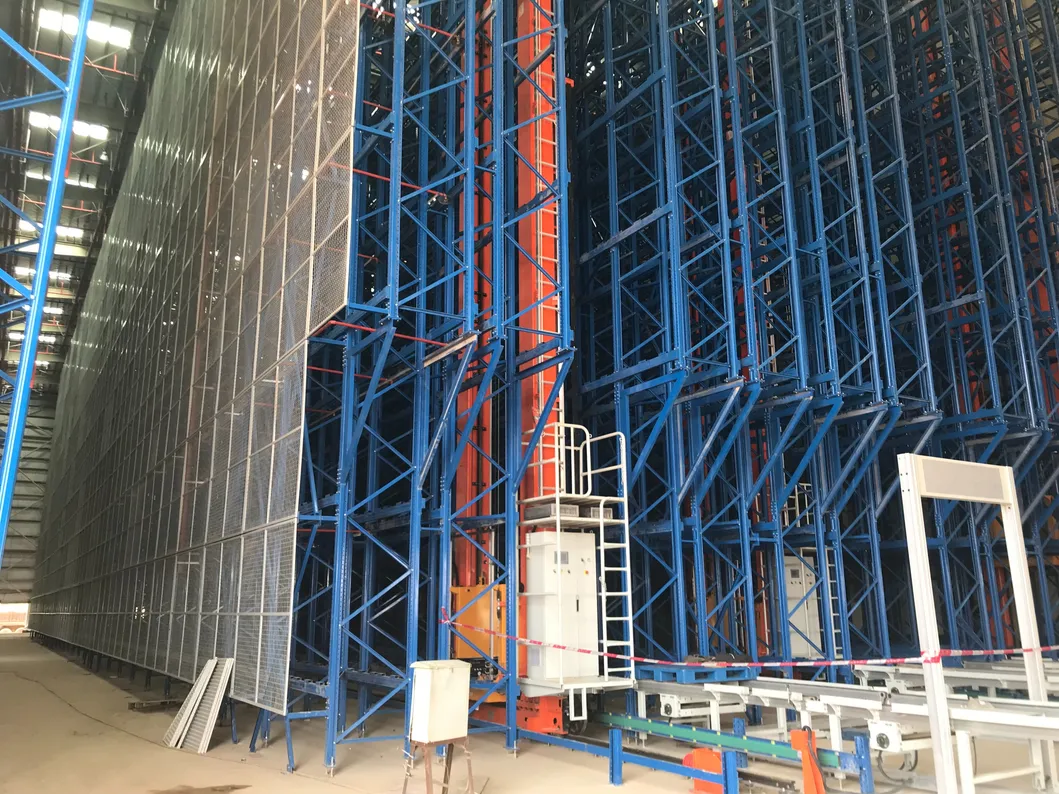

| Racking | ASRS Systems are usually equipped with pallet racking or drive-in racking. Steel and wooden panels available. Instruction managed via central computer. |

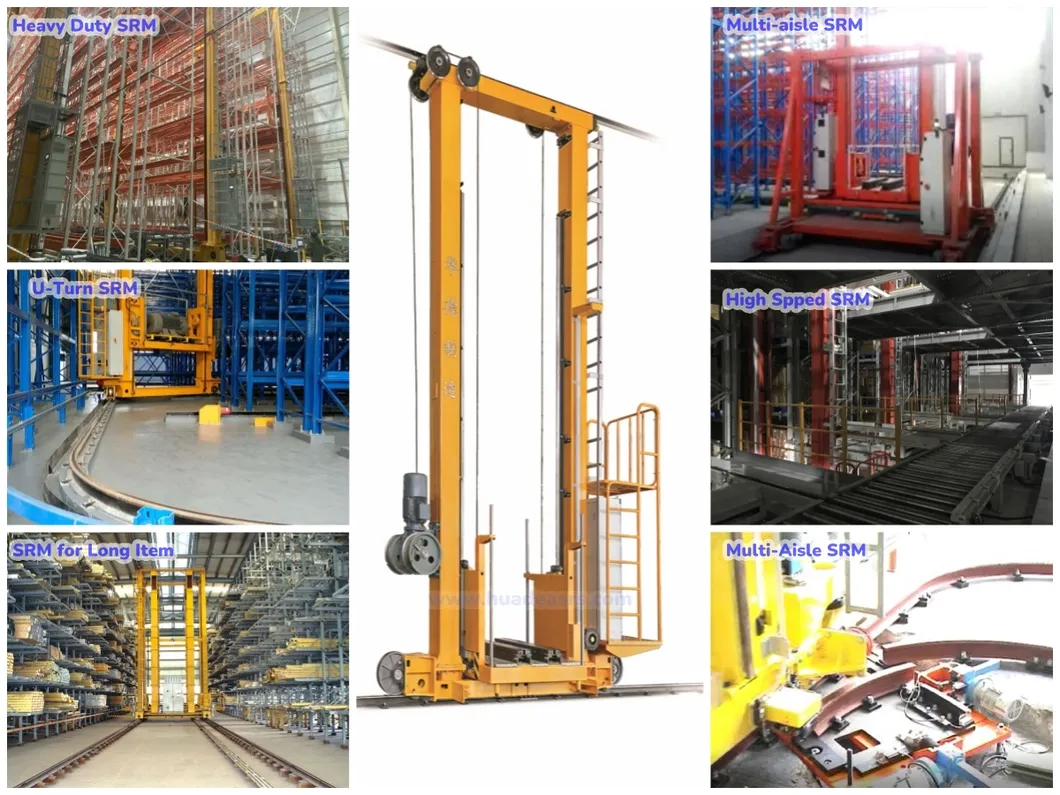

| Stacker | Double upright structure, steady and reliable. Vector frequency conversion drive and encoder position control. Touching screen interface. |

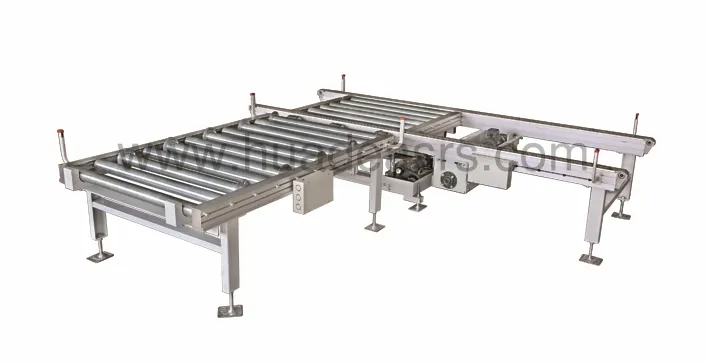

| Conveying System | Equipped in front or back of warehouse; bridges forklifts and stackers using rolling or chain conveyors and rotating devices. |
| Controlling System | Communicates with WMS and ECS through OPC agreement and PROFIBUS network. Controlled by Siemens S7-300 controller. |
| WMS System | Hardwares include Star network structure, network servers, and RF terminals. Softwares include MS SQL Server and WCS controlling software. |
