📋Basic Information
Suspension System
Multi-link Type
Production Capacity
100 Pieces Per Month

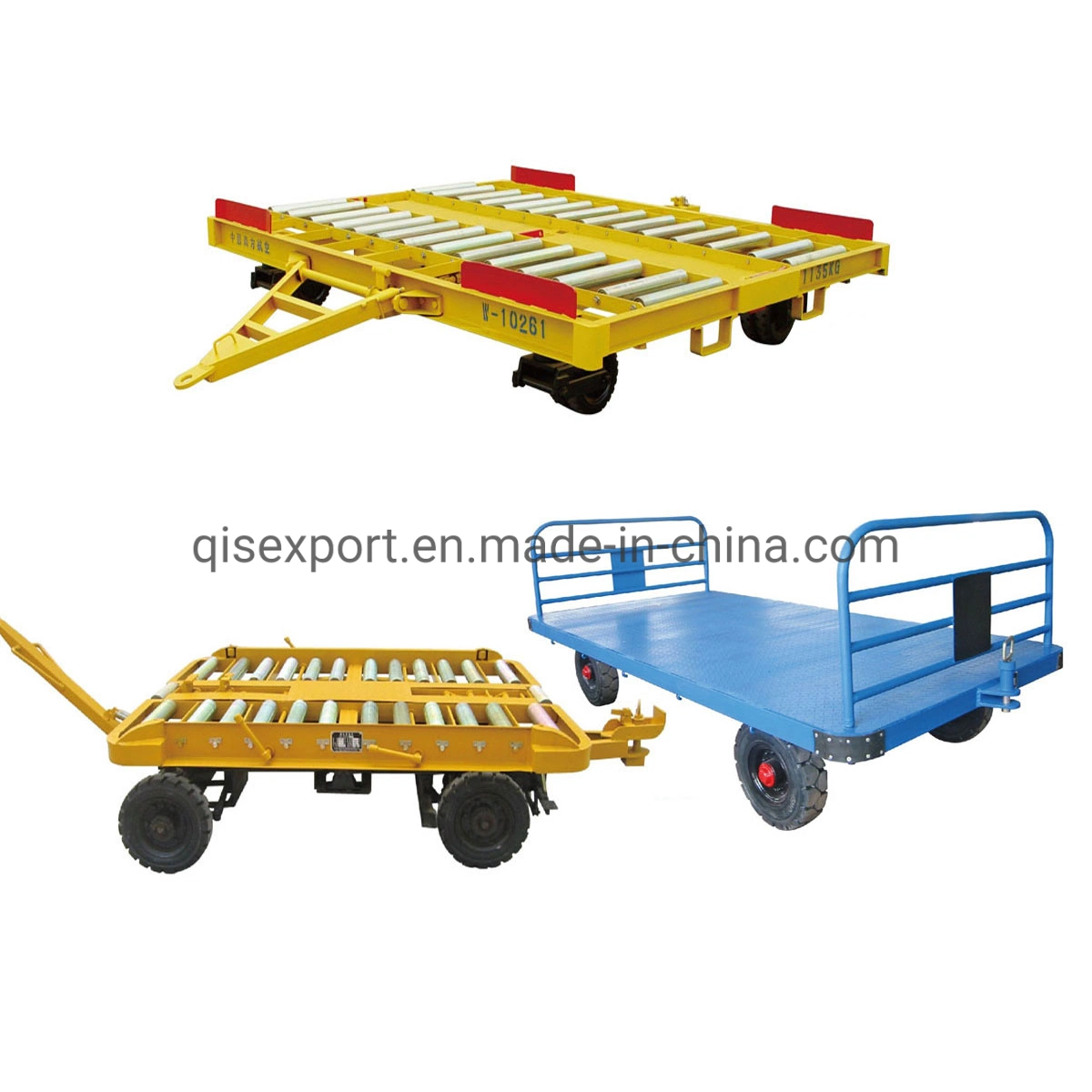

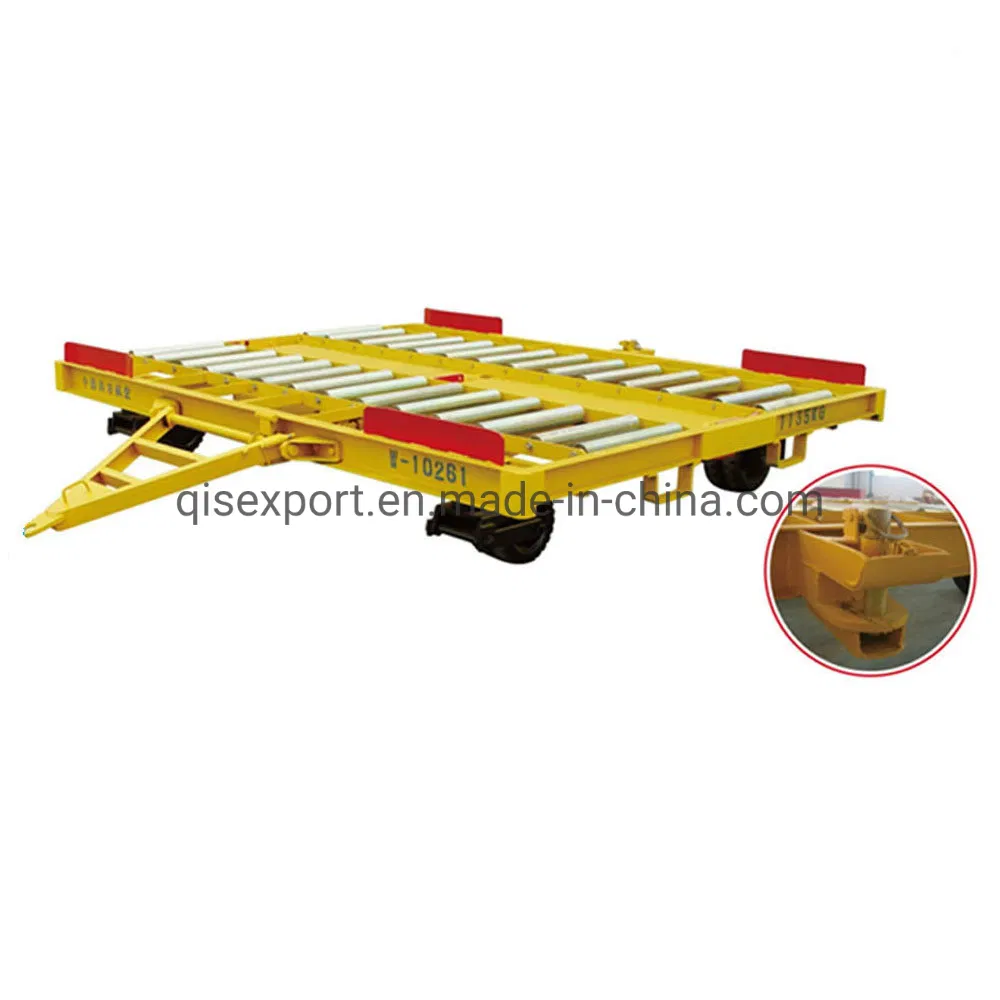

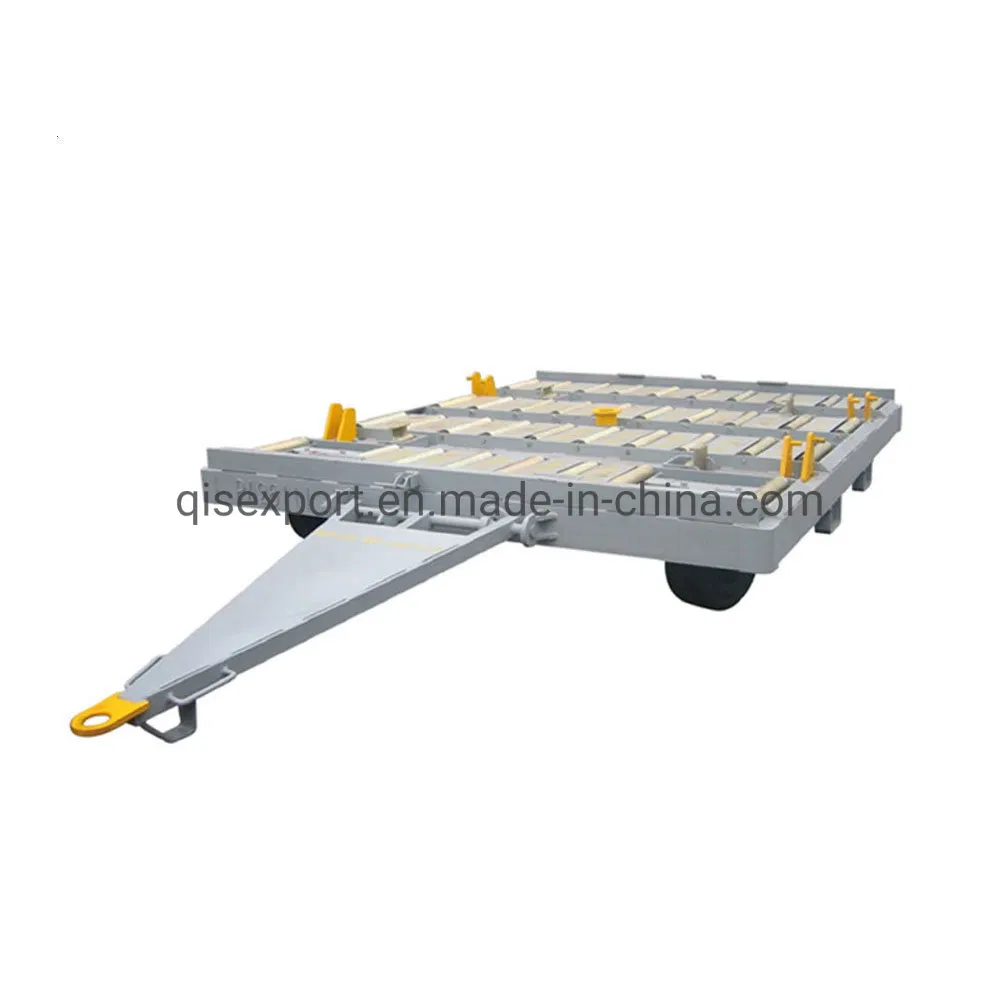

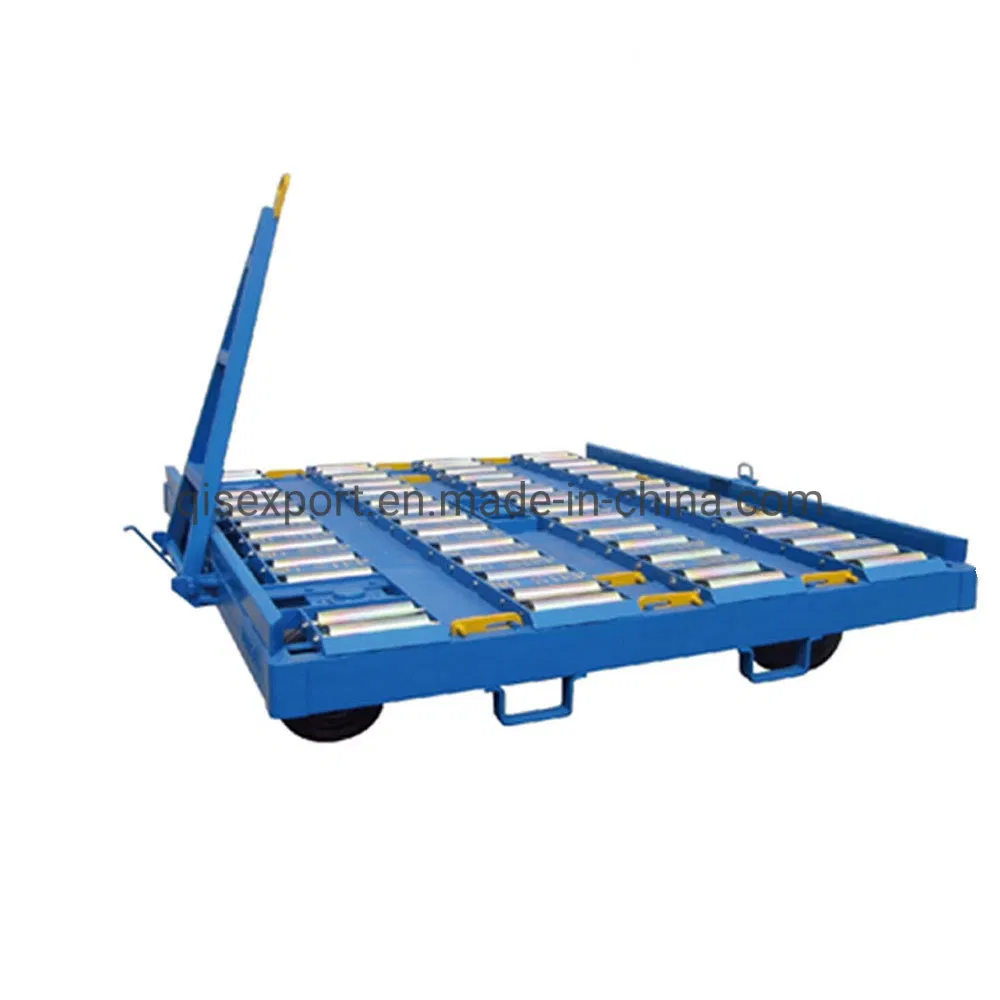

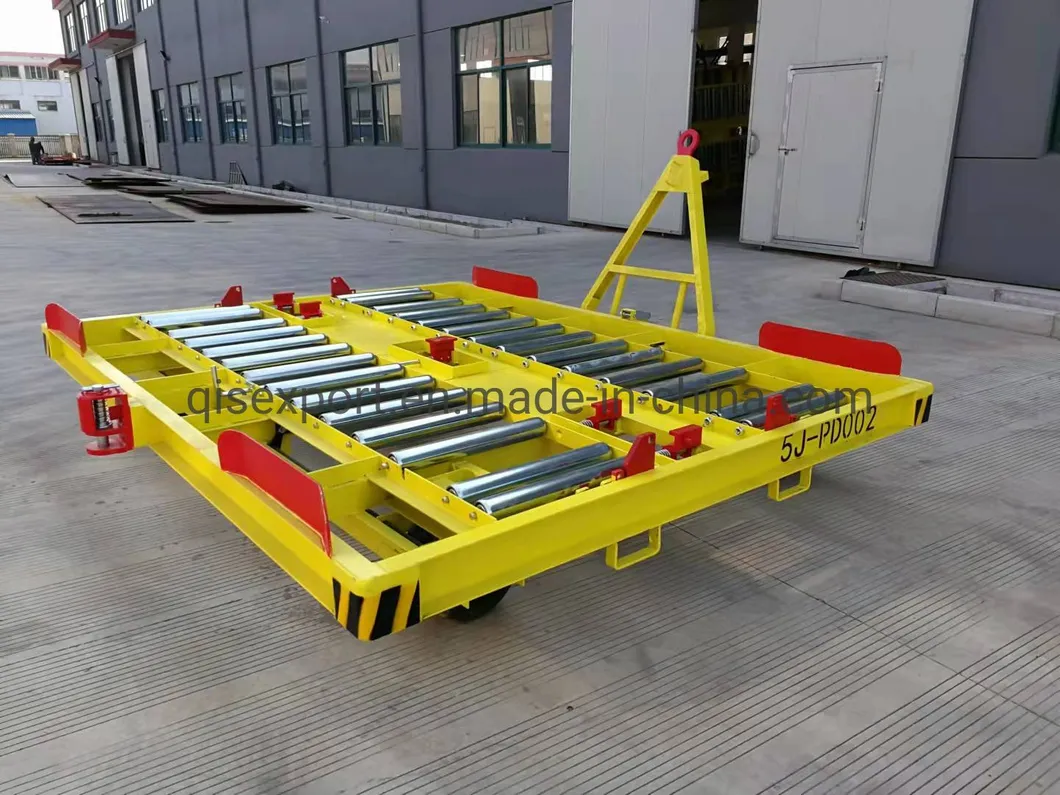

✈️Airport Pallet / Container Dolly
Main Function: Specifically designed for the transportation of airport pallet P1P/P6P or aviation container LD1/LD2.
Detailed Photos
Technical Specifications
| SPECIFICATION OF PALLET DOLLY |
| Max Payload (kg) | 1600 / 7000 / 18000 / 27000 |
Load Access | Side / Rear |
| Tare (Kg) | 1103 / 1450 / 1352 |
Wheel Base (mm) | 1600 / 2060 |
| Overall Dim (mm) | 4109(L) × 3400(W) × 1563(H) |
Platform Height (mm) | 508 - 518 |
| Towbar Position (mm) | 606 - 625 (dropped) |
Max Speed (Km/h) | 25 |
| Roller Dia (mm) | 76 |
Turn Radius (mm) | <= 4500 |
Key Features
- Solid cushion tyres for exceptionally long service life.
- Positive locking restraints and stoppers at both ends.
- Rear tow hitch for multi-dolly towing linkage.
- Galvanized rollers with chequered plate walkways.
- Multi-functional tow bar for linkage and braking.
- Supports forklift handling via side fork tynes.

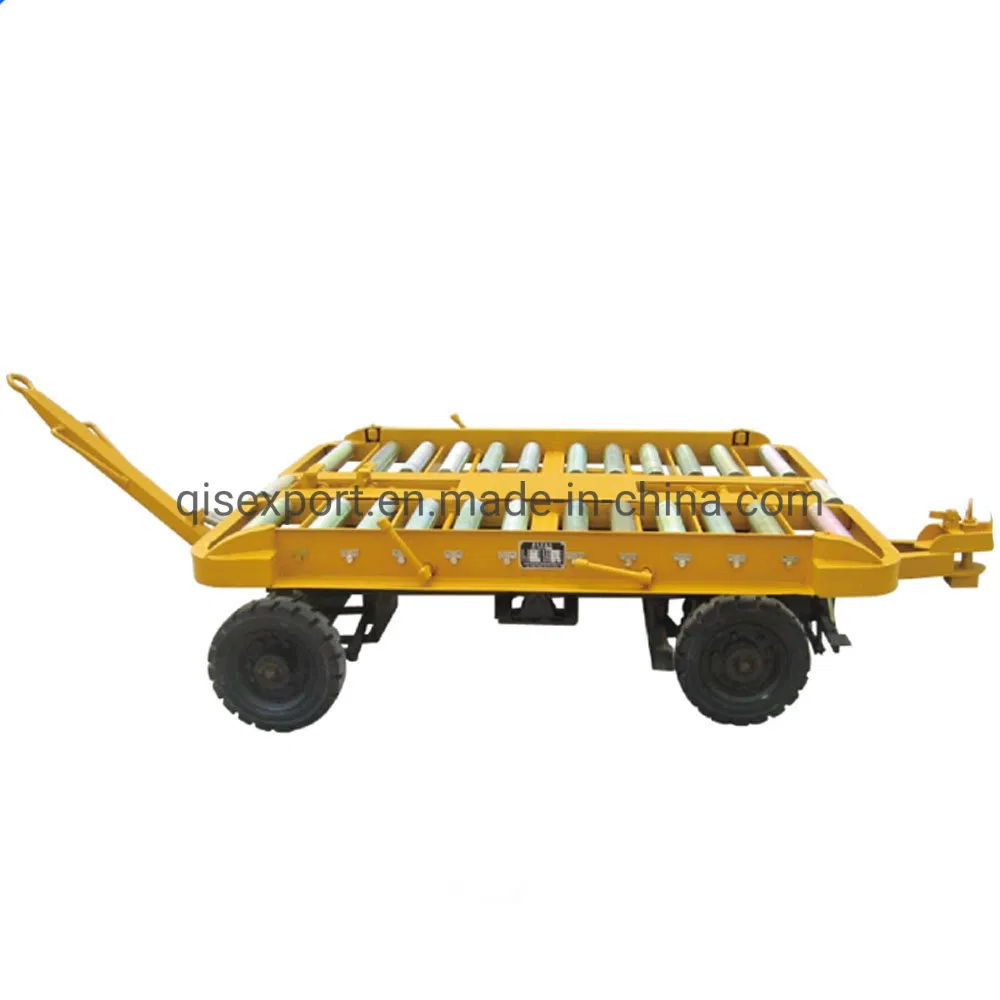

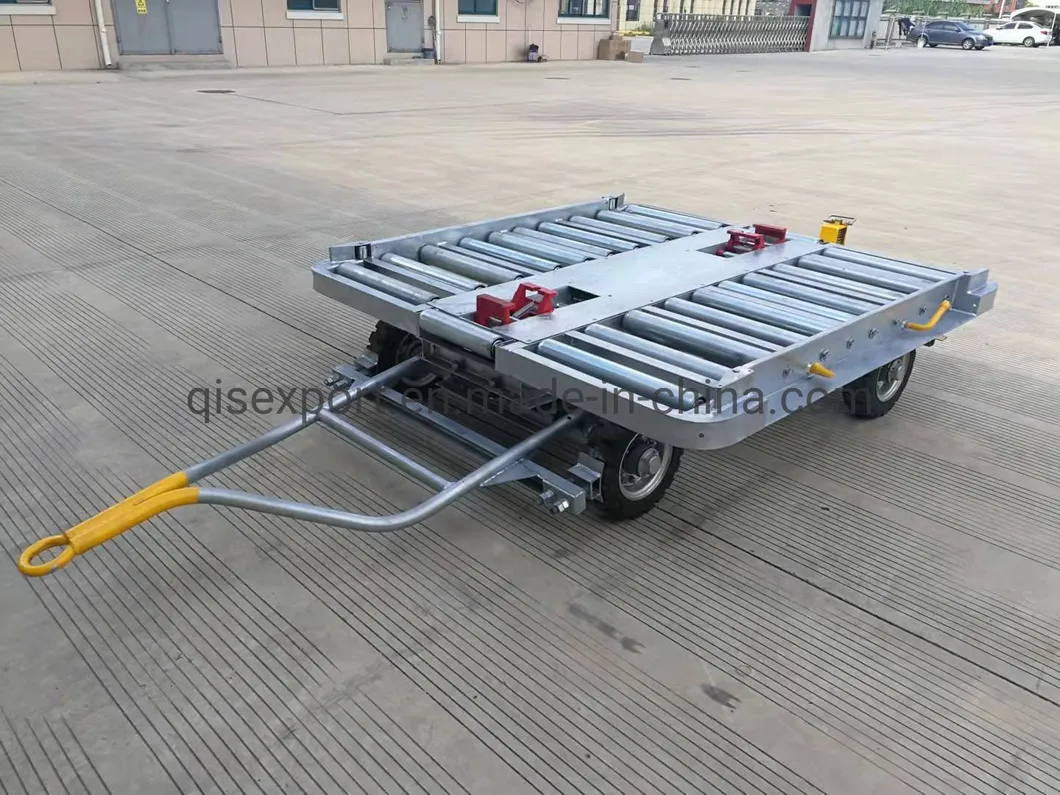

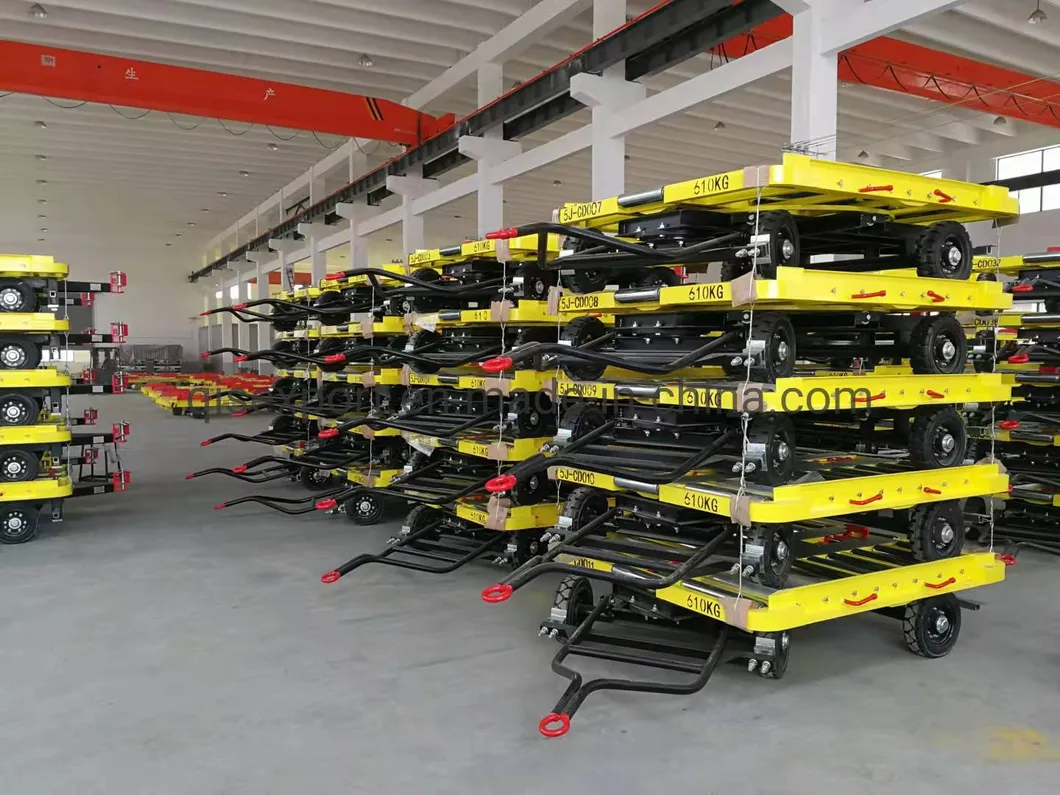

📦Airport Container Dolly
Main Function: Optimized for transporting LD1, LD2, and LD3 containers with adjustable orientation for easy loading.
Standard Parameters
- Overall Size: 3750mm × 1800mm × 560mm
- Platform Size: 1920mm × 1600mm × 508mm
- Main Frame: Heavy-duty 8# channel steel
- Tire: 15" × 4.5" ultra-wear-resistant solid tires
- Rated Load: 1600kg
- Max Operating Speed: 25km/h

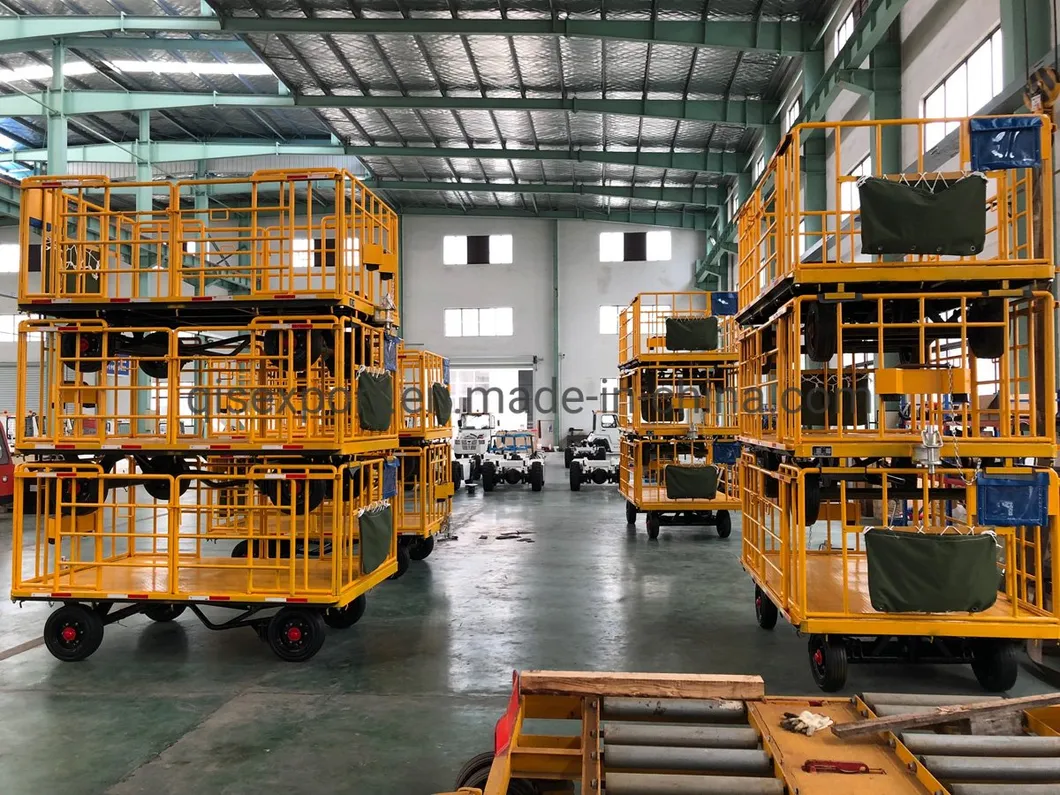

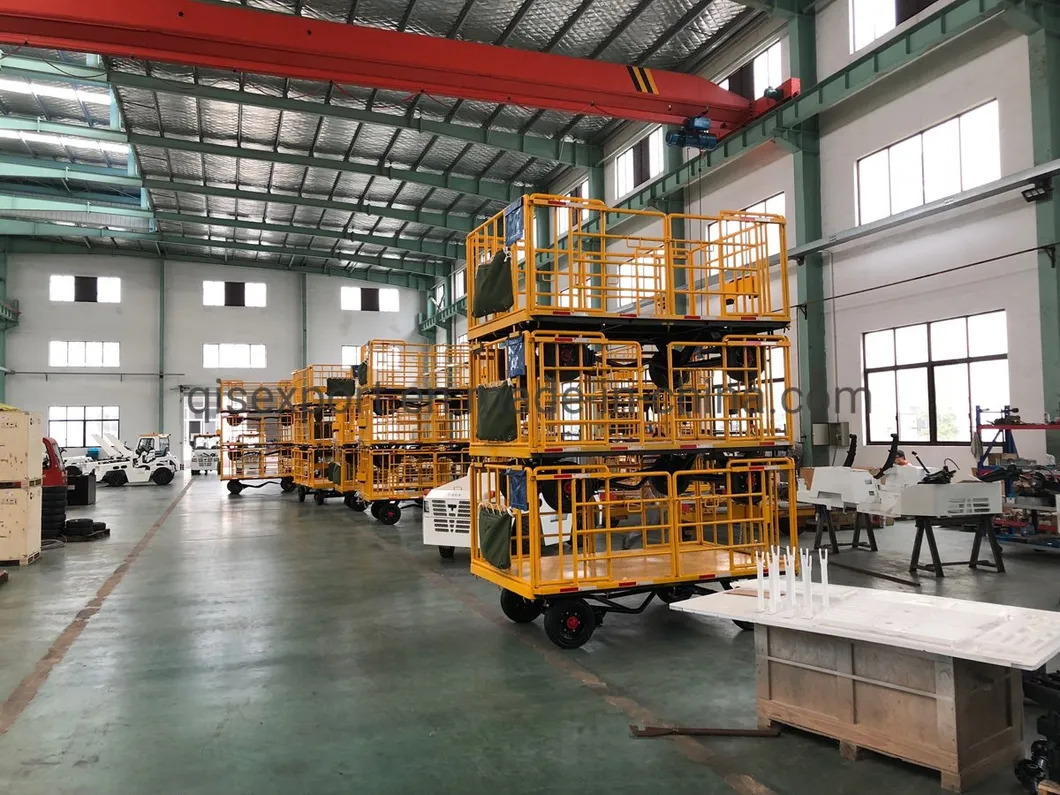

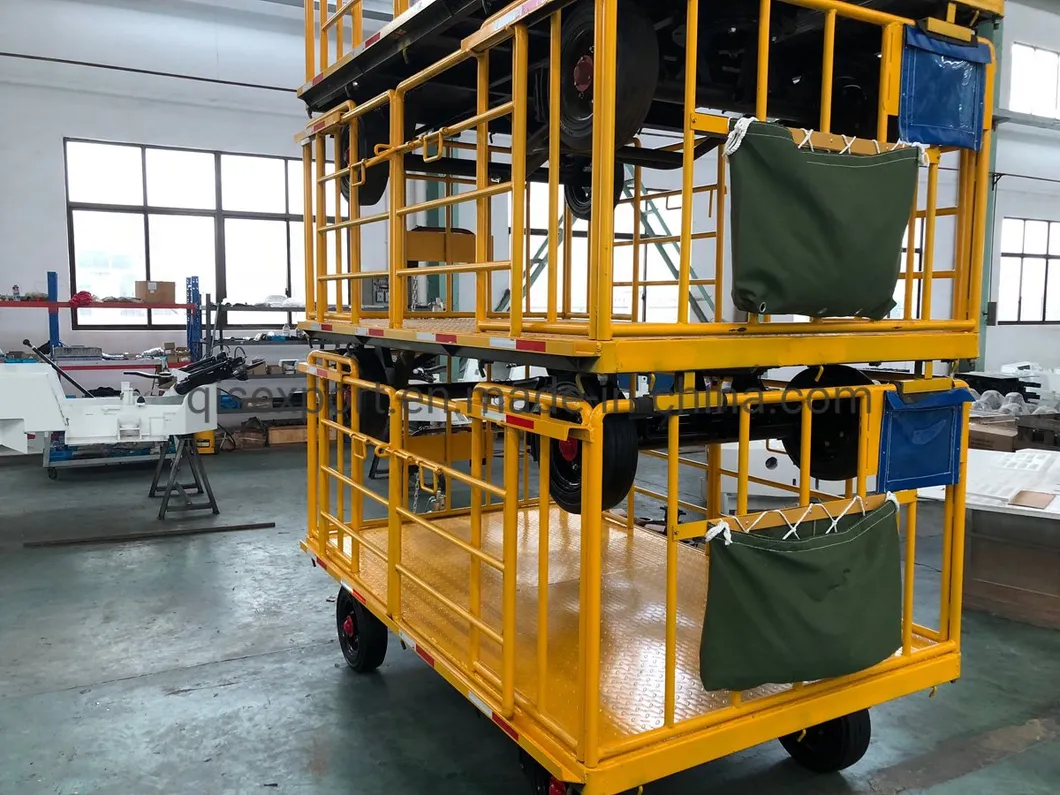

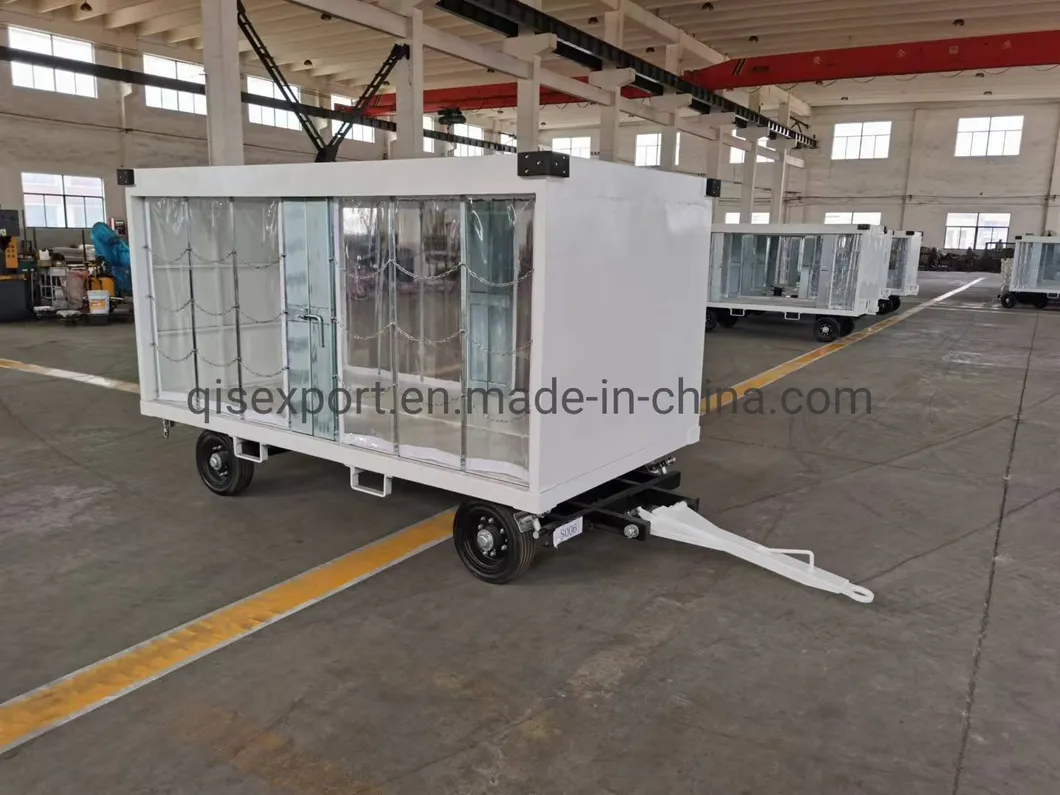

🧳Airport Bulk Baggage Luggage Cart Trailer
Versatility: Suitable for bulk cargo and passenger luggage. Features movable plastic covers and slide doors on both sides.
| SPECIFICATION OF AIRPORT LUGGAGE CART TRAILER |
| Max Capacity | 1500 ~ 2000kg |
| Curb Weight | 600 ~ 700kg |
| Working Table Size (mm) | 2500~3000(L) × 1500(W) |
| Braking System | Automatic brake engagement when towbar is vertical or horizontal |
❓Frequently Asked Questions
Q1: What types of aviation containers can these dollies handle?
Our dollies are designed to transport standard airport pallets such as P1P and P6P, as well as aviation containers including LD1, LD2, and LD3 models.
Q2: How does the braking system work on the baggage trailers?
The trailers are equipped with a safety braking system that automatically engages whenever the towbar is in its fully upright (stored) or fully lowered position.
Q3: Are the tires suitable for heavy-duty tarmac use?
Yes, we use ultra-wear-resistant solid cushion tires specifically engineered for long service life in demanding airport environments.
Q4: Can multiple dollies be connected for transport?
Absolutely. Each unit features a self-locking rear hitch and a compatible towbar, allowing for secure multi-dolly linkage for efficient towing.
Q5: What is the maximum load capacity for the pallet dolly?
The pallet dollies are available in various configurations with payload capacities ranging from 1,600kg up to 27,000kg to meet different operational needs.
Q6: Are the rollers treated for corrosion resistance?
Yes, all rollers are galvanized to provide superior protection against oxidation and weather elements, ensuring smooth operation over time.
