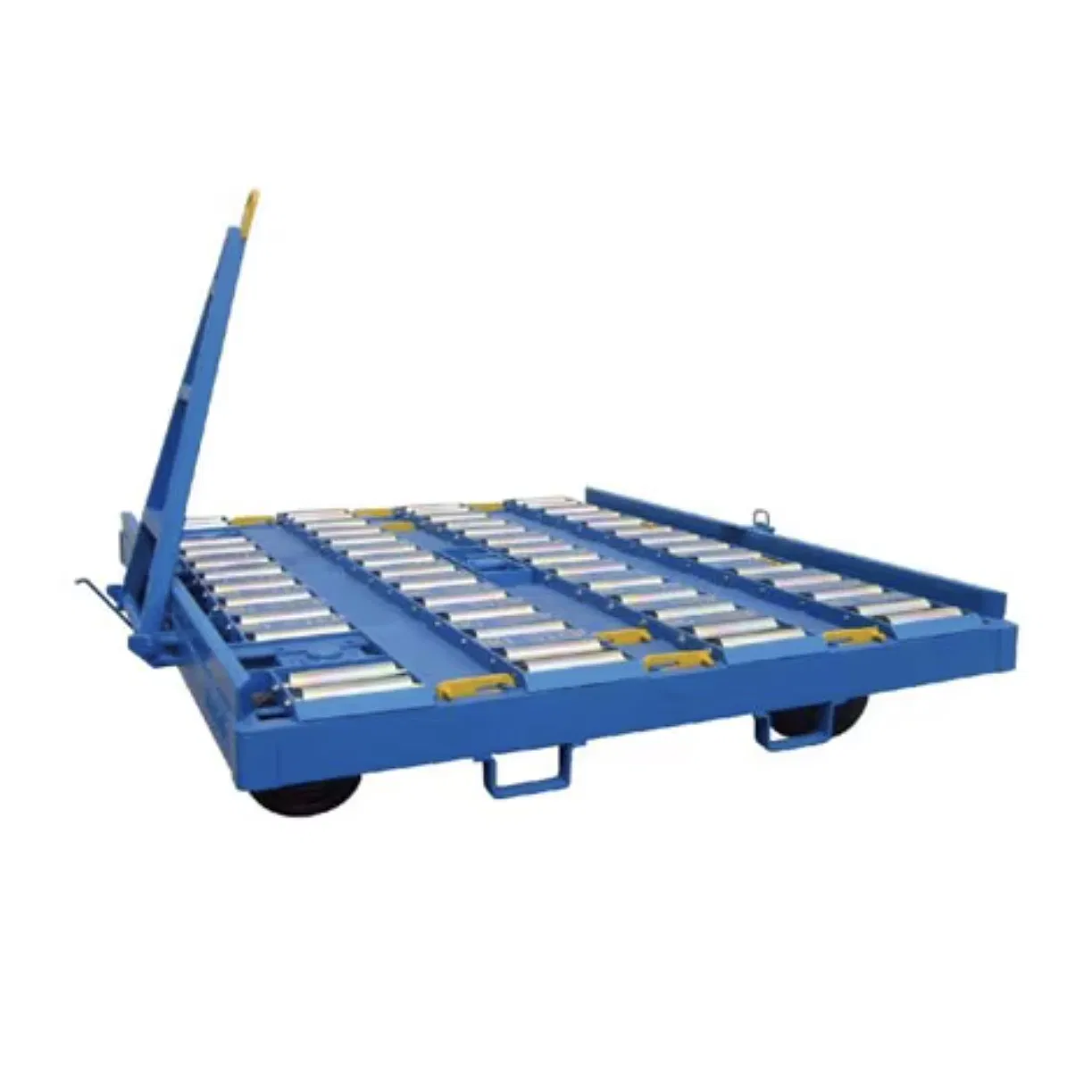

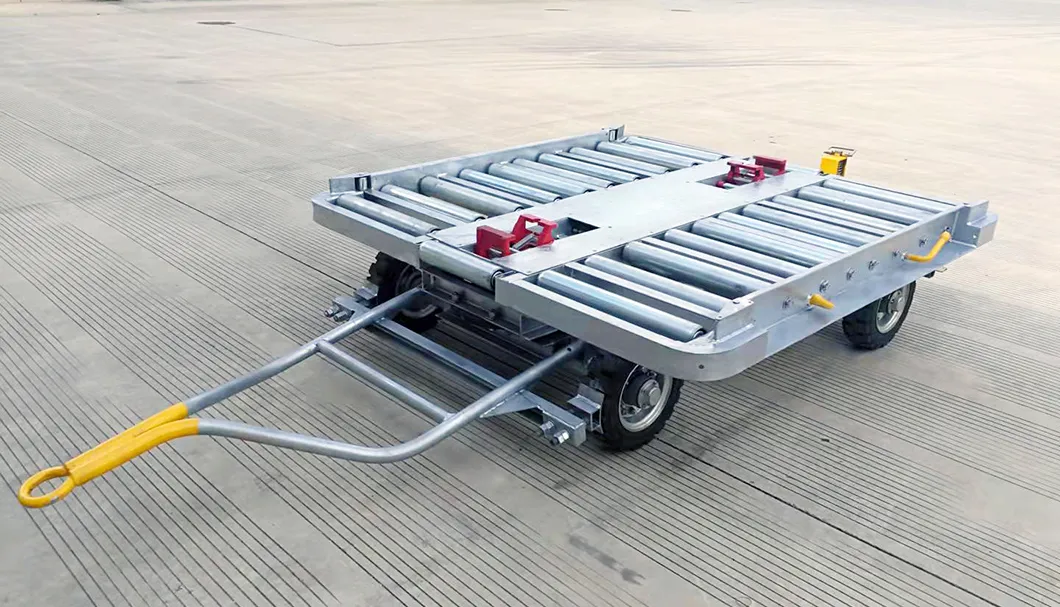

Aviation Airport Container Transport Pallet Trolley Dolly

1 / 5

Aviation Airport Container Transport Pallet Trolley Dolly

Customization:	Available
After-sales Service:	Have
Warranty:	Have

Send Inquiry

Product Description

Basic Information

Model NO.:ACD-70

Transmission:Manual

Power:Hybrid

Load Capacity:1-10t

Emission:Zero Emission

Condition:New

Overall Size:4100 × 3400 × 620 mm

Platform Size:3400 × 2660 × 510 mm

Wheelbase:1620 mm

Rated Speed:25km/H

Origin:China

Capacity:10000 set/Year

Packaging & Delivery

Package Size:410.00cm * 340.00cm * 62.00cm

Gross Weight:1100.000kg

Product Description

Main Functions

Mainly used for loading aviation pallets and containers.
Frame mechanism material: 16#, 12# and 10# channel steel.
Frame size: 3400mm x 2680mm.

Roller Mechanism

High quality construction with long service life.
Roller specs: φ76mm × 4mm seamless steel pipe.
Surface treatment: Professional galvanized finish.

Key Features

Tyre: Solid cushion designed for extended durability.
Restraints/Stoppers: Dual-end stoppers for side guides and positive locking.
Tow hitch: Rear end hitch for multi-dolly linkage.
Walkways: Galvanized rollers with chequered plate safety walkways.
Brake functions: Integrated tow bar for linkage and braking.
Handling: Dual-side fork tynes support for easy forklift operation.

Technical Specification

Overall size	4100mm × 3400mm × 620mm
Platform size	3400mm × 2660mm × 510mm
Wheelbase (front to rear)	1620mm
Rated speed	25km/h
Maximum load	7000kg
Weight	Approx. 1100kg
Material	16#, 12# and 10# channel steel
Frame size	3400mm x 2680mm

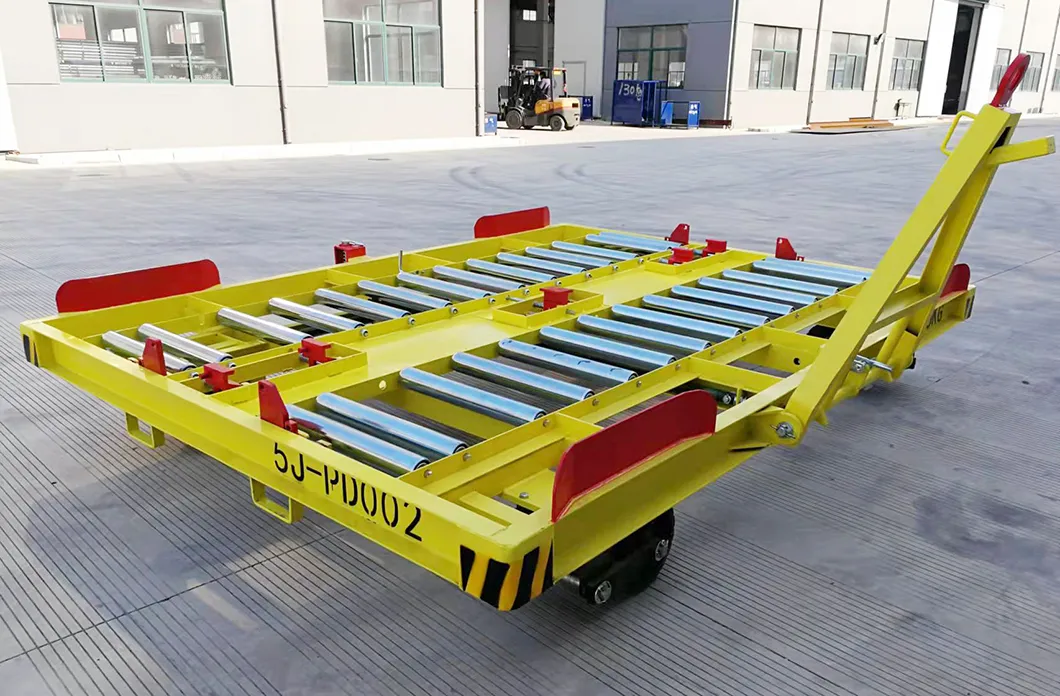

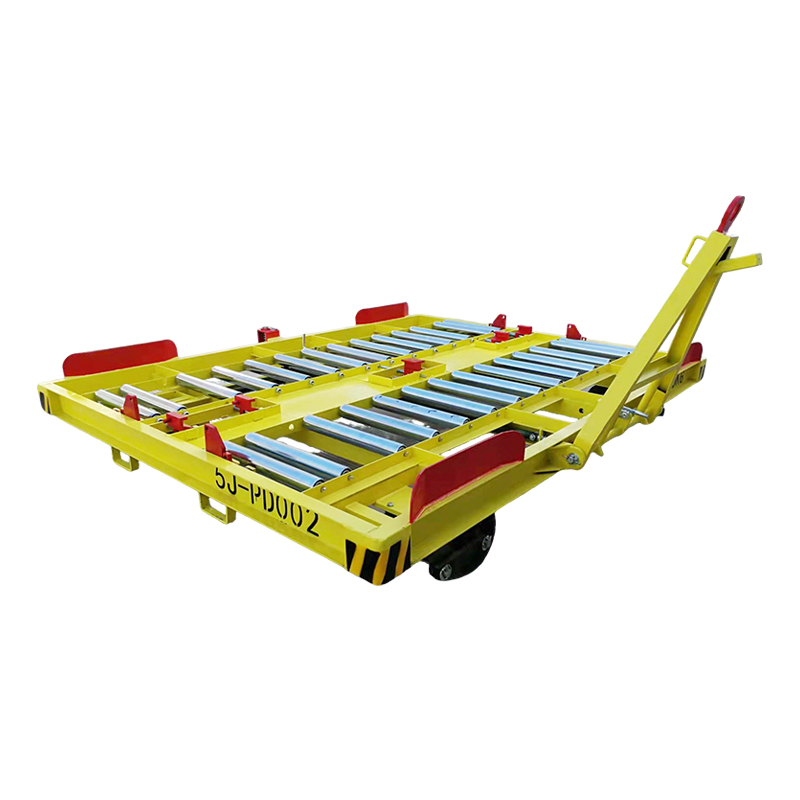

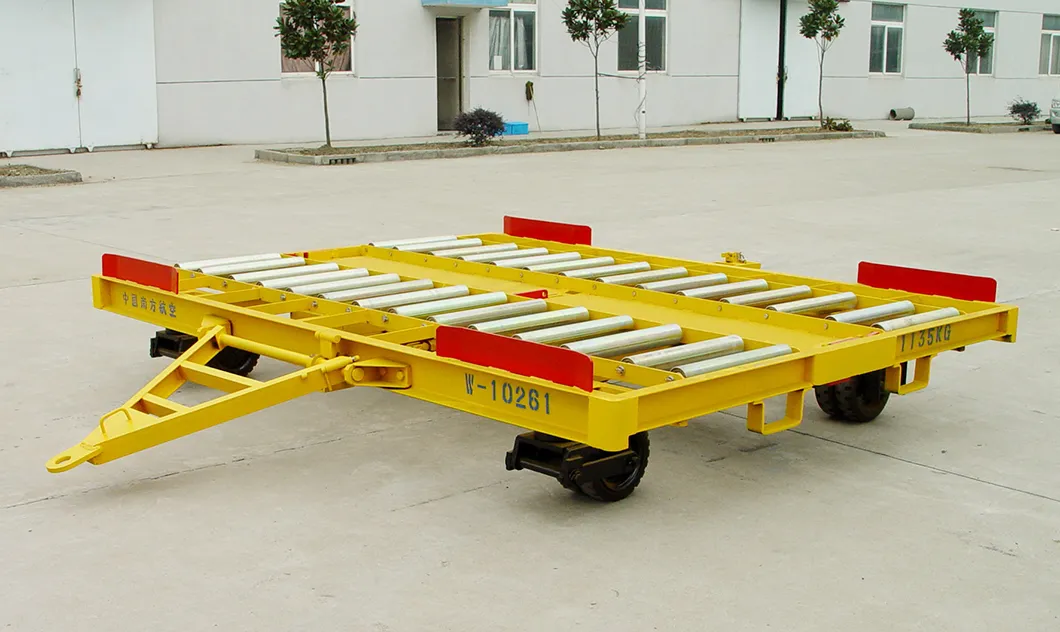

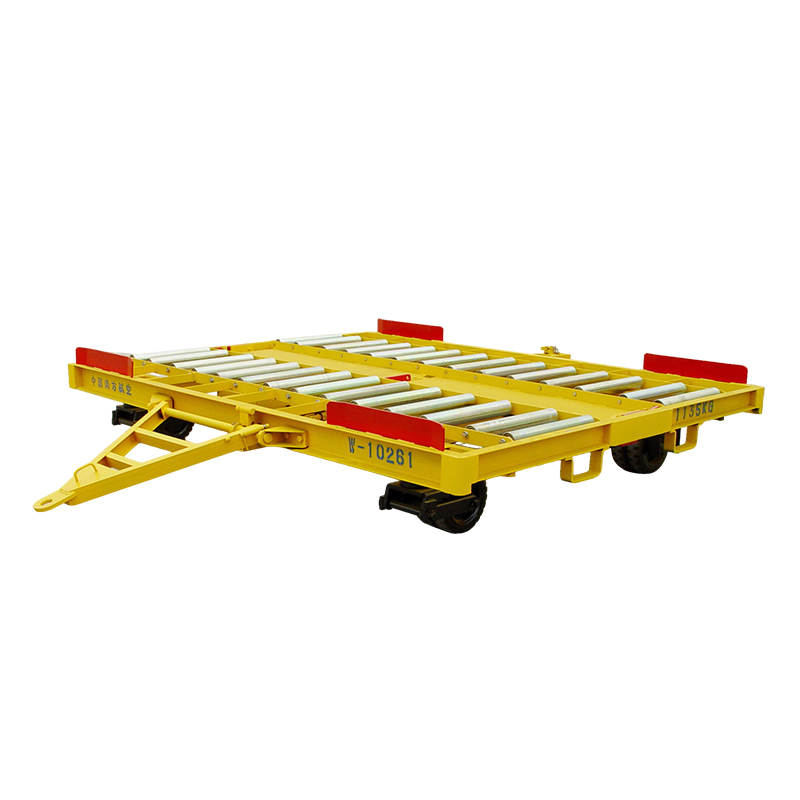

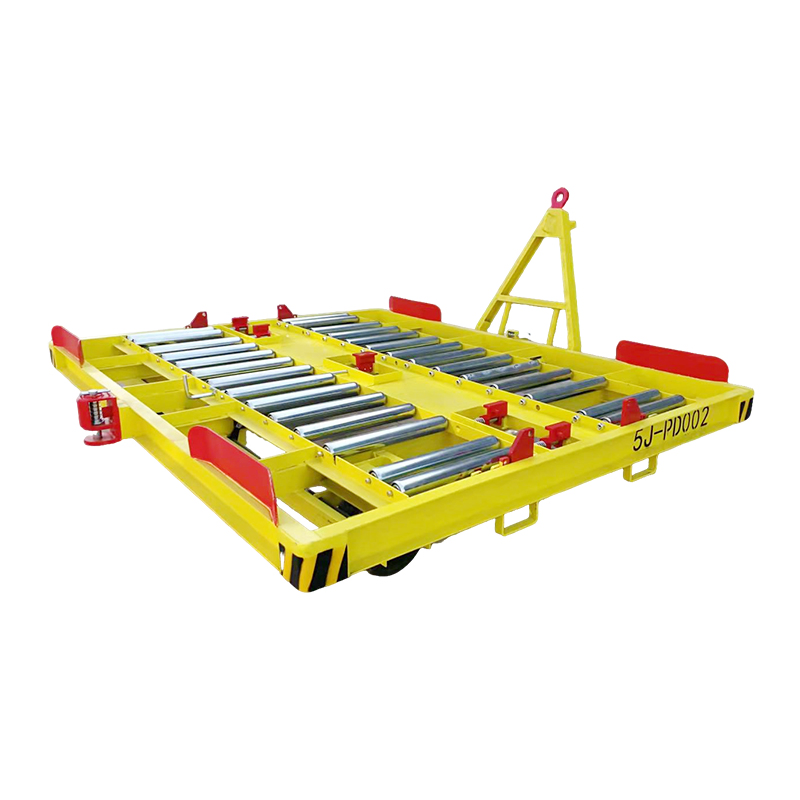

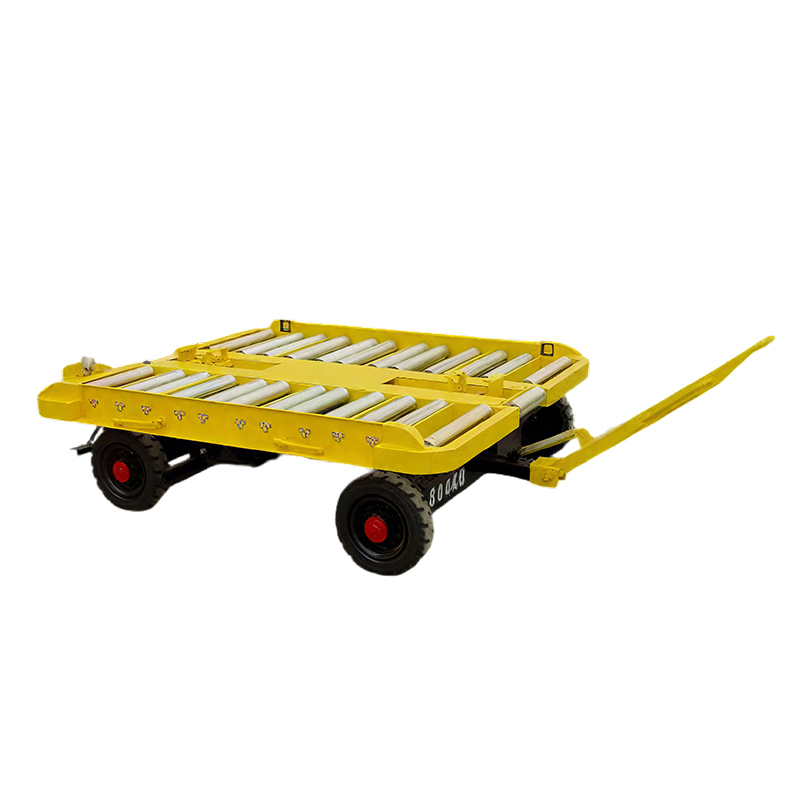

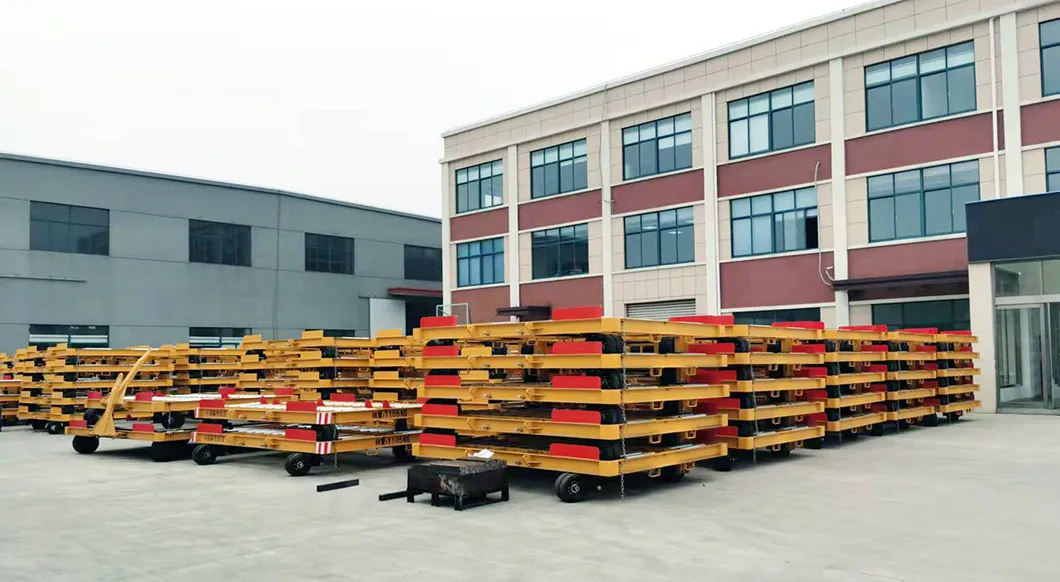

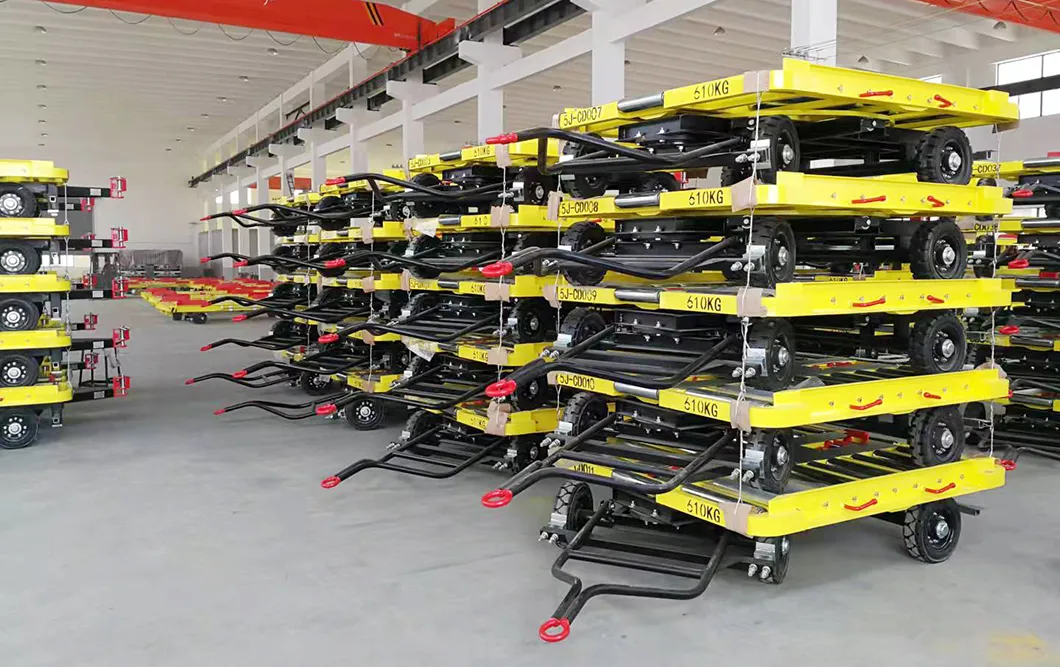

Product Gallery

Why Choose Us

High-quality products offered at reasonable pricing.
Adherence to high-standard production processes.
Utilization of advanced production machinery.
Implementation of a strict quality control system.
Dedicated research and development team.
Professional sales and export experience worldwide.
Comprehensive one-step solution services.

Frequently Asked Questions

Q1: What is the maximum load capacity of the ACD-70 dolly? The ACD-70 model is designed to handle a maximum rated load of 7000kg, making it ideal for heavy-duty aviation pallets and containers.

Q2: What materials are used in the frame construction? The frame is constructed using high-strength 16#, 12#, and 10# channel steel to ensure structural integrity and long-term durability in airport environments.

Q3: Are the rollers protected against rust and corrosion? Yes, all rollers are manufactured from seamless steel pipes and undergo a professional galvanizing treatment to prevent corrosion and extend service life.

Q4: Does the dolly include safety braking features? Yes, the tow bar is designed to serve both as a linkage for multi-dolly towing and as a mechanism for brake functions.

Q5: Can this dolly be moved by a forklift? Absolutely. The design includes built-in fork tynes on both sides to support easy forklift handling and positioning.

Q6: What is the recommended operational speed? The equipment is rated for a safe operational speed of up to 25km/h during transport operations.
