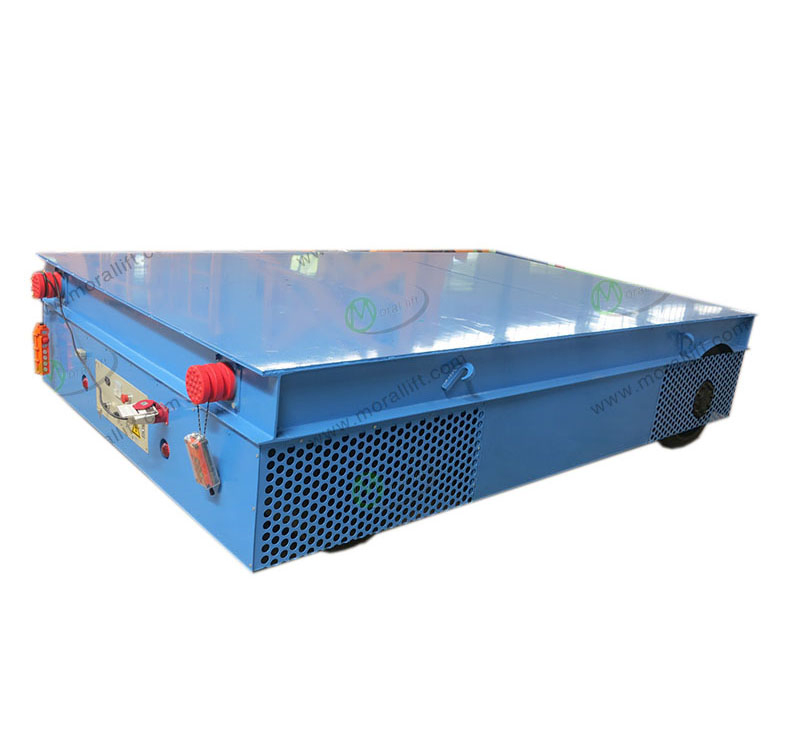

Big Mineral Factory Battery Transport Dolly

1 / 5

Big Mineral Factory Battery Transport Dolly

Customization:	Available
After-sales Service:	online service
Warranty:	12 months

Send Inquiry

Product Description

Basic Specifications

Model NO.	KPX
Product Name	Transfer cart
Rated load	50ton
Table size	55002500650mm
Running Speed(min)	20 m/min
Motor Power	5.5kw
Battery(V)	48V
Recommended Rail Model	P43
Rail Inner Gauge	1435mm
Wheel Base	3200mm
Wheel Diameter	500mm
Transport Package	Plywood Package
Origin	China
HS Code	842890
Production Capacity	30sets/Month

Big Mineral Factory Battery Transport Dolly

✔

Safe & Flexible: KPX series offers enhanced safety and operational flexibility.

✔

Versatile Railing: No strict requirements for railway construction.

✔

Unlimited Distance: No limit on total running distance.

✔

Wireless Design: Safe operation as there are no external wires.

✔

Adjustable Speed: Fully controllable movement speeds.

Working Principle

This Rail Transfer Heavy Load Mover is powered by an internal battery. The DC motor and gear reducer are managed by a DC control system to drive the wheels, enabling the carriage to start, stop, move forward/backward, and adjust speed smoothly. The KPX flat carts are compatible with both "S" and arc-shaped railways.

Application Areas

This transfer cart is suitable for diverse industries, including:

Steel Mills: Transferring steel structures, pipes, billets, ladles, and coils.
Paper Plants: Moving large paper coils.
Painting & Sand Blasting: Transporting workpieces into specialized processing rooms.
Other Industries: Shipbuilding, quarries, warehouses, and multi-bay workshops.

Detailed Technical Data

Parameters	Value (KPX-50)
Model	KPX-50
Rated Load(t)	50Ton
Table Size(mm)	36002000500
Wheel Base(mm)	2600
Rail Gauge(mm)	1435
Wheel Diameter(mm)	300
Wheel Quantity	4
Ground Clearance(mm)	50
Running Speed(m/min)	0-25
Motor Power	1.6
Battery Capacity(Ah)	160
Battery Voltage(V)	48
Running Time (Full Load)	4.8 Hours
Distance per Charge(Km)	7.2
Max Wheel Load(KN)	42.6
Reference Weight(t)	4.2
Recommended Rail Model	P18

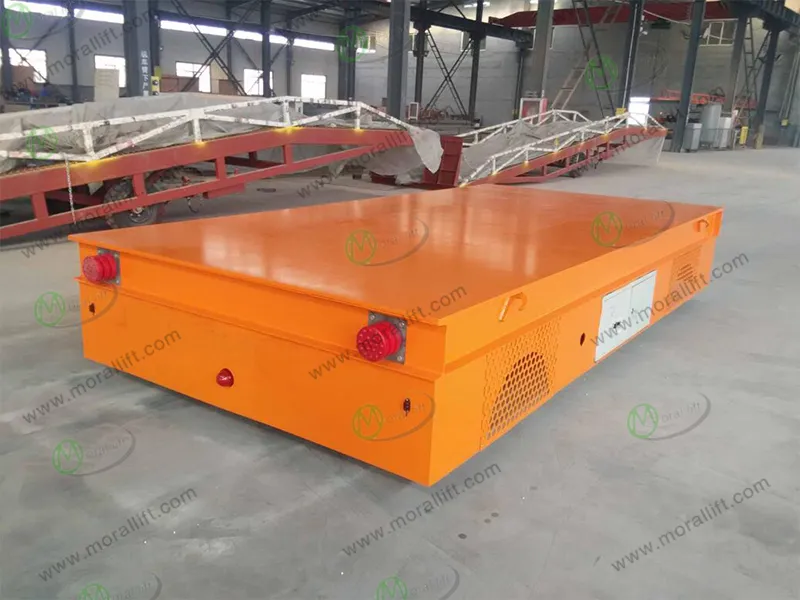

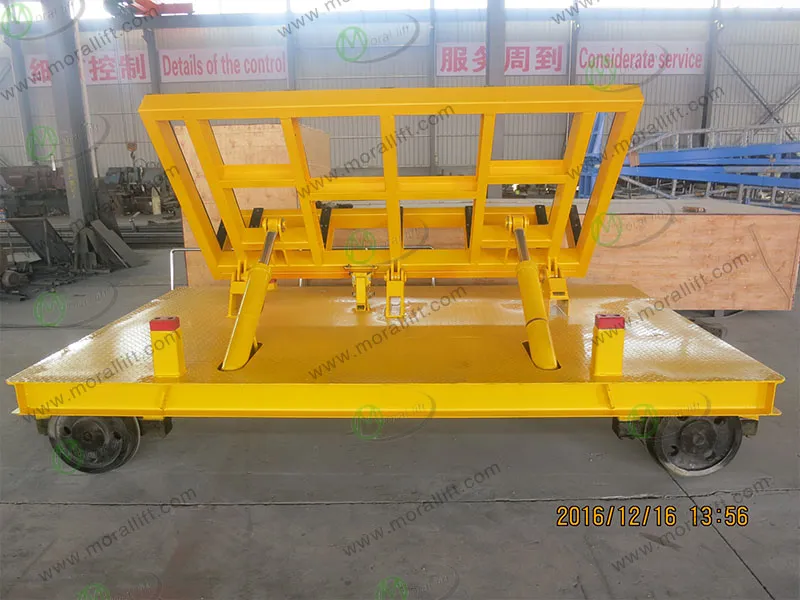

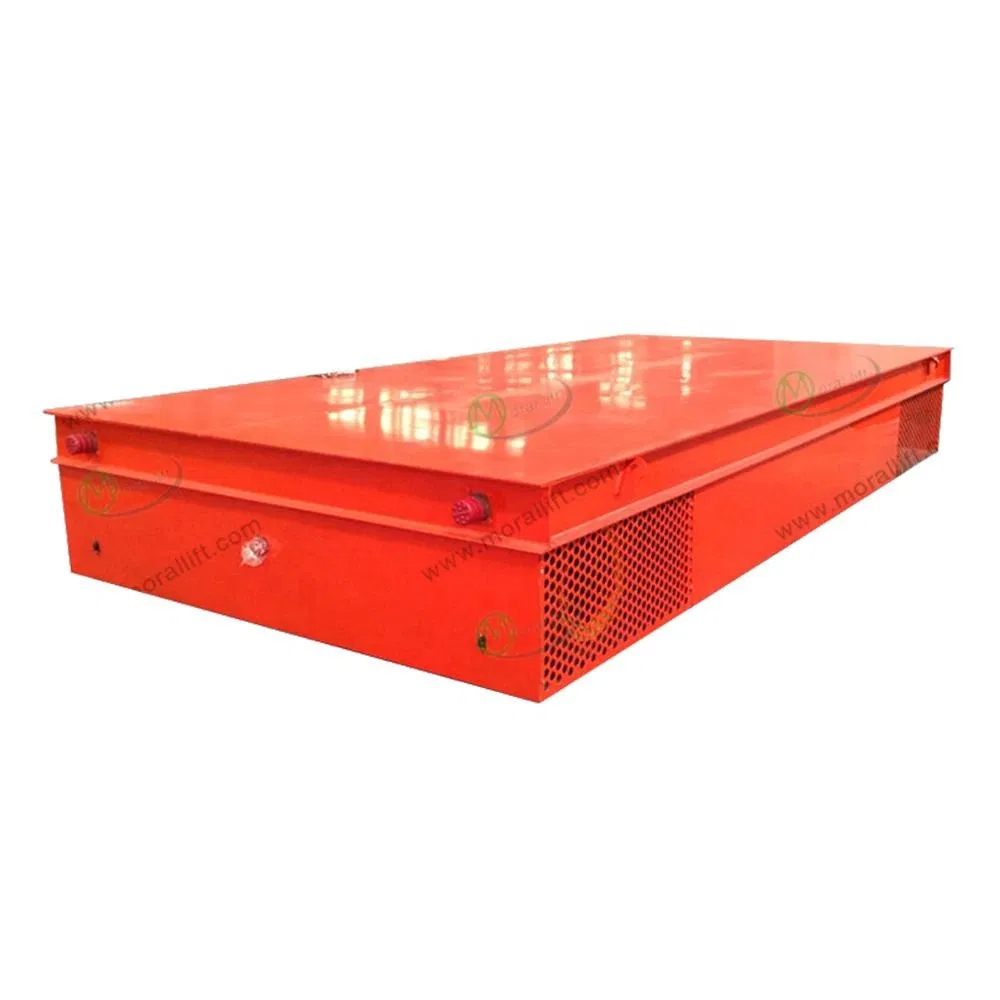

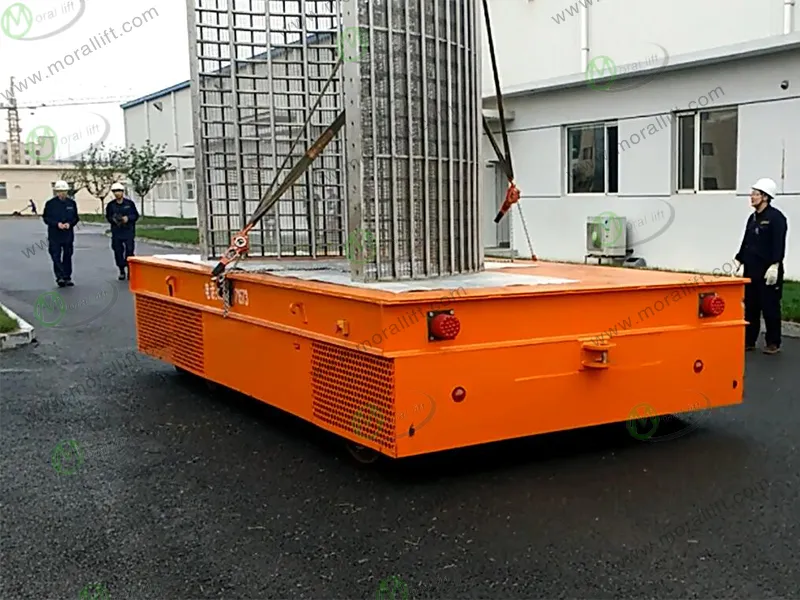

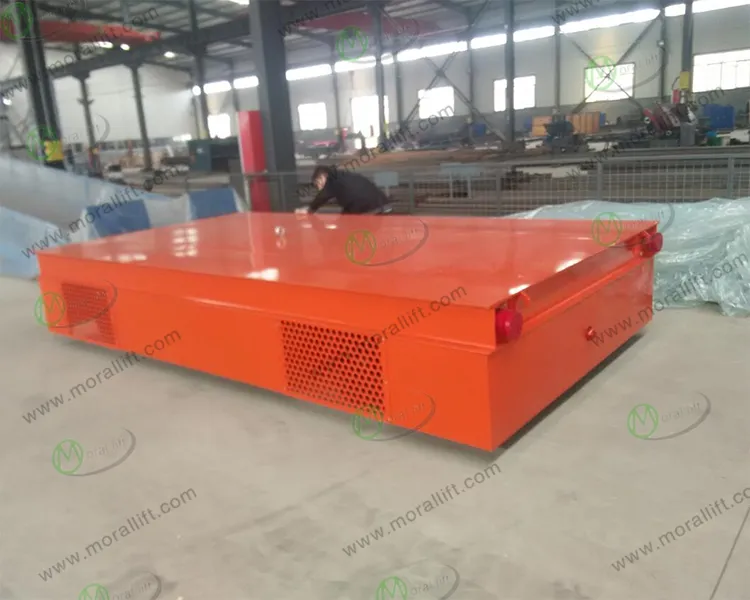

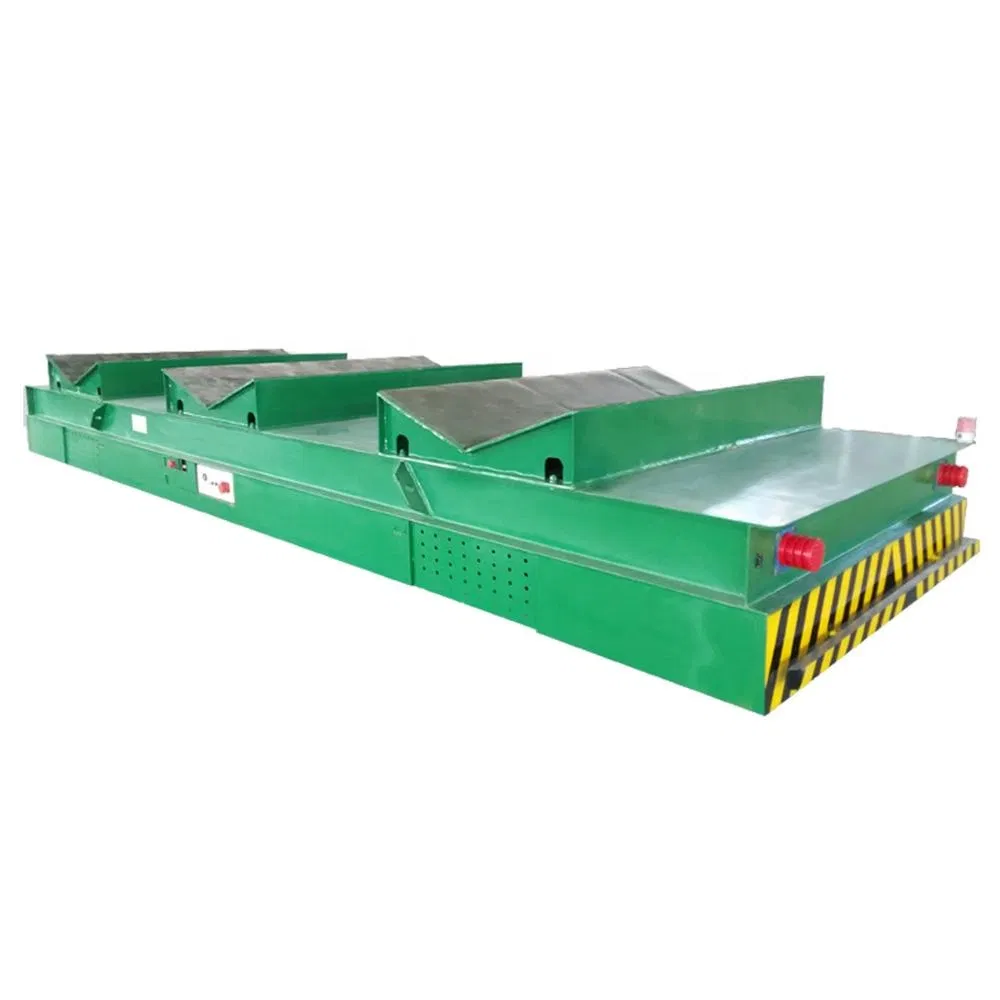

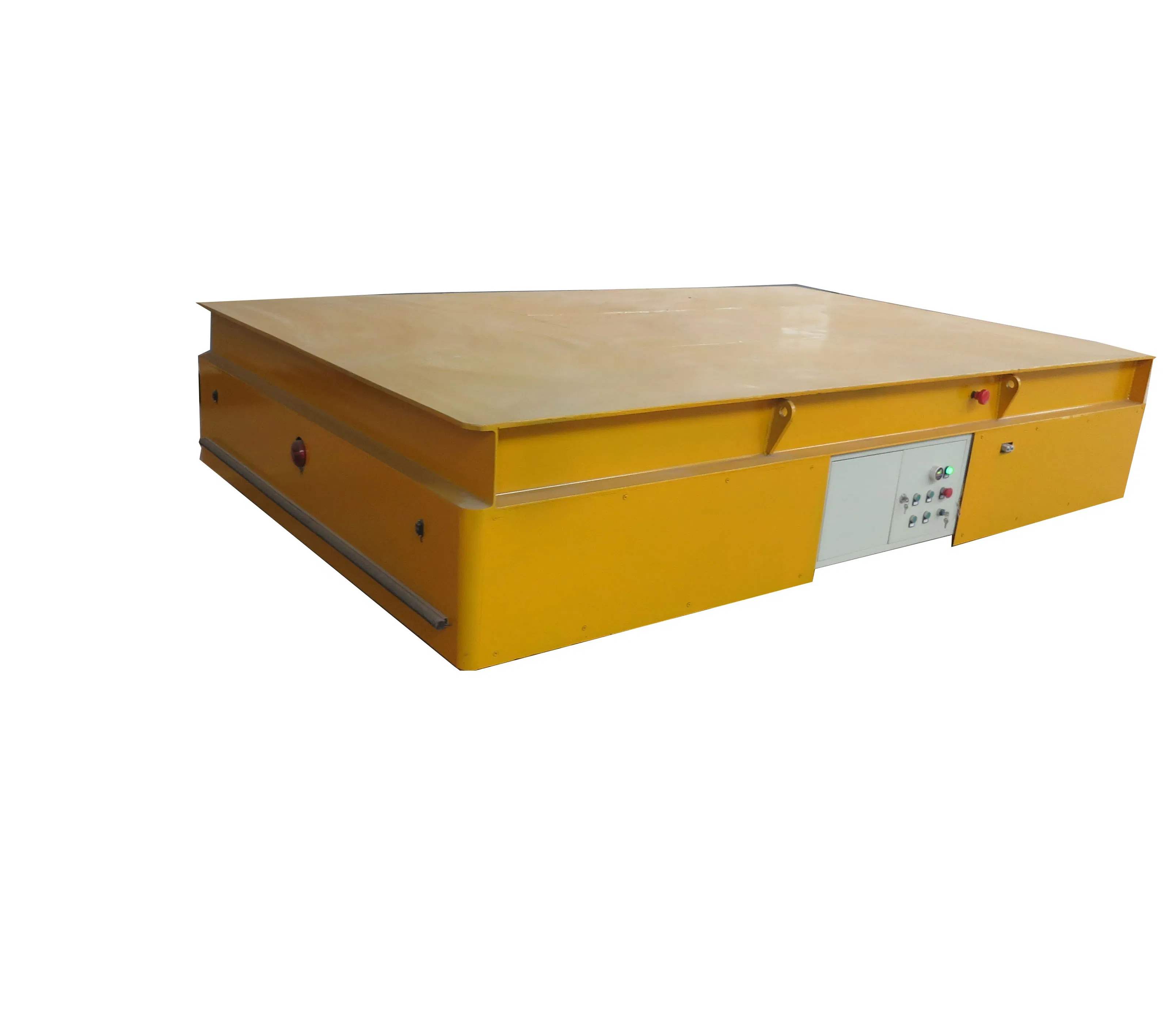

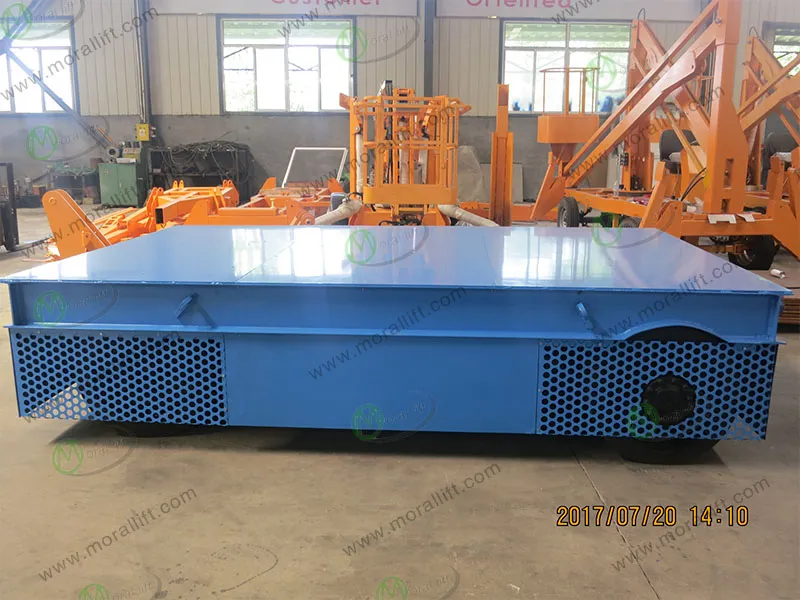

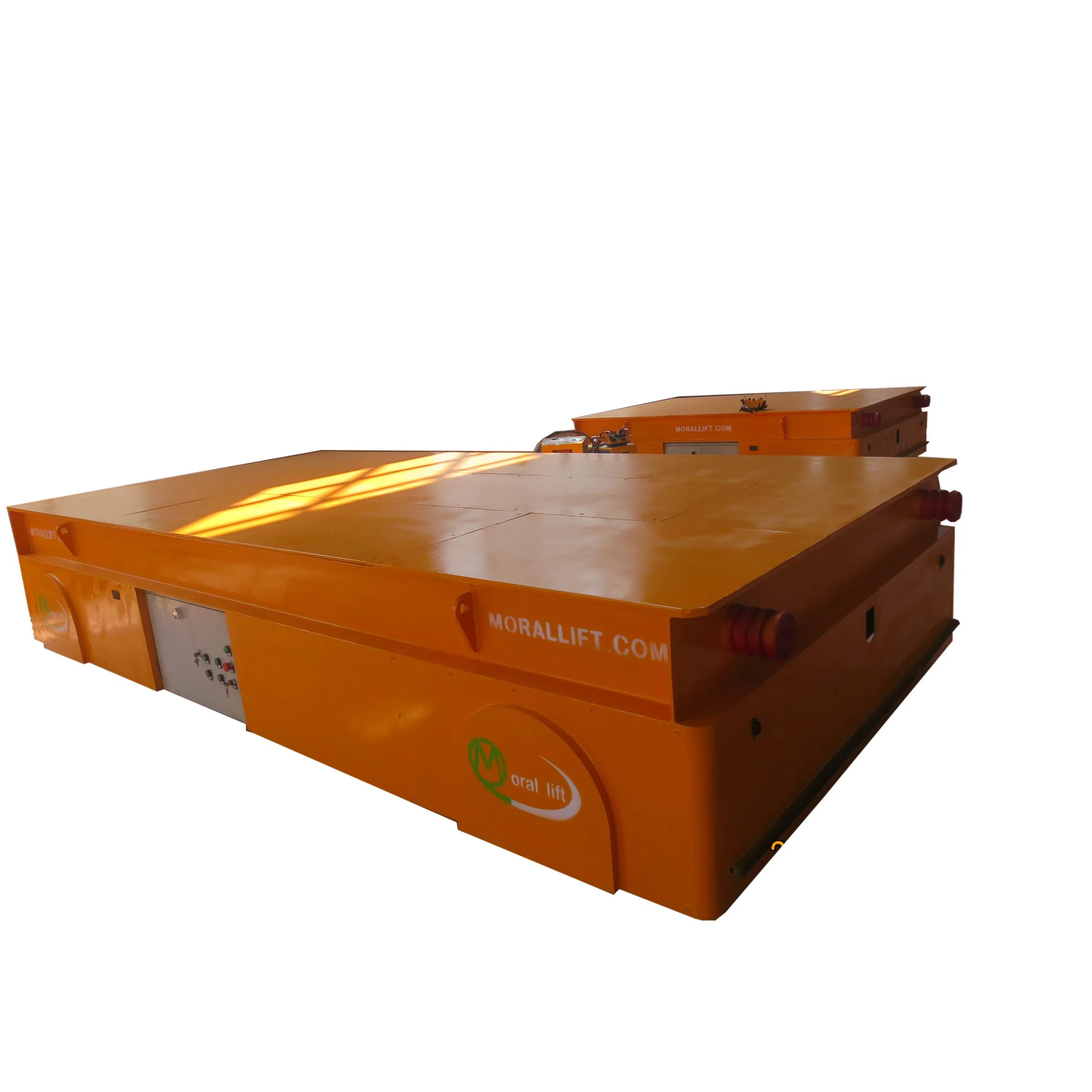

Product Gallery

Frequently Asked Questions

Q1: What is the main power source for the KPX series transfer cart? The KPX series transfer carts are powered by lead-acid batteries installed within the cart, providing a clean and cable-free energy source.

Q2: Can the transfer dolly operate on curved tracks? Yes, the KPX flat carts are designed to be flexible and can operate effectively on both "S" shaped and arc-shaped railways.

Q3: Is there a limit to how far the transfer cart can travel? Unlike cable-powered carts, the battery-powered KPX series has no limit on the running distance, making it ideal for long-range transport within factories.

Q4: What safety features does the transport dolly include? The cart features a safe and convenient operation due to the absence of external wires, along with a DC control system for precise starts, stops, and speed adjustments.

Q5: Which industries commonly use these rail transfer carts? They are widely used in steel mills, paper plants, painting shops, shipbuilding, quarries, and general warehouses for heavy-load movement.

Q6: What is the maintenance requirement for the battery? The battery requires regular charging. The system is designed for high efficiency, providing approximately 7.2km of travel or 4.8 hours of operation on a full charge under full load.
