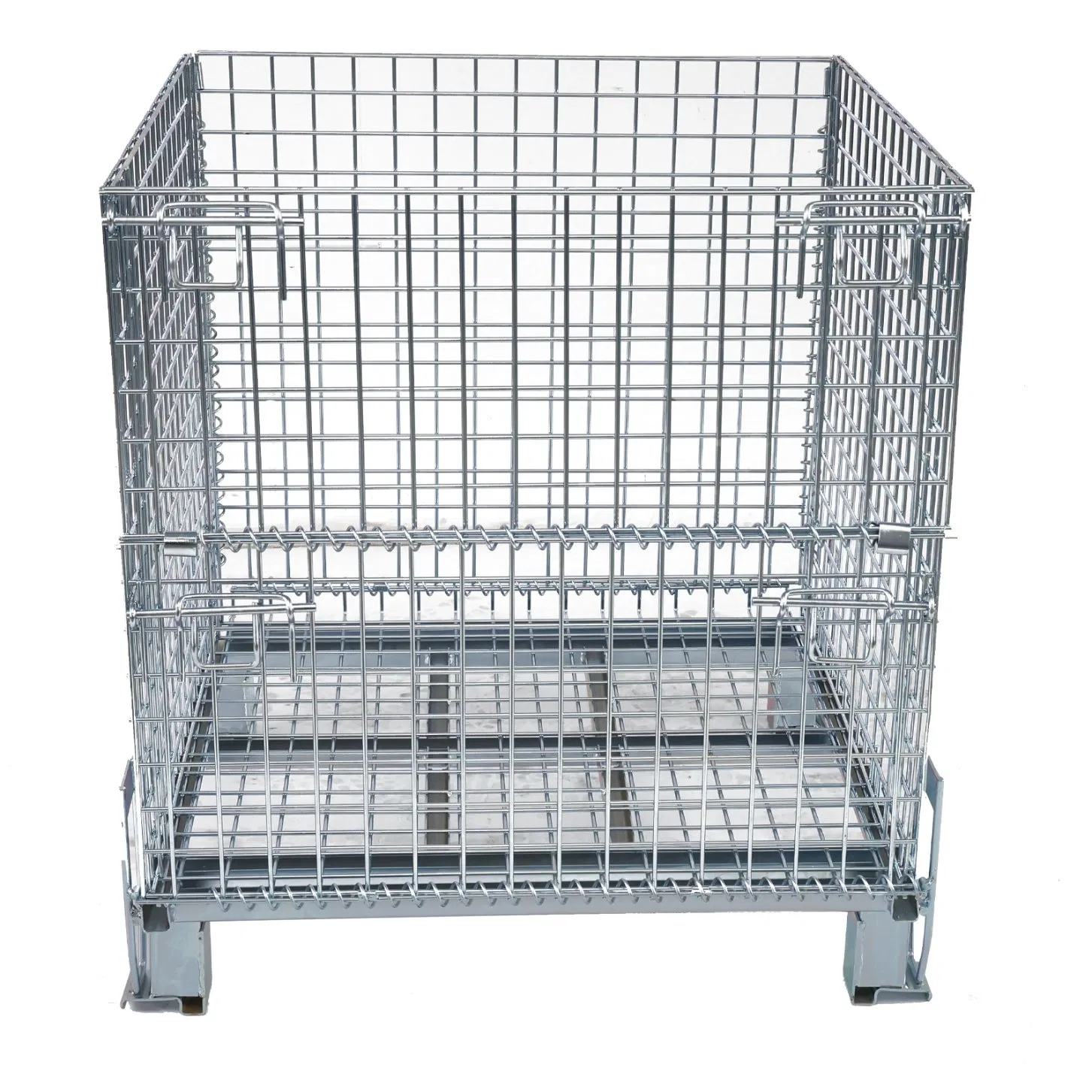

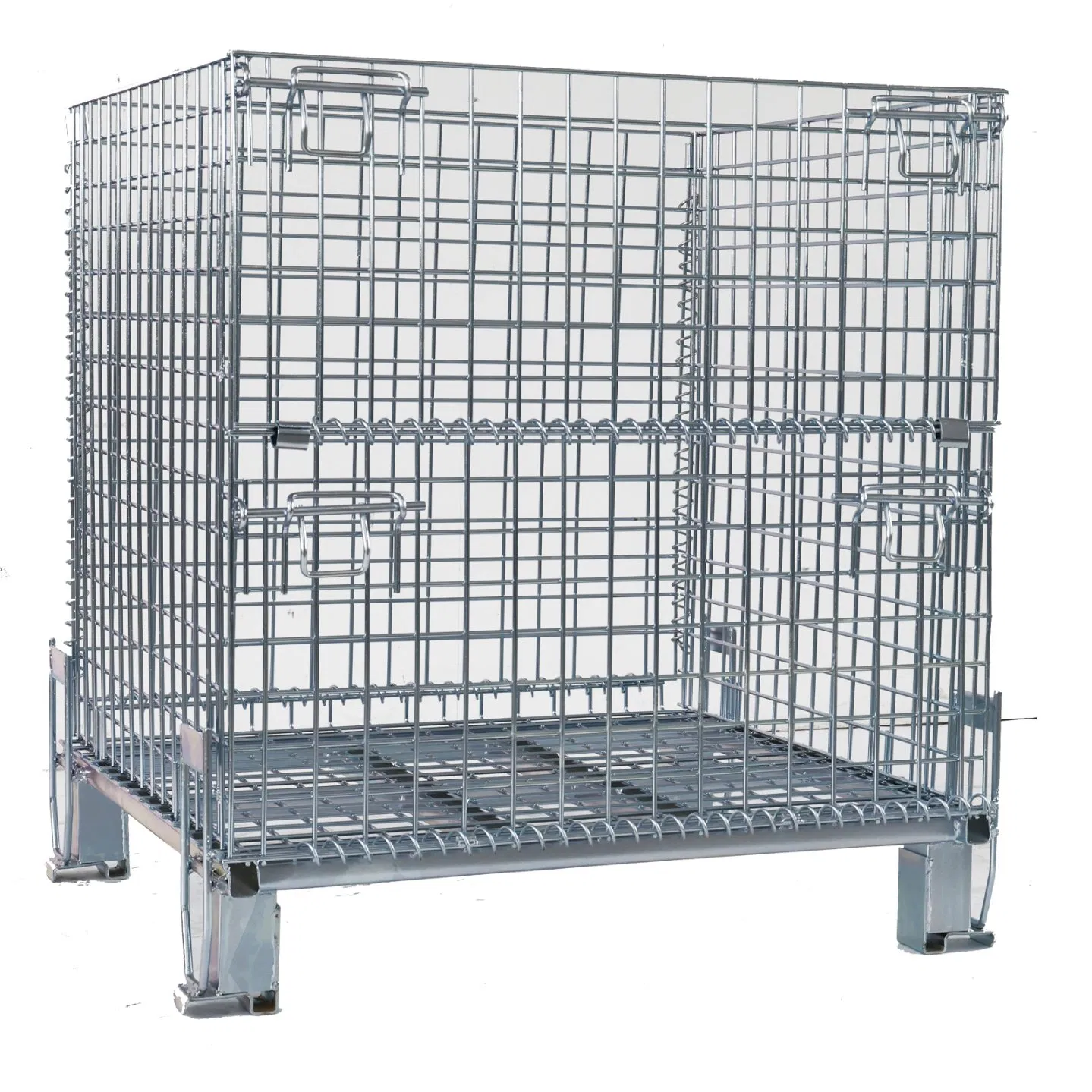

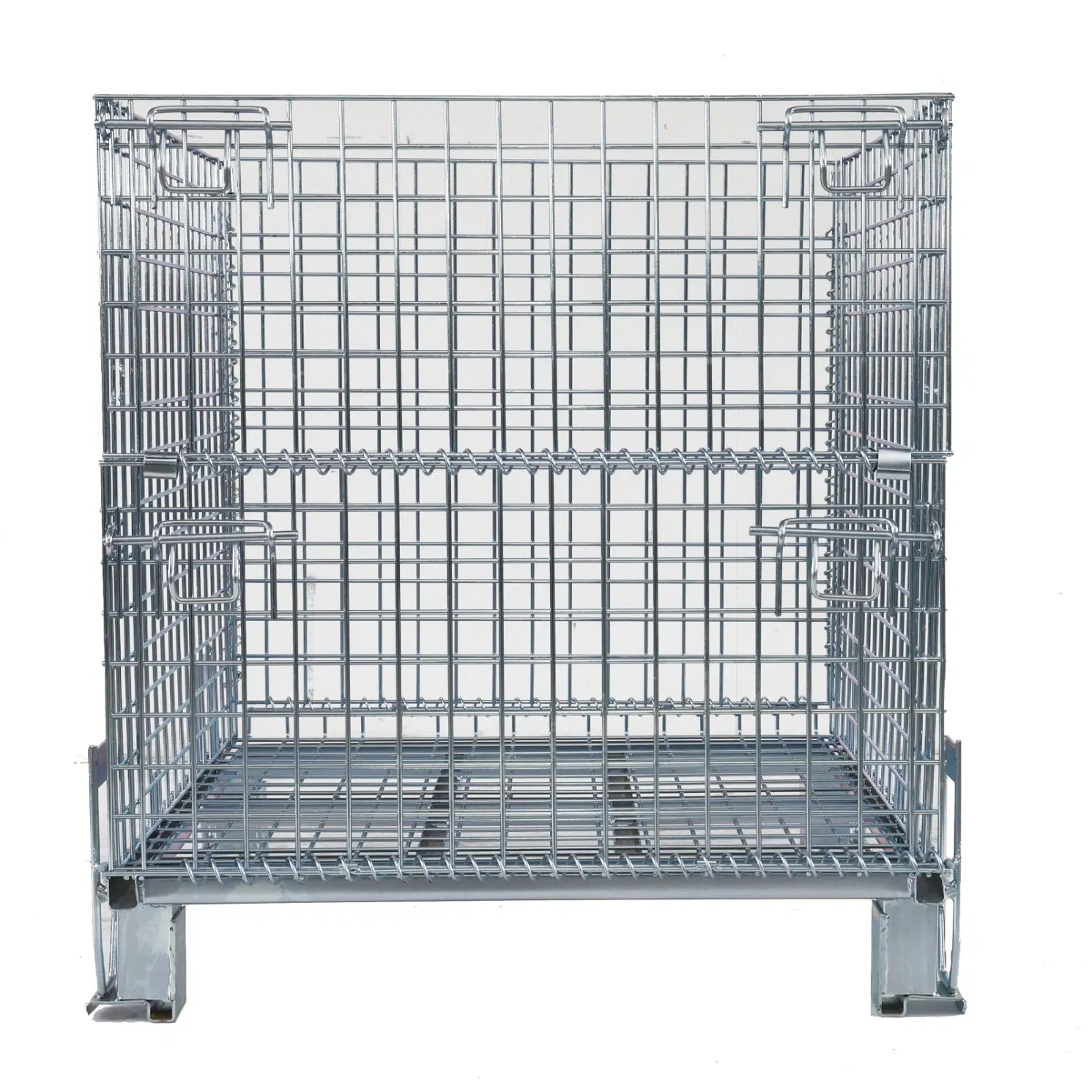

Space-Saving Collapsible Wire Mesh Storage Box for Warehousing

1 / 5

Space-Saving Collapsible Wire Mesh Storage Box for Warehousing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Type

Foldable Storage Cage

Size

1000mm*800mm

Load Capacity

1000kg

Status

Folded / Collapsible

Mesh Spacing

50mm×50mm

Wire Diameter

5.5 / 5.8 mm

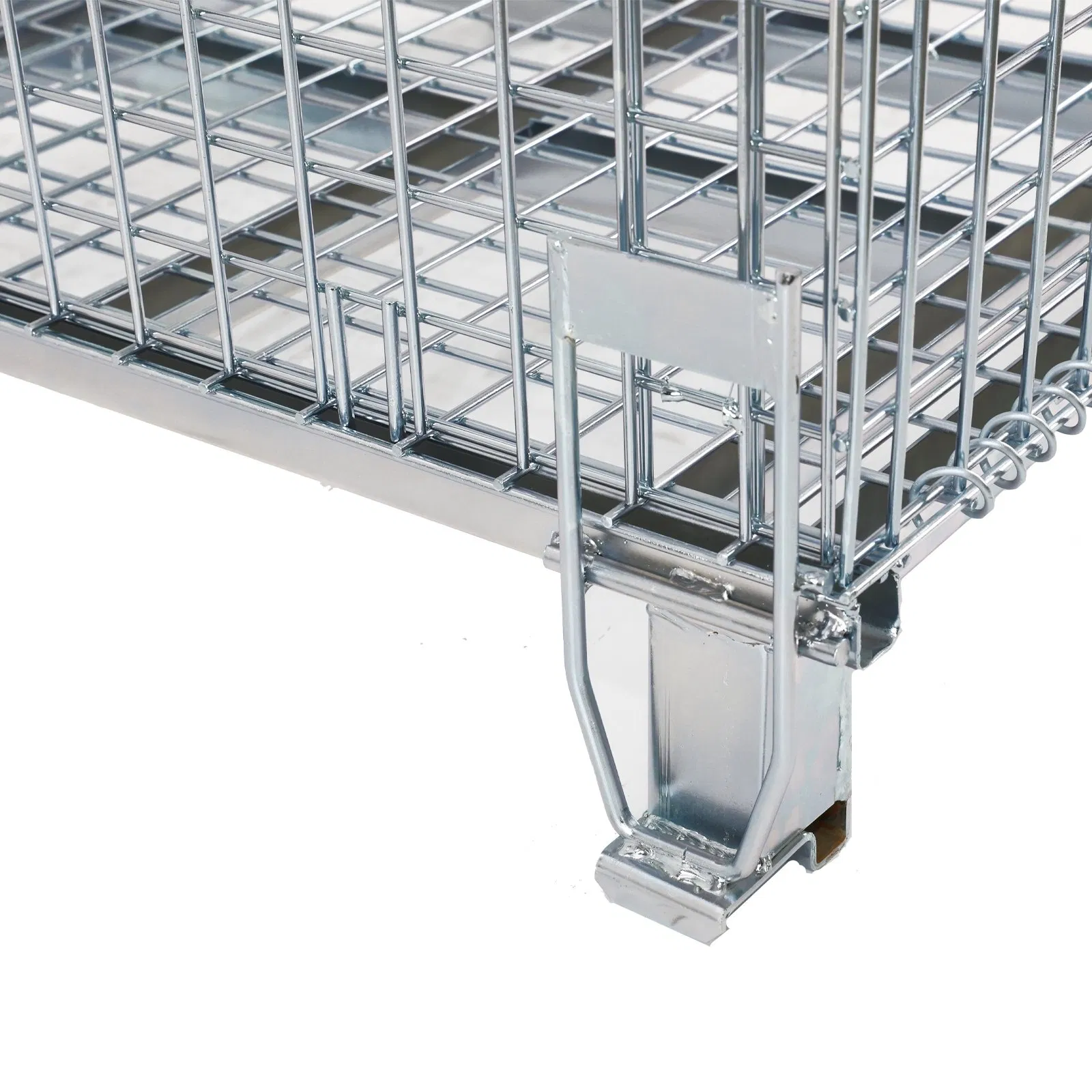

Feet Height

100mm

Scale

Heavy Duty

Welding

Full Welding

Finish

Zinc/Hot DIP Galvanized/Powder Coating

Application

Industrial, Warehouse, Logistics

Production Capacity

12000 Sets / Month

Packaging & Delivery

Package Size

123.00cm * 100.00cm * 95.00cm

Gross Weight

66.000kg

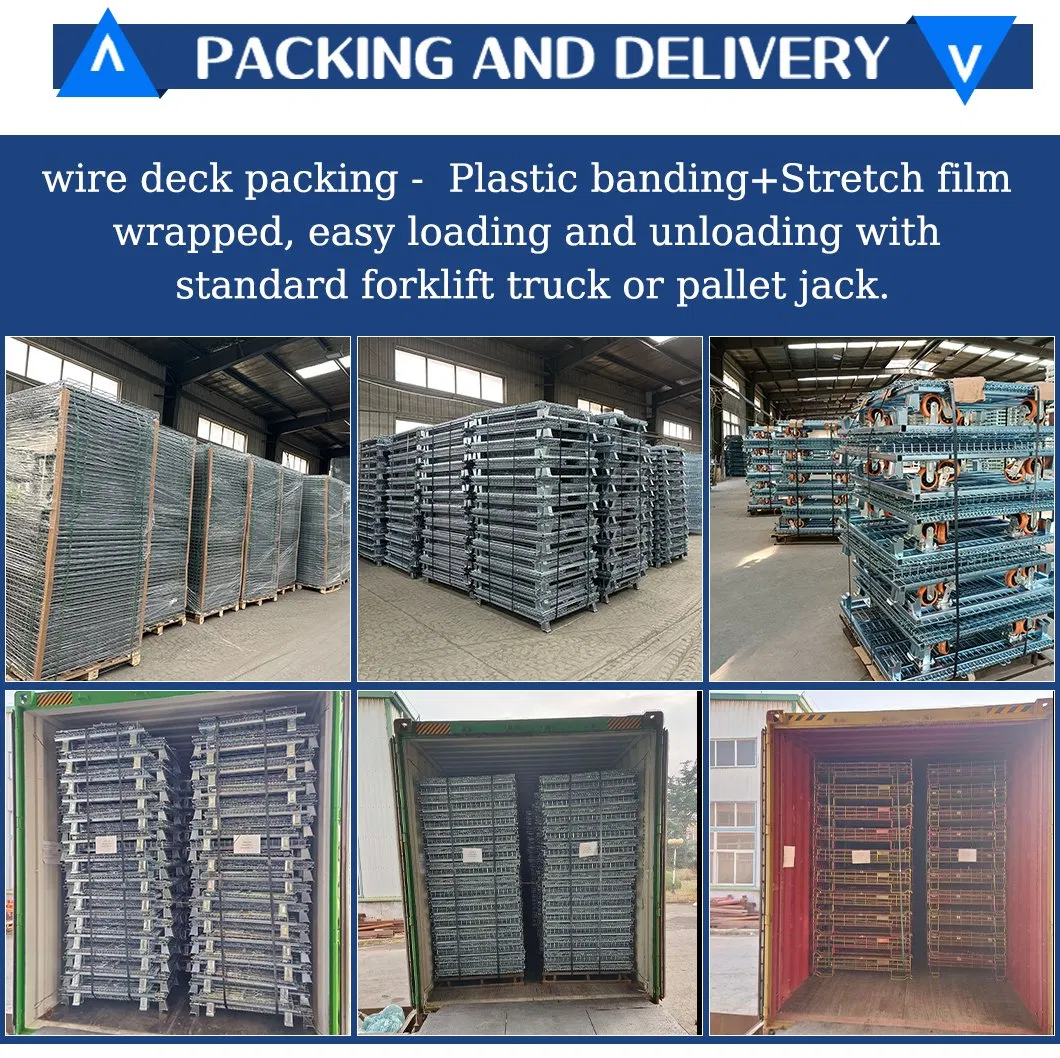

Transport Package

Plastic Banding + Stretch Film Wrapped, Easy Loading

Product Specifications

MODEL	Exterior Dimension (mm)			Wire Diameter (mm)	Grid Dimension (mm)	Loading Capacity (kg)	Weight (kg)	Quantity/40HQ
MODEL	L	W	H	Wire Diameter (mm)	Grid Dimension (mm)	Loading Capacity (kg)	Weight (kg)	Quantity/40HQ
JM-EU001	1140	830	980	12-5.0	55*113	800	53.0	332
JM-EU005	1200	920	1018	12-5.0	51*118	800	58.0	228
JM-EU008	1220	940	1025	12-5.0	55*102	800	73.0	210
JM-EU010	1200	925	1000	11-5.0	62*115	800	50.0	253
JM-EU017	1200	1000	1000	10-5.0	65*120	500	50.5	276
JM-EU018	1200	800	1000	12-5.0	65*120	500	47.0	276
JM-EU021	1168	850	988	8-5.8	50*110	400	46.5	340
JM-EU022	1200	1000	1200	4.8-12	62*125	30	69.0	168
JM-EU028	1200	1010	1200	5-12	62*125	800	73.5	168
JM-EU0SP	1220	820	1000	5-10	65*120	800	55.0	207

Technical Details & Features

Material

Mild steel Q235

Application Area

Warehouse, logistics, and recycling industry

Key Features:

Welded wire mesh structure
Stackable, collapsible, folds flat to save space
Drop gate for easy access when stacked
Easy fork access from all sides
Lowest maintenance cost
Large range of available sizes and loading capacity available

Wine Storage Specialized Loading:

• EU001 and EU010: Ideal for "Bourgogne" bottles, loads up to 500 bottles.

• EU005: Designed for "Bordeaux" bottles, loads up to 400 bottles.

• EU016: Optimized for "champagne" bottles, loads 500 (horizontal) or 339 (inverted).

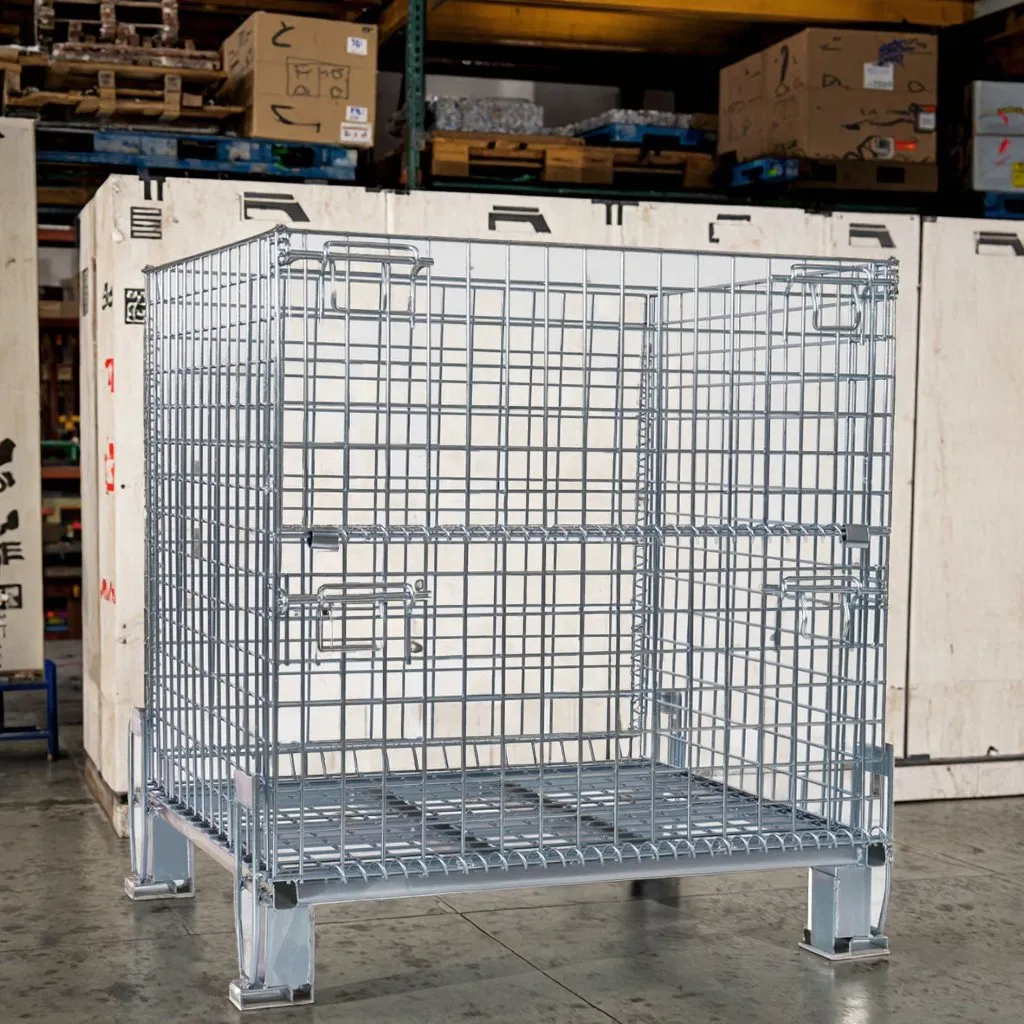

Product Display

Frequently Asked Questions

Q1: What are the main benefits of using a foldable storage cage?

A: These cages offer a welded wire mesh structure that is both strong and durable. Their foldable and collapsible design allows them to be folded flat when not in use, significantly saving storage and return transport space.

Q2: Can these wire mesh cages be stacked when fully loaded?

A: Yes, they are designed to be stackable. The drop gate feature ensures that you can still easily access contents even when the cages are stacked on top of each other.

Q3: What types of surface finishes are available for corrosion resistance?

A: We offer Zinc plating, Hot-DIP Galvanizing, and Powder Coating finishes to provide excellent protection against rust and ensure long-term durability in various industrial environments.

Q4: Are these cages compatible with forklifts?

A: Absolutely. The design includes easy fork access from all sides, making them highly efficient for use with forklifts and other material handling equipment in warehouses.

Q5: Can the cages be customized for specific storage needs?

A: Yes, we support customized and OEM requirements. Accessories such as top lids, dividers (horizontal/vertical), shelves, forklift sleeves, and casters can be added to meet your specific application.

Q6: What is the maximum load capacity for these units?

A: Most of our standard heavy-duty models have a loading capacity of up to 1000kg, making them suitable for heavy industrial parts and logistics operations.
