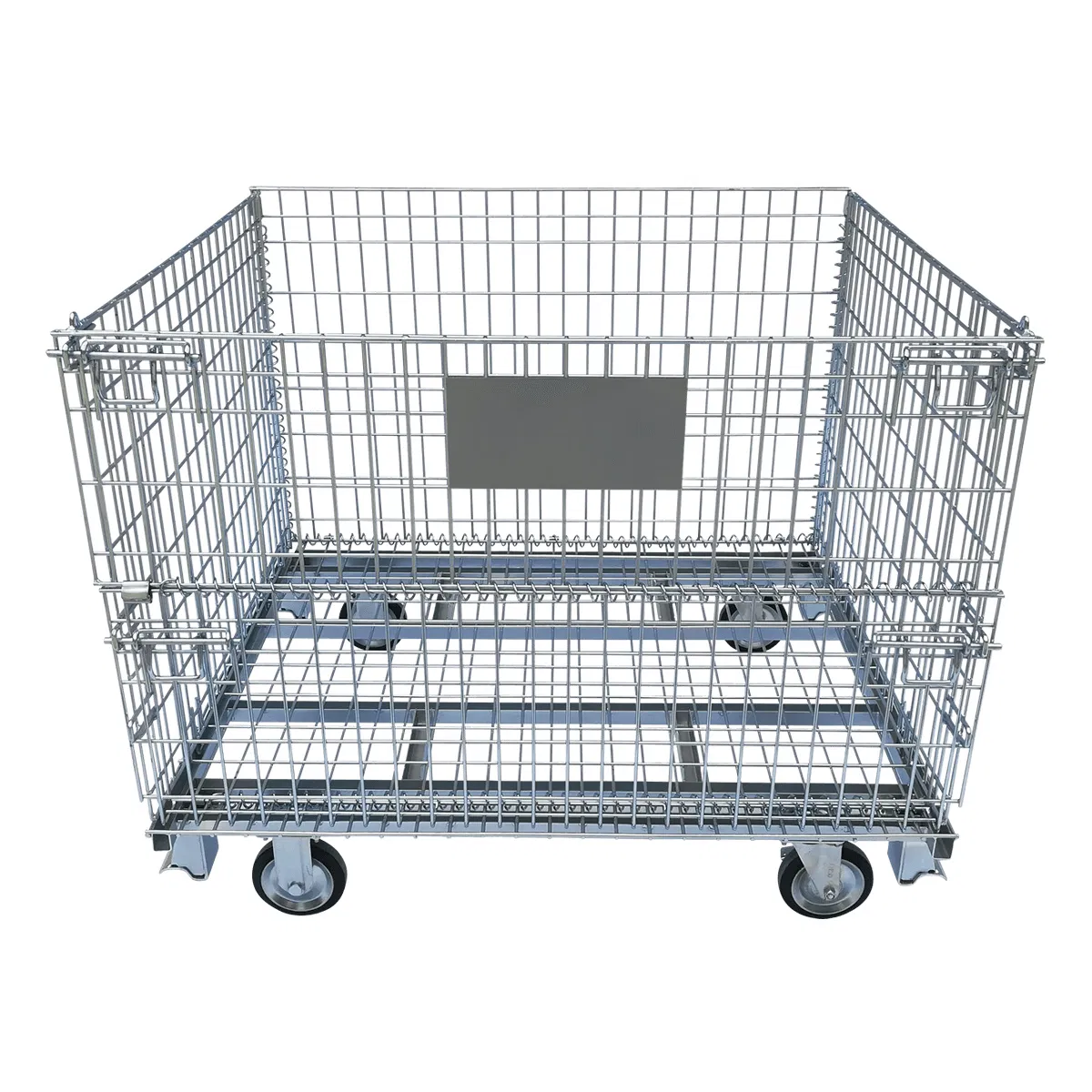

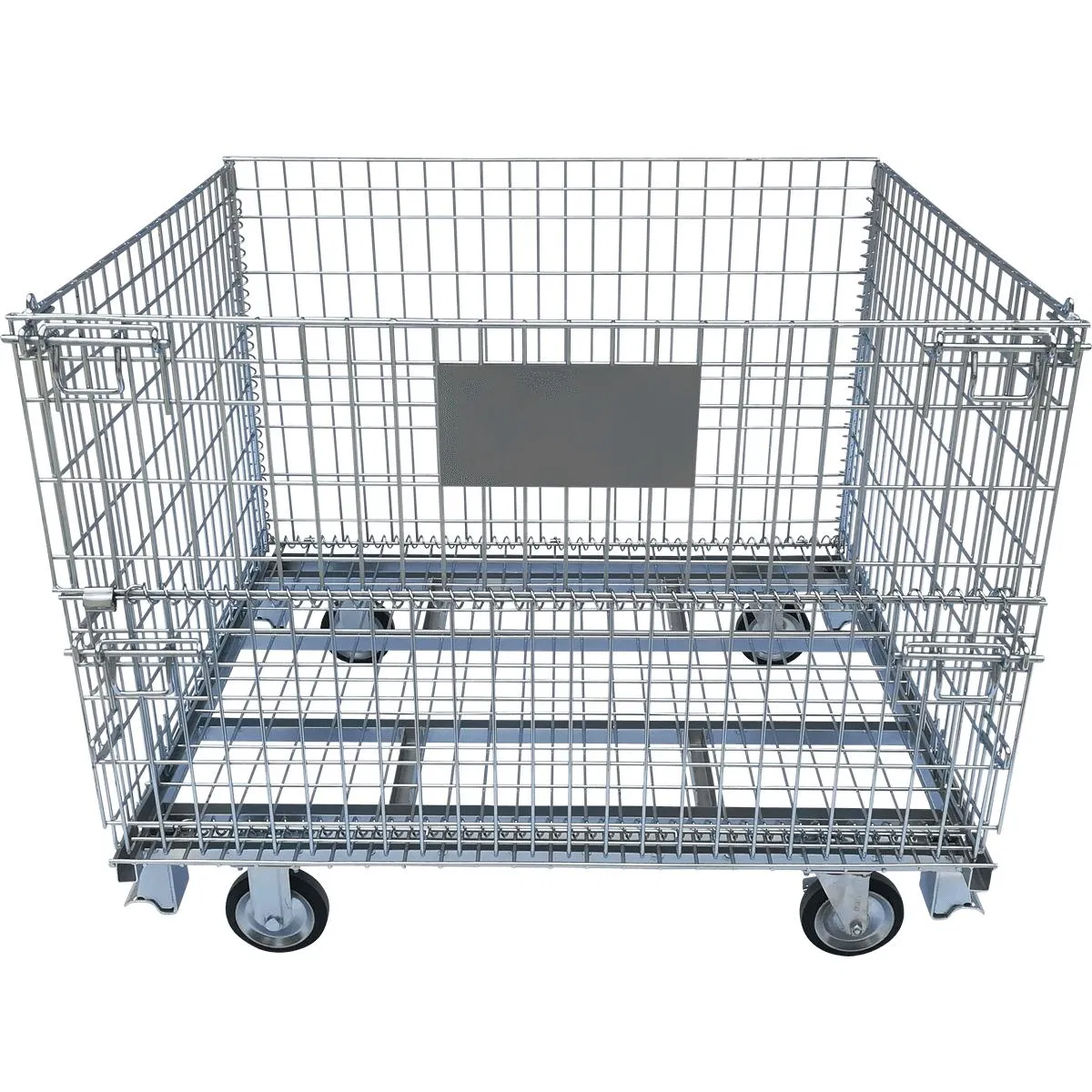

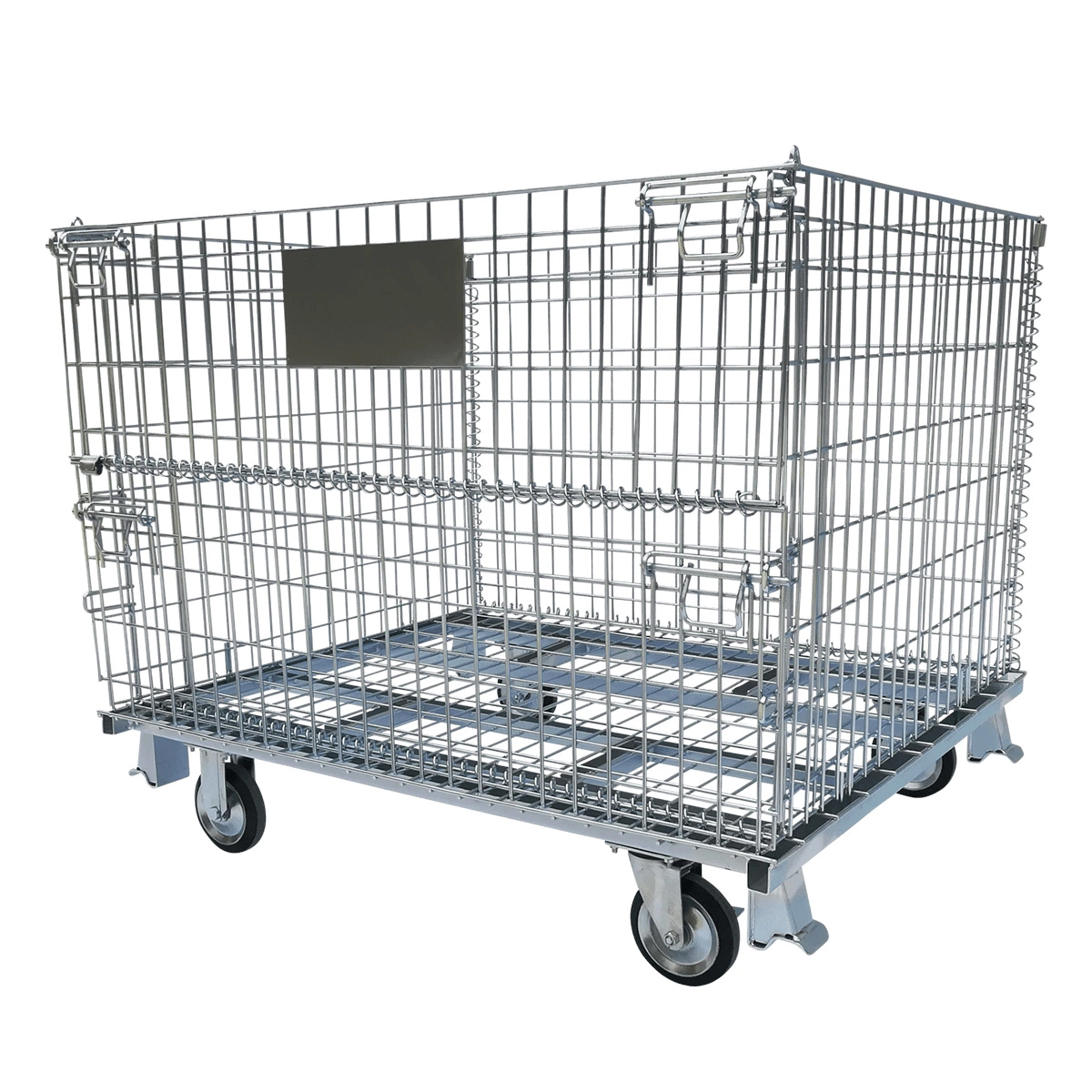

Collapsible Zinc Plated Galvanized Wire Mesh Storage Cage/Wire Mesh Container

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Model NO.FPYX series
TypeFoldable Storage Cage
Size1200mm*1000mm
Load Capacity800kg
FoldedYes
Mesh Spacing50mm×50mm
Wire Diameter4.8mm / 5.8mm
Service Life3 Years +
Surface TreatmentPower Coating / Galvanized
HS Code7326209000
📦

Product Introduction

Wire mesh container is also called storage cages and butterfly cages. They are an important type of logistics container in storage and transportation. They have the advantages of fixed storage capacity, neat stacking, storage at a glance, and easy inventory counting, and also improve the effective utilization of storage space.

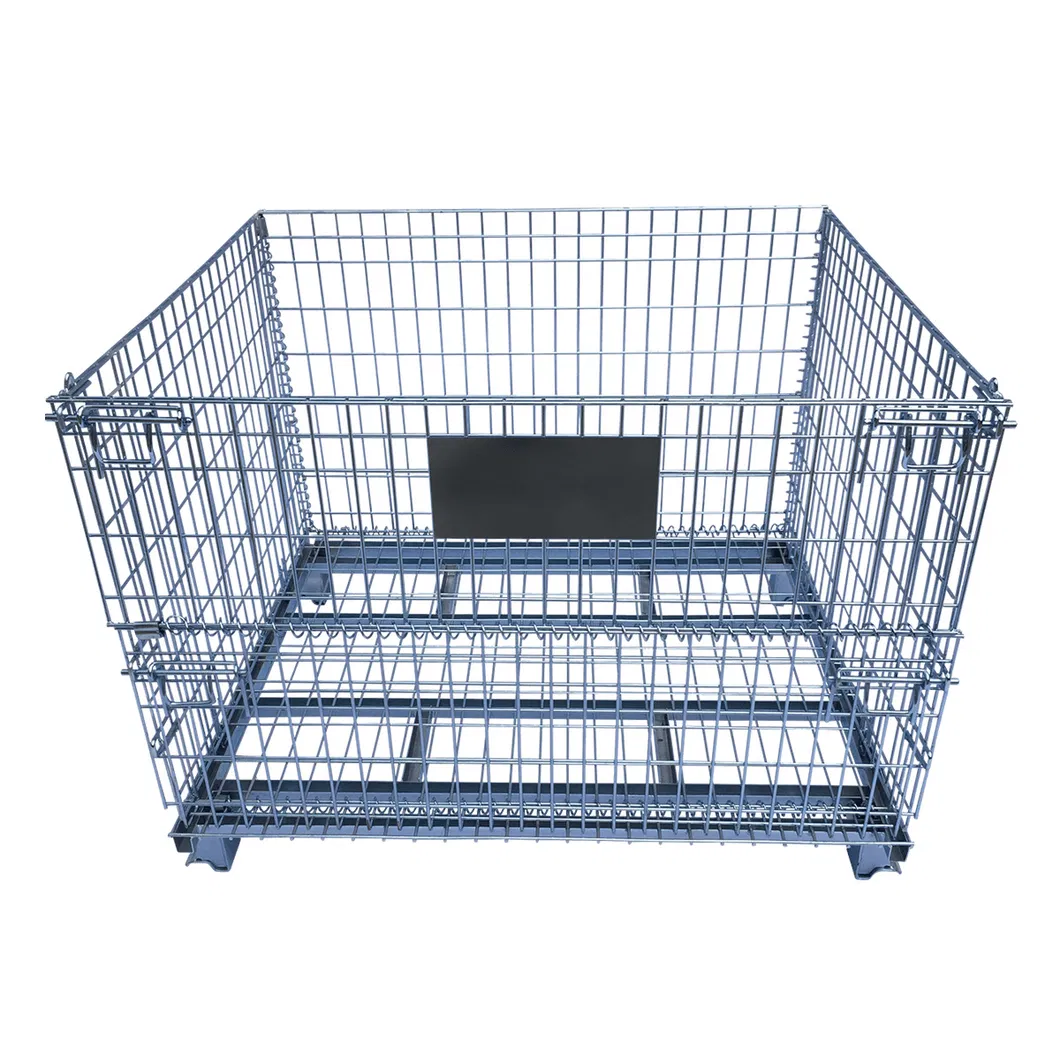

Wire Mesh Container

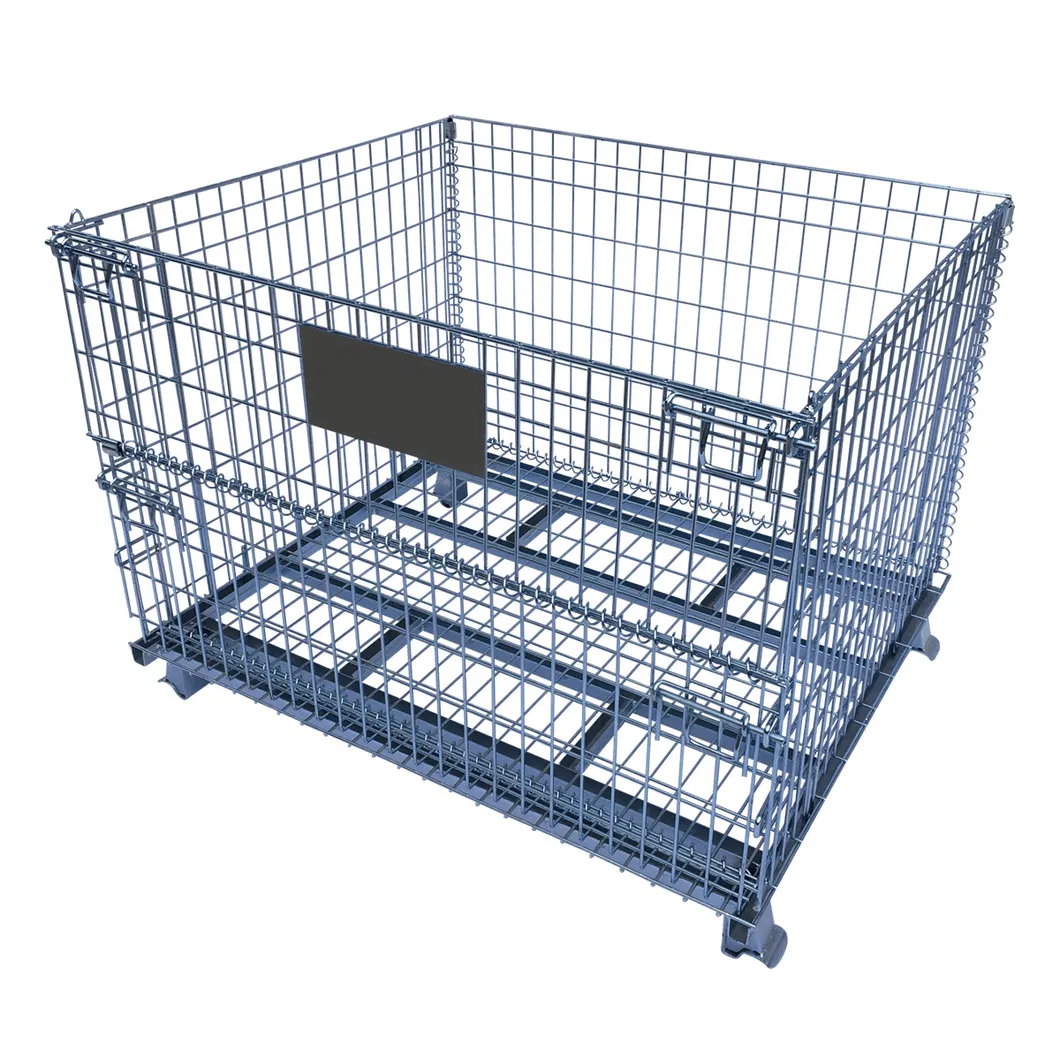

Storage Cage

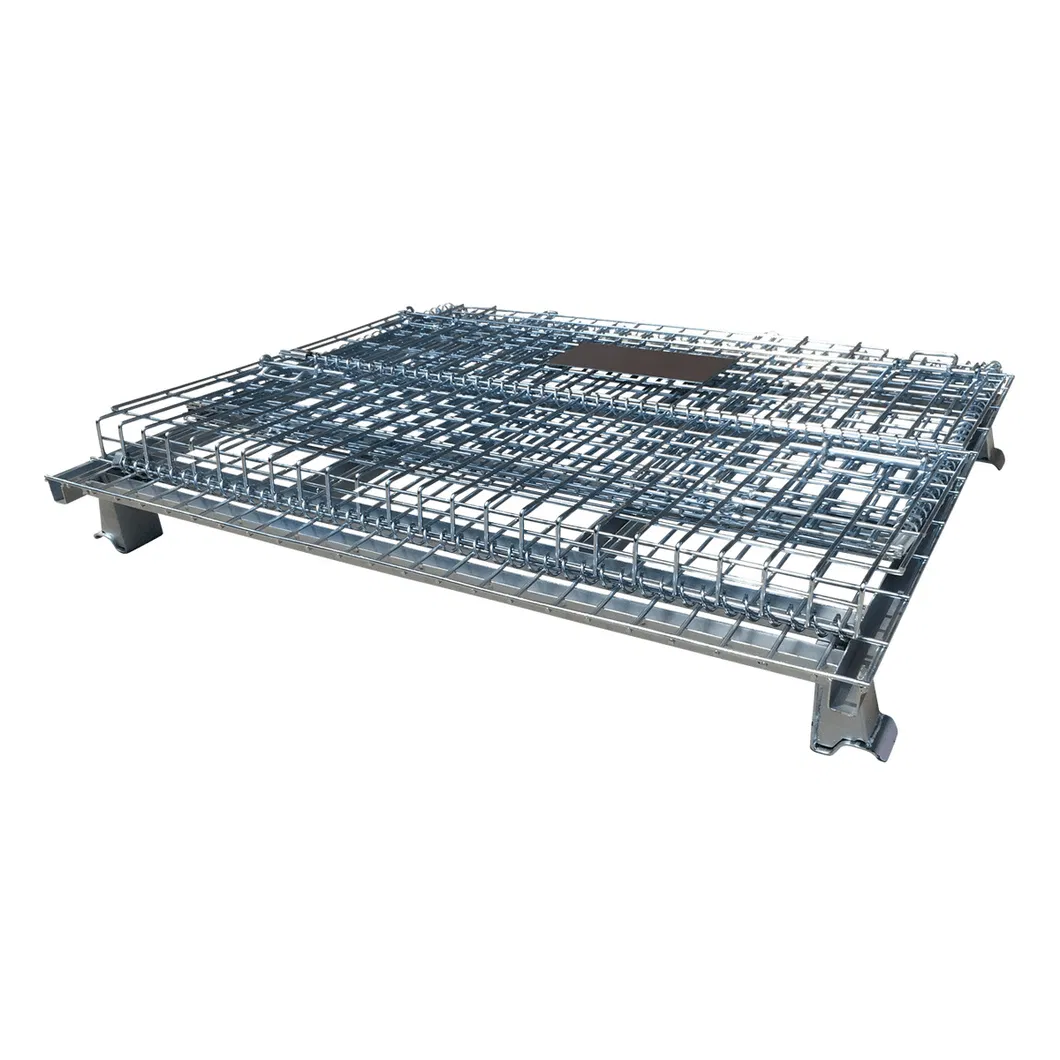

Galvanized Container

The storage cage can be folded freely, and can be folded and stored when not in use, saving space in the warehouse. In addition, the product is durable, easy to transport, and can be reused, which can effectively reduce the manpower consumption and packaging costs of warehousing companies. This product can not only be used in factory production workshops, but also can be used in supermarkets as display promotion and warehousing, and can be used outdoors.

📏

Technical Specifications

Model Wire Dia(mm) Mesh Grid(mm) L * W * H (mm) Foot Height Volume(m³) Load(kg)
FPYA-36.050*50800*600*6401000.22250-2000
FPYA-56.050*501000*800*8401000.54250-2000
FPYB-5(1021A)6.050*501200*1000*8901000.84250-2000
FPYB-5(810)6.350*501000*800*8401000.52250-2000
FPYC-5(810E)5.050*501000*800*8401000.52250-2000

Product Features

  • Able to be conveyed by pallet vehicles, forklift, elevator and crane; up to four layers may be stacked.
  • Easy operation, wide use and long service life.
  • Welded by strong steel bar, "U" shaped channel steel is used at the bottom to increase solidity.
  • Ideal for logistics cycles: transportation, assembly, disassembly, and storage.
  • Cardboard or PVC plates can be equipped to protect materials and prevent small parts from leaking.
🔄

Updated Version: Lid & Wheels

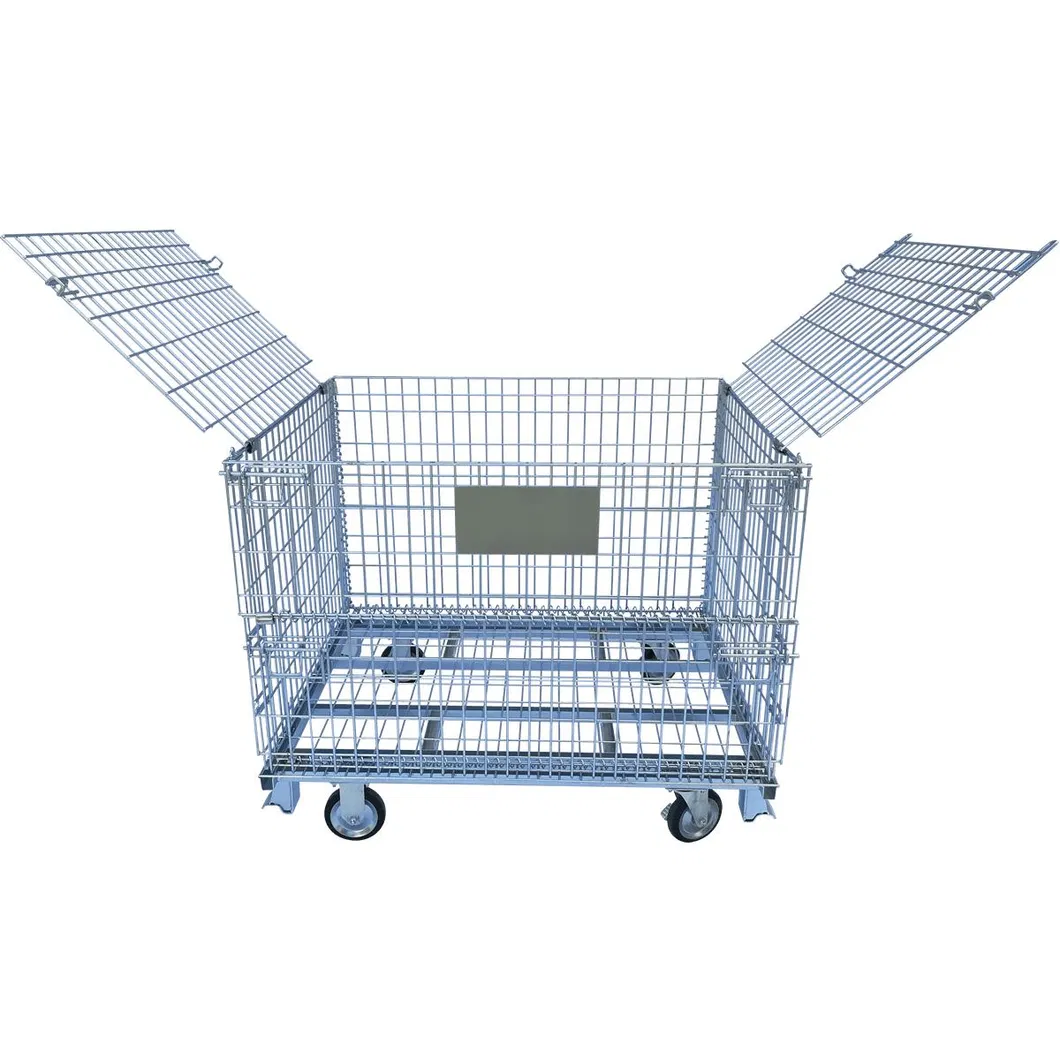

Lid Version

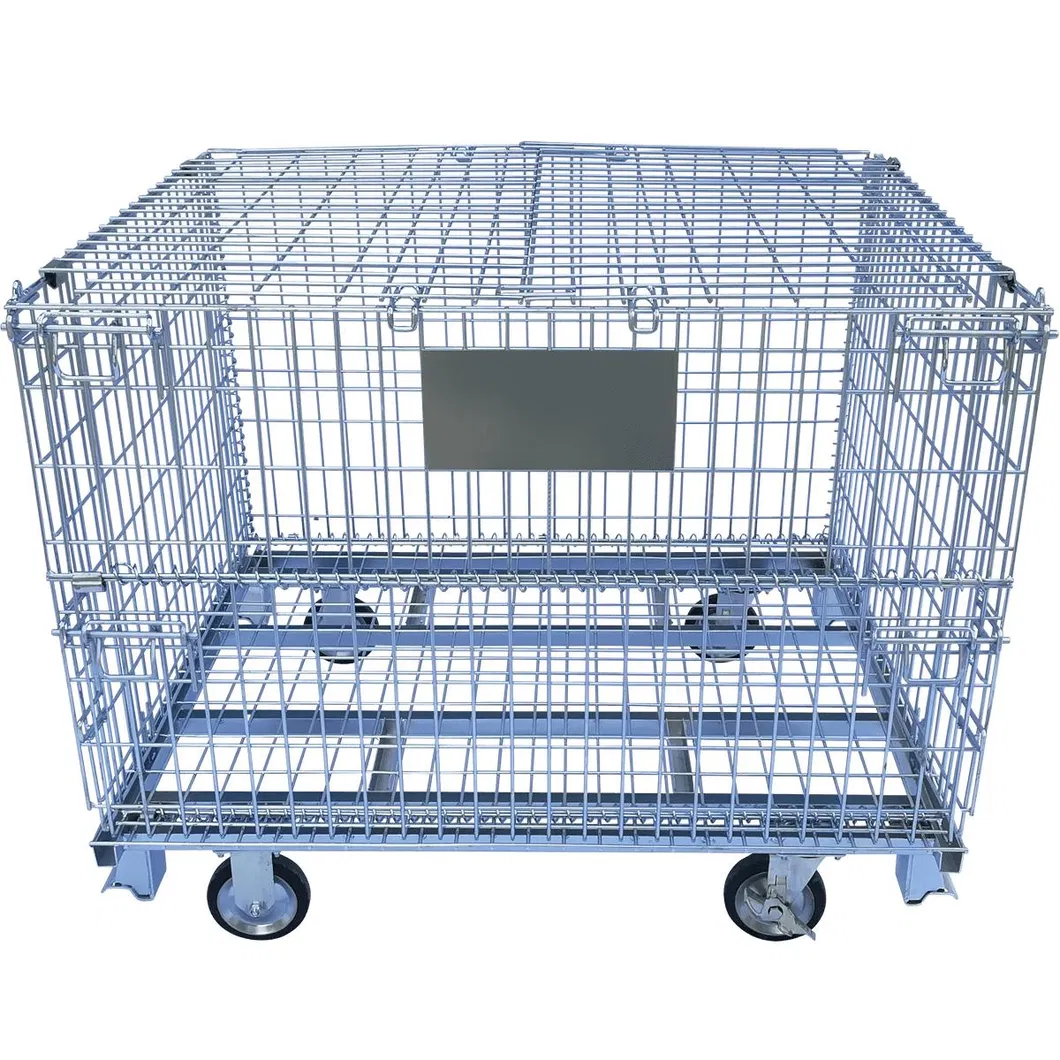

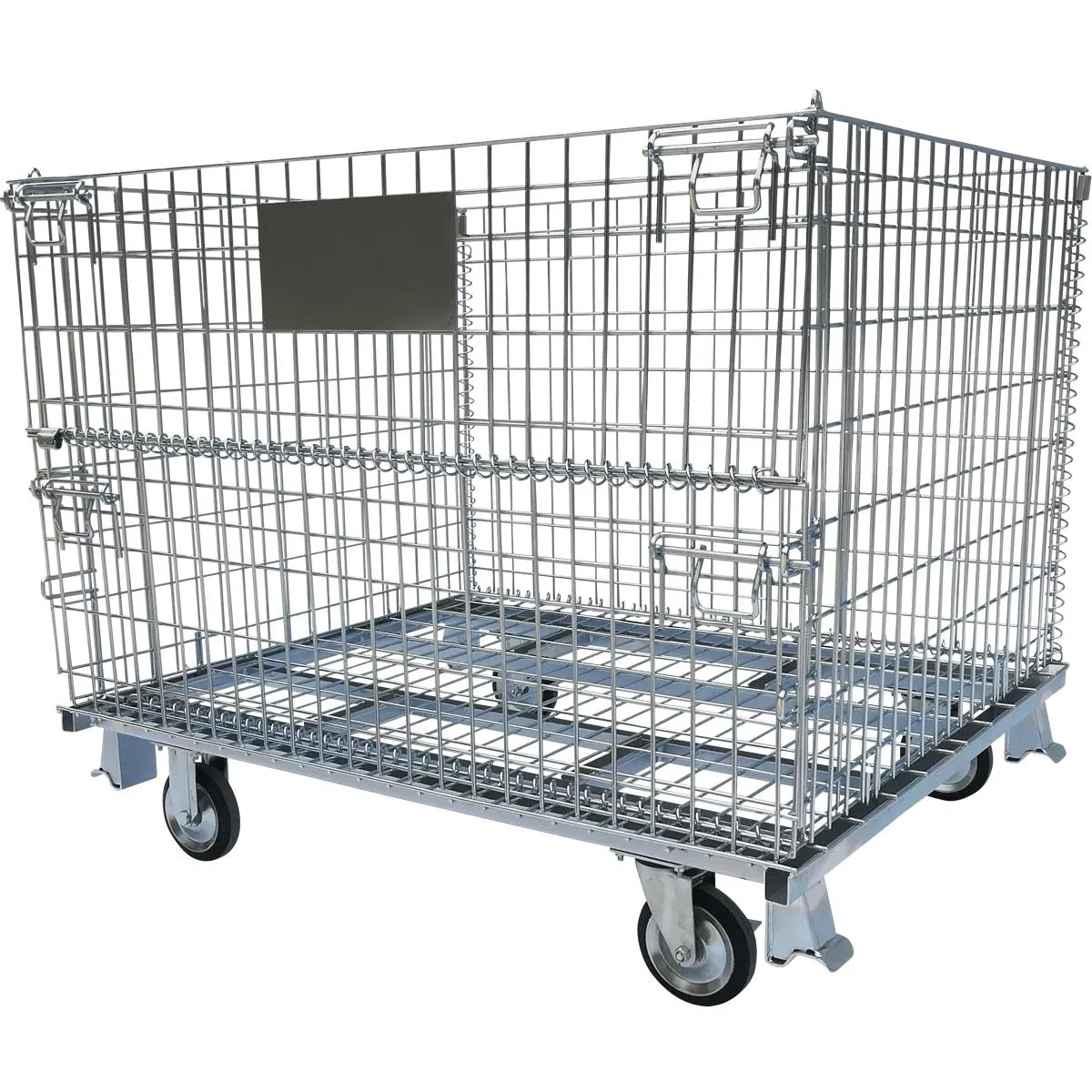

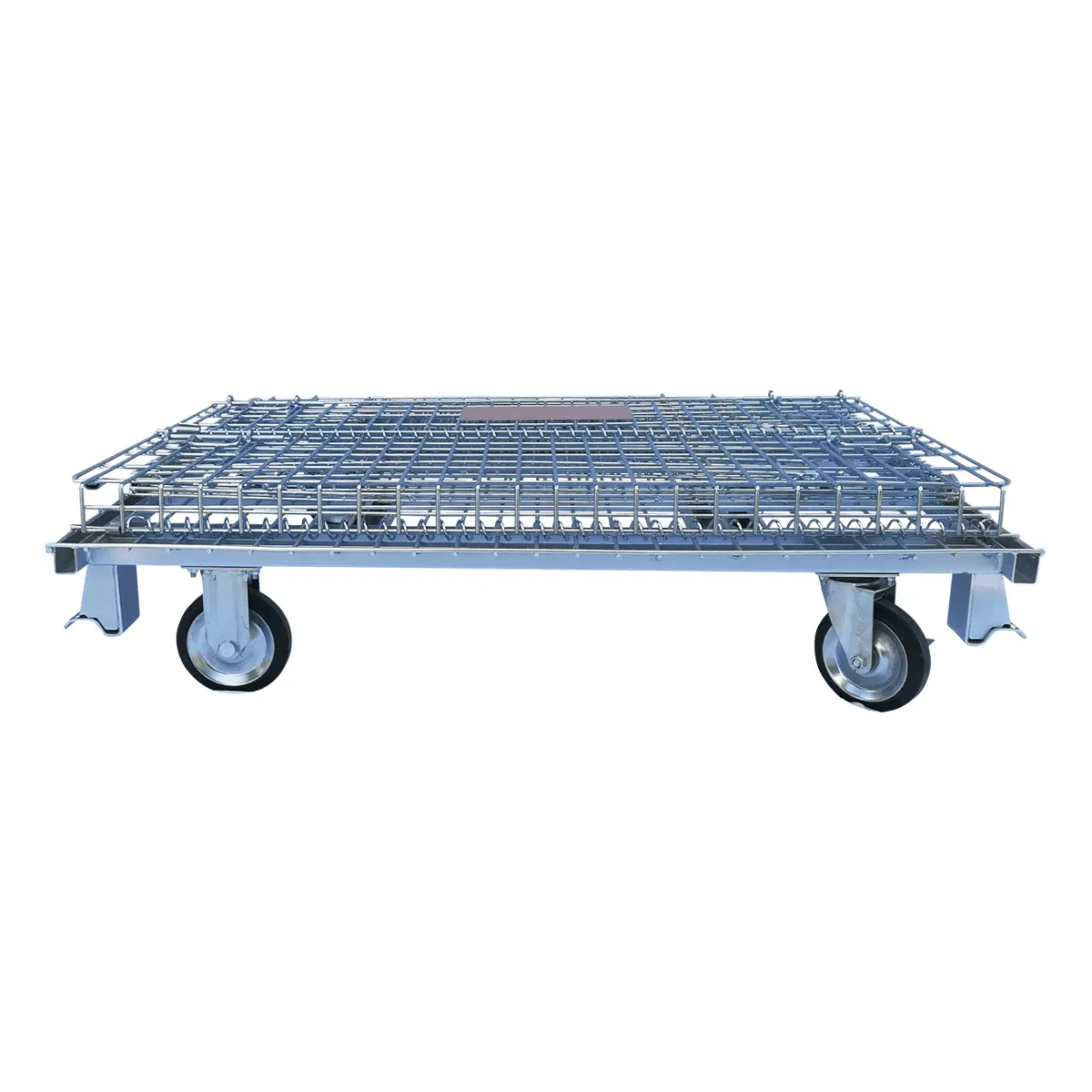

Wheel Version

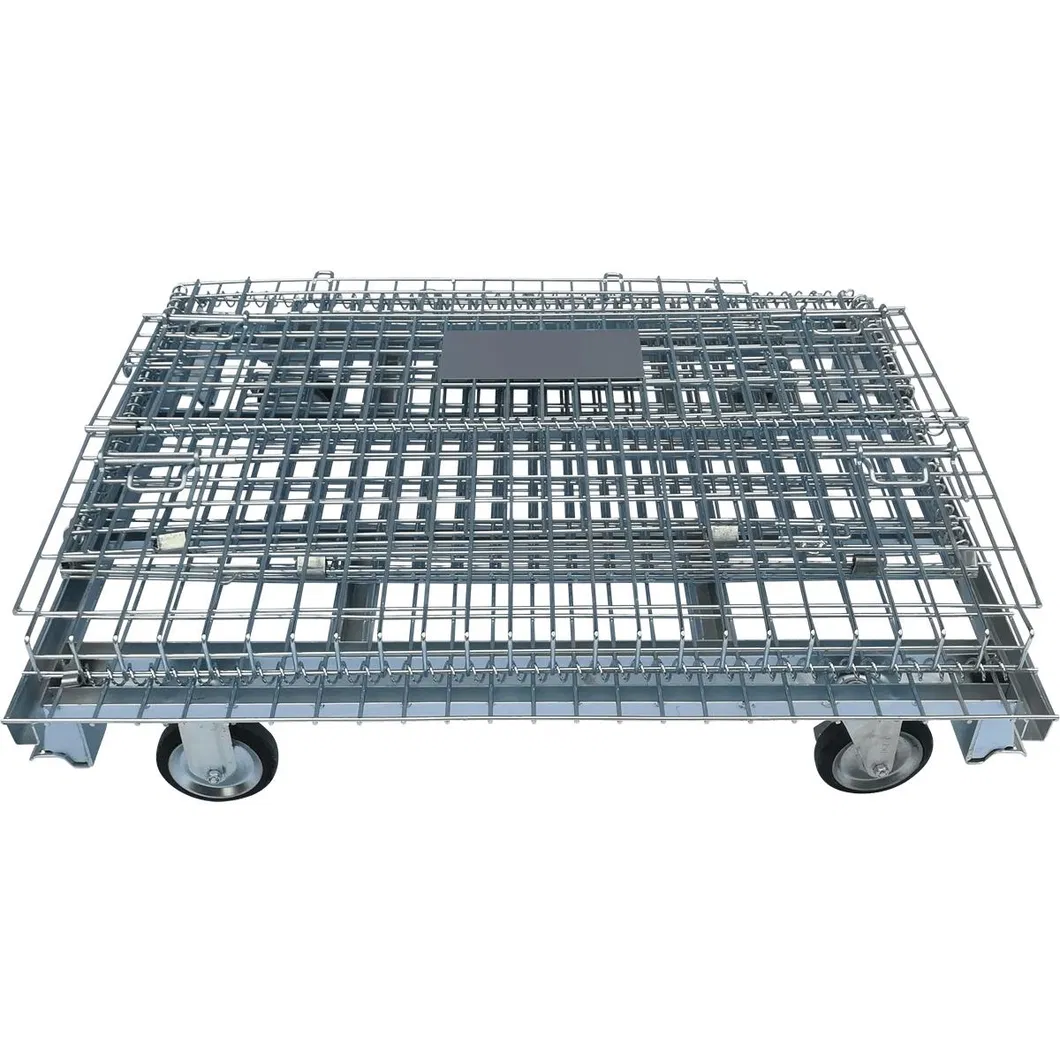

PVC Wheels
Detail 1

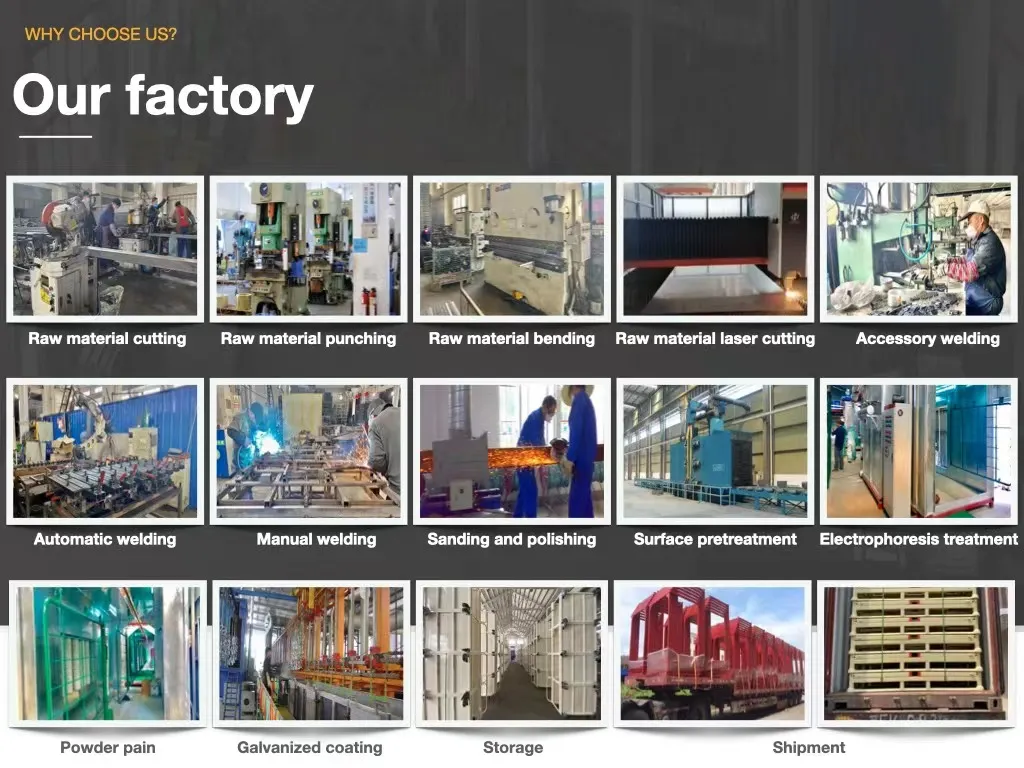

Detail 2
Detail 3

Frequently Asked Questions

1. What materials are used for your products?
We use high-quality mild steel Q235 and Q195 to ensure durability and strength.
2. How are the goods typically packed for transport?
Goods are secured with plastic banding and wrapped in stretch film, then palletized for easy loading and unloading with standard forklifts.
3. What kind of surface finishes do you provide?
We offer three main finishes: Electro-galvanized (zinc plated), Hot-dip galvanized, and Powder coating.
4. What is the typical loading capacity of these containers?
We offer light-duty (100-300kg), medium-duty (400-800kg), and heavy-duty (1000-1700kg) models to suit various needs.
5. Can these storage cages be used in cold storage environments?
Yes, our wire containers and roll cages are widely used and highly effective in cold storage facilities.
6. What is the average production lead time?
The average production lead time is 3-4 weeks once a formal order and deposit are received.
