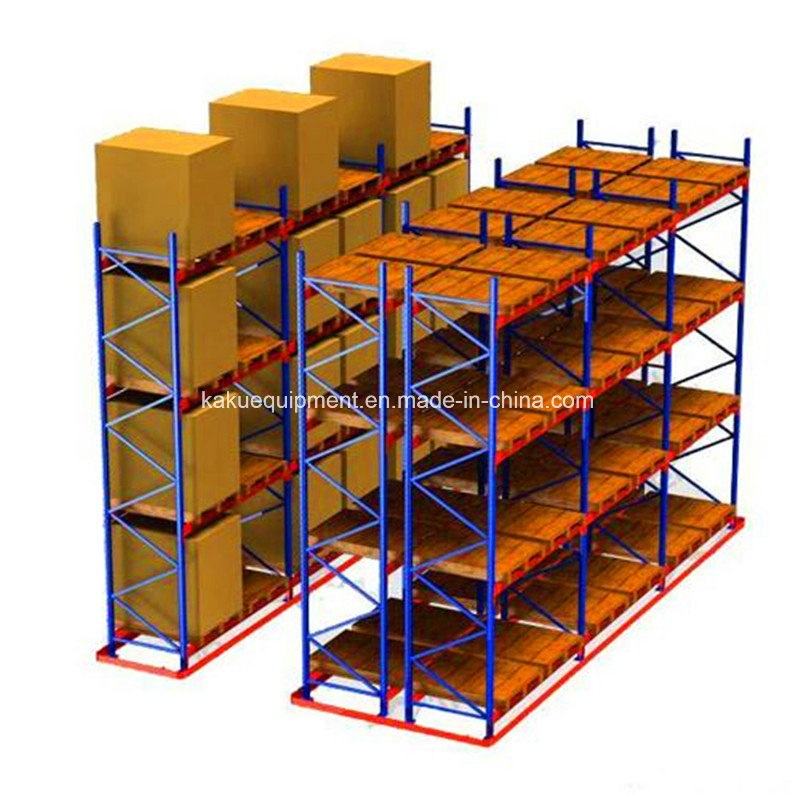

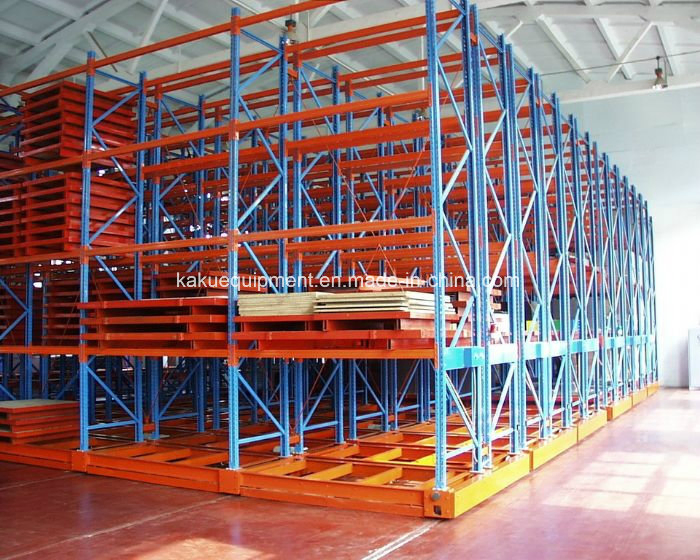

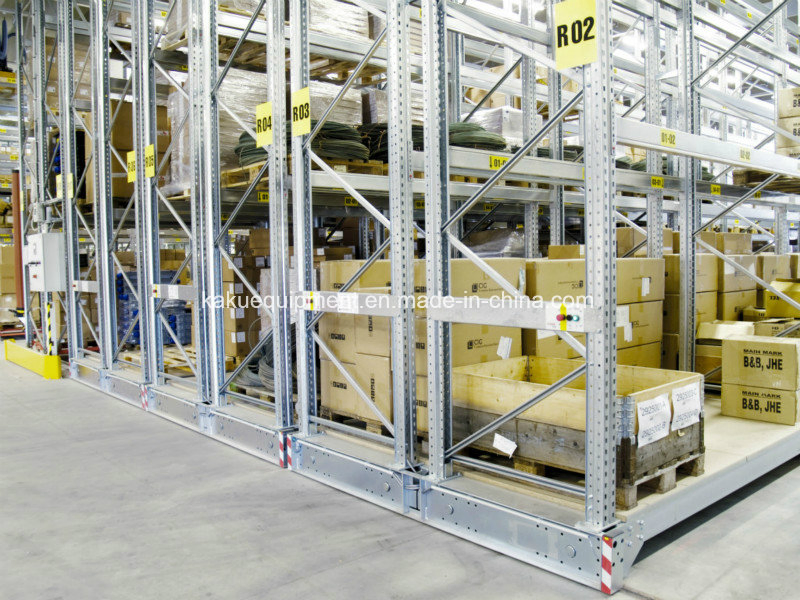

The mobile racking is composed of conventional pallet racking installed on mobile bases, allowing opening and closing of the aisles. Where compact storage is needed while keeping a high degree of accessibility to the stored products, mobile racking may be the best solution, especially where storage space is expensive, for example in cold stores. Mobile racking saves considerable space as the number of aisles is reduced to a minimum.
Conventional static racking requires fixed aisles between racks, causing quite some redundant space. A mobile racking system is very efficient and only needs one aisle, creating a much higher warehouse industrial storage capacity.
Maximize available space with high-density storage and floor utilization up to 80% compared to 40% in conventional systems.
Significantly reduced costs per square meter of storage area.
Ensures accessibility of each pallet, allowing for a high number of SKUs.
Different pallet sizes can be stored easily compared to other high-density solutions.

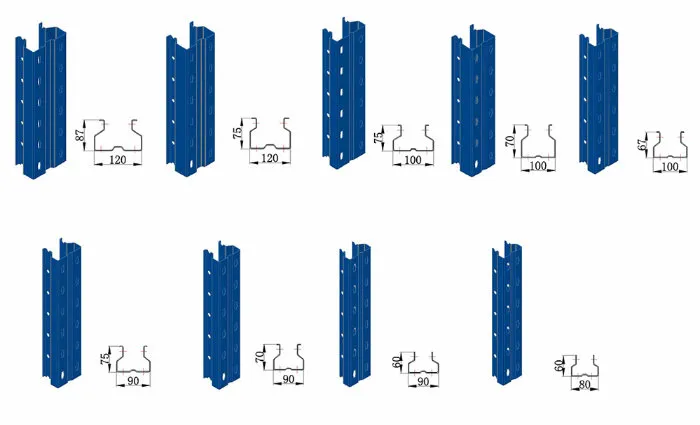

Uprights (t=1.8 - 3.0mm)

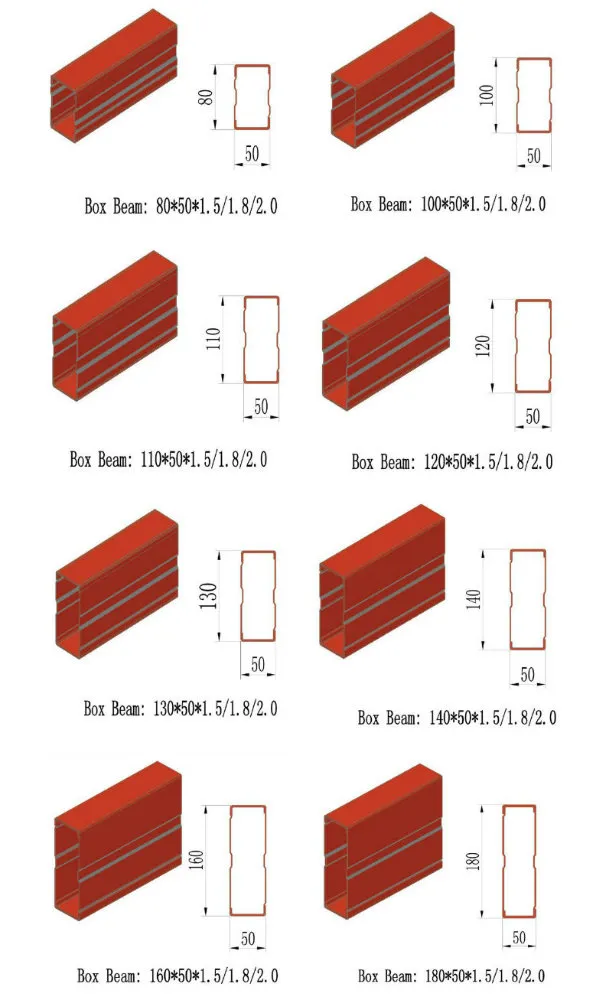

Kaku Beams
Packing & Loading
| Category | Specifications & Options |
|---|---|
| Style | Pallet storage warehouse rack |
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Standard Pallet Dimensions | 1200*800 / 1200*1000 / 1100*1100 / 1066*1220 mm |
| Rack Dimensions | Depth: 900/1000/1020mm; Width: 2300-2700mm; Height: Adjustable by 75mm pitch |
| Beam Range | Height: 80~160mm; Width: 45~50mm; Thickness: 1.5~2.5mm |
| Upright Range | 80*60 to 120*87mm; Thickness: 1.5~3.0mm |
| Weight Capacity | Max 5000KG per level; Max 1500KG per pallet |
