Hexagonal Gabion

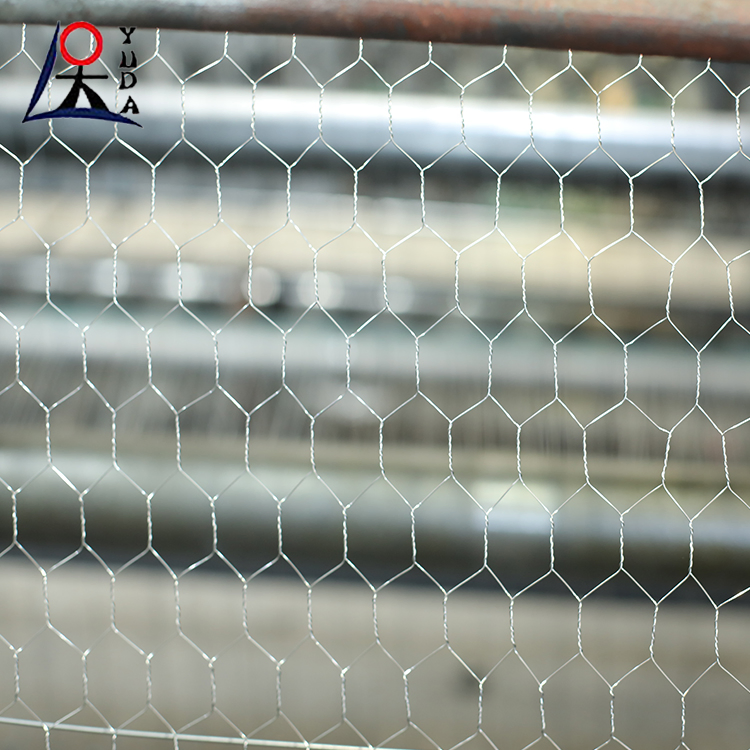

Welded gabions and hexagonal gabions are two commonly used mesh structures in civil and hydraulic engineering. Hexagonal mesh features a strong structure, flat surface, and excellent anti-corrosion and anti-oxidation characteristics.

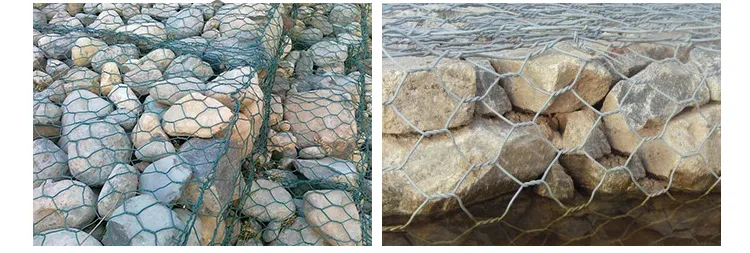

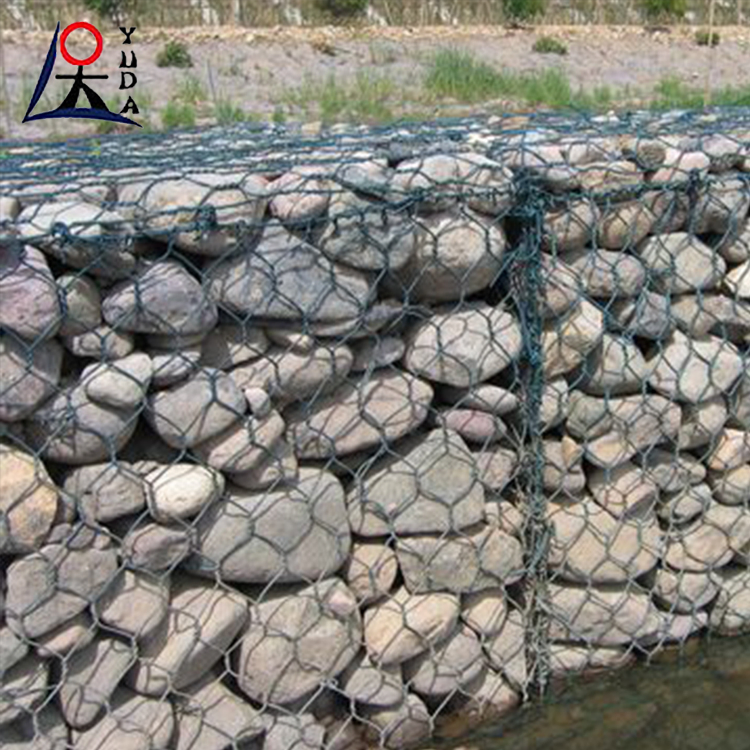

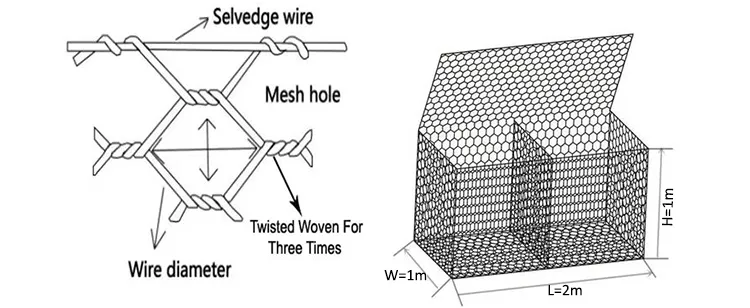

It is a double-twisted steel wire mesh interconnected to form flexible, permeable, and monolithic structures such as gravity retaining walls, channel linings, and erosion control projects.
| Hexagonal Gabion Specifications |
| Opening (mm) |
Body Wire (mm) |
Edge Wire (mm) |
Lacing Wire (mm) |
Max. Width |
| 60X80 | 2.0-2.8 | 3.0-4.0 | 2.0-2.2 | 4M |
| 80X100 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 100X120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 120X150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
Welded Gabion

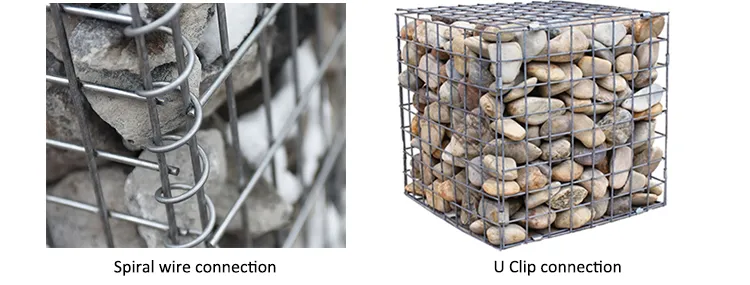

Welded gabions are formed by arranging steel wires in vertical and horizontal patterns, welded at every intersection. This gives them greater rigidity and strength, ideal for projects requiring a fixed shape or resistance to large external forces.
| Welded Gabion Specifications |
|---|
| Gabion Size (m) |
Mesh Opening |
Wire Diameter |
Surface Treatment |
| 1x1x1 | 50x50mm
75x75mm
80x80mm
100x100mm | 3-6mm | Galvanized
Galfan
PVC Coated |
| 2x1x1 | 3-6mm |
| 0.5x0.5x0.5 | 3-6mm |
| 3x2x0.3 (Mattress) | 3-6mm |
Product Application

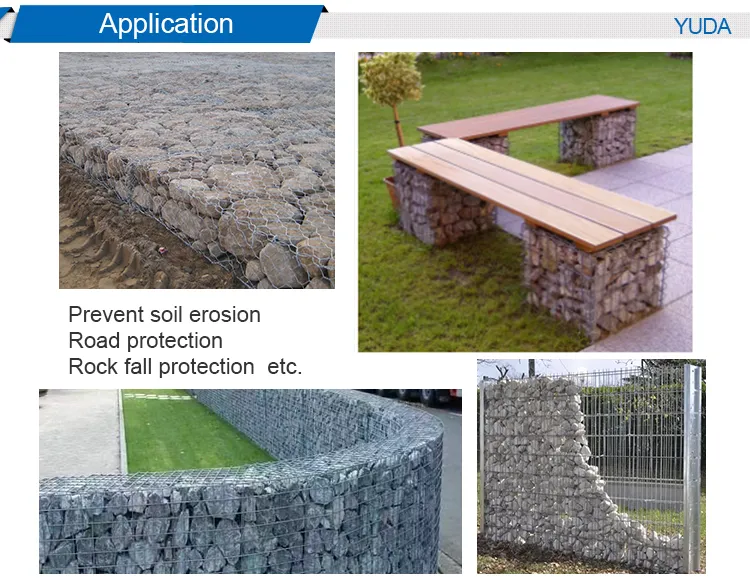

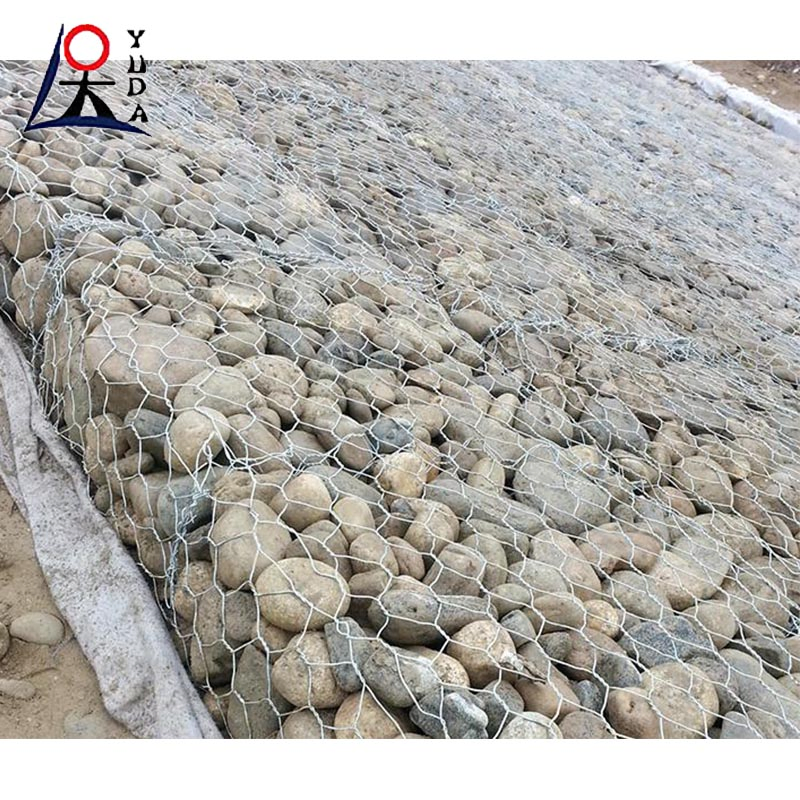

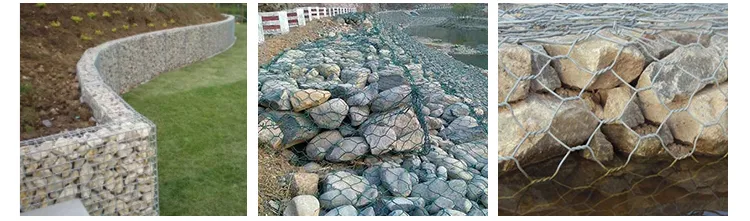

Gabion mesh features strong flexibility and adapts well to foundation settlement. It offers excellent water permeability and corrosion resistance. Simple on-site assembly and stone filling make it ideal for river regulation, slope protection, and embankment reinforcement, while supporting ecological restoration.
Frequently Asked Questions
What is the difference between hexagonal and welded gabions?
Hexagonal gabions are woven and more flexible, making them ideal for uneven ground or hydraulic projects. Welded gabions are more rigid and maintain their shape better, making them popular for architectural landscaping and retaining walls.
What materials are used for gabion mesh?
The most common material is low carbon steel wire, which is typically galvanized, Galfan coated, or PVC coated to ensure high corrosion resistance.
How long does a gabion structure last?
With proper surface treatment like hot-dip galvanization or PVC coating, gabions can last for decades, even in harsh environments or underwater.
Are gabions environmentally friendly?
Yes, they allow for water drainage and soil movement. Over time, plants can grow within the stone gaps, helping the structure blend naturally into the environment.
Can the sizes of gabion boxes be customized?

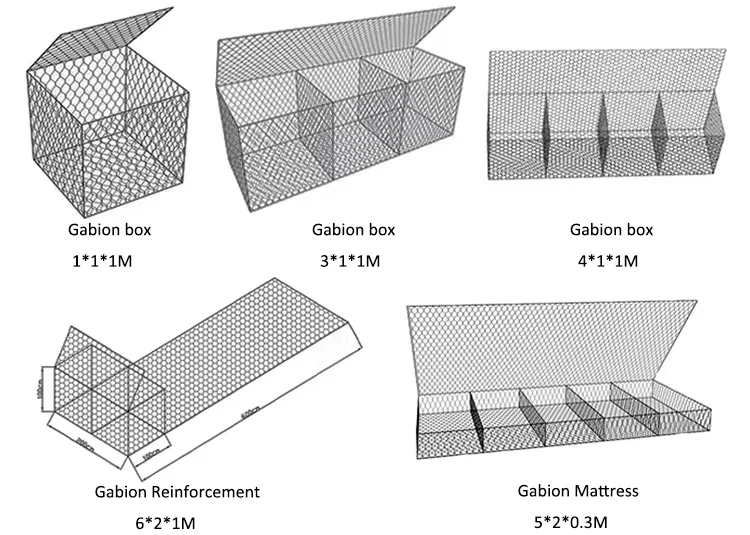

Absolutely. While we offer standard sizes like 2x1x1m, we can customize the mesh opening, wire diameter, and overall box dimensions to meet specific engineering requirements.
Is on-site assembly difficult?

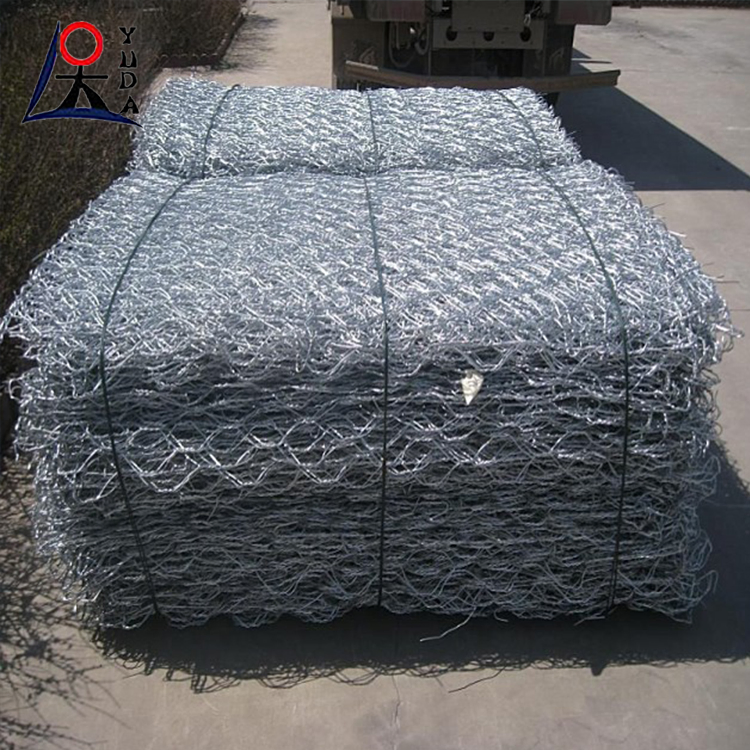

Not at all. Gabions are shipped flat (collapsed) and are easily unfolded and connected using lacing wire or C-rings on-site before being filled with stones.
