Warehouse Storage Gravity Roller Pallet Rack

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

17001237

Usage

Warehouse Rack

Material

Steel

Structure

Rack

Type

Pallet Racking

Mobility

Fixed

Height

5-15m

Weight Capacity

500-5000kg

Surface Treatment

Powder Coating

Certification

HS Code

73089000

Production Capacity

80,000 tons/Year

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 20.00cm

Gross Weight

2.000kg

Package Type

Exported Packing

Product Description

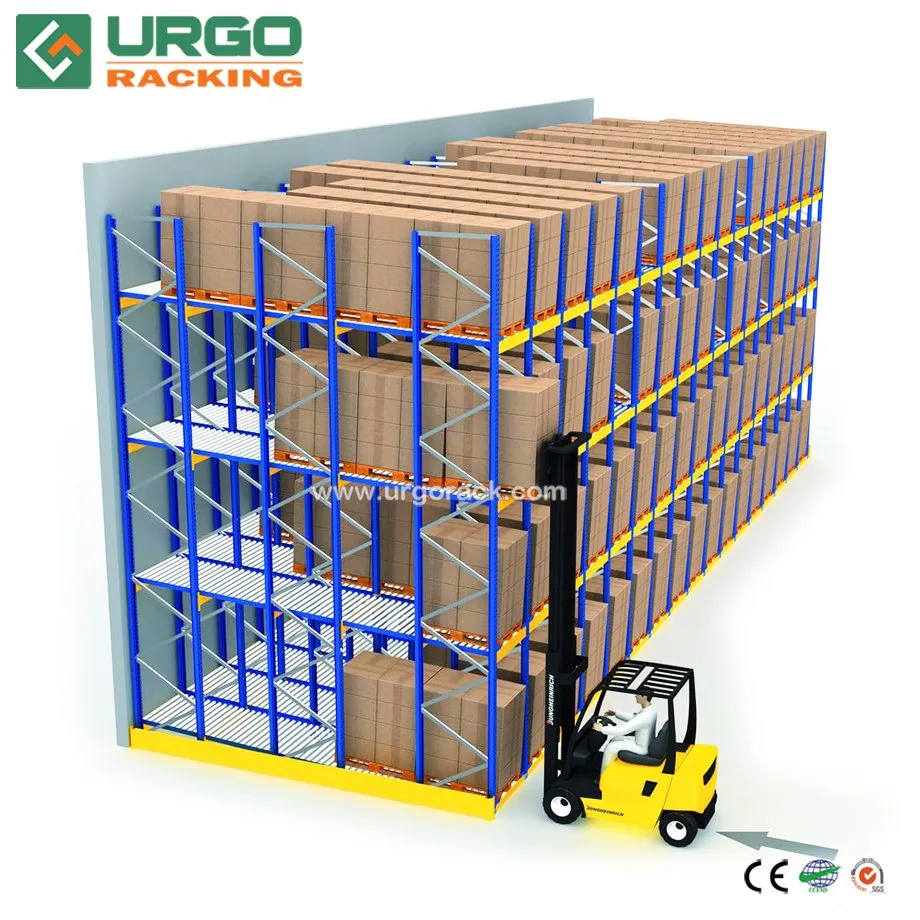

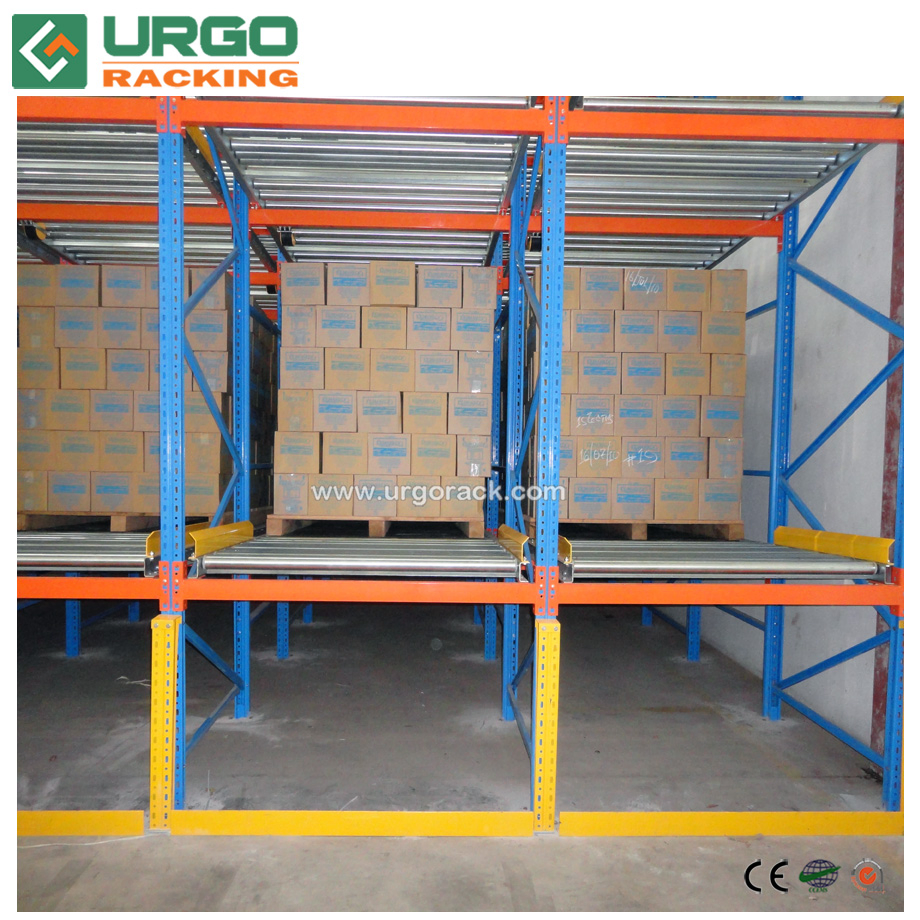

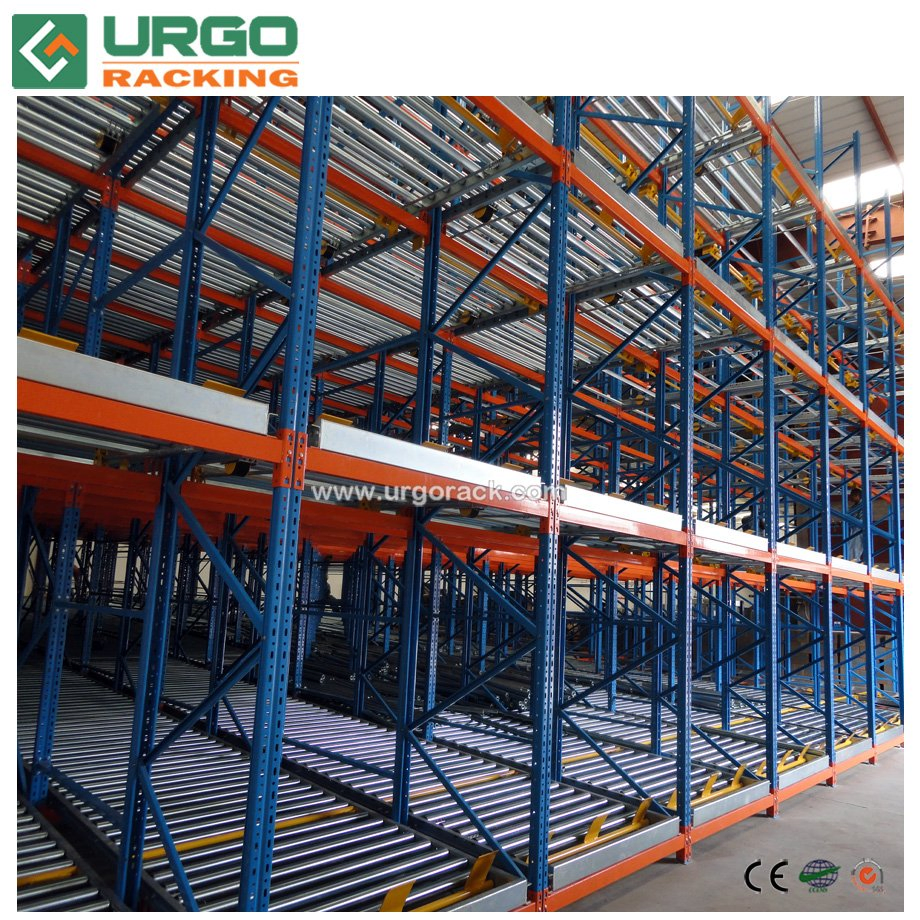

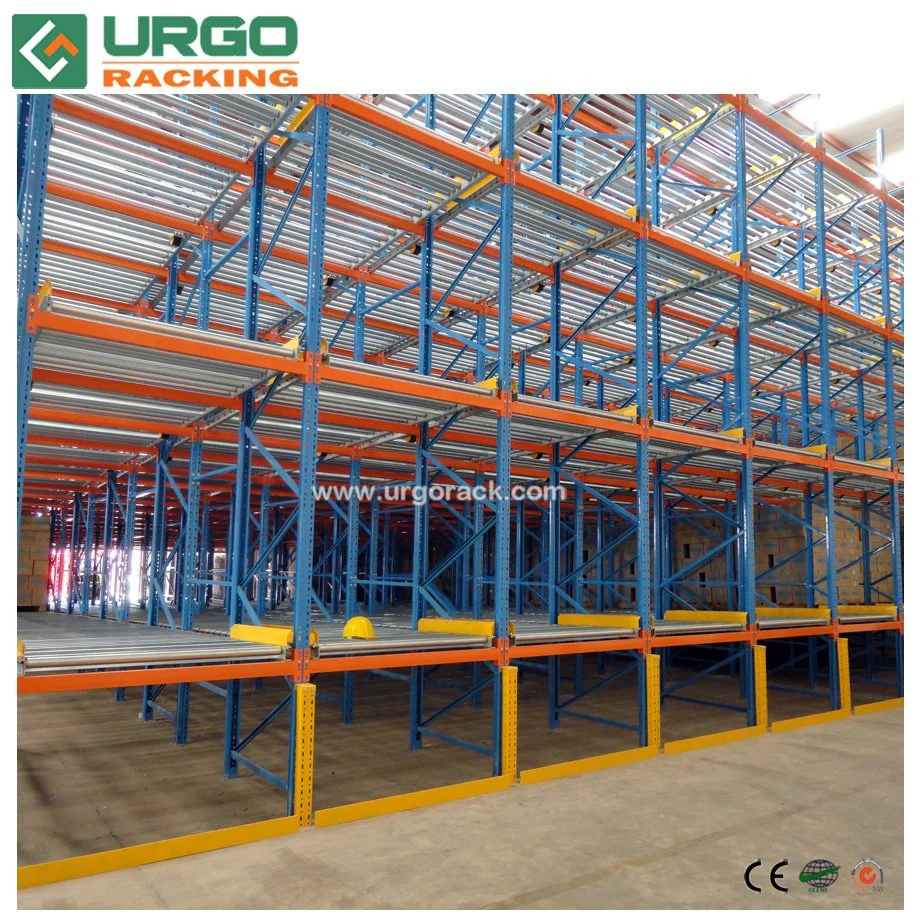

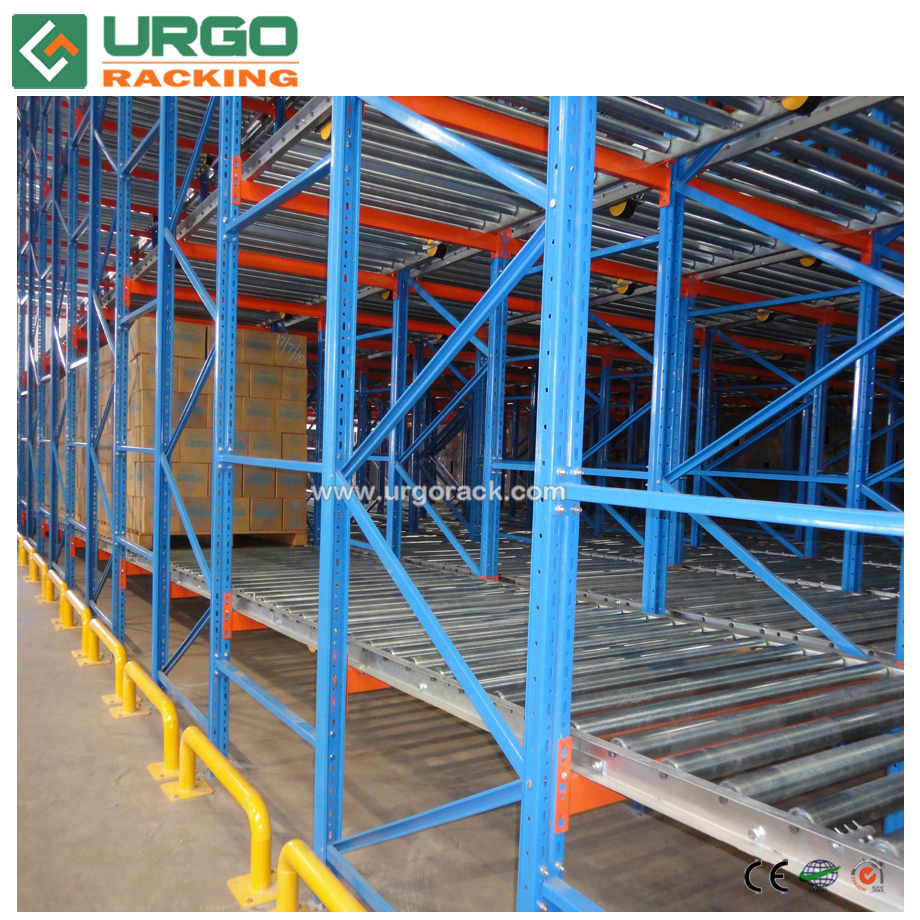

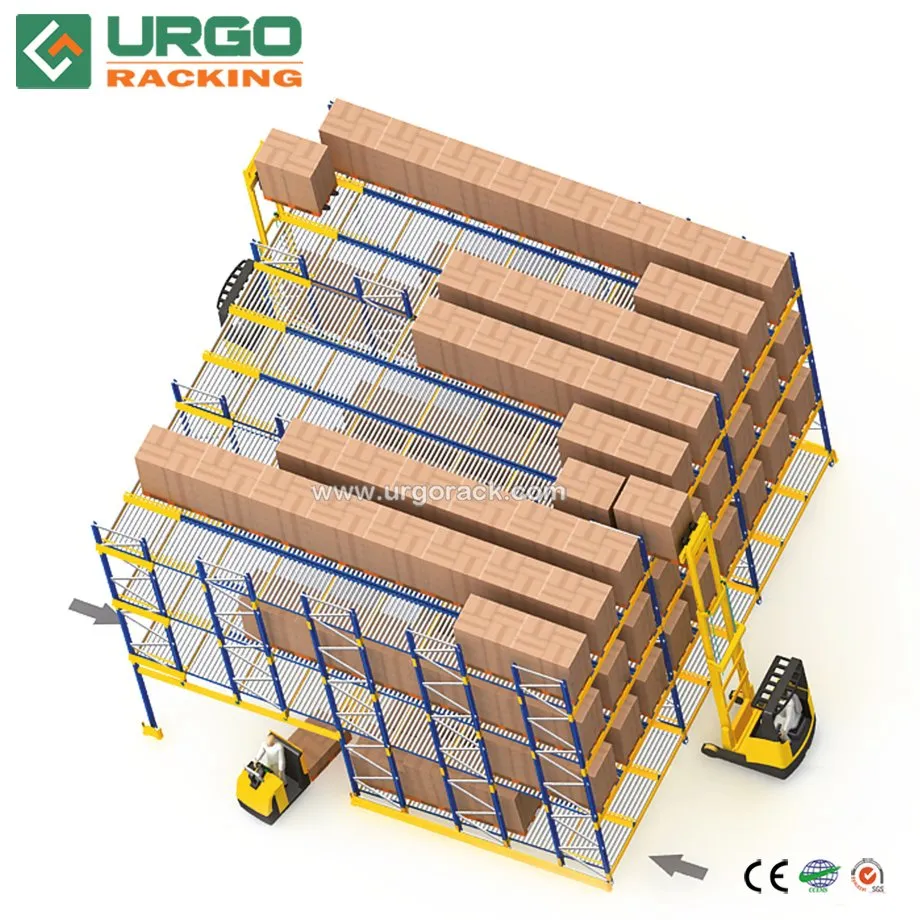

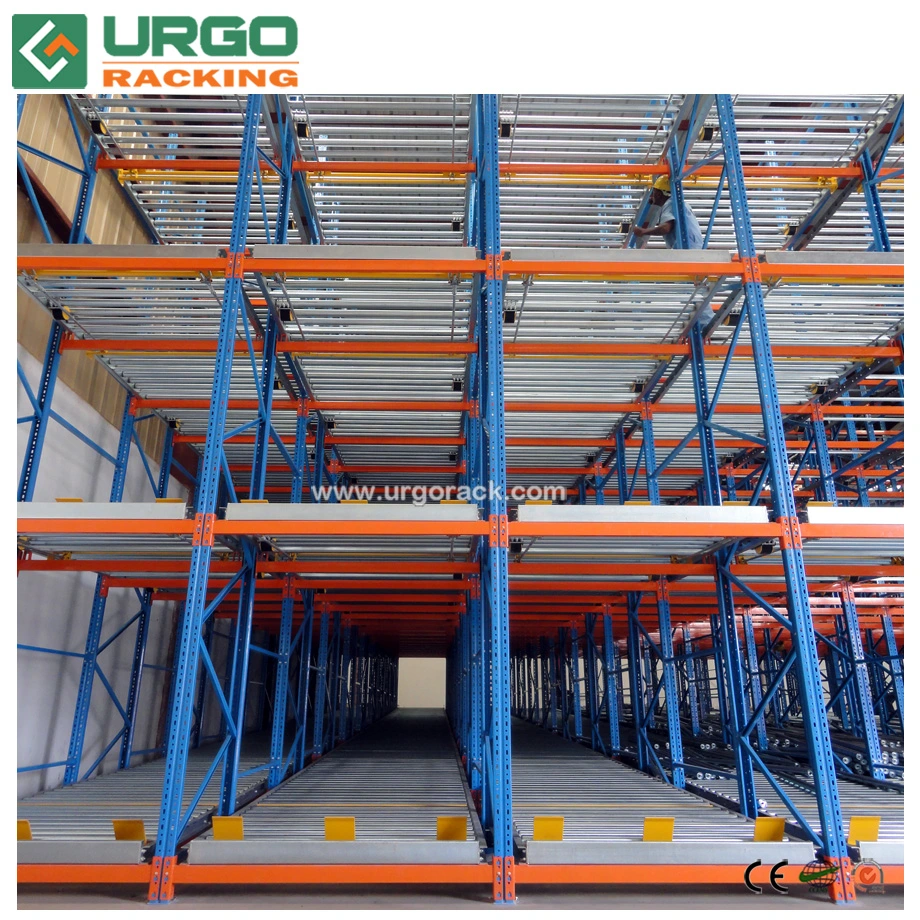

Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out Solution) is required. It is a popular high-density storage solution where pallets are moved quickly from one area to another without the assistance of lift trucks, using gravity-fed roller tracks.

Key Features

Reduced warehouse operational costs.

Easy and efficient goods loading/unloading.

Strict First In First Out (FIFO) storage management.

Heavy-duty construction for long-term service life.

Aisle space reduction by 60-70%.

Increased warehouse utilization and significant space savings.

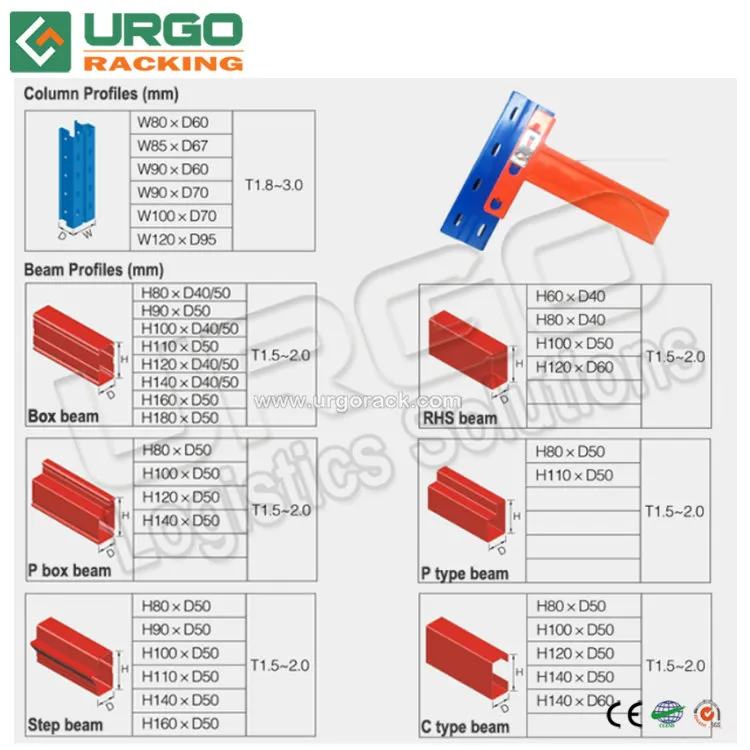

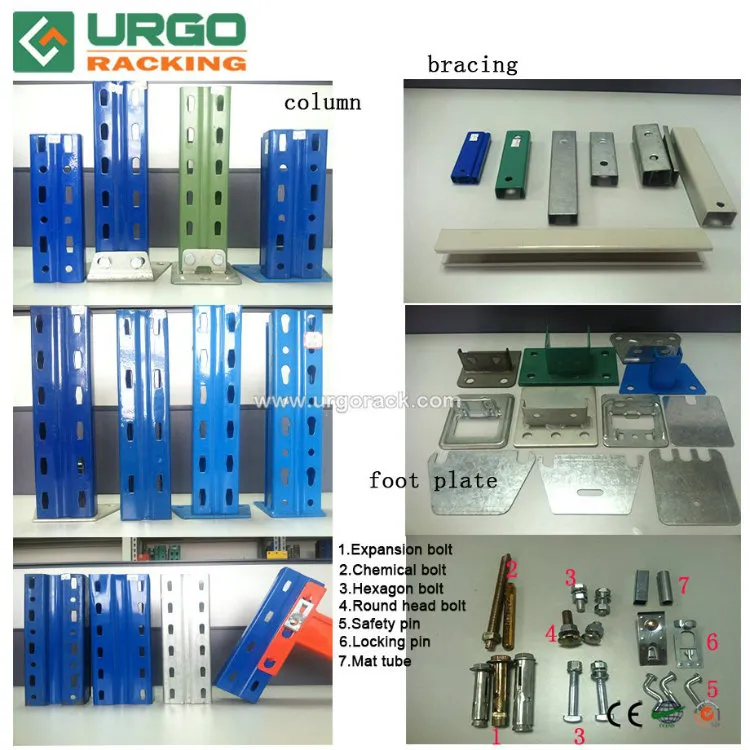

Column Profiles

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8-2.0	4000-6000 KG
W85 x D67	1.8-2.3	7500-12500 KG
W90 x D60	1.8-2.5	8000-10000 KG
W90 x D70	1.8-2.5	10000-12000 KG
W100 x D70	2.0-2.5	11000-14000 KG
W120 x D95	2.3-3.0	17000-21000 KG

Beam Profiles (Box Beam Loading)

Spec (mm) / Length (mm)	1500	2000	2500	3000	3600
80 x 50 x 1.5	3000	1740	1160	-	-
100 x 50 x 1.5	-	2960	1930	1380	-
120 x 50 x 1.5	-	-	2730	1930	1379
140 x 50 x 1.5	-	-	3868	2720	2020
160 x 50 x 2.0	-	-	-	4130	3320

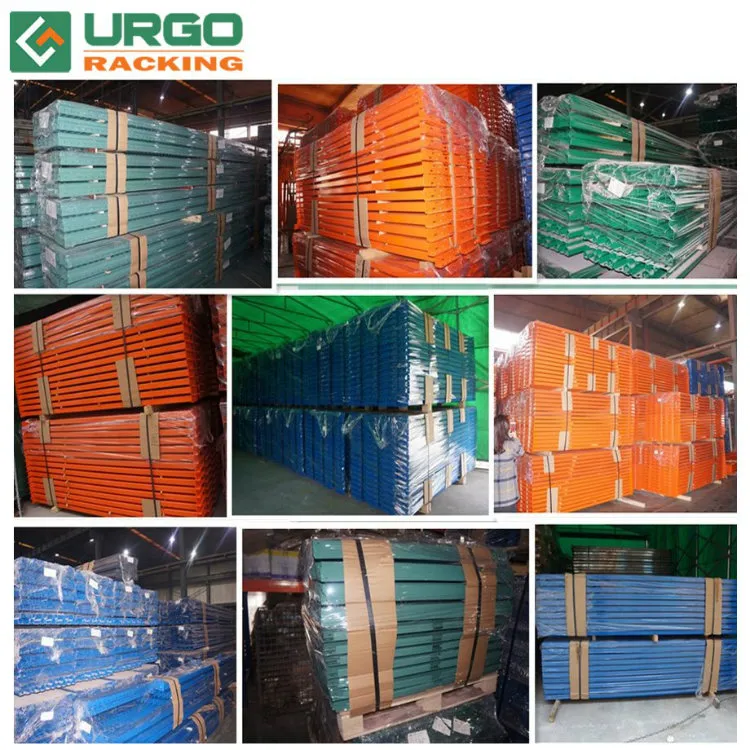

Packaging and Shipping

Frequently Asked Questions

1. What makes your pallet racking system different? We focus on high-quality manufacturing with quick lead times (orders often produced within 15 days) and special export packaging, including plastic clips and transparent film to protect surfaces during transit.

2. Can I track the status of my order? Yes, information and photos are provided at different production stages so you can stay updated on the manufacturing progress.

3. Are product samples available? Yes, section samples can be sent via express for your reference to verify quality and specifications.

4. Is a galvanized finish available for the racks? Yes, both racking posts and bracings are available with a galvanized finish for enhanced corrosion protection.

5. What information is needed for a quick quotation? Please provide the required racking dimensions (Height x Depth x Length), the number of levels, the loading capacity per level, and the total quantity required.

6. What is the standard warranty period? High manufacturing standards allow for a 10-year warranty under normal use, ensuring long-term reliability for your warehouse operations.
