Industrial Warehouse Storage Heavy Duty Electric Mobile Rack
1. GENERAL INTRODUCTION:
Mobile Shelving is a conventional shelving system mounted on carriages which moves to maximize the storage capacity. Aisles can be accessed via manual or remote control. The reduction in the number of aisles achieved by this system provides a high degree of both operational and cost benefits.
Trackless mobile shelving requires no ramps or infill floor, saves on assembly time, is cost-effective, and can be easily relocated when moved. The bases are moved manually with the aid of a crank and a gear ratio adjusted to the loads carried. Drive is provided directly by the castors on the floor.
Features: The traditional static pallet rack needs a fixed aisle between two rows of racks, which occupies too much storage space, while the mobile rack only needs one aisle to produce higher warehouse storage capacity, and the warehouse utilization rate can reach about 80% to 90%.
2. WORKING PRINCIPLE:

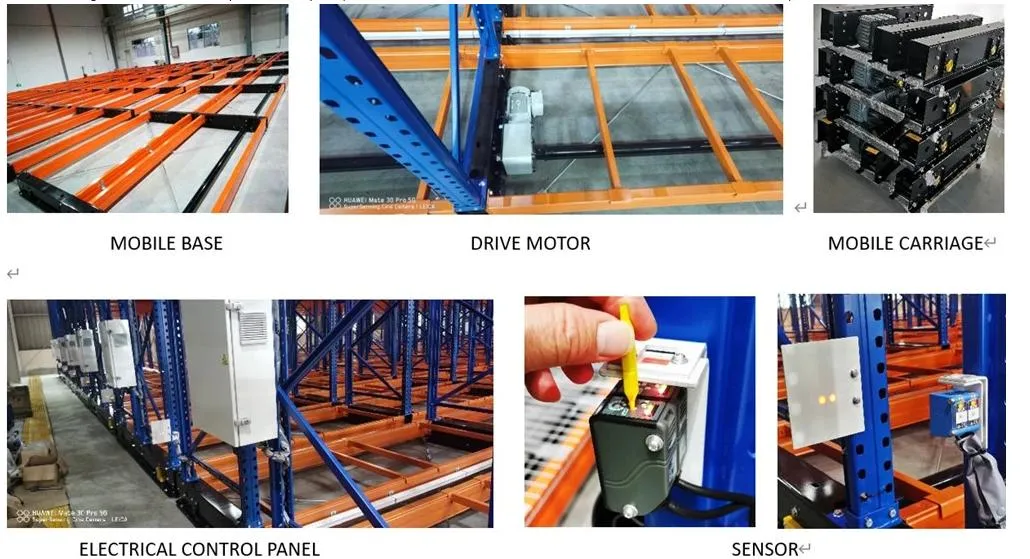

Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.
Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile shelving or racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space, without the need for renovation or expansion.
Frequently Asked Questions
What is the space utilization rate of this mobile rack system?
The mobile rack system significantly improves storage efficiency, achieving a warehouse utilization rate of approximately 80% to 90%.
Can this system be used in cold storage or freezers?
Yes, the heavy-duty capacity and durable steel construction make it an ideal choice for freezer and cooler storage environments.
How is the mobile base operated?
The system can be operated through electronic control buttons that activate drive motors, or via manual control depending on the specific model.
Does the installation require major floor renovations?
Trackless mobile shelving requires no ramps or infill floor. For rail-based systems, the ability to anchor to existing concrete often eliminates the need for major expansions.
What materials are used in the construction?
The racks are primarily constructed from high-grade steel, ensuring heavy-duty performance and long-term durability.
What is the HS Code for international shipping?
The HS Code for this industrial mobile racking system is 7308900000.
