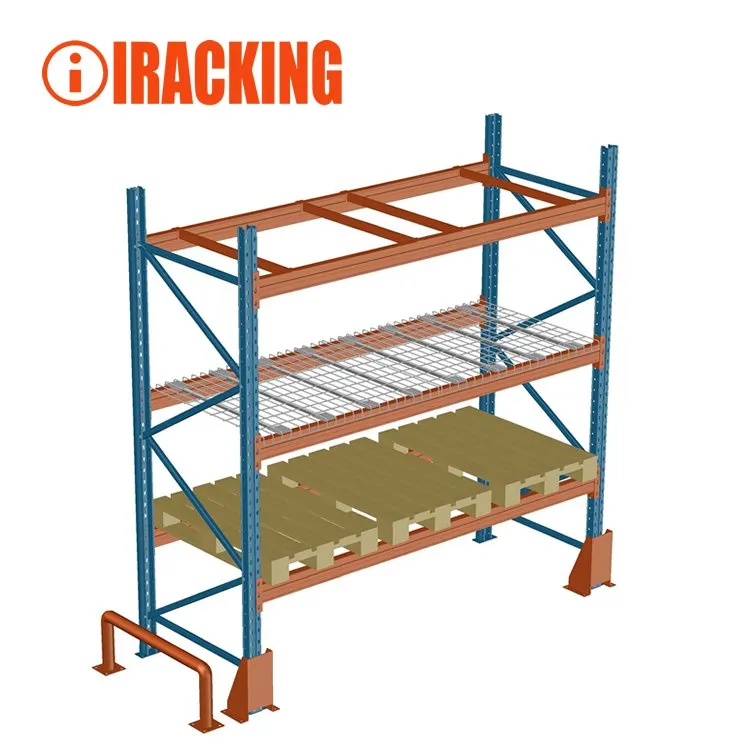

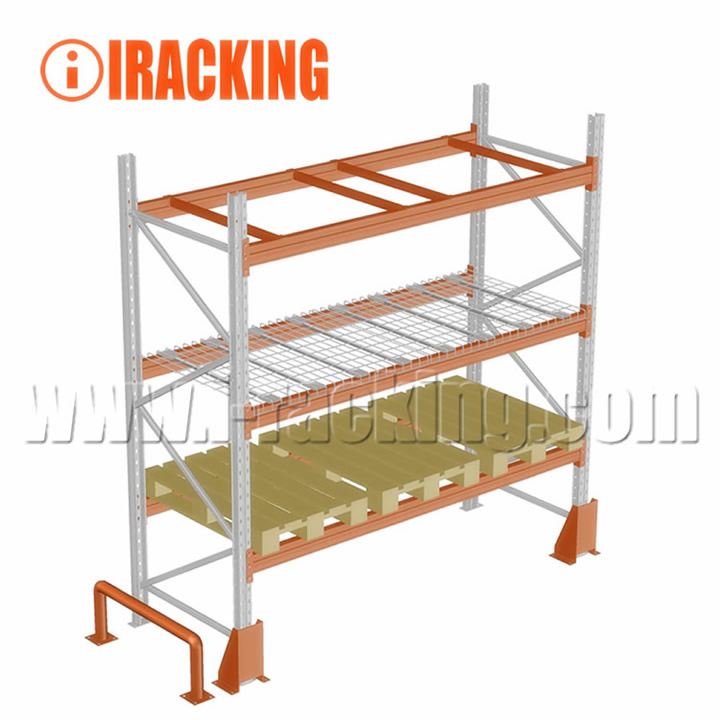

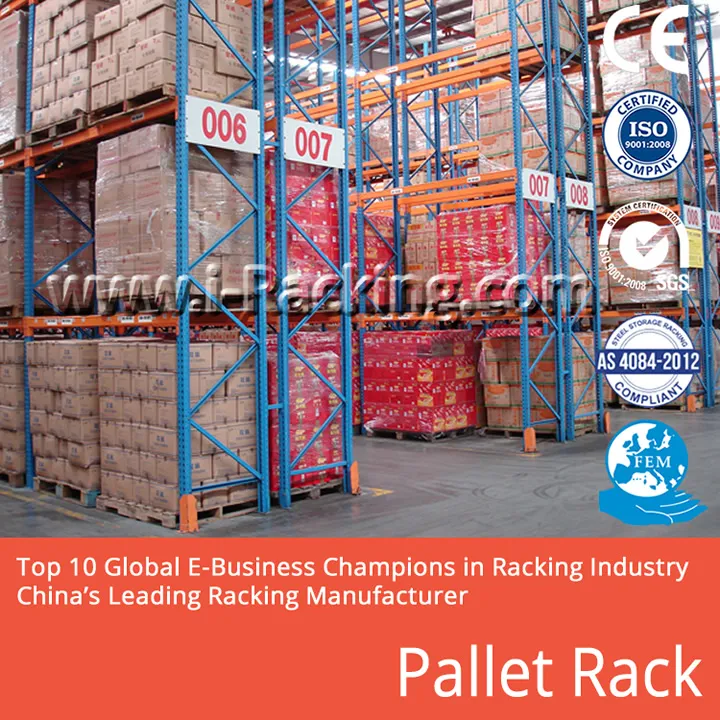

Pallet Racking System is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
| Technical Specifications | |
|---|---|
| Material | Steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 4,000 Kg UDL/level |
| Racking Height | Customized and up to 11,000 mm |
| Racking Depth | 700-1,200 mm |
| Beam Length | Customized and up to 3,600 mm |
| Racking Finish | Frames (Powder Coated or Pre-galvanized) + Bracings + Beams |

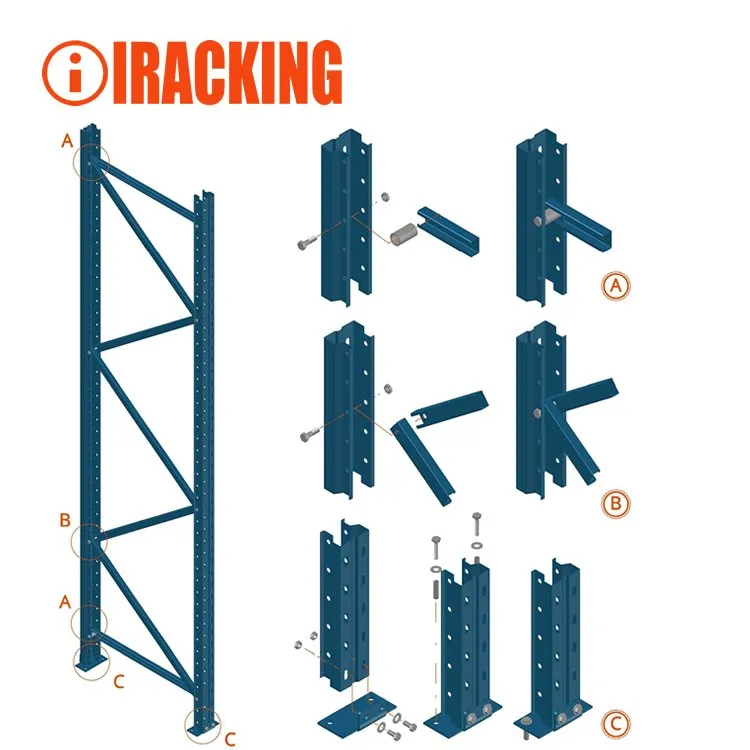

Upright: Standard sizes include 80*60*1.8-2.0, 90*70*1.8-2.0-2.5, etc. Uprights are punched with symmetric hexagonal slots at 75mm/76.2mm intervals for adjustment.

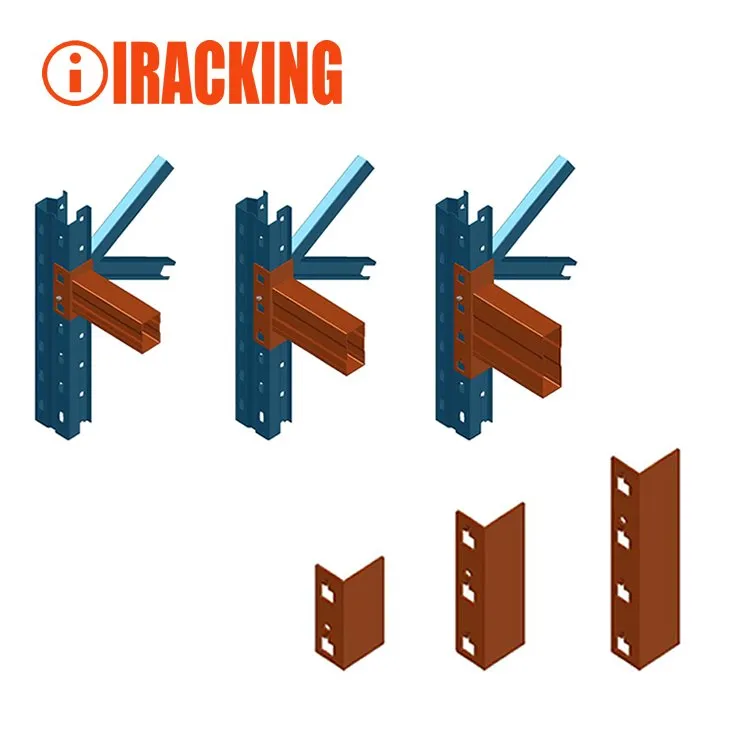

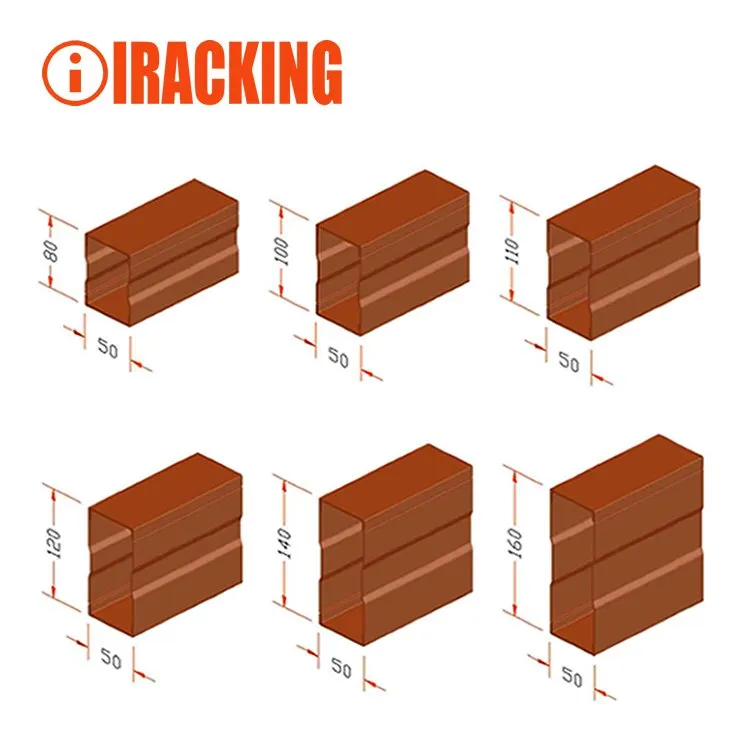

Boxed Beam: Standard sizes from 80*50 to 180*50. Box beams are constructed by joining two "c" sections. Double material thickness top and bottom provides much greater added strength.

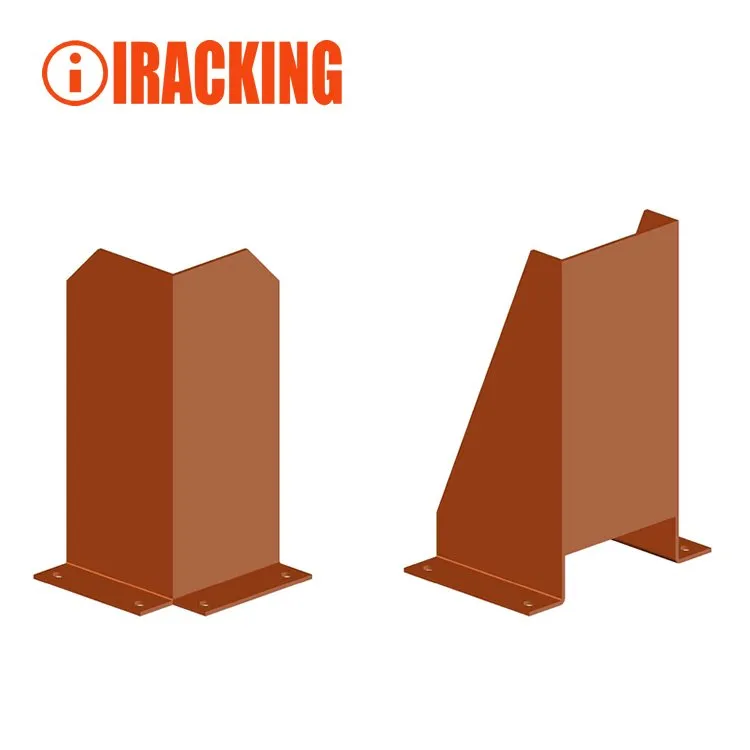

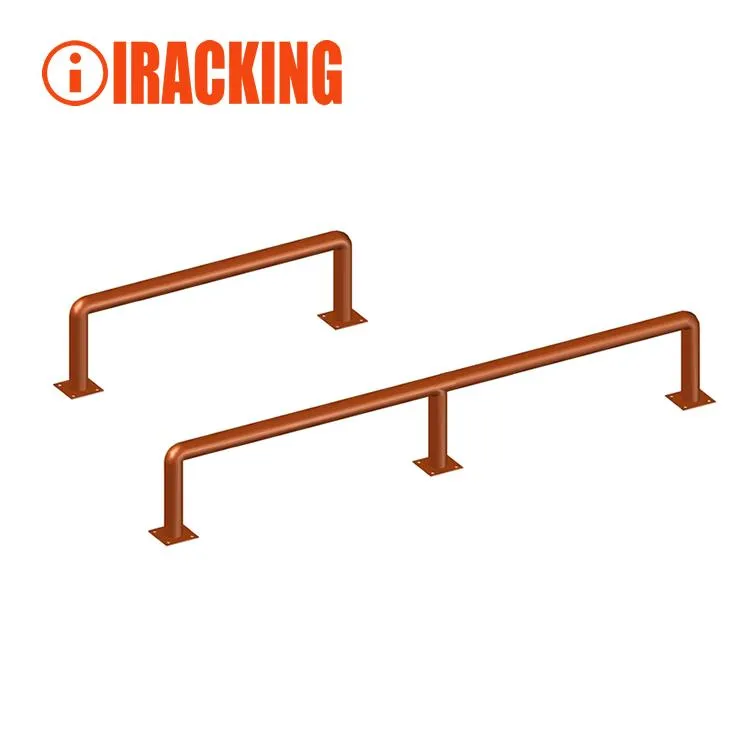

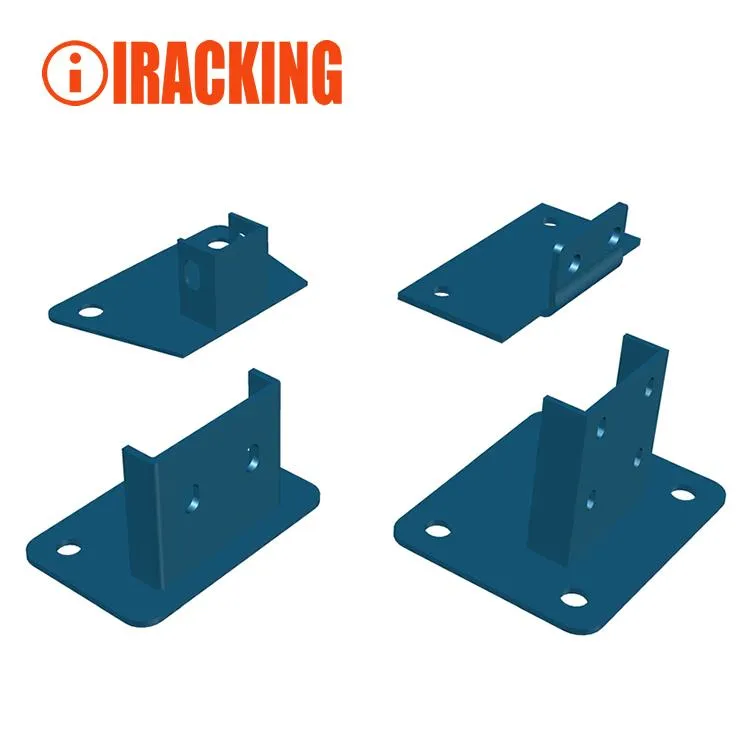

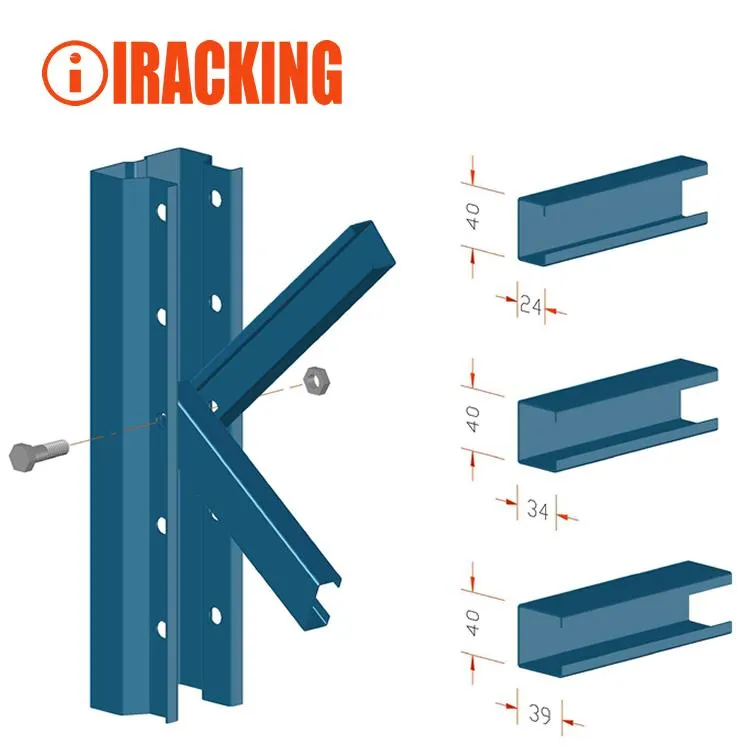

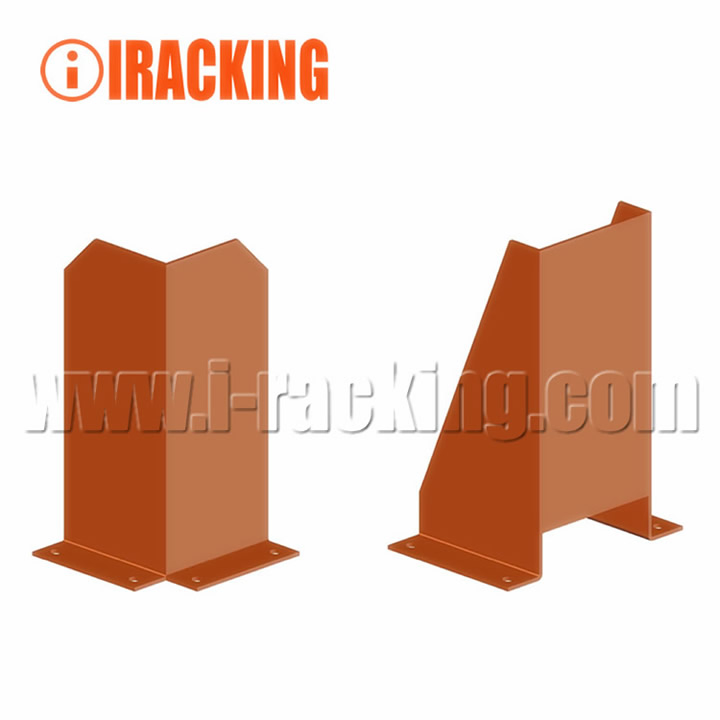

Small Components include: Post Baseplate, Bracing, Plastic Block for assembly, Anchors, Bolts & Nuts, and Safety Pin. Accessories include Row Spacers, U-shape Post Protectors, Frame Barriers, and Mesh Decks.
Design Services: We can design and work out drawings for you within 48 hours based on your warehouse dimensions.
To get a quick quotation, please provide:
