| Model NO. | MR100 / MR 90 | Usage | Food, Industrial, Warehouse Rack |
| Material | Steel Q235B / Reinforced Concrete | Structure | Rack |
| Type | Pallet Racking | Mobility | Mobile |
| Height | 5-15m / 2000-12000mm | Weight Capacity | 500kg-4000kg per level |
| Motor Power | 0.4-0.75kw | Moving Speed | 7-10m/Min |
| Remote Control | Yes | Max Movable Load | 36 Tons Per Bay |

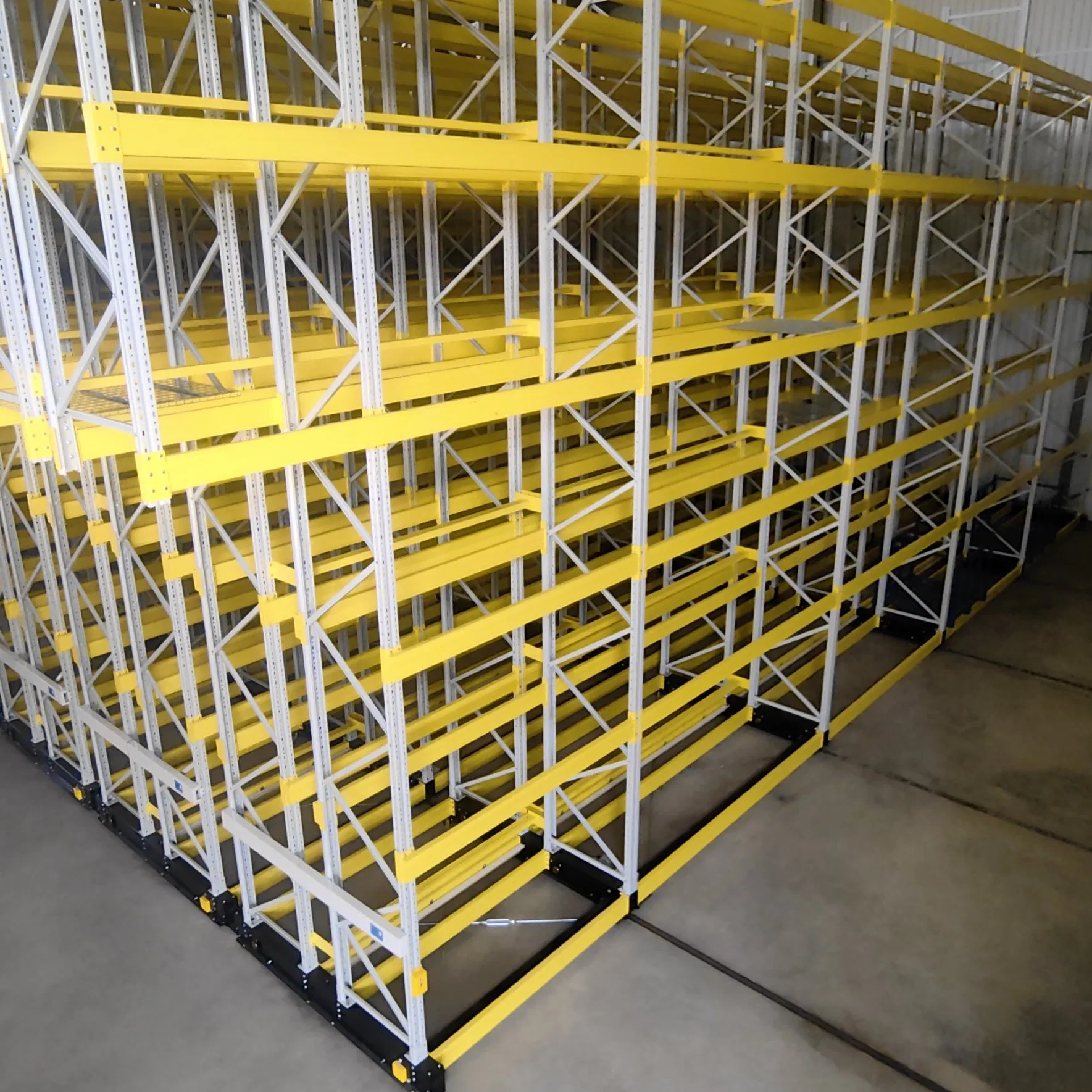

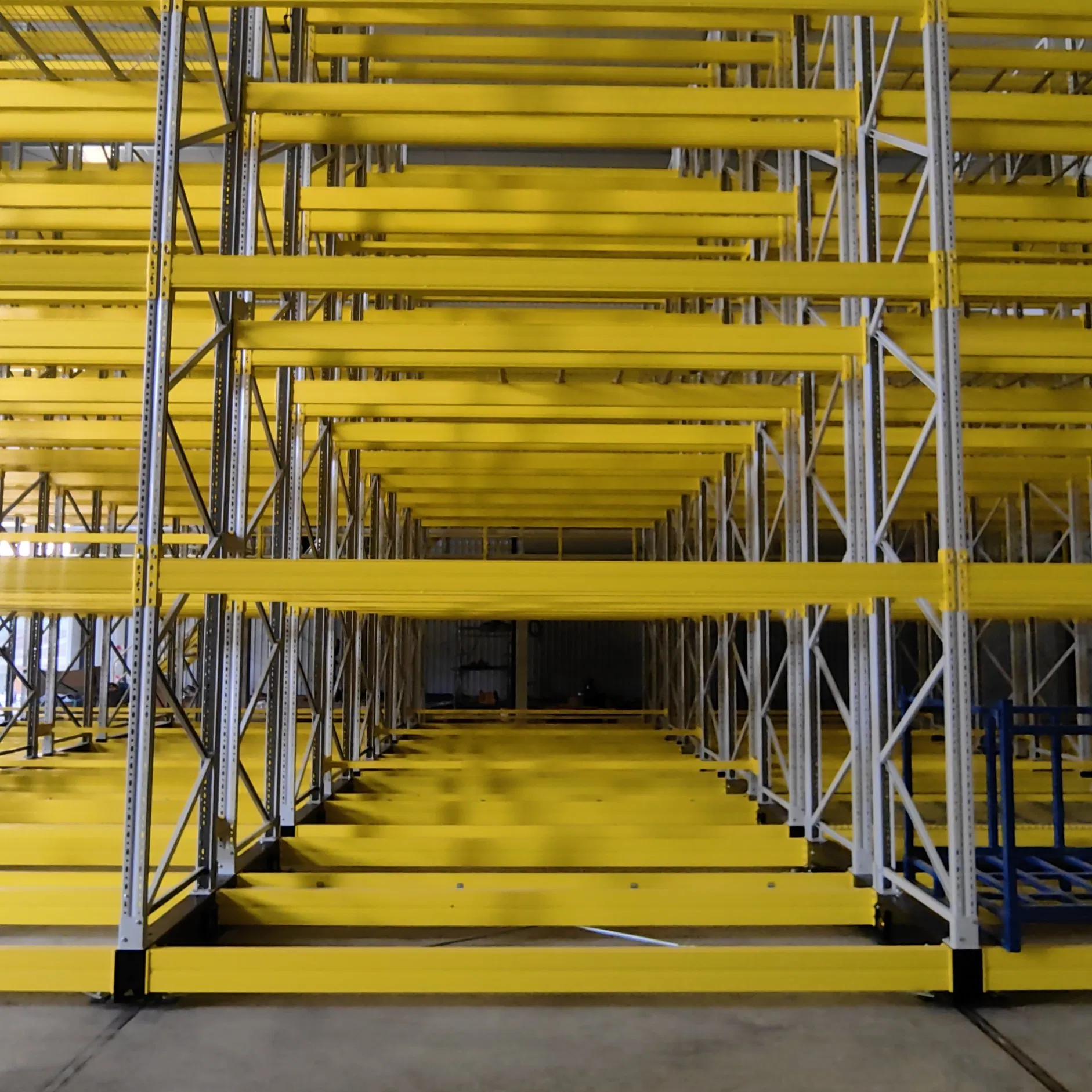

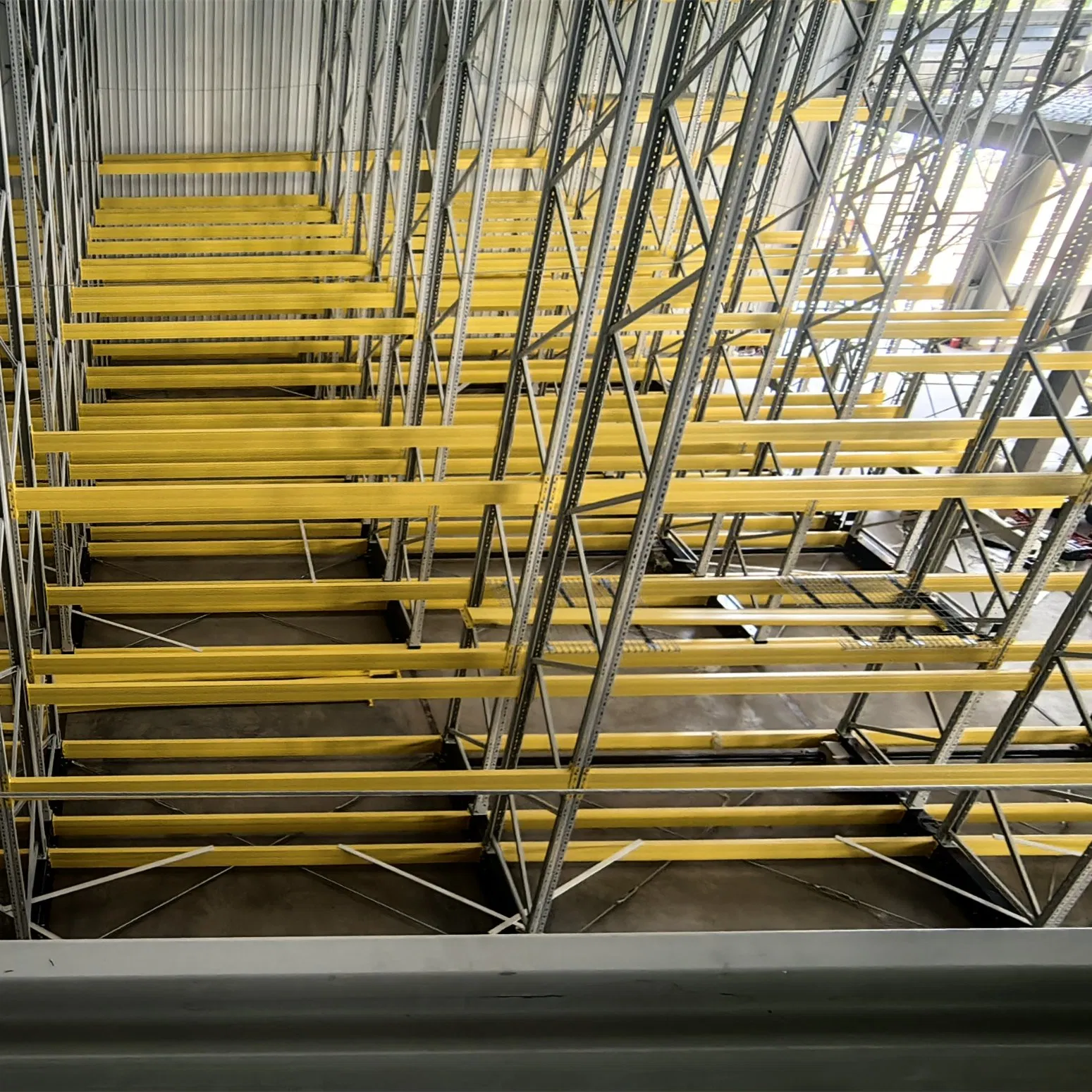

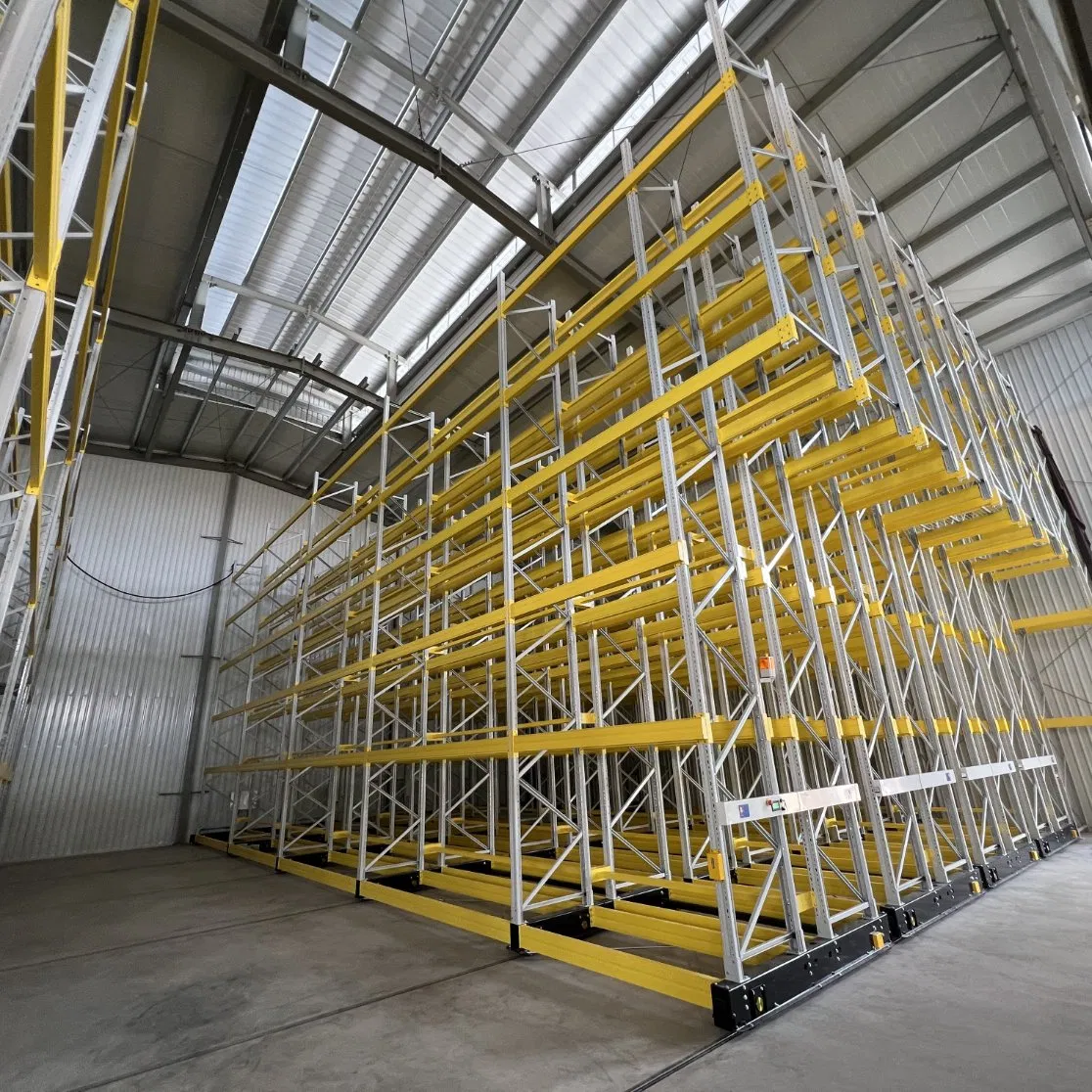

Warehouse Heavy Duty Electric Powered Motorized Mobile Pallet Rack for Compact Storage

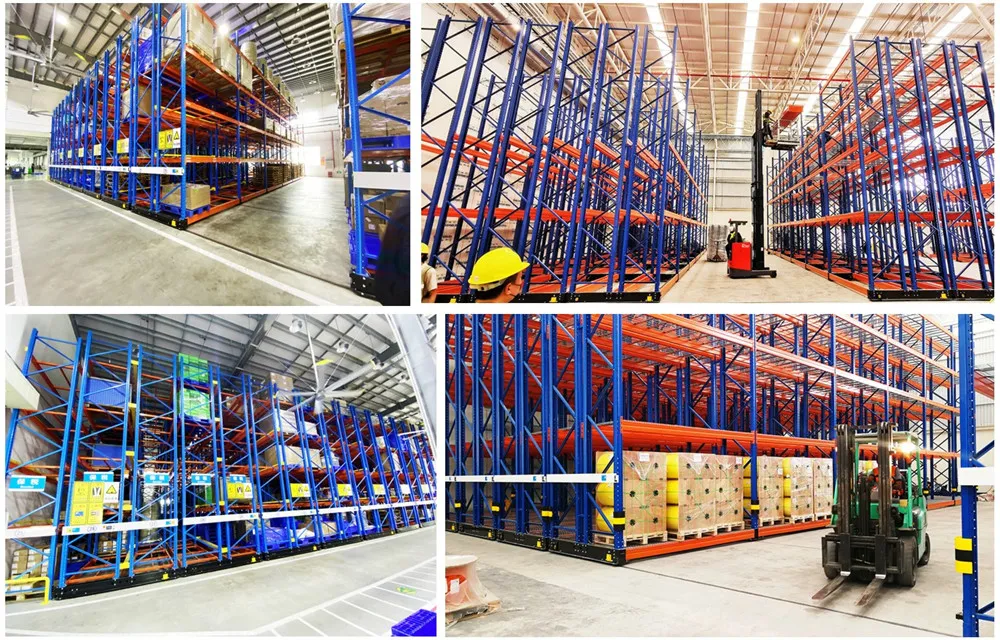

Heavy duty motorized automatic warehouse mobile racking storage systems is a high-density storage system: standard pallet racking is put onto automated mobile carriages, allowing opening and closing of the aisles. The mobile system is the best logistical solution where a combination of compact storage and individual pallet accessibility is required.
Traditional static pallet racks require fixed aisles between rows. The mobile rack system only needs one shared aisle, increasing warehouse utilization rates to approximately 80% to 90%.
Electrical mobile racks can be designed as tracked or trackless systems. Trackless mobile racks do not require floor rails, using high-strength polyester wheels to roll directly on the ground. Depending on the environment, systems can be customized for refrigerated or explosion-proof storage.

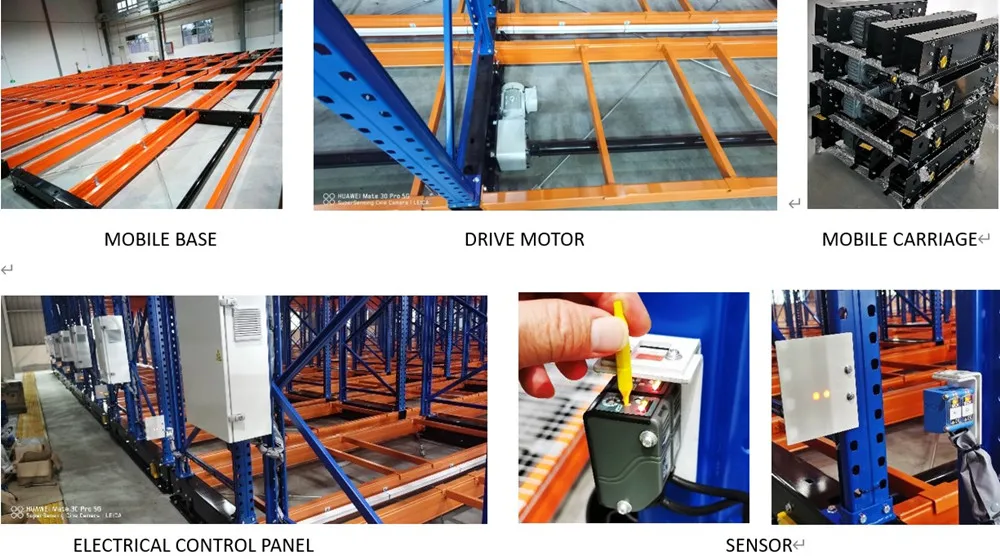

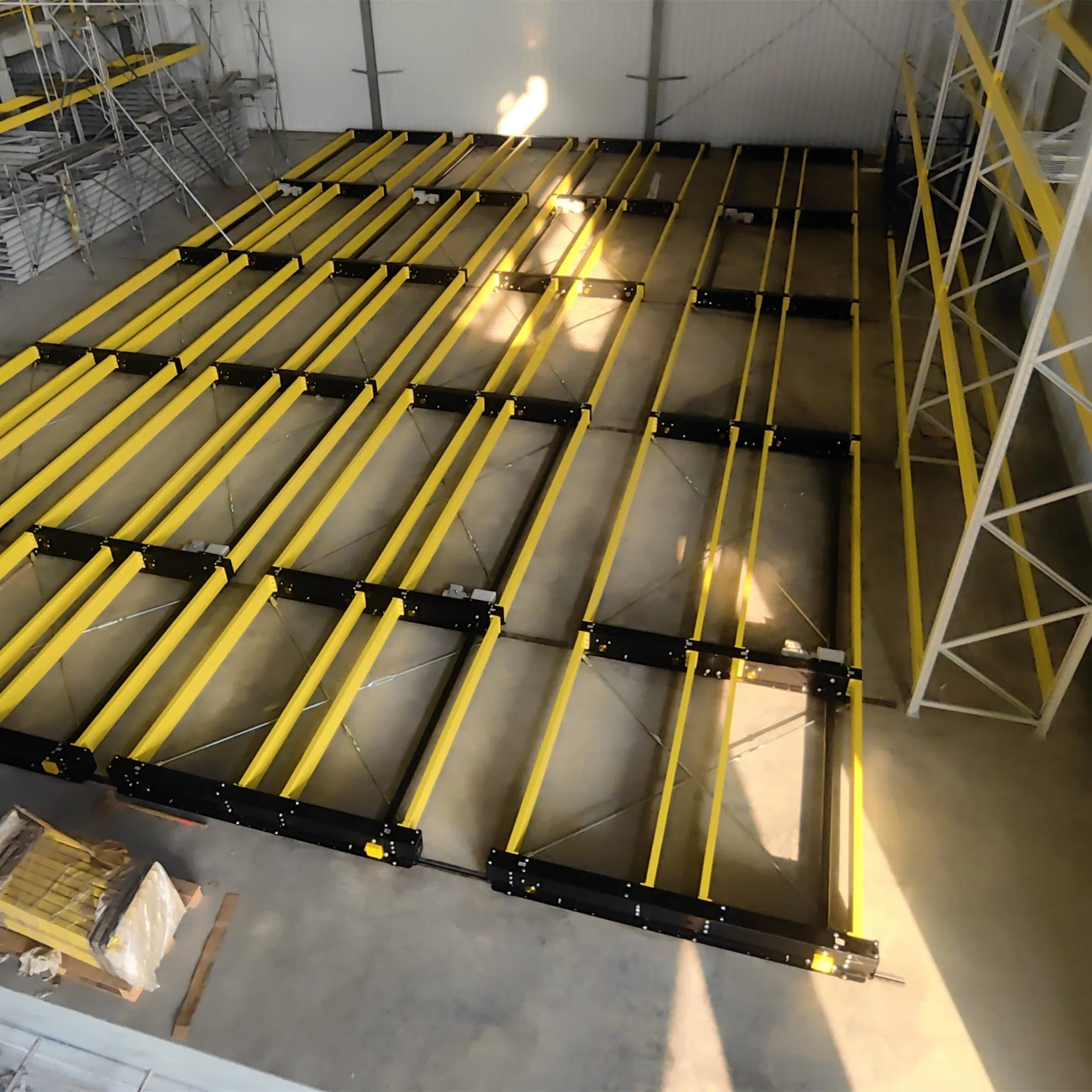

Two rows of back-to-back racks are installed on a mobile base. Each base is equipped with rollers and drive motors controlled via electronic buttons. By moving the bases along floor rails, the required operation aisle is opened for forklift access.

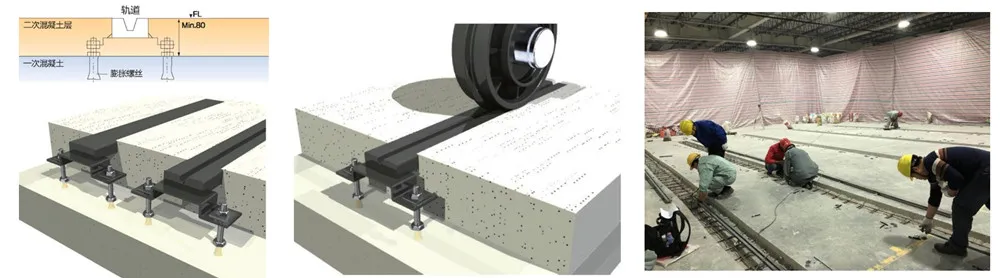

There are two primary installation methods for floor rails:

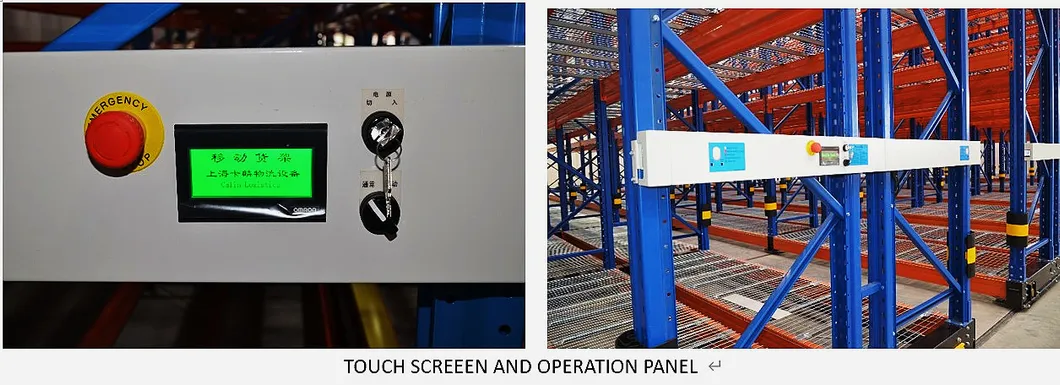

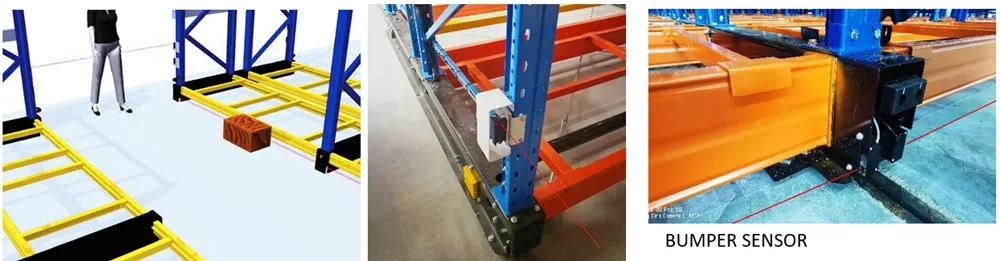

The system is operated manually or automatically via an integrated PLC system. Safety is guaranteed by a photoelectric beam system mounted on mobile rack uprights to detect obstructions.

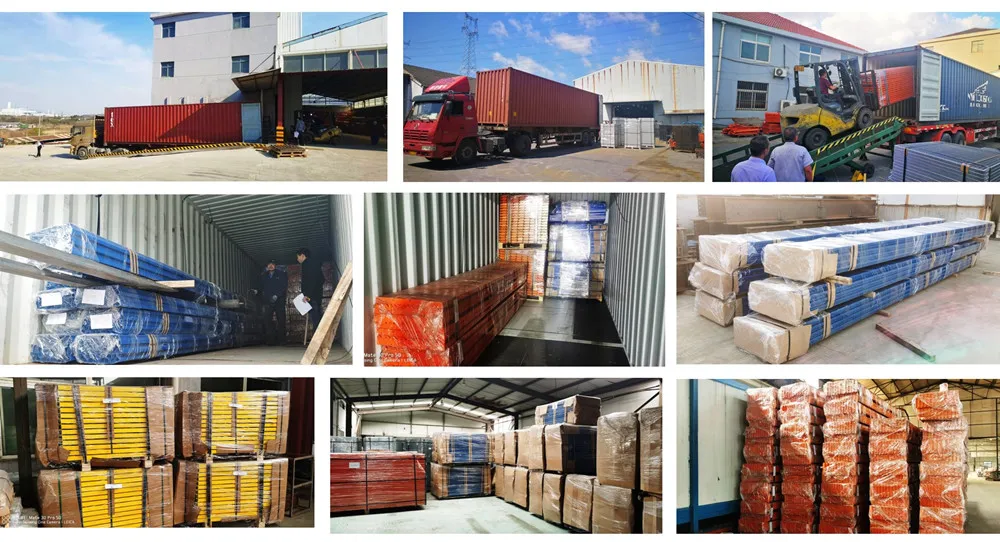

Packing and Delivery:
Long profiles are bundled on plywood or steel pallets and covered with plastic film. Edge protectors are used for thinner materials. Small accessories are packed in carton boxes. Standard delivery time is approximately 3 weeks after deposit.

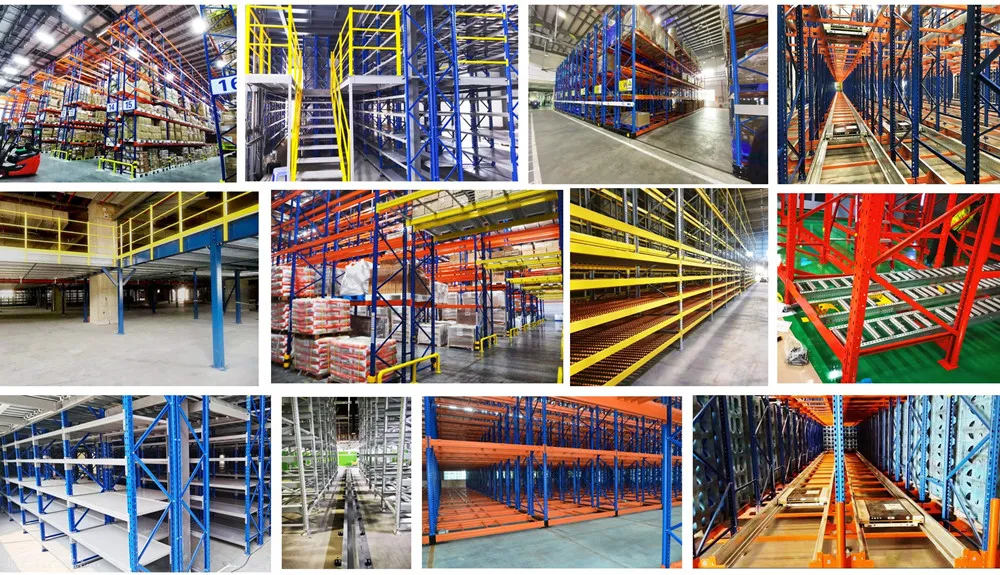

Total storage solutions range from selective pallet racking to semi-automated and fully automatic warehouse systems. Expert engineering teams utilize AutoCAD to deliver tailor-made proposals for specific logistics needs.
