Heavy-Duty Powder Coated Shelving Unit for Industrial Warehouses

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
DIR-001
Material
Steel
Structure
Rack
Type
Drive-In Pallet Racking
Mobility
Adjustable
Height
5-15m
Weight Cap.
500kg-1500kg
Surface
Powder Coating
Feature
Corrosion Protection
HS Code
7308900000
Capacity
50,000 Mt/Month

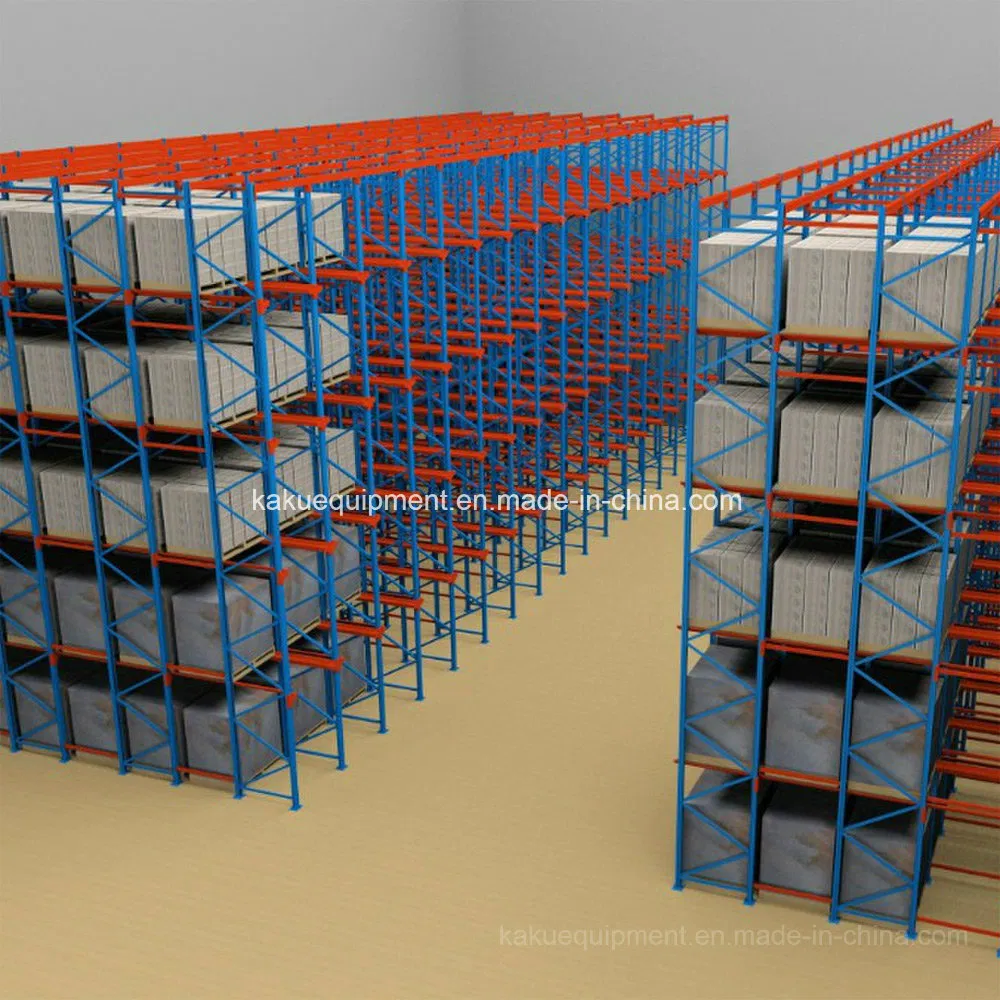

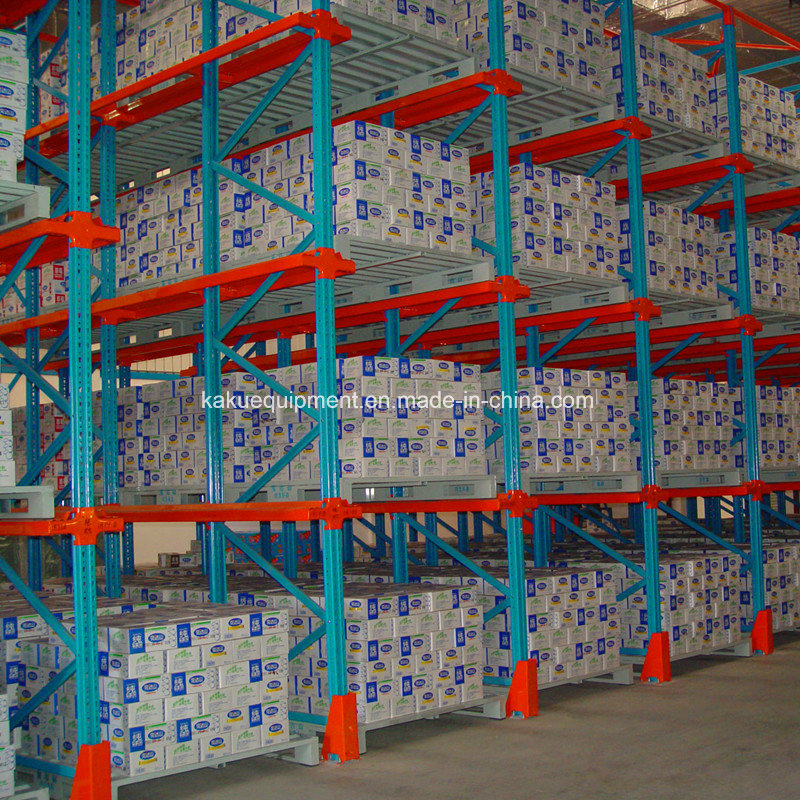

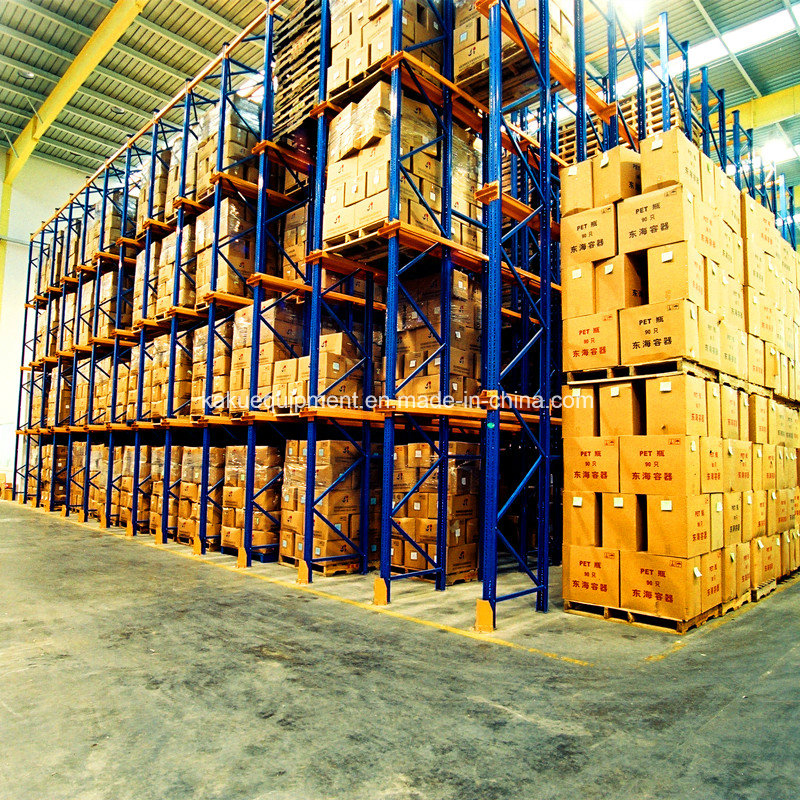

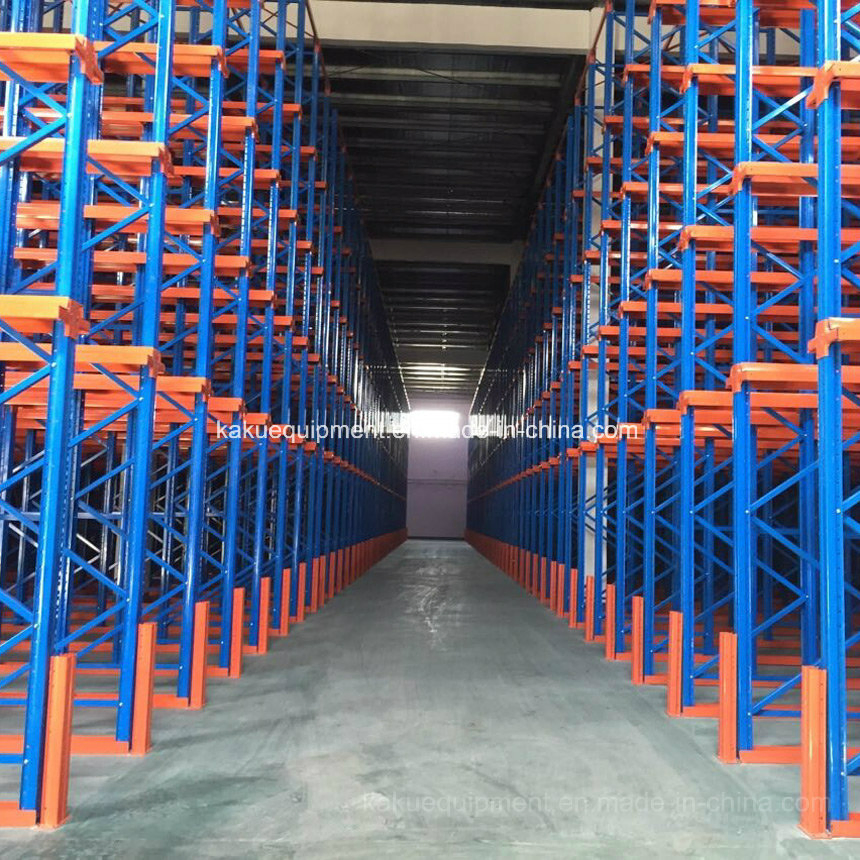

Industrial Warehouse Drive-in Pallet Racks

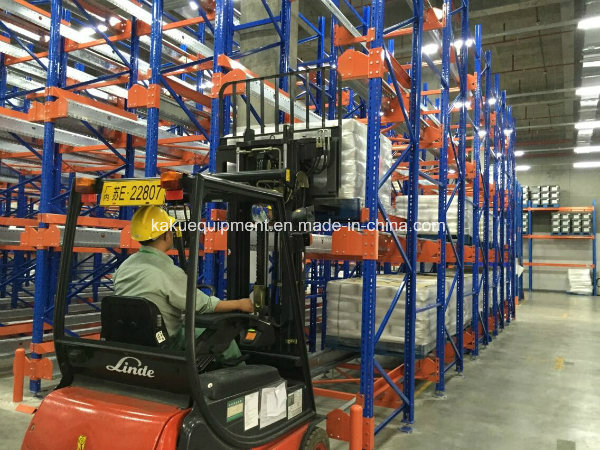

Drive-in Rack takes pallet access mode and is subject to fewer-variety and large volume cargo storage. The forklift enters the racking to load and unload pallets. Typically, the depth of one-side racking is no more than 7 pallets deep. Guide rails can be fixed to improve truck running speed. Compared with standard Pallet Racking, space utilization can be increased by 30%. Widely used in cold storage, food, and tobacco industries.

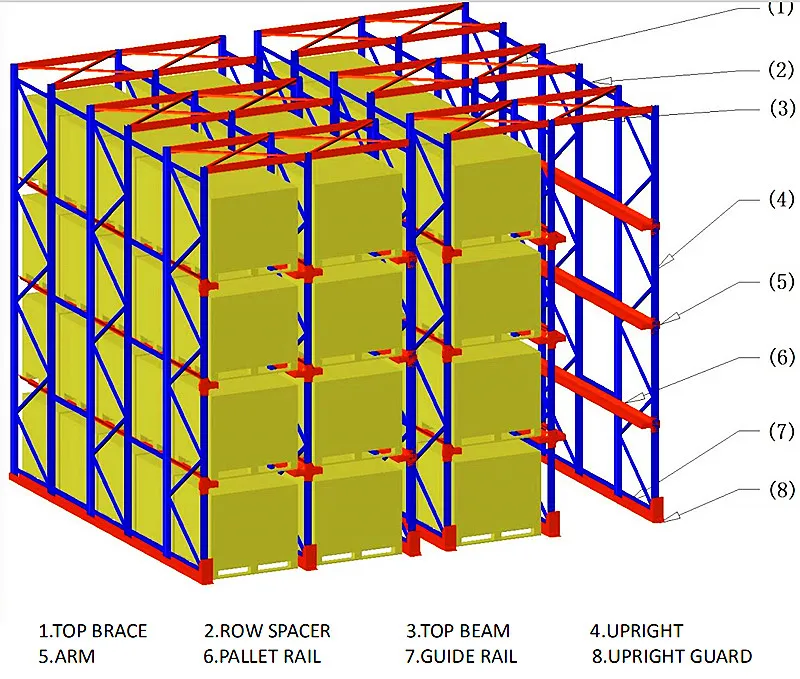

Drive in Pallet Racks

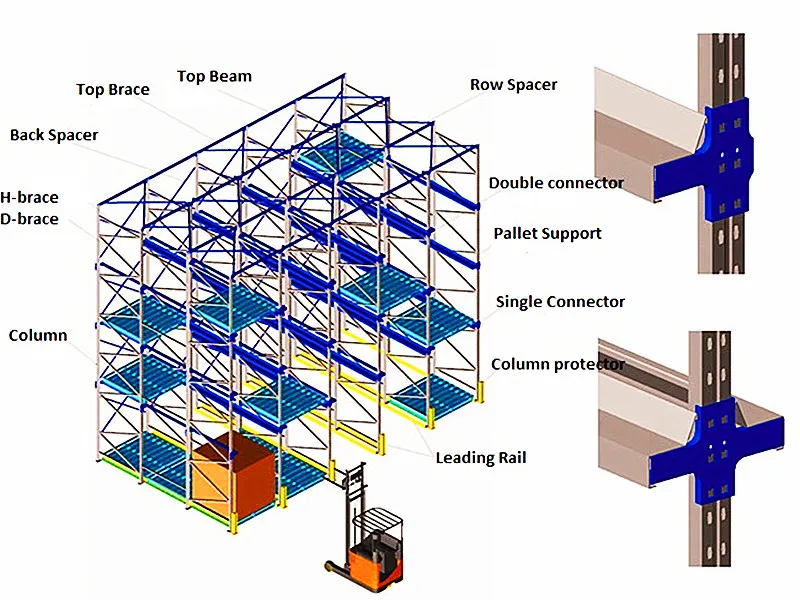

Warehouse Storage Solution

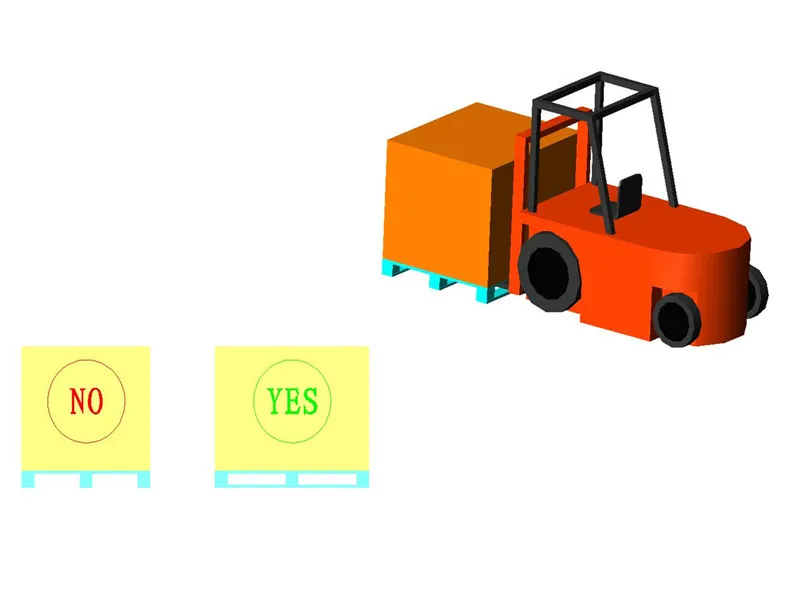

Heavy Duty Shelving

Key Features

📊
High Space Utilization

Nearly twice the storage density compared to standard pallet racking systems.

📦
Large Volume Storage

Ideal for storing large quantities of fewer product varieties with simplified picking.

🏗️
Structural Design

Recommended height within 10m; unit pallet weight up to 1500kgs for safety.

🔄
FILO Operation

First-In-Last-Out system perfectly suited for efficient forklift operations.

Technical Parameters

Pallet Size Options W1200*D1000mm | W1200*D1200mm | W1200*D1100mm | W1200*D800mm
Material Grades Q235A (Normal temp) | Q235B (Cold storage)
Craft-work Hole-punching, Cold rolling, Welding, Powder coating
Structure Bolted or Welded options available
Warranty One year against manufacturing defects; Lifetime consultation

📝 Information Required for Quotation

  • 📍 1. Pallet Size: Length * Width * Loading Height (including goods)
  • 📍 2. Warehouse Layout: Length * Width * Net Height
  • 📍 3. Loading Capacity: Weight (kg) per pallet
  • 📍 4. Rack Configuration: Number of bays and levels required

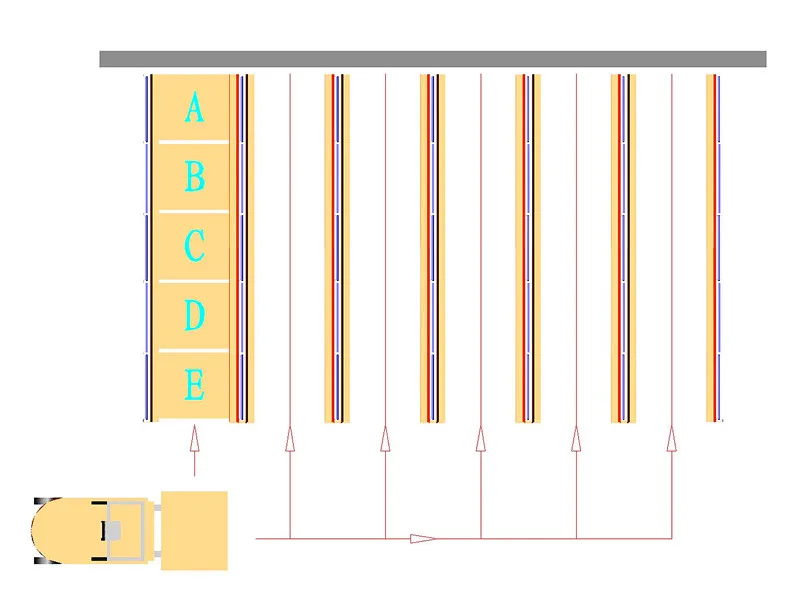

Uprights Detail

Production & Factory

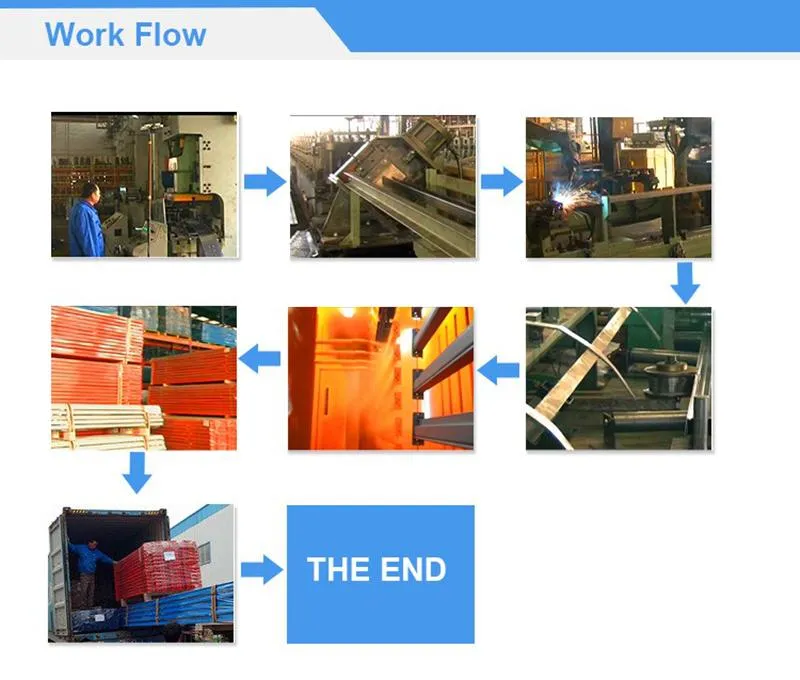

Production Procedure

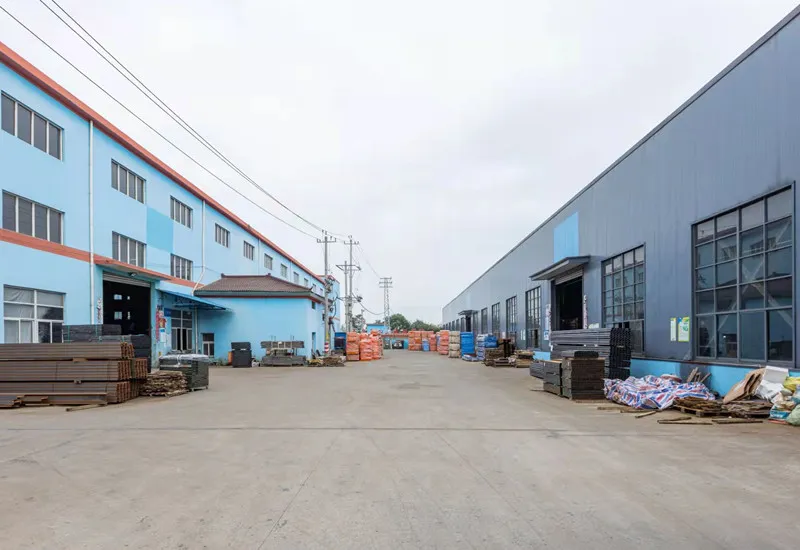

Factory View 1

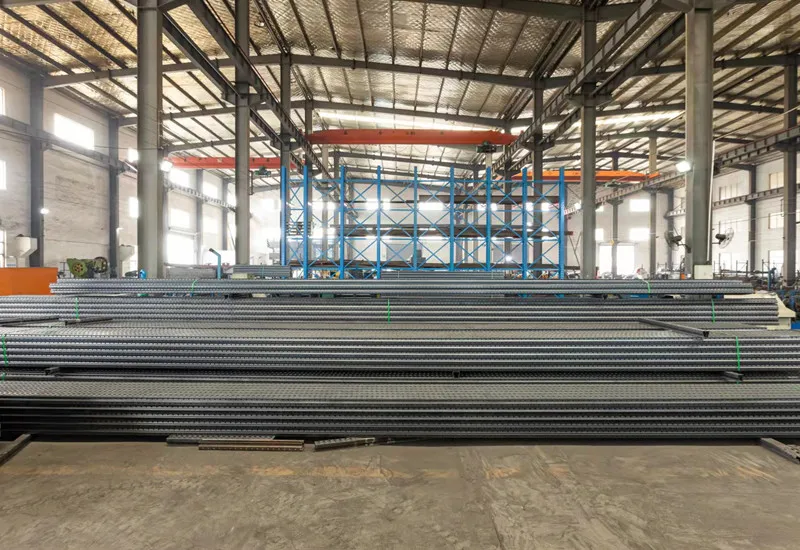

Factory View 2

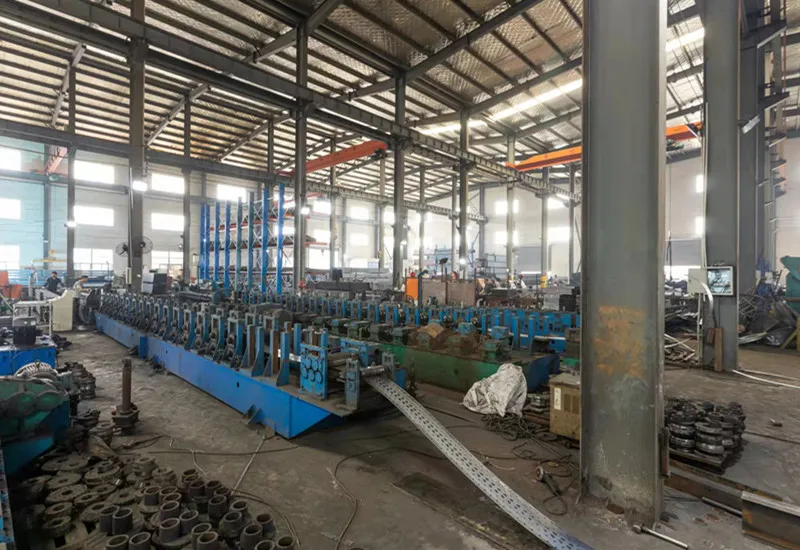

Factory View 3

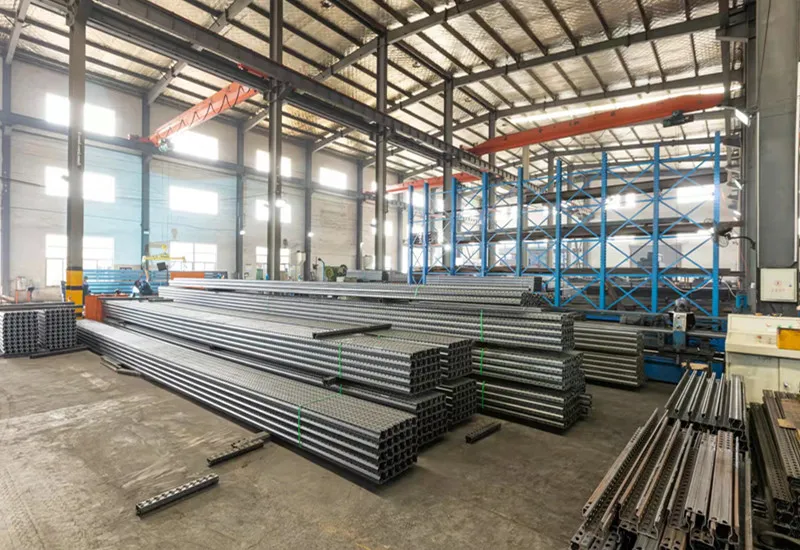

Factory View 4

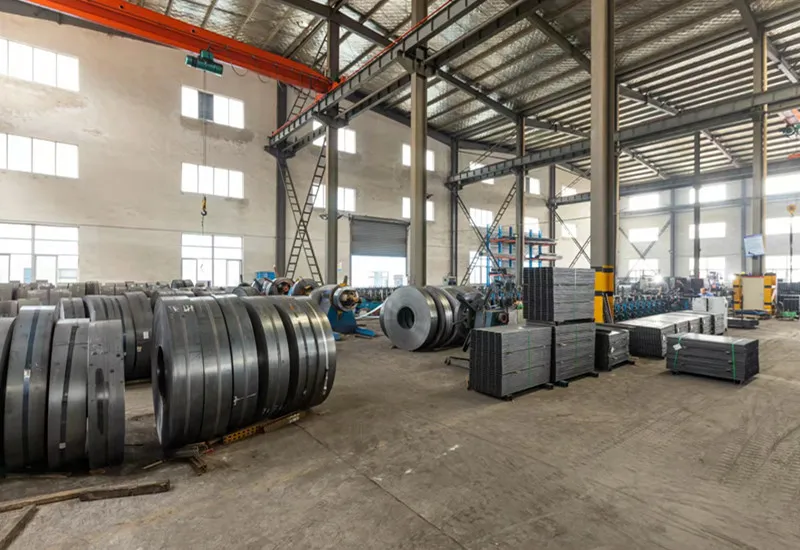

Factory View 5

Frequently Asked Questions

How can I track my order status?
We will provide regular updates via photos and videos to keep you informed of the manufacturing progress.
What is the standard manufacturing lead time?
For normal orders, we guarantee production within 15 working days as per the formal contract.
What are your delivery timeframes?
Typically, standard delivery takes within 20 working days, while sample orders can be fulfilled in 7 days.
What payment terms do you accept?
We accept T/T (30% deposit, 70% balance before shipment), L/C, Western Union, and PayPal.
Is the drive-in racking system customizable?
Yes, all racking dimensions, colors, and load capacities can be fully customized based on your pallet sizes and warehouse layout.
What is the difference between Q235A and Q235B steel?
Q235A is used for standard temperature storage, while Q235B is specifically designed for cold storage environments.
