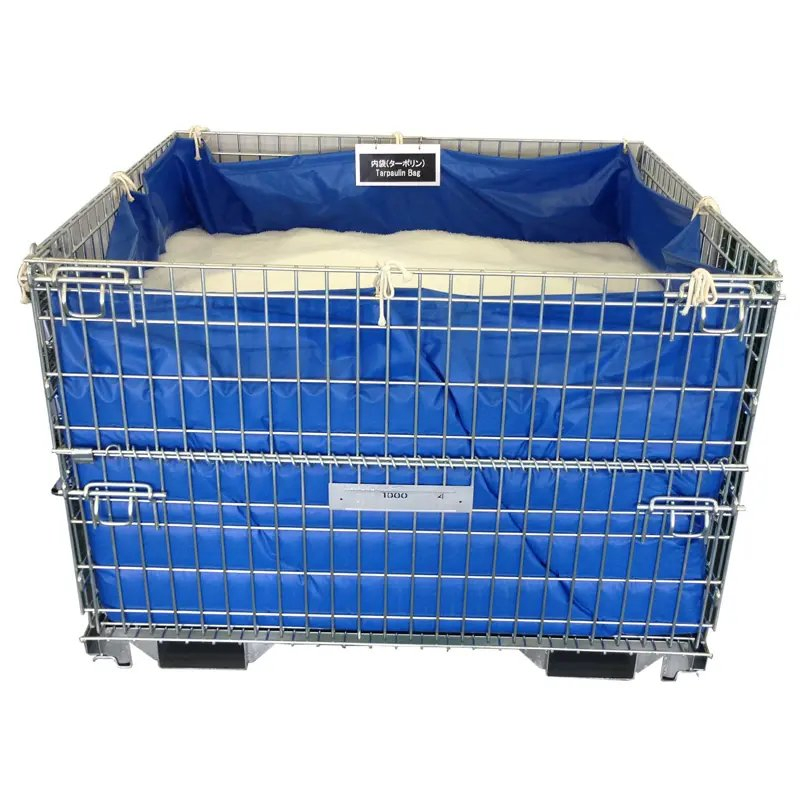

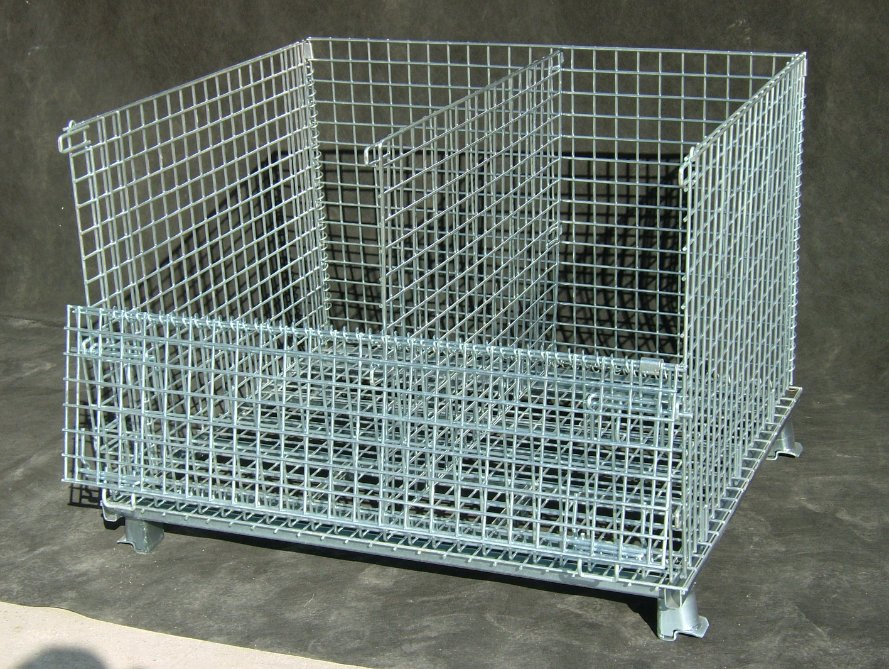

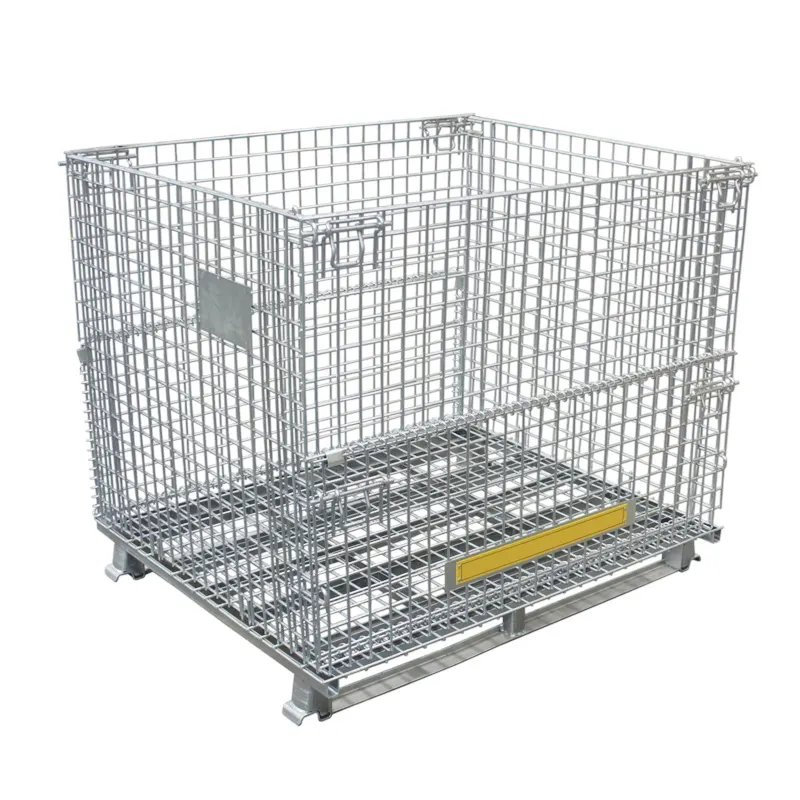

Heavy Duty Powder Coating Stacking Foldable Wire Mesh Large Metal Storage Bin Cage

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
YFZ series
Size
851*512*526 mm
Load Capacity
1000kg
Folded
Foldable Design
Mesh Spacing
50*50 mm
Wire Diameter
3 mm / 6.2 mm
Feet Height
100mm
Scale
Heavy Duty
Welding
Full Welding
Material
Steel Q235
Finish
Zinc/Powder Coating/Hot-DIP Galvanized

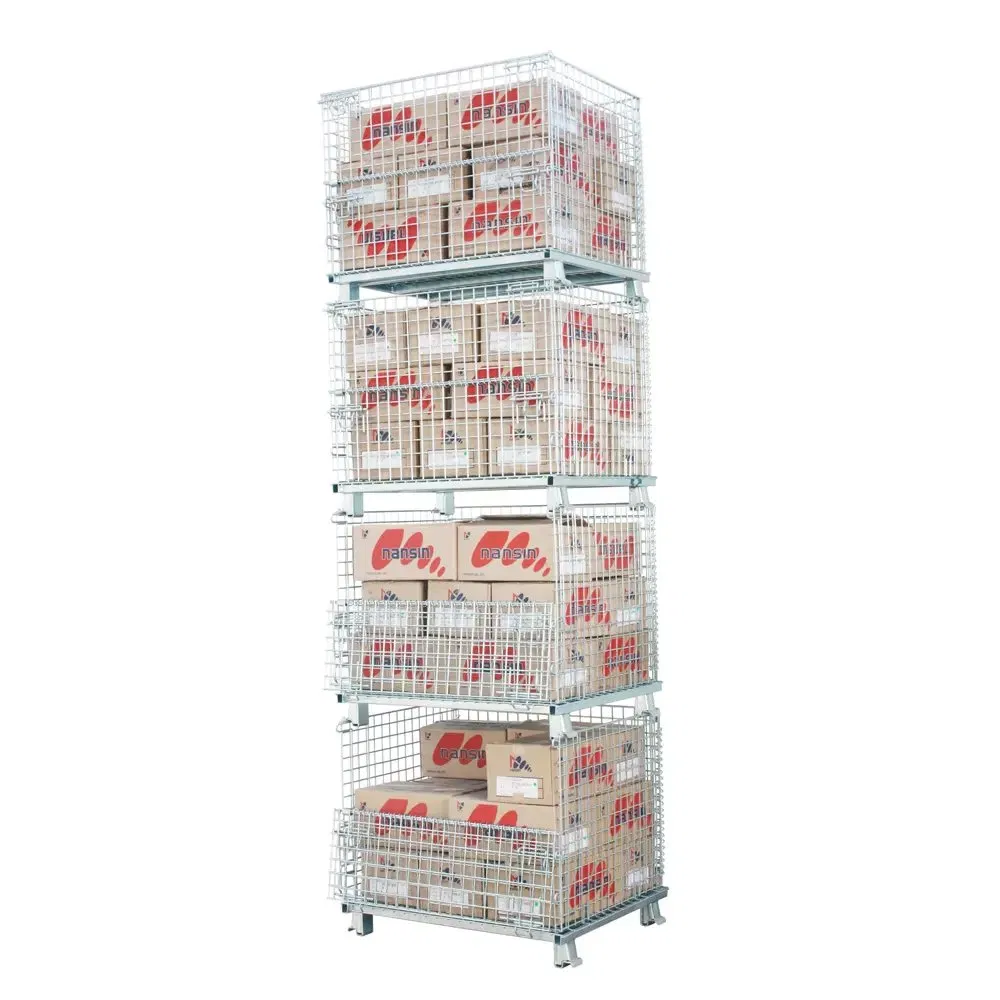

Stackability
4 High
Application
Industrial, Warehouse, Logistics
Production Capacity
2000 Sets/ Week
Product Description

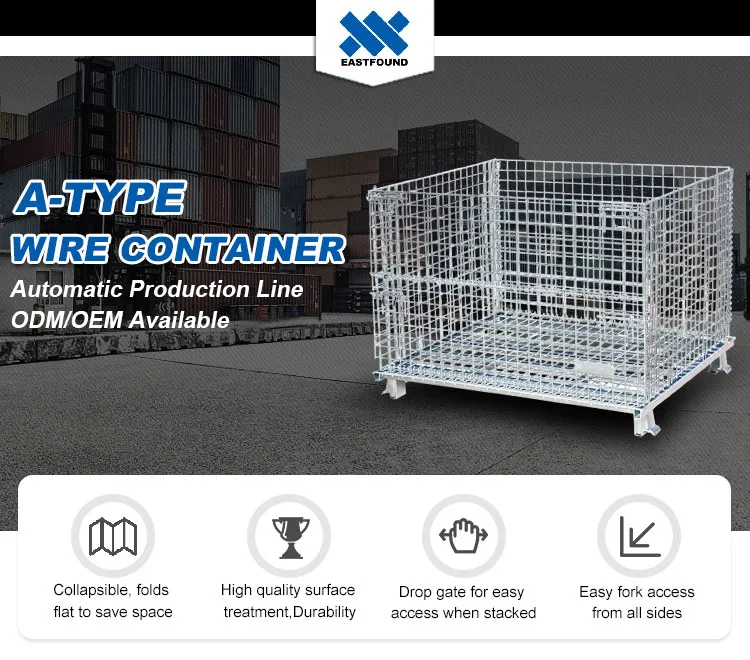

Wire container is also called as wire cage or wire basket, which is durable and stronger, at the same time, it is easy to folding down and stacking high. Because wire container has special strong feet and heavy-duty understructure which help to stake 4 high when loaded heavy weight. Good visibility and same loading space by using wire container make the warehouse management unitized and standard. When unused, the wire container can be folded down to save space. It is easy for forklift accesses from four side. Options accessories include dividers, shelves, card holders, name plates, casters, locking security lid, fork pockets, bar runners for storage on rack beams.

Model No. Outer Dimension (LxWxH mm) Inner Dimension (LxWxH mm) Loading Capacity (Kg) Net Weight (Kg) Gate Style
YFZ-J1851X512X526772X467X40050024Full Drop Gate
YFZ-K1831X505X538748X470X40050027Full Drop Gate
YFZ-J3831X514X538759X471X40080029Full Drop Gate
YFZ-L11030X814X838947X775X6981000441/2 Drop Gate
YFZ-W11030X814X838947X775X6981500501/2 Drop Gate
YFZ-L21230X1014X8891148X965X7501000581/2 Drop Gate
YFZ-W21230X1014X8891148X969X7482000701/2 Drop Gate
YFZ-C11230X1014X10401140X950X9001000641/2 Drop Gate

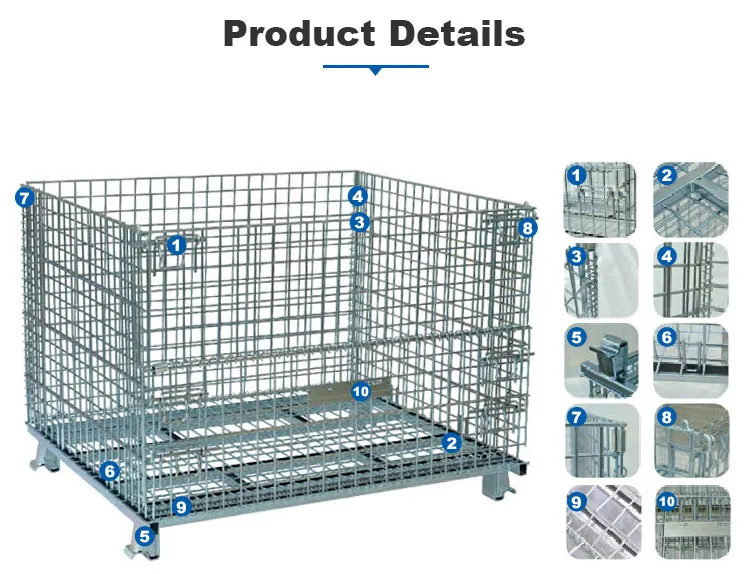

Main Features
  • Collapsible - Save space when not in use, ideal for return journeys.
  • Standard half-hinged gate access for easy loading.
  • Open wire mesh design allows for full visibility for inventory checks.
  • Sliding locking handles hold drop side securely.
  • "U" formed base channels welded by robots for maximum durability.
  • Spiral hinge wire improves side panel stability and folding efficiency.
  • Arched steel legs design increase strength and aid steady high stacking.

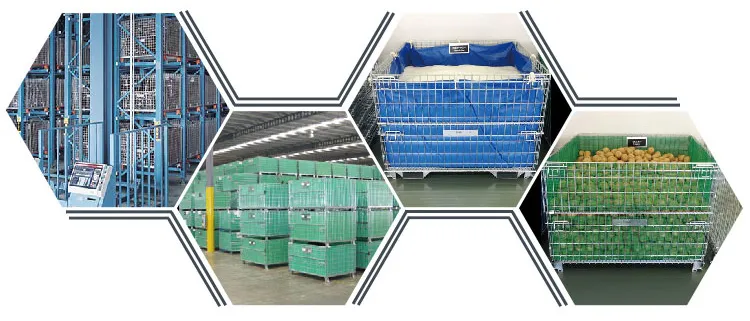

Industry Application

These products are widely used in supermarkets, agriculture, fisheries, food and beverage industry, auto parts and other industries for logistics packaging, transportation and warehousing. Products are manufactured for global markets including North America, Europe, Japan, Australia, and the Middle East.

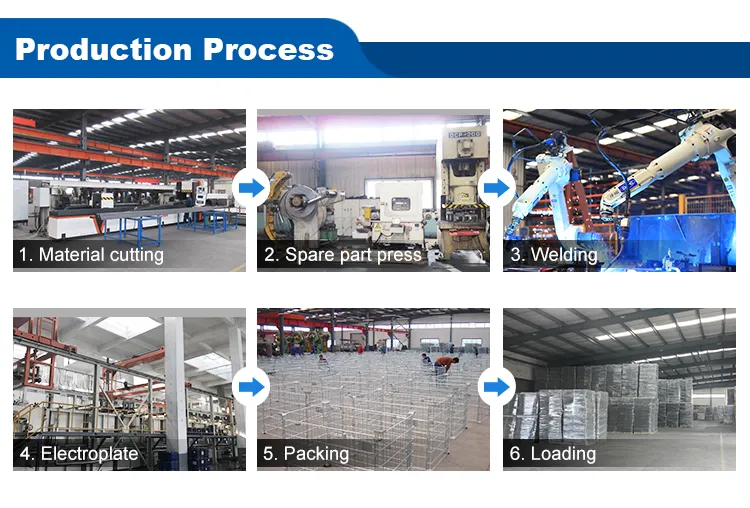

Production Line Quality Control

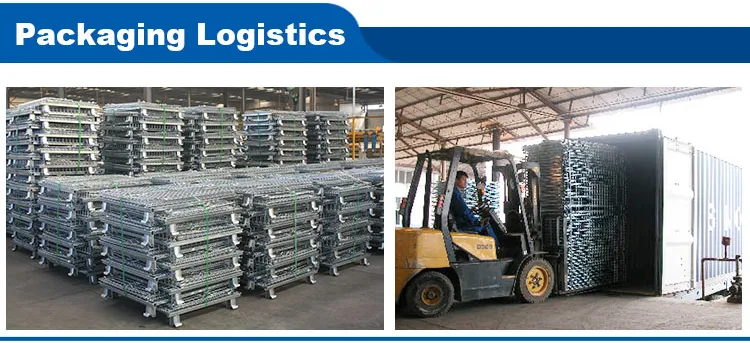

Packing & Logistics

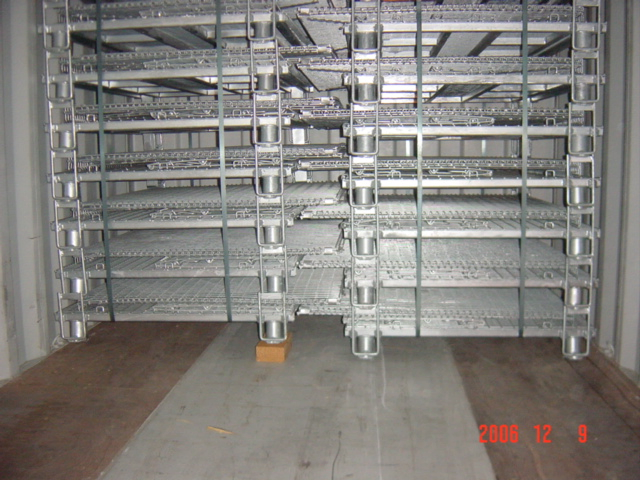

Standard Packing: Plastic banding + Stretch film wrapped. Designed for easy loading and unloading with standard forklift trucks or according to specific customer requirements.

Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in material handling and storage equipment.
How long is your standard delivery time?
Generally, it is about 14 days if the goods are in stock, or 15-21 days if there is no stock, depending on the order quantity.
Do you provide samples for testing?
Yes, we can offer samples. Please contact us for details regarding sample availability and shipping arrangements.
What are your standard payment terms?
Our typical terms are 30% T/T in advance, with the balance settled after shipment.
How do I install the wire racks or containers?
We provide detailed installation instructions for every product type and offer a complete after-sales service system to assist you.
Can you provide customized designs (OEM/ODM)?
Yes, we have rich experience in customized production. Our design team offers professional OEM design services based on your specific requests.
