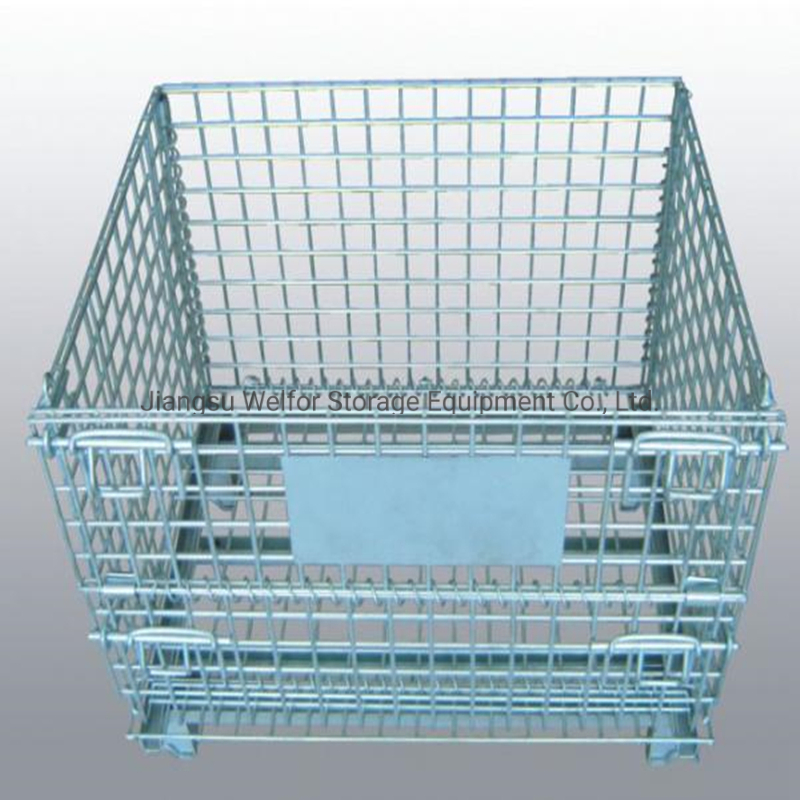

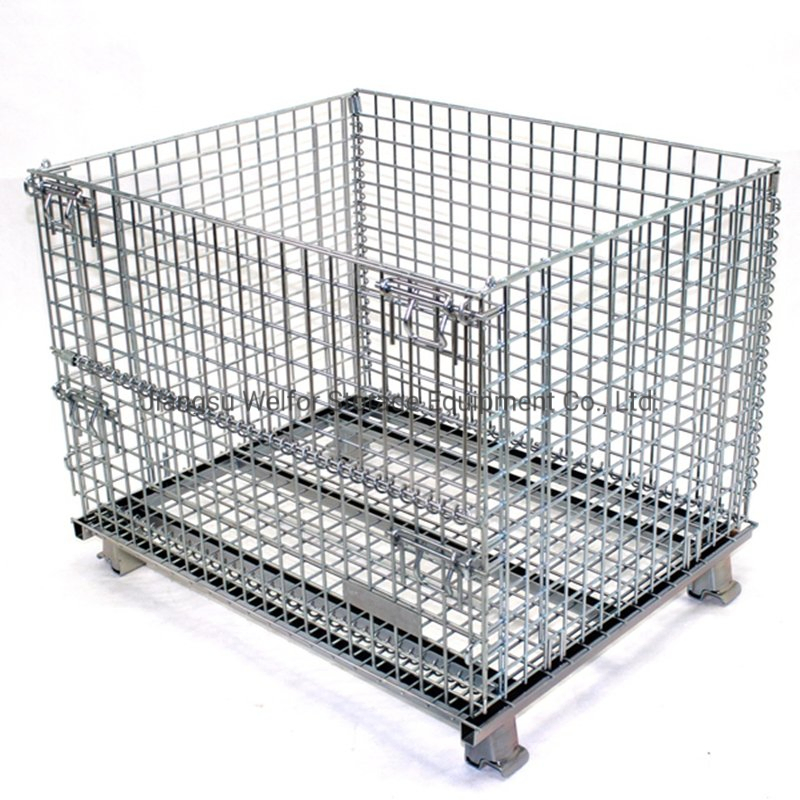

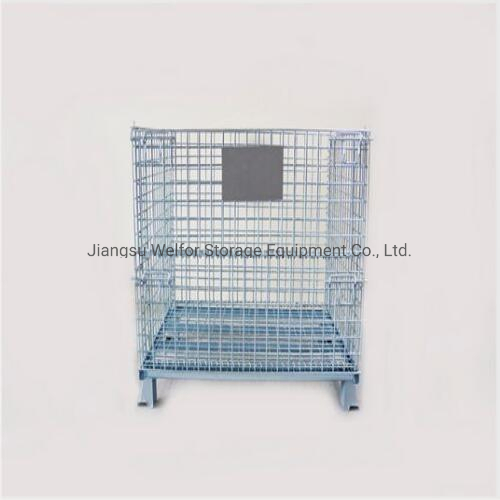

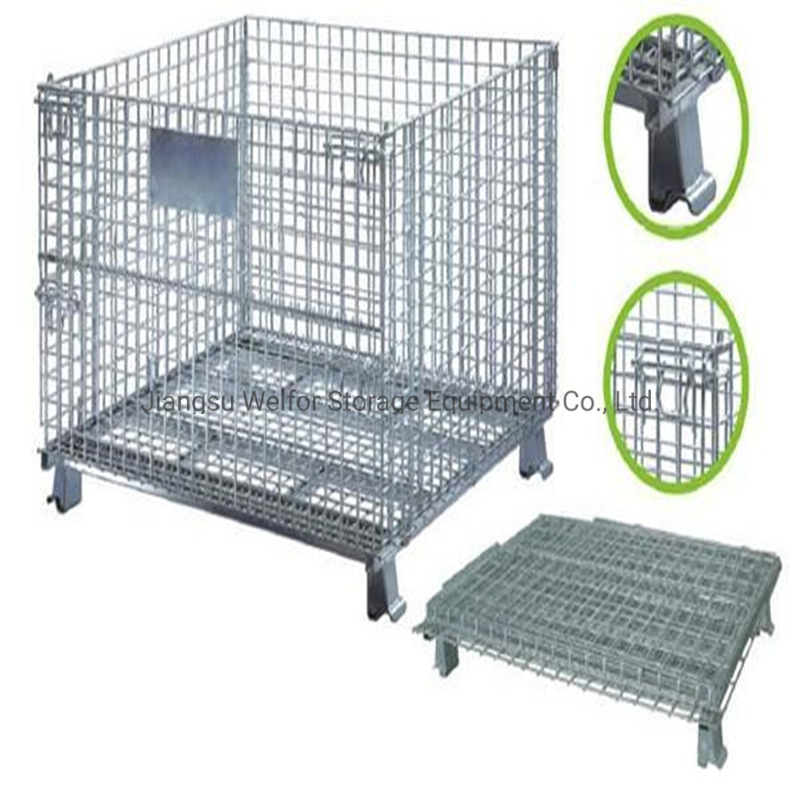

Heavy Duty Steel Collapsible Wire Mesh Pallet Stillage for Warehouse Storage

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Model NO.

WMC-001

Load Capacity

1200kg

Folded

Mesh Spacing

50mm×50mm

Wire Diameter

6mm

Feet Height

100mm

Scale

Heavy Duty

Welding

Full Welding

Surface Treatment

Electro-Galvanized

Certificate

Ce, SGS

Production Capacity

5, 000 Ton/Month

HS Code

73089000

Heavy Duty Steel Collapsible Wire Mesh Pallet Stillage for Warehouse Storage

Factory supplier provide high quality with best price.

Long-term supply and promptly delivery.

Material: Robust Steel.

Surface Treatment: Powder painting or zinc coated.

Welded wire mesh structure: Stable, durable, high loading capacity.

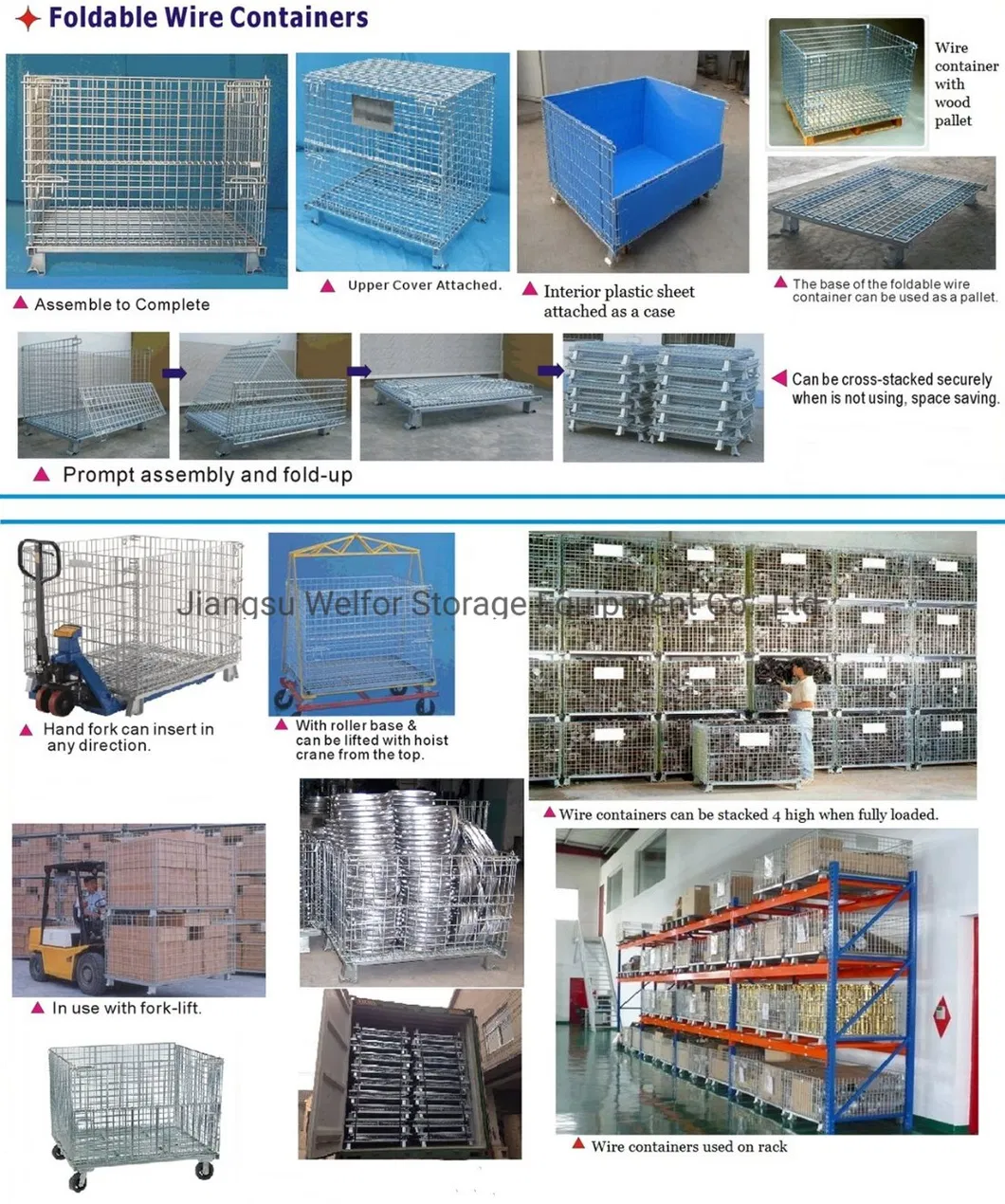

Stackable and collapsible: Folds flat to save significant space.

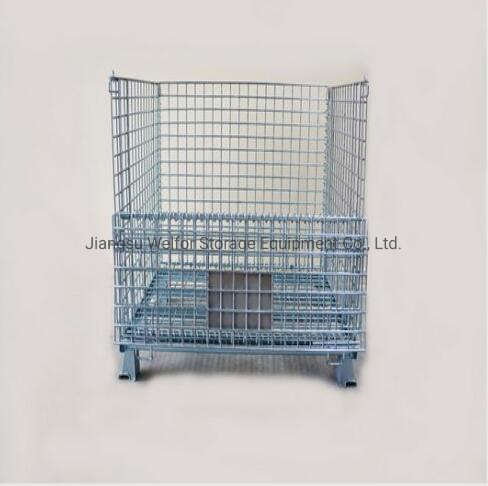

Drop gate design for easy access even when stacked.

Four-way fork access for easy handling.

Low maintenance cost and long service life.

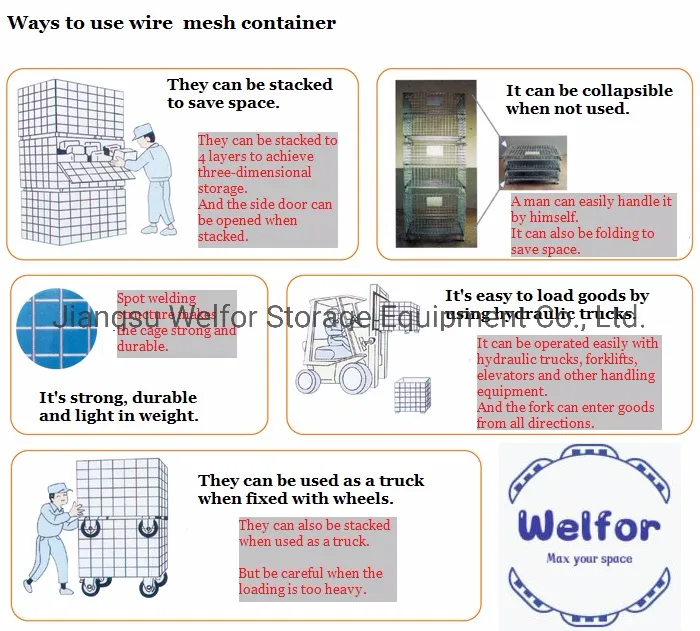

Stackable: Can be stacked up to 4 layers for three-dimensional storage.

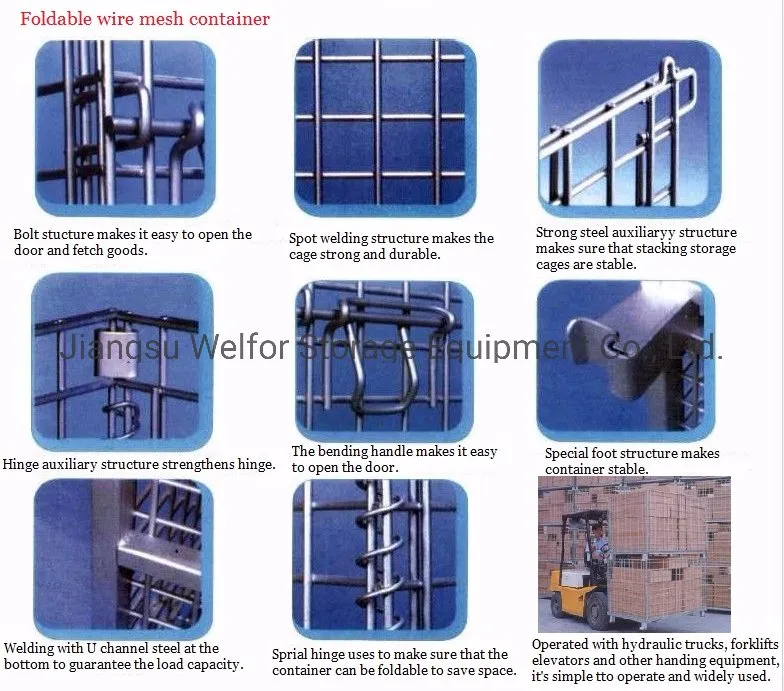

Strong Construction: Welding with U-channel steel at the bottom.

Bolt structure allows easy door opening for fetching goods.

Highly compatible with hydraulic trucks, forklifts, and elevators.

Type	Layers	External Size(mm)			Wire Dia(mm)	Mesh(mm)	Cap(kg)	Foot H(mm)
Type	Layers	L	W	H	Wire Dia(mm)	Mesh(mm)	Cap(kg)	Foot H(mm)
A-5	4	1000	800	840	6.0	50x50	1200	100
B-5	4	1000	800	840	6.4	50x50	1500	100
B-5 1/2	4	1000	800	500	6.4	50x50	1000	100
C-5	4	1000	800	840	4.8	50x50	600	100
A-7	4	1200	1000	890	6.0	50x50	1500	100
B-7	4	1200	1000	890	6.4	50x50	2000	100
A-3	4	800	600	640	6.0	50x50	800	100
