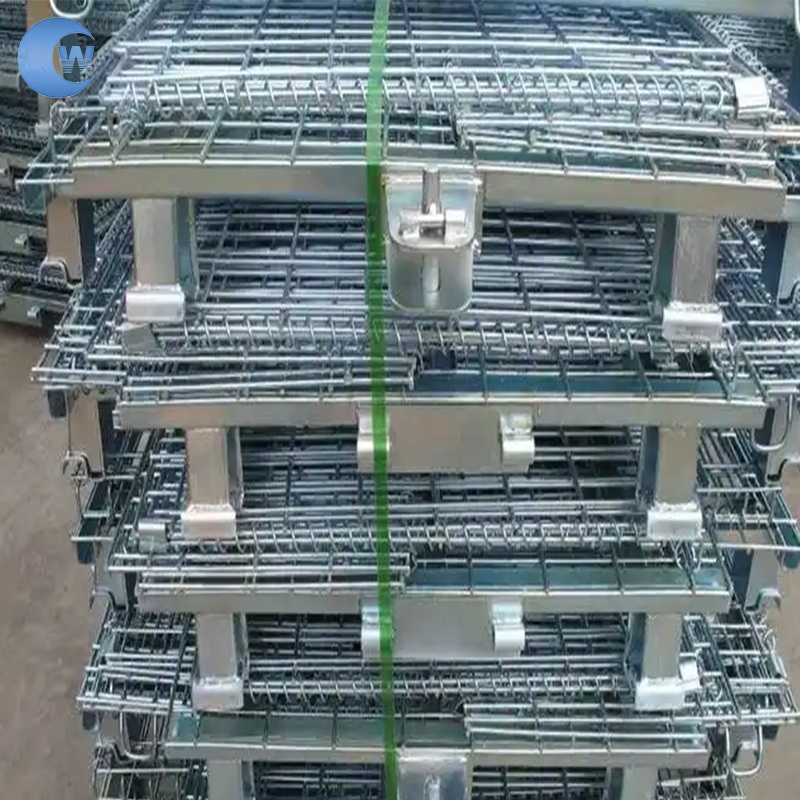

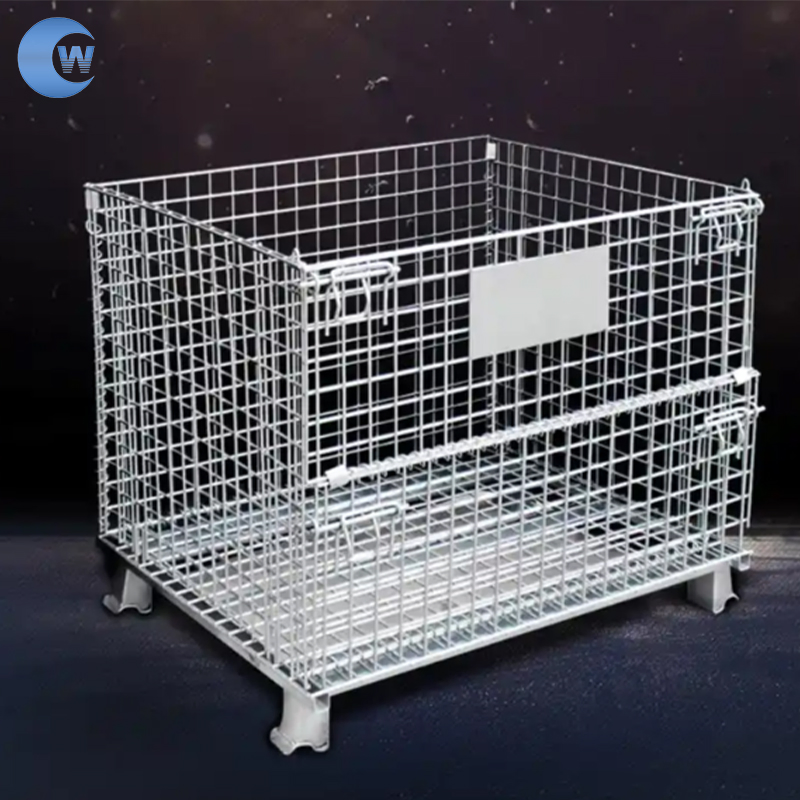

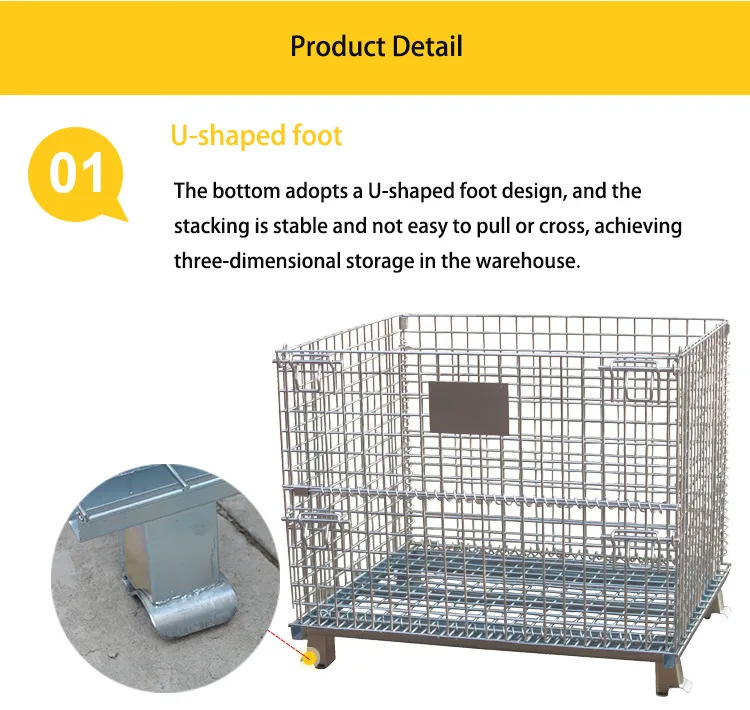

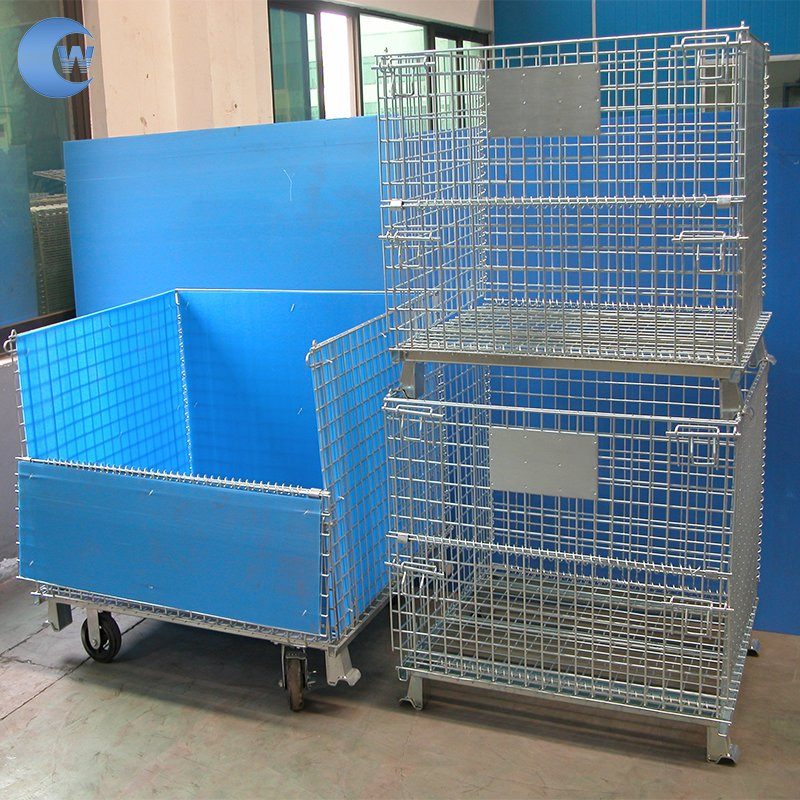

The storage cage is welded with strong steel wire, and the bottom is welded in a U-shape to make the structure more sturdy. Install cardboard protective materials inside the storage cage to store materials that are prone to scratching the surface. With the help of handling equipment, it can be used in logistics processes such as transportation, loading and unloading, and storage.

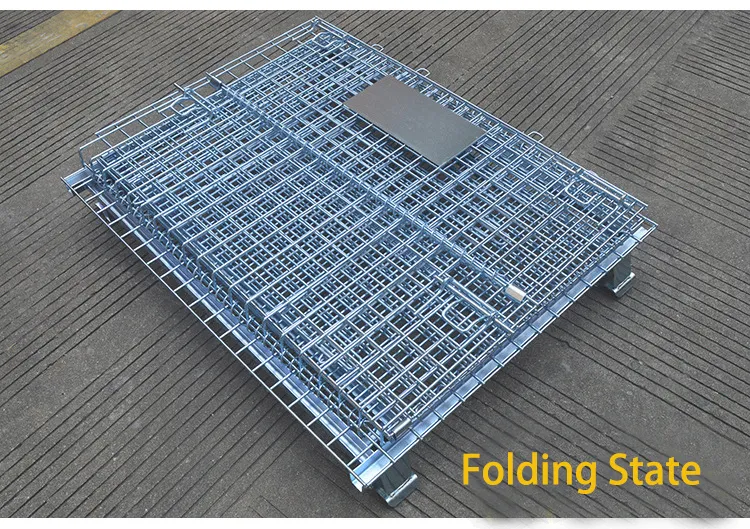

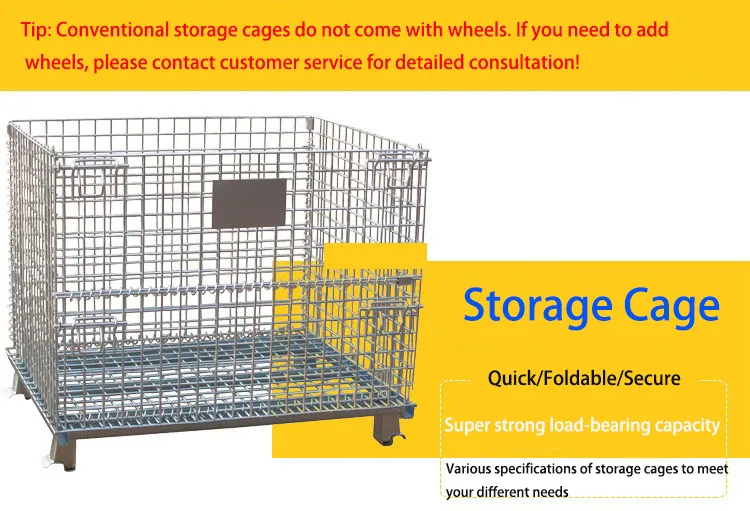

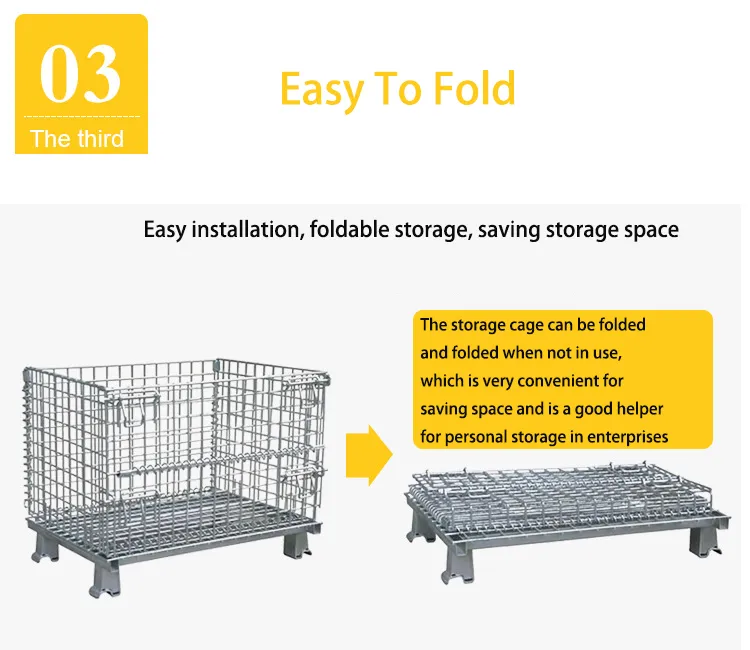

It can also be equipped with casters for greater mobility and easy folding, and can be customized according to specific requirements.
| Model | Load-Bearing(kg) | Size (mm) | Wire Diameter(mm) | Mesh Size(mm) |
|---|---|---|---|---|
| CCL-01 | 450 | 800*500*540 | 4.5 | 25*25 |
| CCL-03 | 400 | 800*600*640 | 4.8 | 50*50 |
| CCL-06 | 800 | 800*600*640 | 5.8 | 50*50 |
| CCL-08 | 600 | 1000*800*840 | 4.8 | 50*50 |
| CCL-11 | 1200 | 1000*800*840 | 5.8 | 50*50 |
| CCL-15 | 1000 | 1200*1000*890 | 5.8 | 50*50 |
| CCL-16 | 1500 | 1200*1000*890 | 5.6 (Enhanced) | 50*50 |
Note: 5 inch light duty wheels (200kg) and heavy duty wheels (500kg) are optional.
Equipped with strong technical force and complete manufacturing facilities, our products are widely utilized in construction, agriculture, and various industrial logistics. We serve customers worldwide across the USA, Canada, Australia, South Asia, Middle East, and Europe with advanced technology and OEM/ODM customization capabilities.
