High Storage Capacity Metal Storage Cage Rolling Wire Mesh Pallet Containers

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

FP-storage cage

Load Capacity

Customized

Folded

Mesh Spacing

50mm×50mm

Wire Diameter

5mm / 5.8mm

Feet Height

100mm

Scale

Heavy Duty

Welding

Full Welding

Application Area

Warehouse, Logistic, Recycling, Wine Industry

Function

Foldable, Collapsible, Stackable

Material

Mild Steel Q235

Finish

Zinc / Hot DIP Galvanized / Power Coating

Origin

China

Production Capacity

10000PCS Per Month

Product Specifications

Model	Wire Dia(mm)	Mesh Grid(mm)	Length(mm)	Width(mm)	Height(mm)	Foot Height	Volume(m³)	Loading(kg)
FPYA-3	6.0	50*50	800	600	640	100	0.22	250-2000
FPYA-5	6.0	50*50	1000	800	840	100	0.54
FPYB-5(1021A)	6.0	50*50	1200	1000	890	100	0.84
FPYB-5(810)	6.3	50*50	1000	800	840	100	0.52
FPYB-7(1012)	6.3	50*50	1200	1000	890	100	0.84
FPYB5-1/2(810S)	6.3	50*50	1000	800	500	100	0.26

Key Features & Advantages

Able to be conveyed by pallet vehicles, forklift, elevator and crane; up to four layers may be stacked.

Easy operation, wide professional use and long service life.

Welded by strong steel bar; "U" shaped channel steel is used at the bottom to increase solidity.

Suitable for logistic circles, including transportation, assembly, disassembly, and integrated storage.

Optional cardboard inserts protect material surfaces and ensure completeness during transit.

Product Description

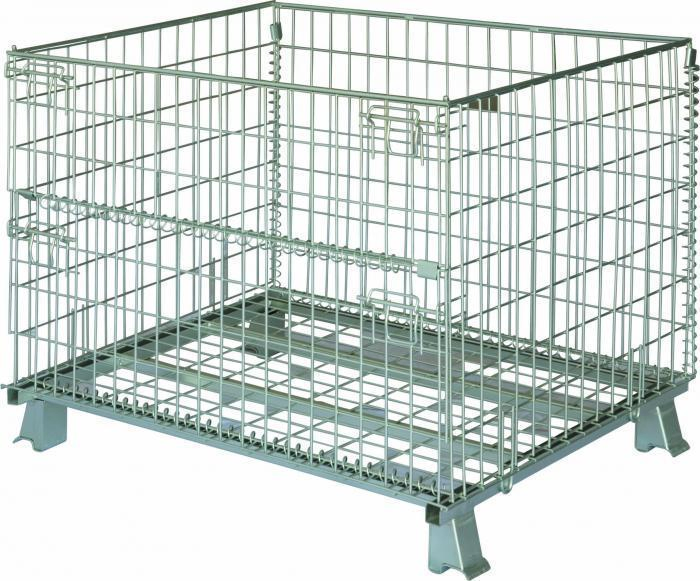

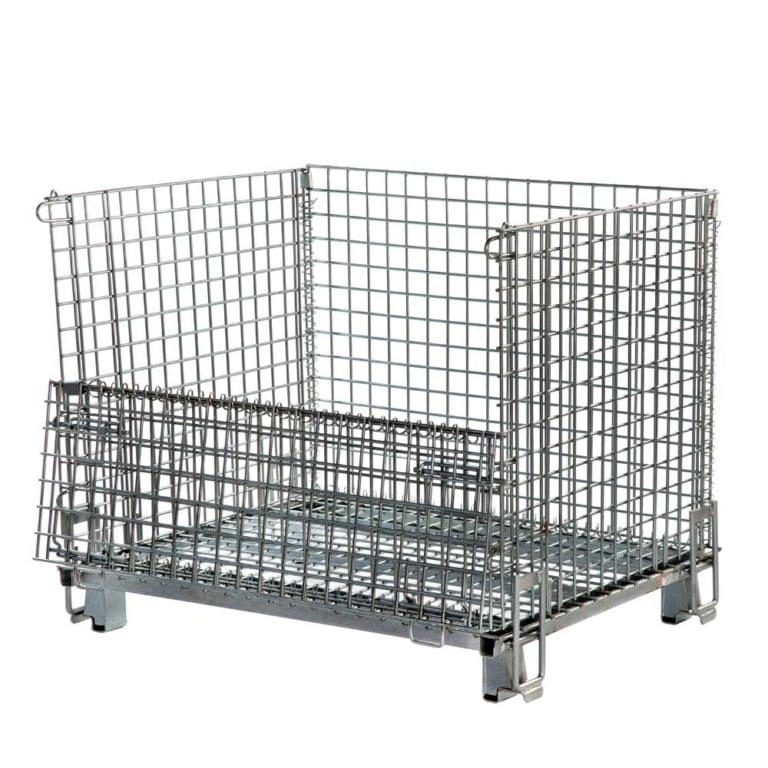

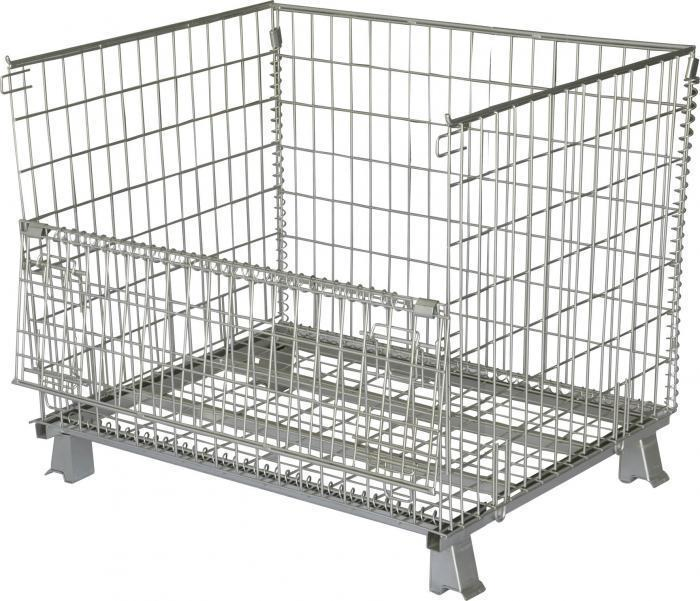

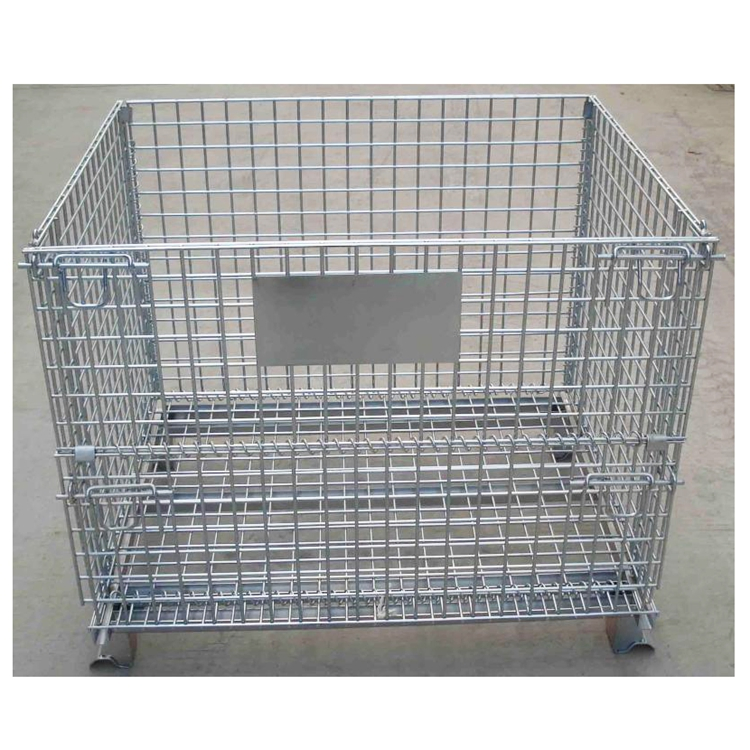

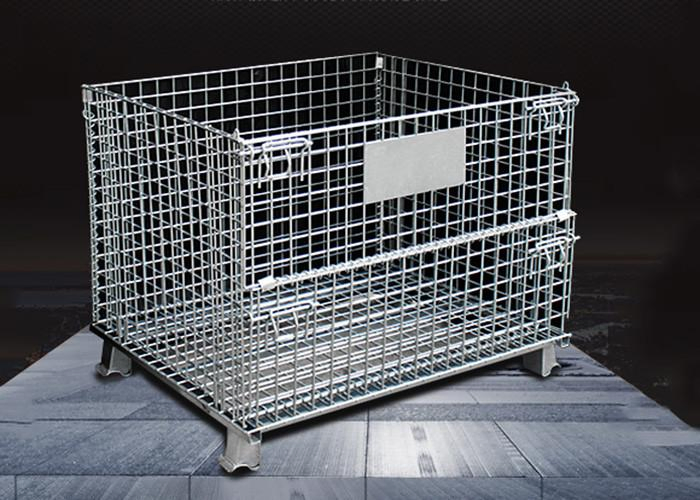

Wire mesh container is also called storage cages and butterfly cages. They are an important type of logistics container in storage and transportation. They have the advantages of fixed storage capacity, neat stacking, storage at a glance, and easy inventory counting, and also improve the effective utilization of storage space.

The storage cage can be folded freely and stored when not in use, saving space in the warehouse. In addition, the product is durable, easy to transport, and reusable, which effectively reduces manpower consumption and packaging costs. This product can be used in factory workshops, supermarkets for display, and even outdoors.

Frequently Asked Questions

1. What materials are used for these storage cages? We primarily use high-quality mild steel Q235 and Q195 for durability and strength.

2. What types of surface finishes do you provide? Options include Electro-galvanized (Zinc plated), Hot dip galvanized, and Powder coating.

3. What is the typical loading capacity? We offer light-duty (100~300kg), medium-duty (400~800kg), and heavy-duty (1000~1700kg) models.

4. Can these products be used in cold storage environments? Yes, our mobile racks, wire containers, and roll cages are widely used in cold storage.

5. Can you design a custom solution without existing drawings? Yes, we can create a suitable design based on your required dimensions, loading capacity, and operation environment.

6. How are the goods packed for transport? They are packed with plastic banding and stretch film wrapping, then palletized for easy forklift loading.
