Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
1 / 5
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability
Mobile a Frame Glass Storage Rack with Lockable Casters for Stability

Mobile a Frame Glass Storage Rack with Lockable Casters for Stability

Customization: Available
Certification: CE, FDA, ISO, PCI, PDA, UR
Condition: New
Send Inquiry

Product Description

Basic Specifications
Model NO.
BLAR5T
Control System
Semi-Automatic
Glass Thickness
5 mm - 30 mm
Warranty
1 Year
Storing Thickness
220 mm Each Side
Working Loading
5t
Self-Weight
240 Kgs
Material
Steel
Mobility
Combined
Operation
Manually
Package Size
570cm * 224cm * 217cm
Product Description

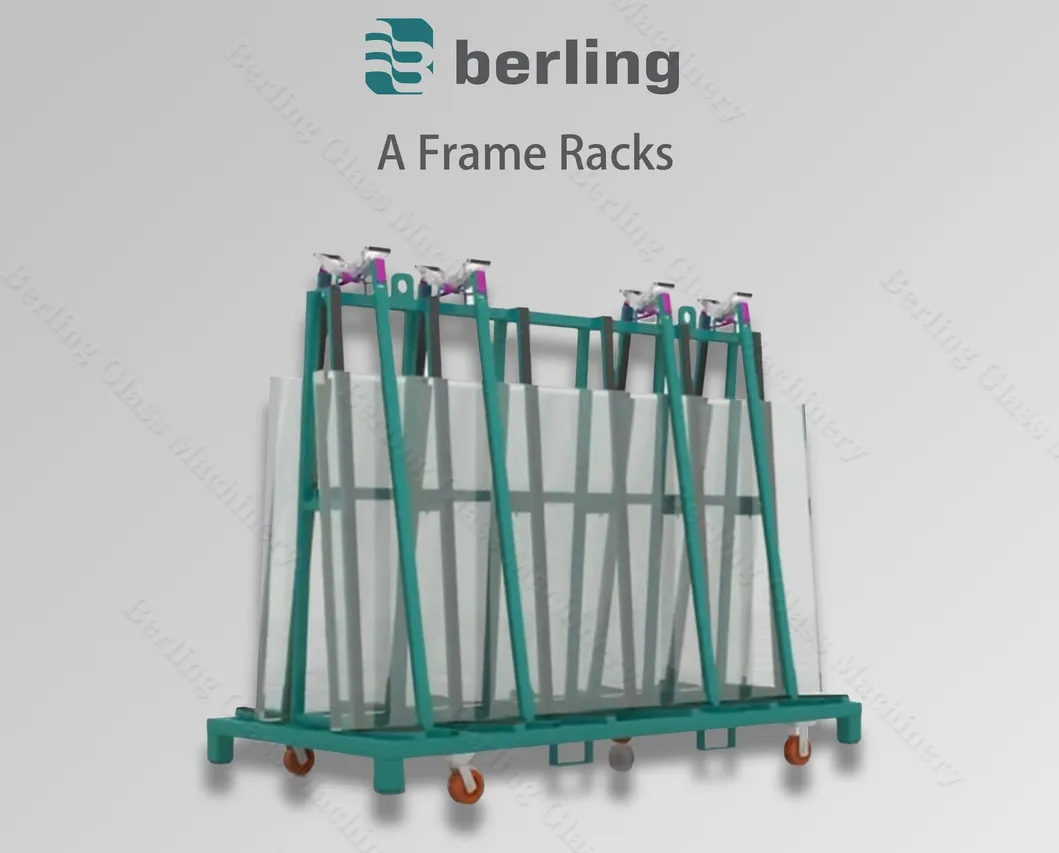

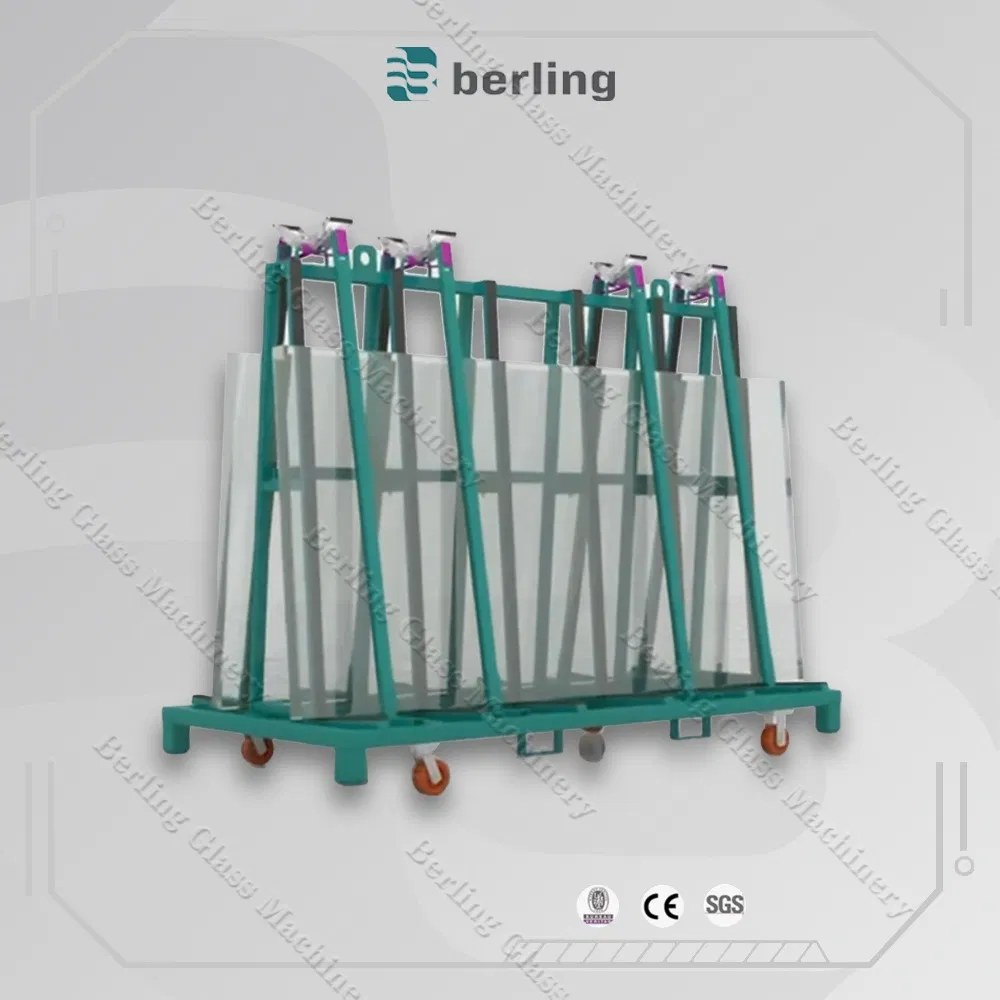

Mobile A Frame Glass Storage Rack
Key Features:
  • Light and compact, convenient to use
  • Storage and transportation all in one

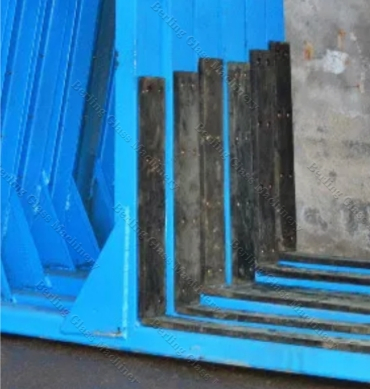

  • High-quality rubber pads with built-in steel plates
  • Customized size and design are available
  • Racks can be stacked up when shipping to save freight cost
  • Square steel tubing: 60*60*3mm
  • Electrostatic spraying for long-lasting surface
  • Two universal wheels and two with brakes design
Technical Parameters
Model No. Specification (mm) L*H*W Storing Thickness (mm) Working Loading Self-weight (kgs)
BL2T 1800*1600*900 220 each side 2T 240
BL5T 1800*1600*900 220 each side 5T 240

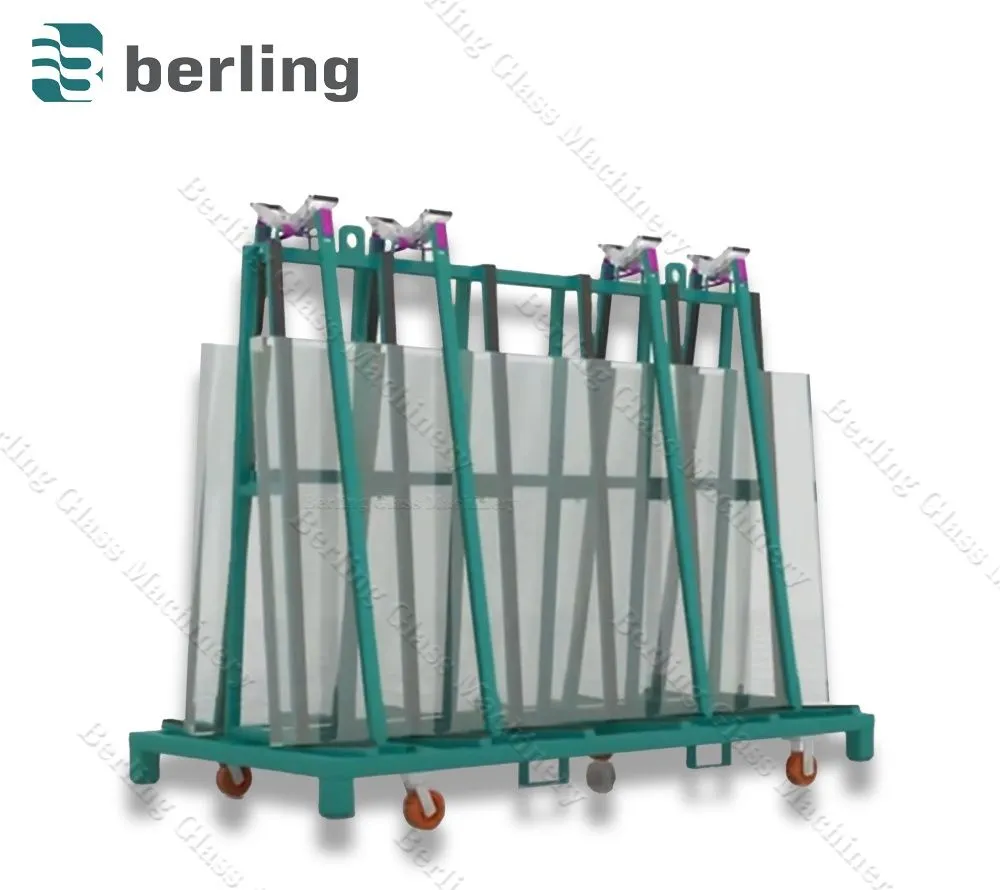

A Frame Rack Design
A Frame Racks are designed for the glass industry. It is a solid triangular structure welded with high strength steel, which provides excellent load-bearing capacity and prevents tipping. The multi-layer partition design, equipped with protective pads, can prevent the glass from being scratched or collided during transportation and storage.
Detailed View & Application

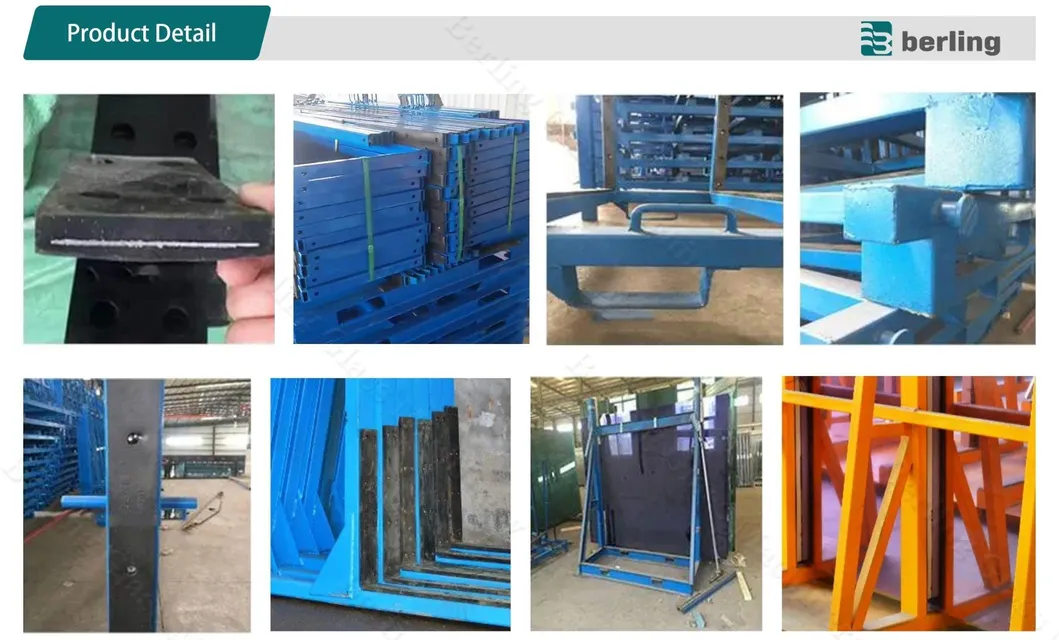

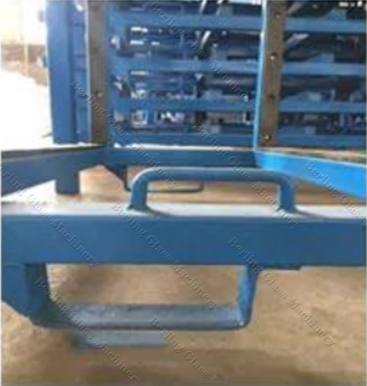

Detailed Photos

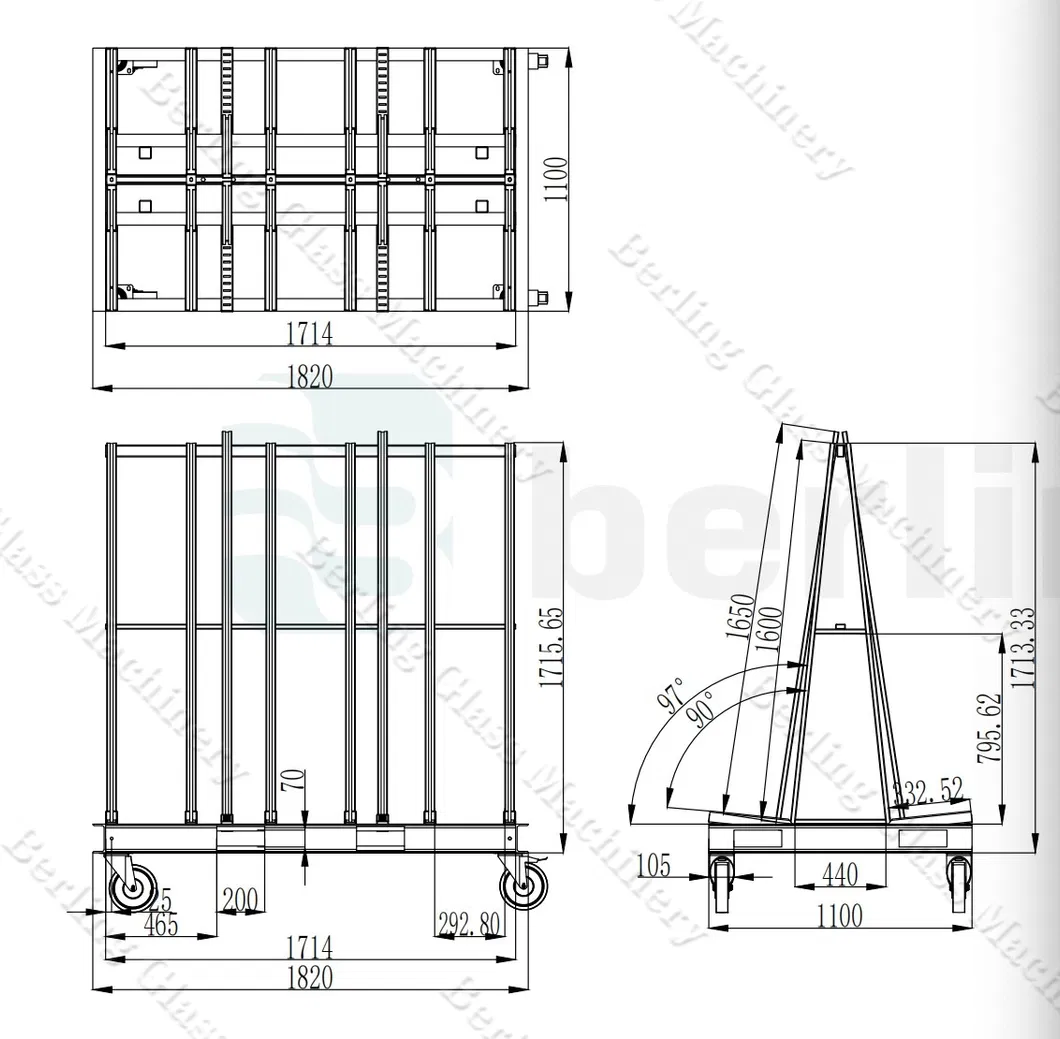

High strength steel structure

This A-type frame is made of thickened high-strength steel and is equipped with anti-deformation reinforced crossbeams. Its load-bearing capacity is 30% higher than that of ordinary frames. The unique anti-slip silicone partition layer effectively reduces the friction damage to the glass. The modular design enables rapid disassembly and assembly, reducing transportation volume by 60%.

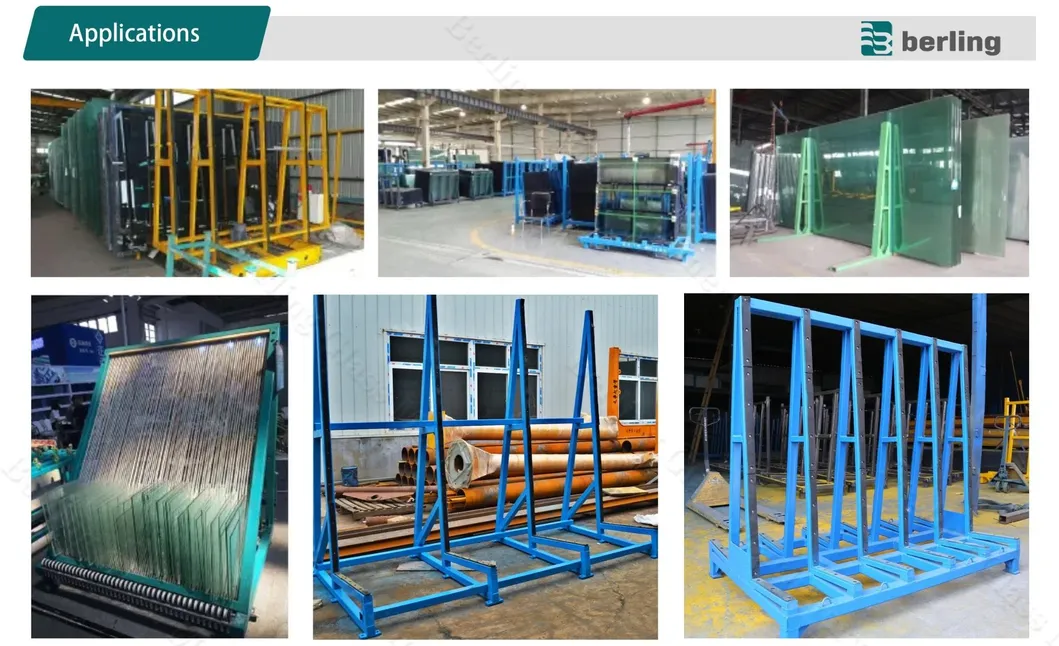

Application view
The A Frame Glass Storage Rack consists of a base, triangular supports, top beams, middle beams, and restraining bars, all constructed from high-quality carbon structural steel tubing and channel steel, ensuring a stable structure with a high load-bearing capacity.
Quality Control & Logistics
Certifications

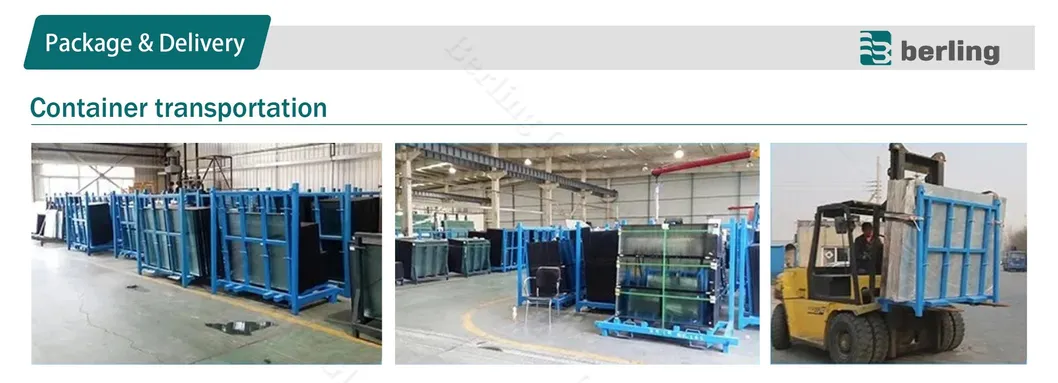

Packaging

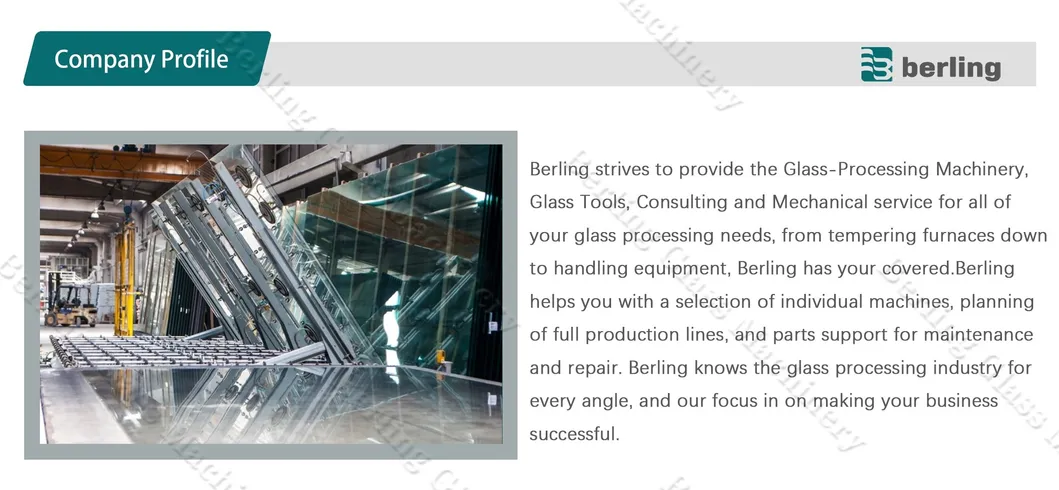

Factory View 1
Factory View 2
After Sales
Frequently Asked Questions
What is the maximum loading capacity of the rack?
The BLAR5T model supports a working load of up to 5 tons, making it ideal for heavy industrial glass storage.
What thickness of glass can be stored?
The rack is designed to handle glass thickness ranging from 5 mm to 30 mm safely.
Is the rack mobile or fixed?
It features a combined mobility design with two universal wheels and two wheels with brakes for stability.
How does the rack protect the glass from scratches?
It uses high-quality rubber pads with built-in steel plates and anti-slip silicone partition layers to prevent friction damage.
Is the rack detachable for shipping?
Yes, the rack is detachable into parts, which significantly reduces shipping volume and saves freight costs.
What is the surface treatment of the steel?
The steel structure undergoes electrostatic spraying to ensure a long-lasting, rust-resistant surface finish.
