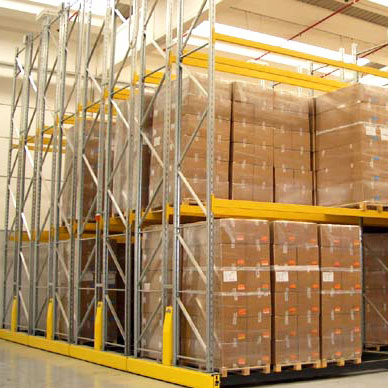

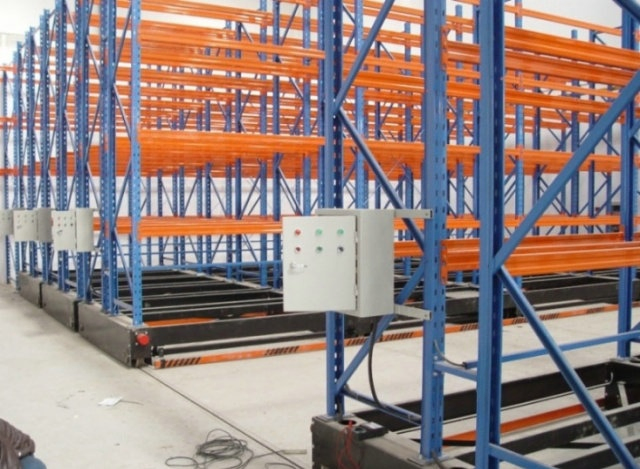

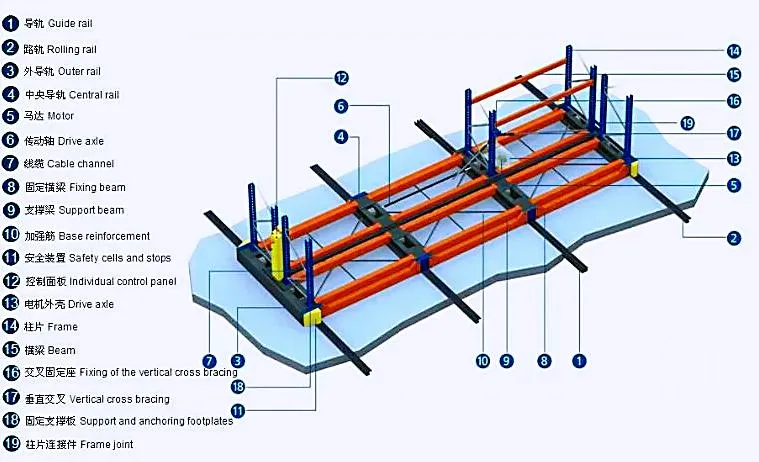

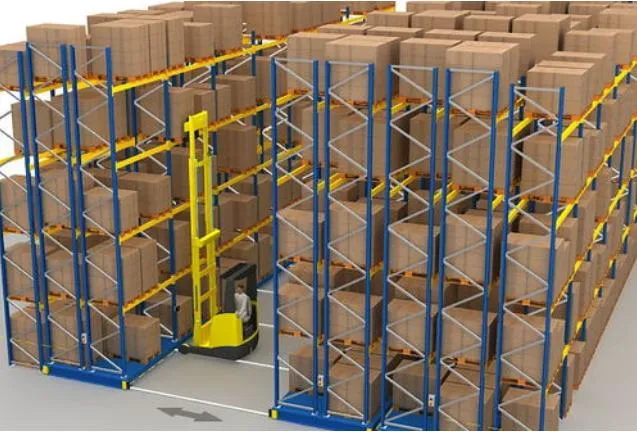

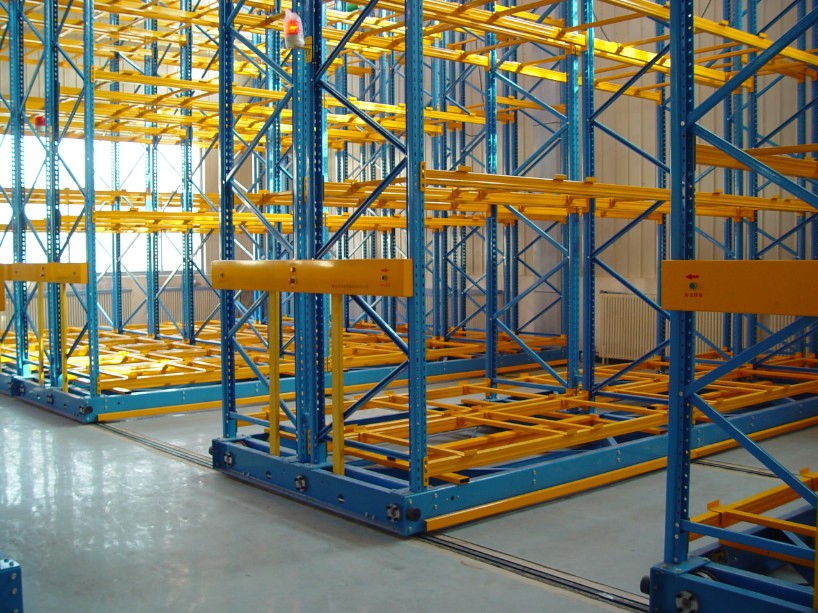

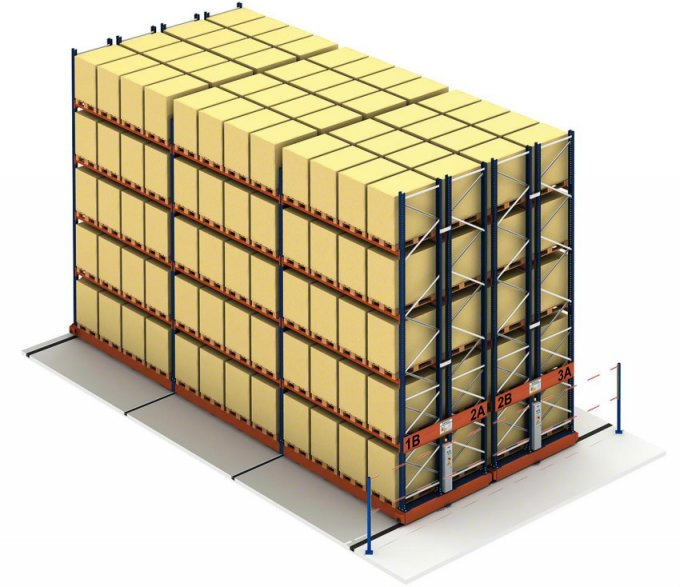

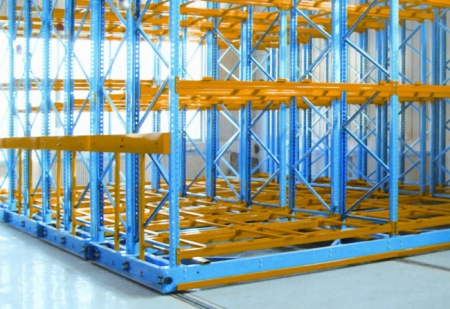

The mobile racking is composed of Conventional pallet racking installed on mobile bases, allowing opening and closing of the aisles. Where compact storage is need while keeping a high degree of accessibility to the stored products, mobile racking may be the best solution, especially where storage space is expensive, for example in cold stores. Mobile racking saves considerable space as the number of aisles is reduced to a minimum.
Conventional static racking requires fixed aisles between racks, causing quite some redundant space. A mobile racking system is very efficient and only needs one aisle, creating a much higher warehouse industrial storage capacity.
| Frame depth | D600-D1400 (Require 3 posts for bigger depth) | Post section | 80*60, 90*68, 90*70, 100*75, 120*75, 120*95, 140*120 |
| Frame Height | H2000*H11700 (Require post splice kit) | Loading capacity | 8000kg-32000kg/bay |

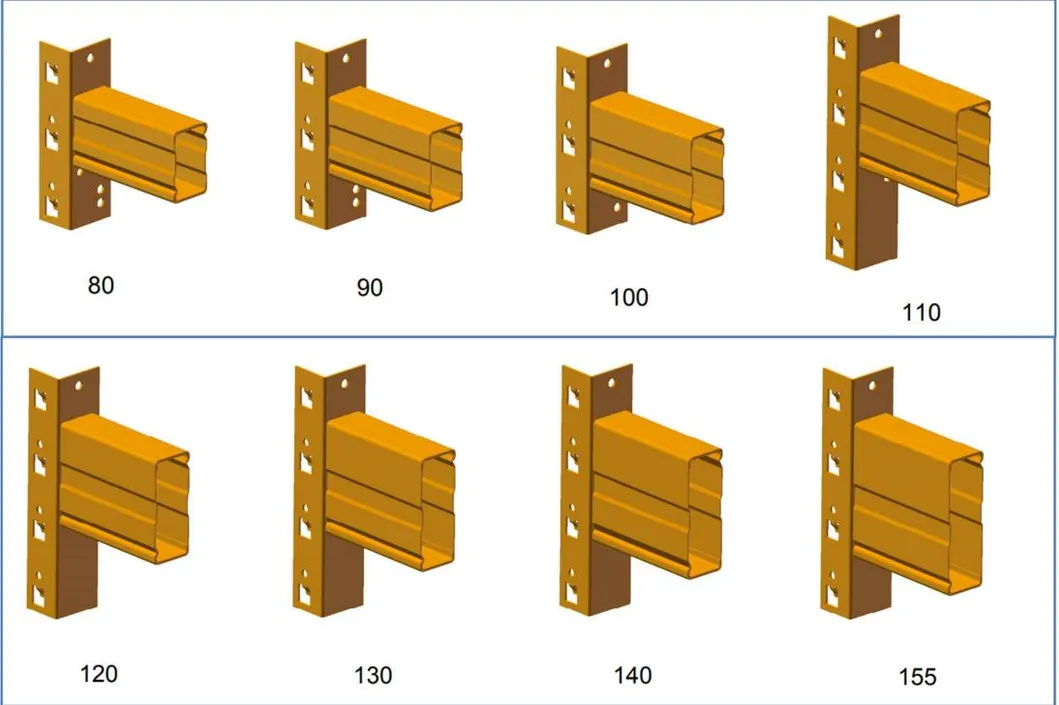

| Box beam | W1000-W4000 | Box beam section | 80*50 to 155*50 |
| Surface treatment | Powder coating & Galvanization | Compliance | European FEM, Australia AS4084 |

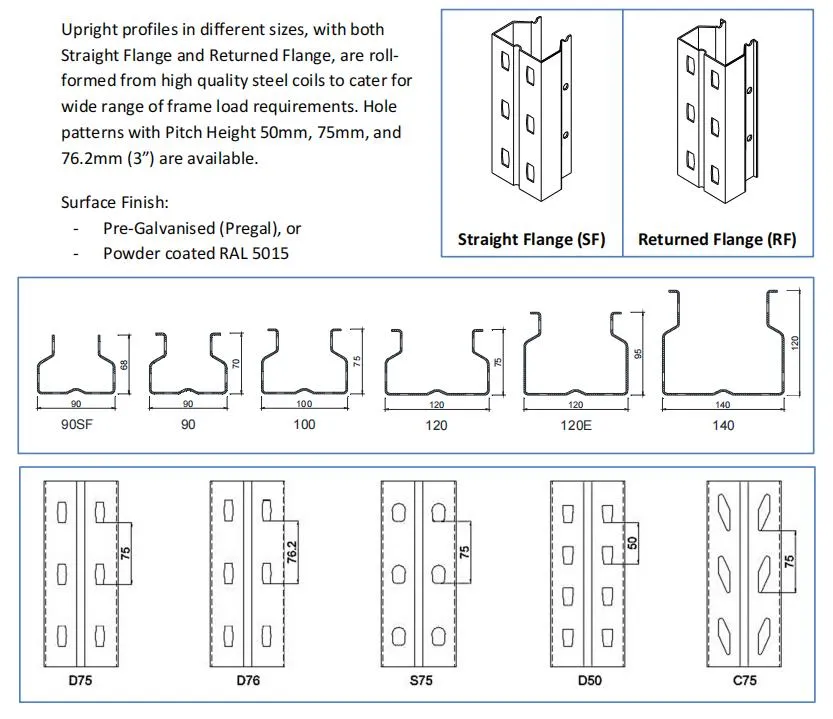

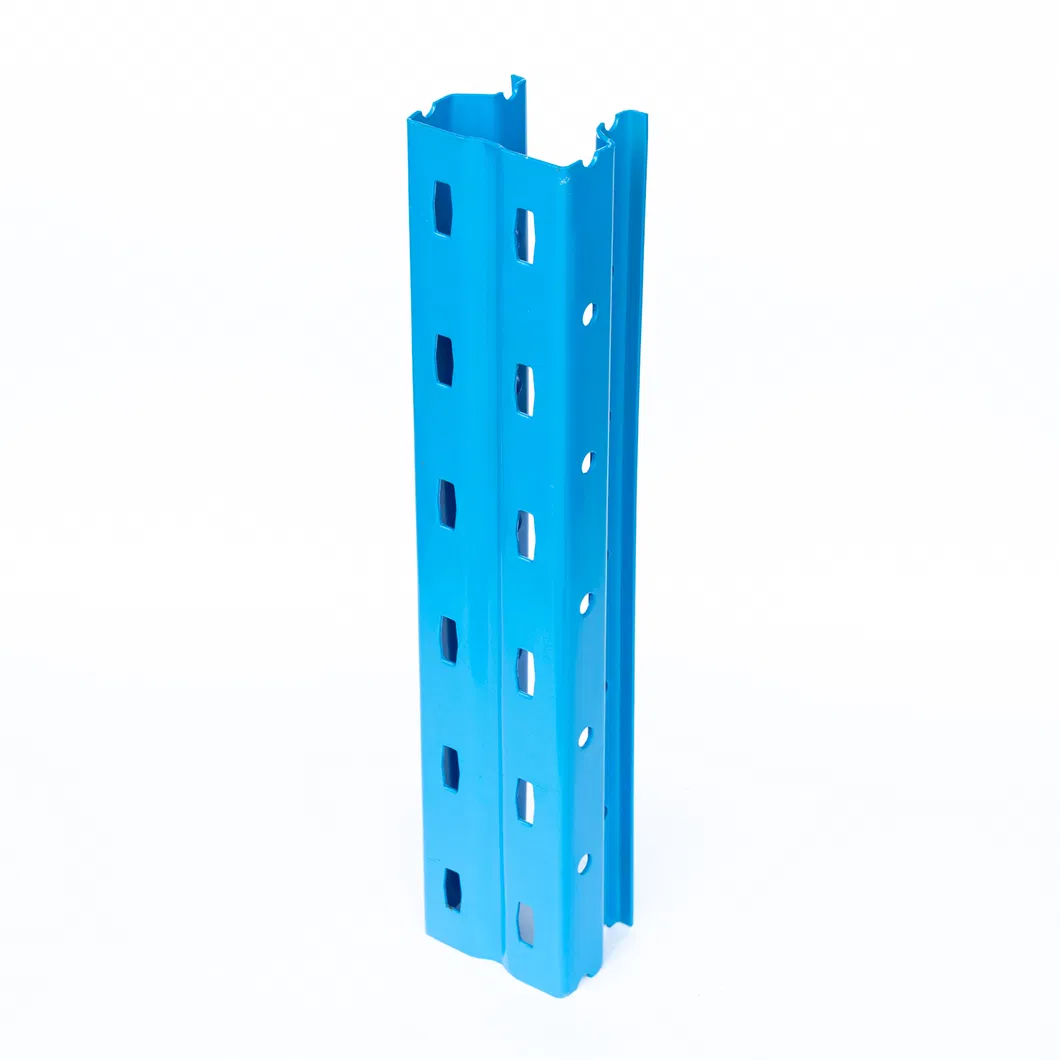

Upright Profile (1.8mm-3.0mm):

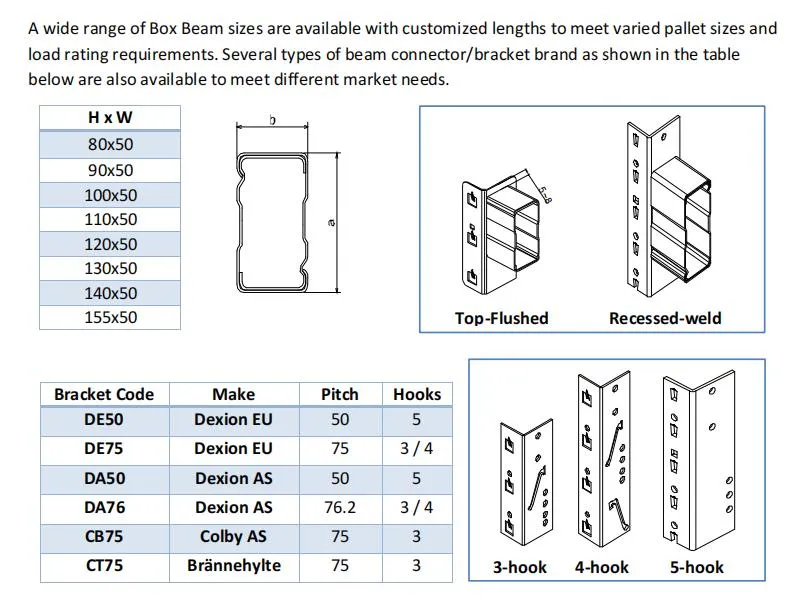

Beam Profile (1.5mm-2.0mm):
The manufacturer is a specialized racking systems company with nearly 20 years of experience. Specializing in the international export market, the company has completed installations in over 40 countries. With a focus on quality products, competitive prices, and prompt services, the company ensures all materials used undergo regular Tensile and Yield Strength tests. All selective and cantilever racks comply with rigorous European FEM and Australian Standards.
