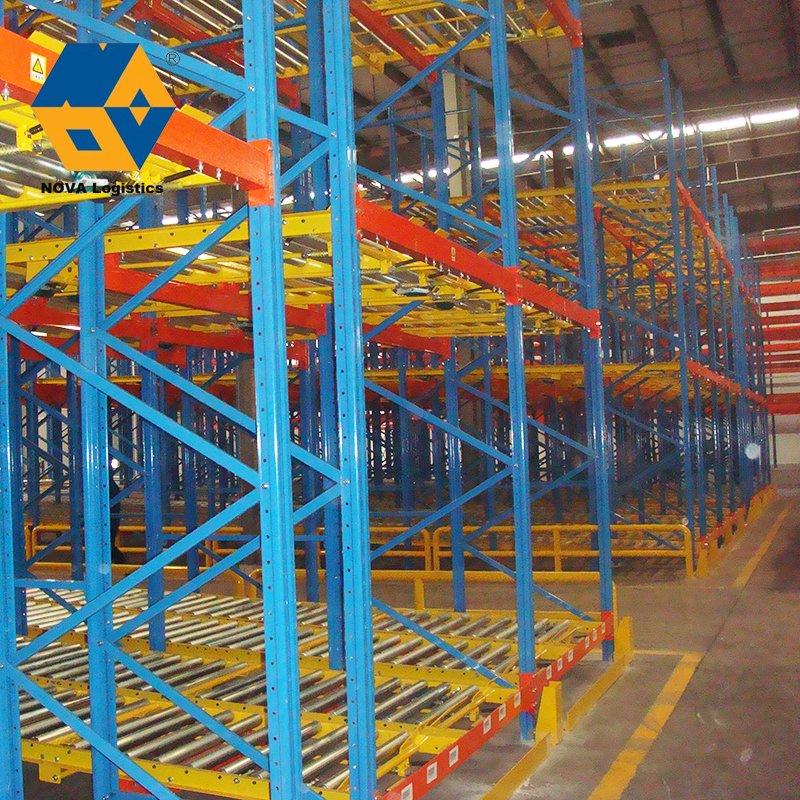

Nova Customized High Density Adjustable Selective Gravity Racking Steel Warehouse Storage Heavy Duty Gravity Flow Roller Pallet Rack

Customization: Available
After-sales Service: Installation
Warranty: 10 Years

Product Description

1

Basic Information

Usage
Supermarket, Industrial, Warehouse Rack
Material
Steel
Structure
Gravity Pallet Racking
Type
Gravity Racking
Mobility
Adjustable
Height
5-15m
Weight Capacity
500kg-1500kg
Surface Treatment
Power Coating
Certification
ISO9001/14001/10012/CE
Feature
Corrosion Protection, Large Load Capacity
Production Capacity
6000tons/Month
2

Product Description & Parameters

Gravity Pallet Racking Features:

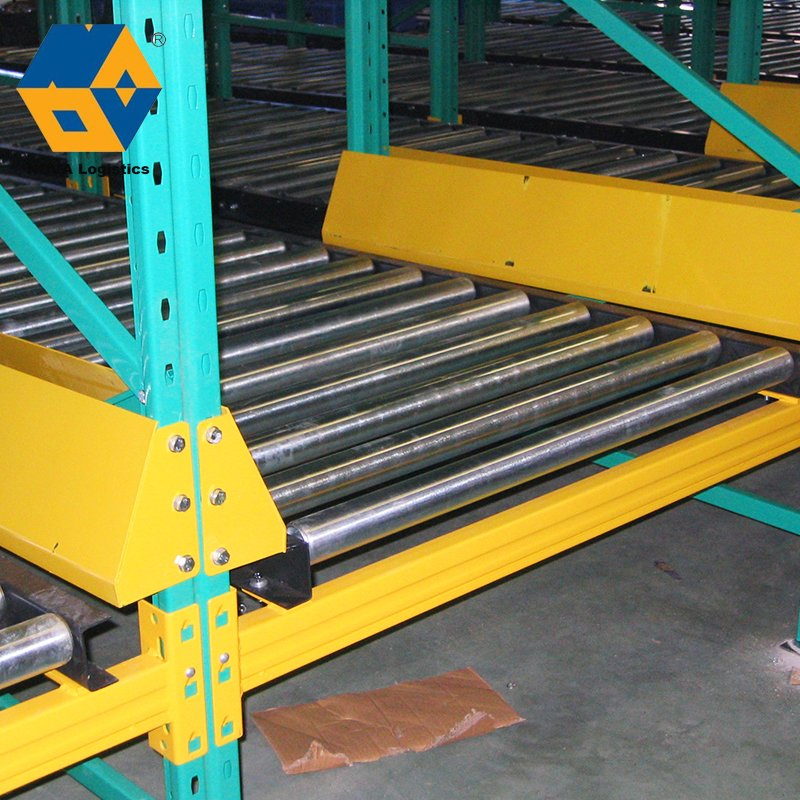

  • Using roller rail system or pallets with roller and the influence of gravity, First in and first out (FIFO) principle for the goods is implemented.
  • Used for storing a large number of goods of the same kind.
  • Ensures the full space utilization.

Heavy-duty pallet racks are a suitable and economical storage solution:

  1. All layers can be fixed at any height in increments of 75mm, allowing users to adjust for various pallet storage needs.
  2. Large sections of uprights are available to suit special requirements.
  3. Epoxy powder coated and galvanized surface treatment to prevent corruption.
  4. Compatible with major European standard brands (75mm and 76.2mm pitch).
Component Specifications Details
Frame Height (2-13m) / Depth (600-1,400mm) Upright section: 80x60; 90x70; 100x65; 120x87mm; Thickness: 2.0-3.0mm
Beam Length (1200-4000mm) Section: 80x50 to 140x50mm; Thickness: 1.4-1.5mm
Load Capacity 1-4 Tons/Layer Heavy-duty support
Other Details Pitch: 75mm/76.2mm Delivery: 14-20 days; Includes free accessories (bolts, nuts, base plates)
3

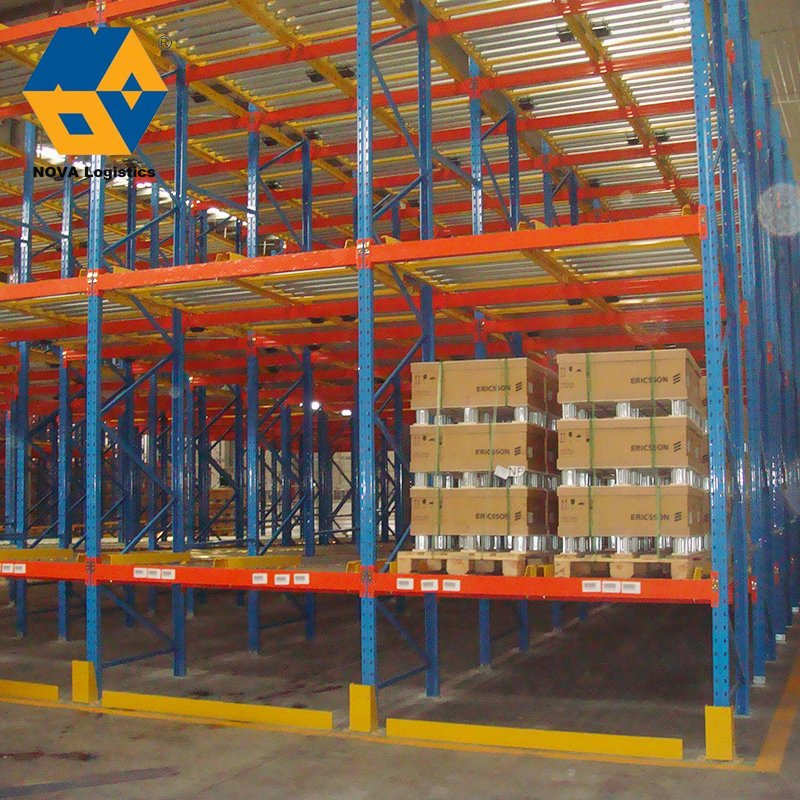

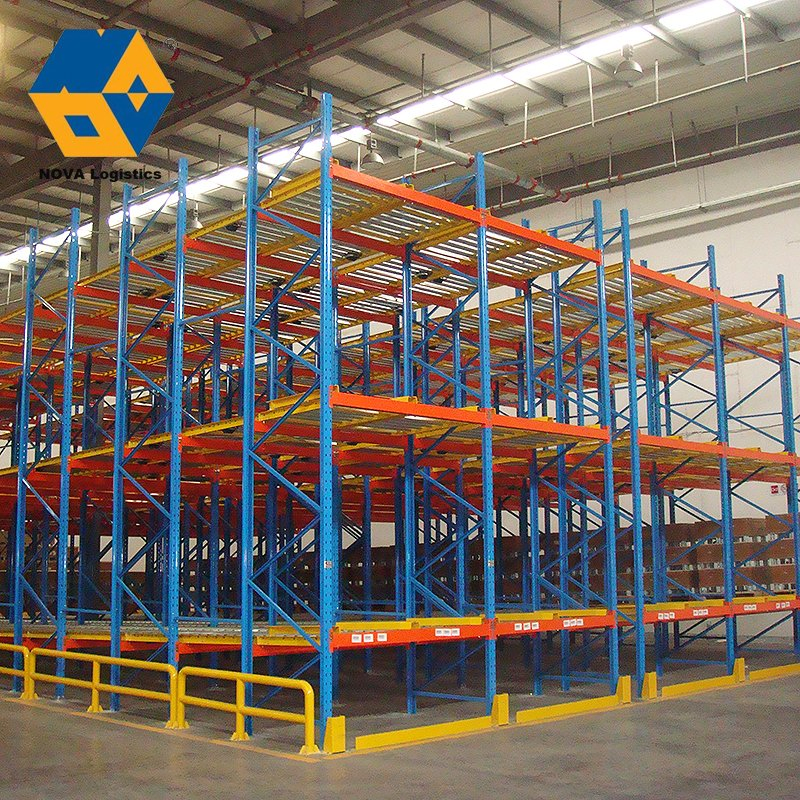

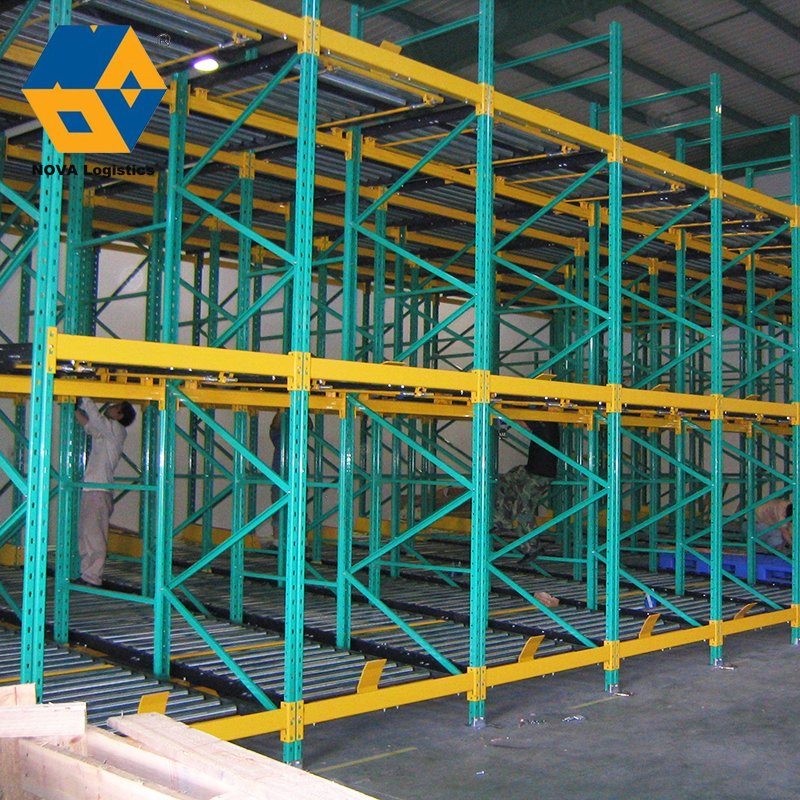

Product Showcase

?

Frequently Asked Questions

What is the working principle of Gravity Pallet Racking?
It uses a roller rail system and the natural force of gravity to move pallets. It follows the First-In, First-Out (FIFO) principle, making it ideal for high-density storage of similar goods.
How much weight can each layer handle?
The system is designed for heavy-duty use, with a load capacity ranging from 1 ton to 4 tons per layer, depending on the specific configuration.
Can the shelf heights be adjusted?
Yes, the racks are highly adjustable. The beam levels can be adjusted at increments of 75mm or 76.2mm to accommodate different pallet heights.
Is the material resistant to corrosion?
Absolutely. All steel components undergo epoxy powder coating or galvanization surface treatments to ensure long-term protection against corruption and wear.
What certifications do these racking systems have?
Our gravity racking systems are manufactured according to international standards and hold ISO9001, ISO14001, and CE certifications.
What are the available dimensions for the frames and beams?
Frames are available in heights from 2m to 13m and depths from 600mm to 1400mm. Beams range from 1200mm to 4000mm in length, with popular sizes like 2300mm and 2700mm always available.
