The Foundation for Automation

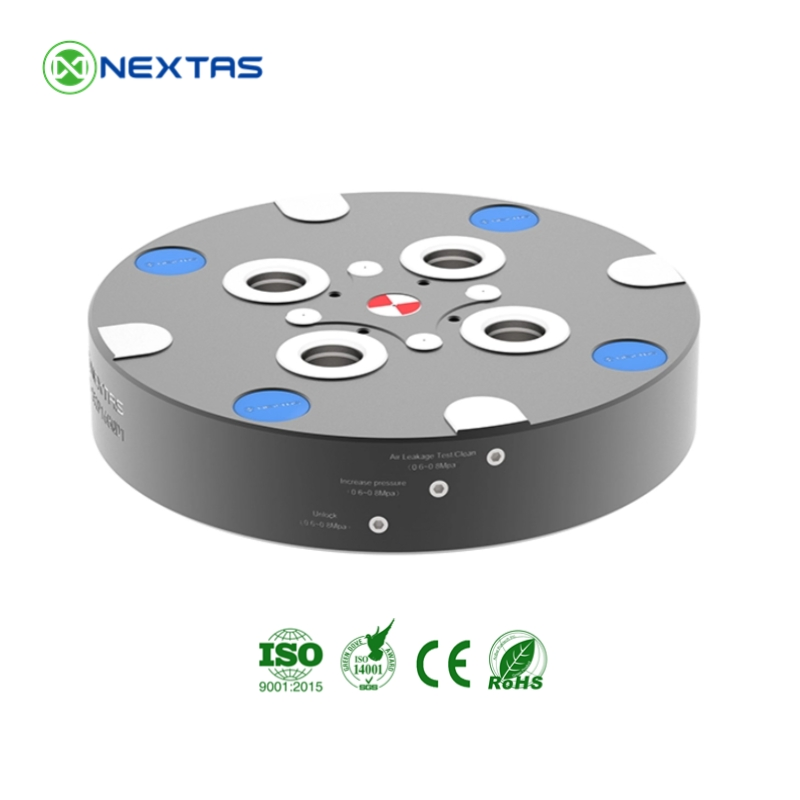

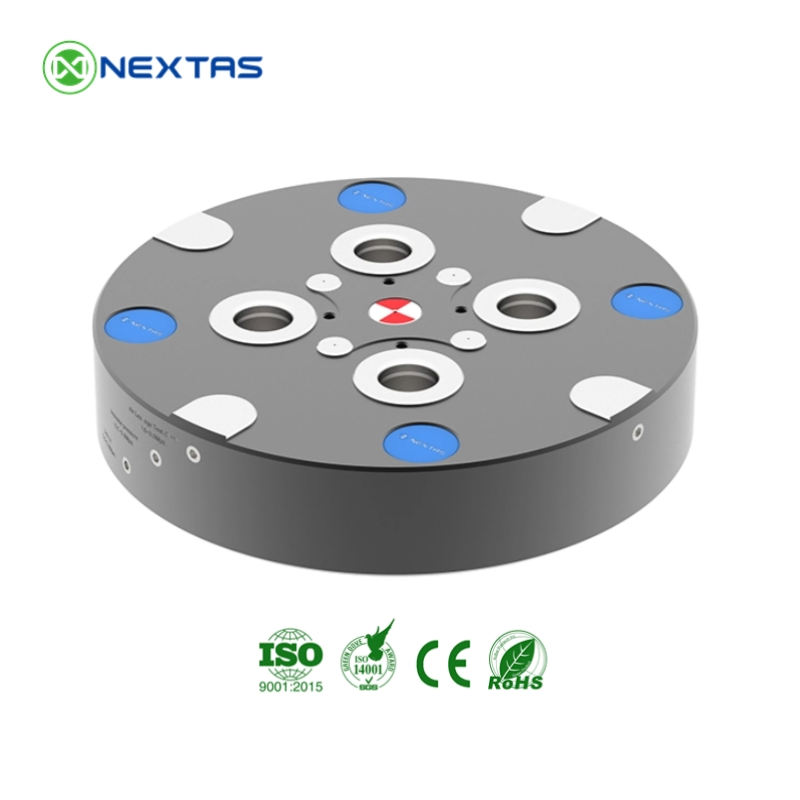

Unlock maximum efficiency with the Pneumatic Zero Point Plate. This system creates a precise and repeatable foundation on your machine table, allowing fixtures and workpieces to be changed in seconds. By standardizing your setup process, you drastically reduce downtime and increase machine utilization.
Guarantees a repeat positioning accuracy of ≤ 0.005mm, eliminating the need for realignment after each changeover.
The spring-actuated clamping mechanism provides enormous, failsafe holding power, ensuring rigidity even during heavy cutting.
Pneumatic unlocking allows for near-instantaneous clamping and unclamping, reducing non-productive machine time to seconds.
Features integrated ports for air sensing and cone cleaning, enabling reliable integration with robotic systems.
Constructed from hardened, corrosion-resistant stainless steel, these plates are built to withstand rigors of manufacturing environments. The system is fully sealed to protect internal mechanisms from chips and coolant. Integrated air-blast channels automatically clear locating cones of contaminants before clamping.
| Model Number | Spigot Space | Dimensions | Accuracy | Clamping Force | Pressure | Material Hardness | Weight |
|---|---|---|---|---|---|---|---|

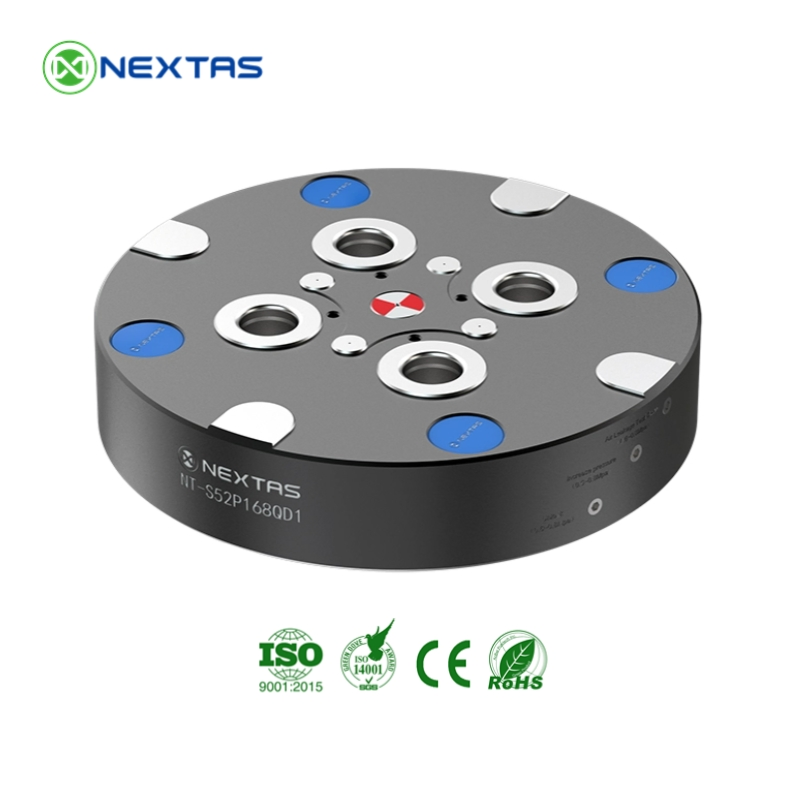

| NT-S52P125OD1 | 52mm | 125*125*35mm | 0.005mm | 9,000N | 0.5-0.8Mpa | 45-50HRC | 3.5KG |

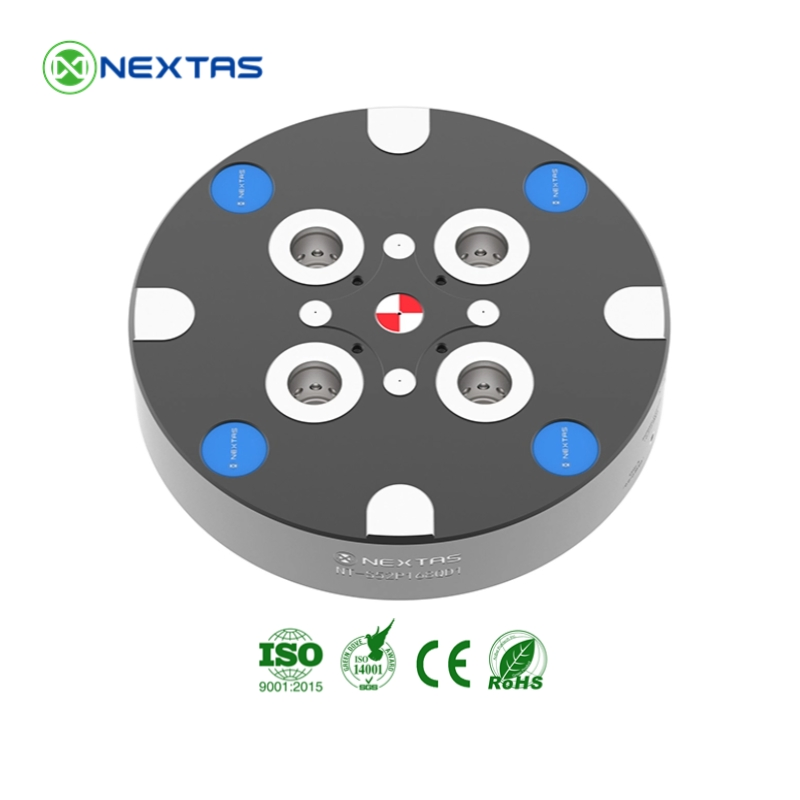

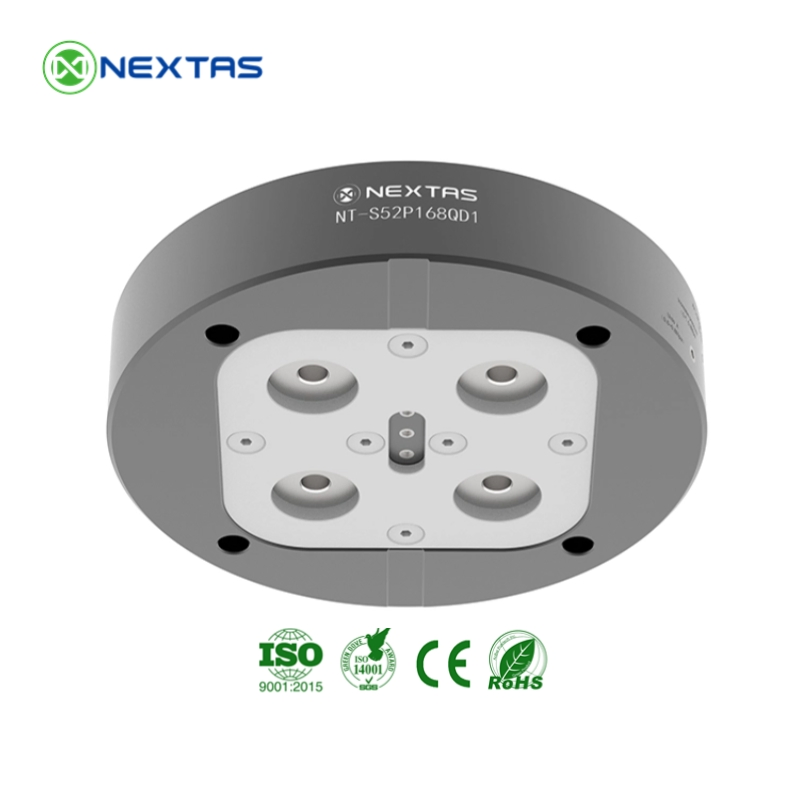

| NT-S52P168QD1 | 52mm | Φ168*35mm | 0.005mm | 9,000N | 0.5-0.8Mpa | 45-50HRC | 3.2KG |
| NT-S96P200QD1 | 96mm | 200*200*35mm | 0.005mm | 20,000N | 0.5-0.8Mpa | 45-50HRC | 9KG |
| NT-S96P392QD1 | 96mm | 392*200*35mm | 0.005mm | 20,000N*2 | 0.5-0.8Mpa | 45-50HRC | 18KG |
With 15 years of dedication to industrial workholding solutions, our facility supports high-quality, batch demand products. We utilize international advanced technology and R&D innovation to solve industry pain points, providing standardized cost reduction and efficiency for intelligent manufacturing.
