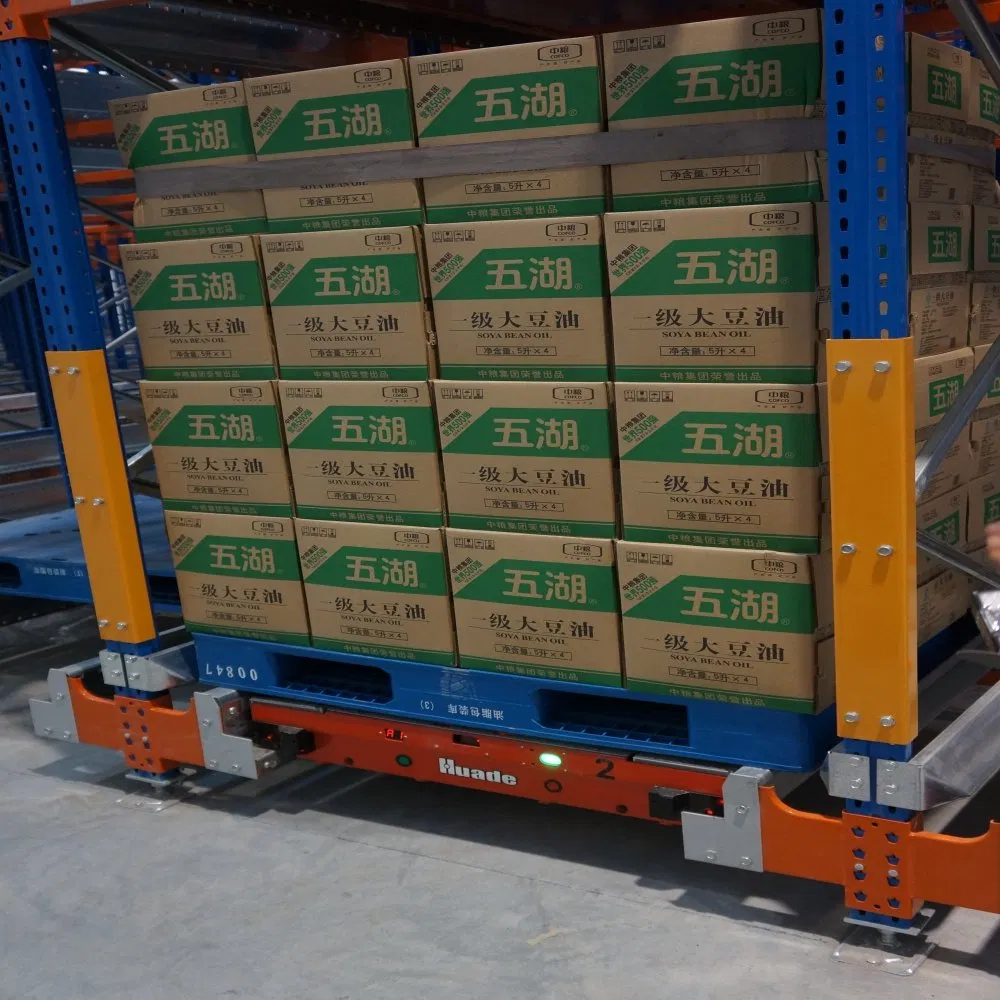

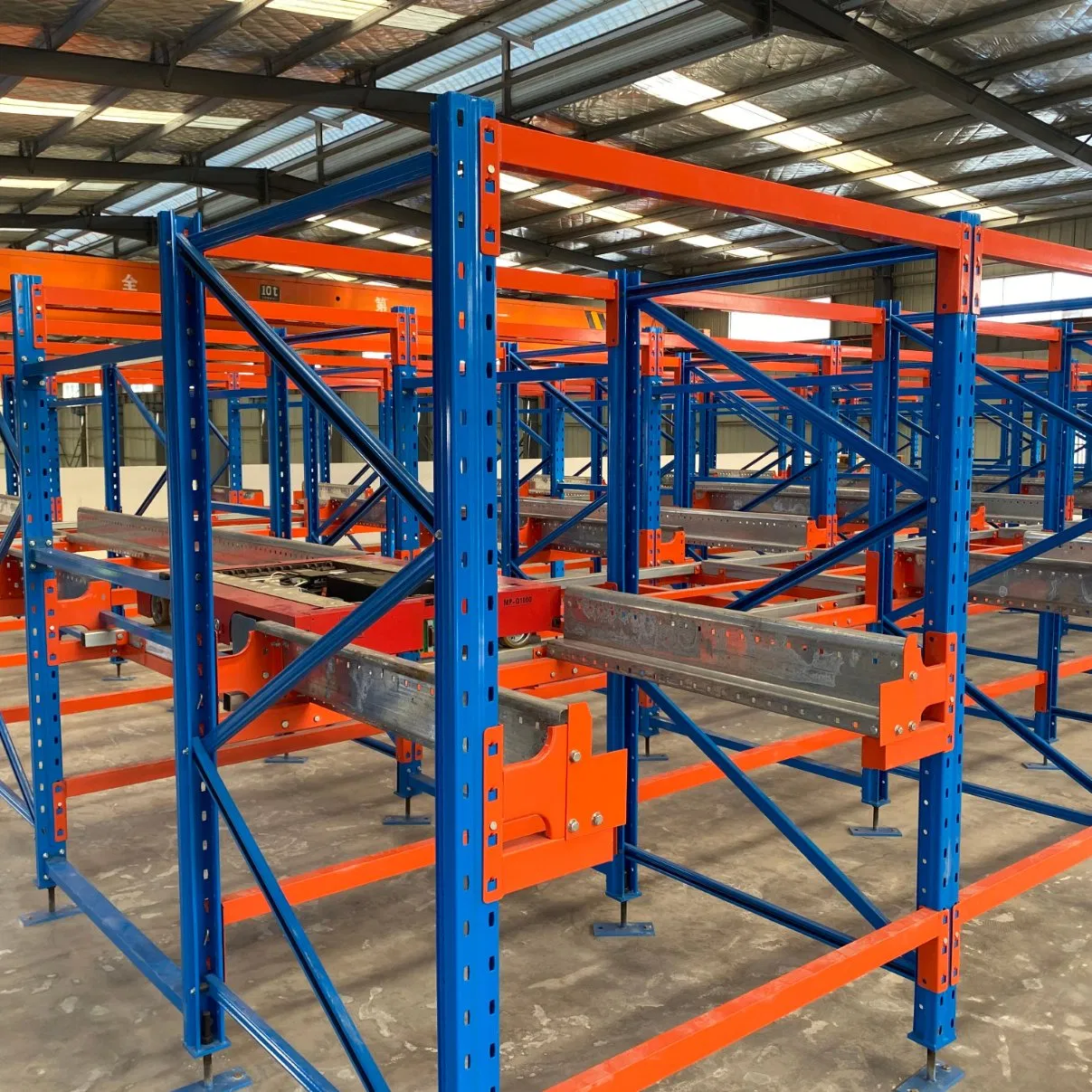

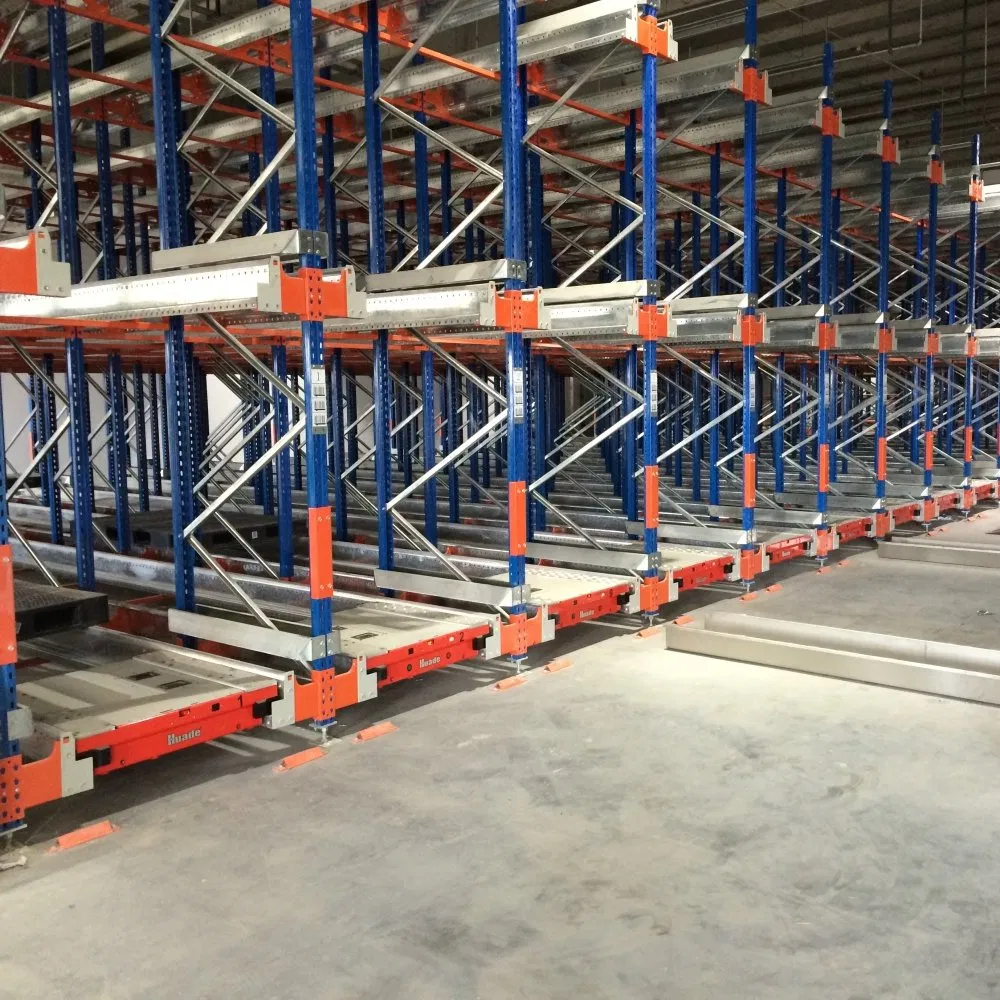

High Density Storage Radio Shuttle Shelf Warehouse Semi-Automatic Pallet Racking System

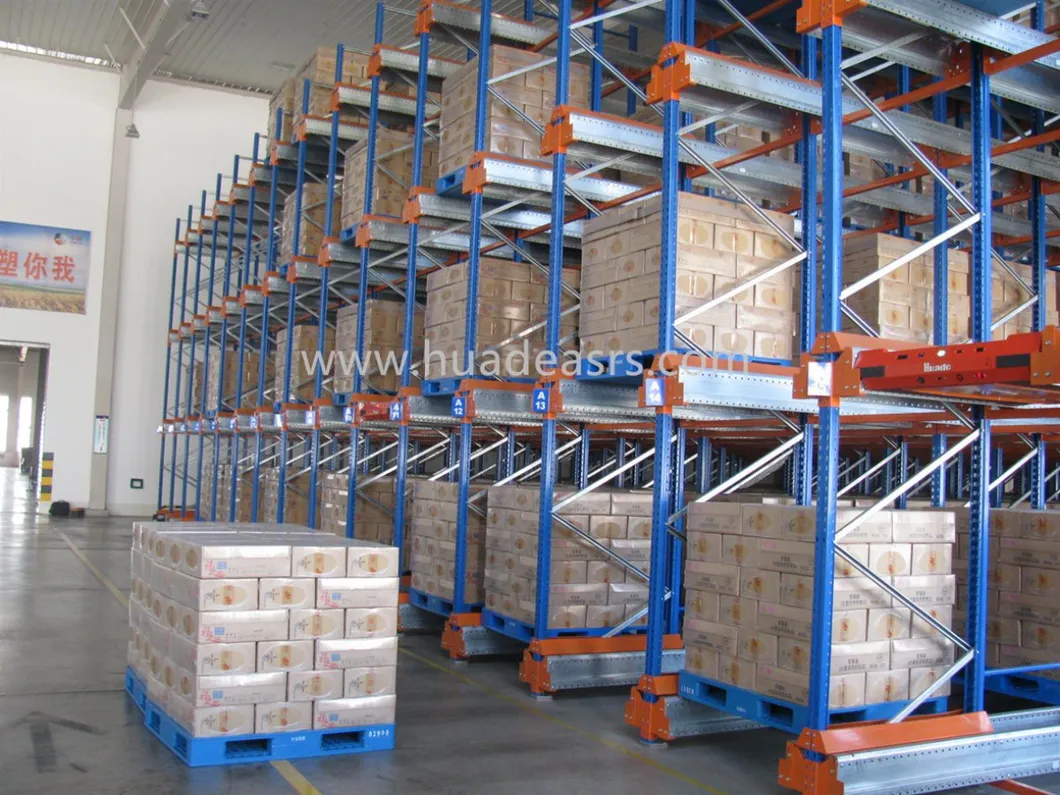

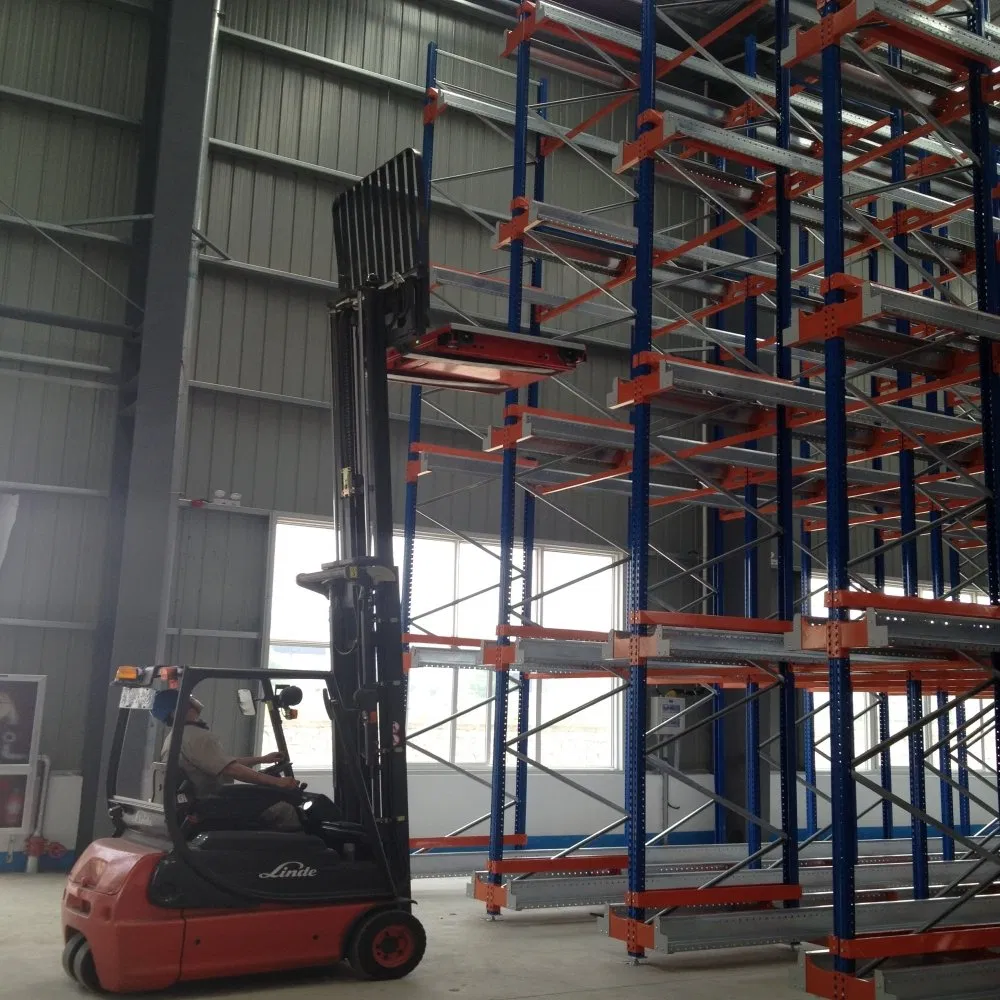

This radio shuttle pallet rack system is a semi-automated system conjunction with forklift trucks for storage of goods with low variety but high volumes per SKU. This system is highly recommended in manufacturing businesses, especially those fast moving consumer goods, food, beverage and cold chain industries.
| Item | Basic Parameters | |
|---|---|---|
| Applicable Pallet Size | 1×1.2m, 1.1×1.2m, 1.2×1.2m | |
| Loading Capacity | 1000kg / 1500kg | |
| Driving | Speed | Empty: 50m/min | Full Load: 40m/min |
| Lifting | Height | 40mm |
| Power Supply | Lithium iron phosphate power battery | |
| Battery Performance | 24V, 55A, Usage: 8H, Charging: 4H | |

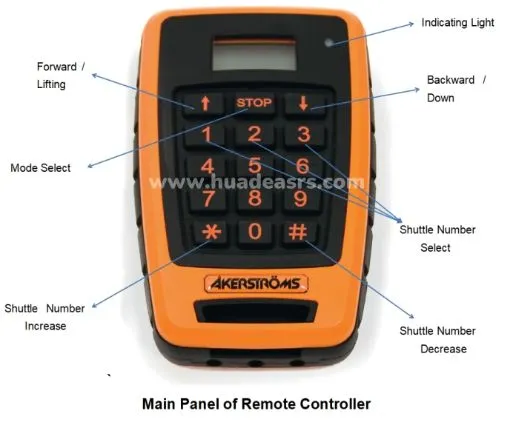

Multi-functional Remote:

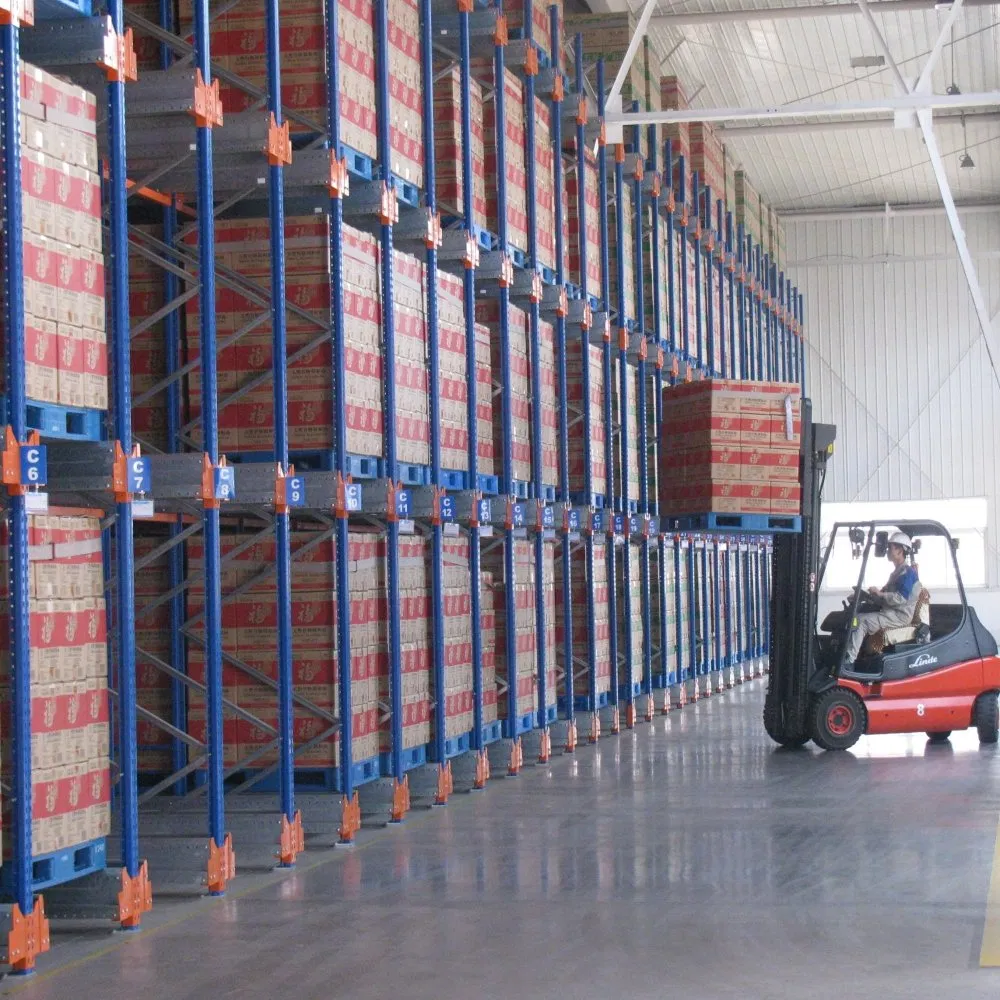

Time & Productivity: Faster cycles as forklifts operate only in aisles.
Space Optimization: Storage channels can exceed 60m depth, maximizing footprint.
Cost Efficiency: Reduced footprint lowers land costs; smaller cooling areas for cold storage.
Flexible Logic: Fully compatible with LIFO (Last-In, First-Out) and FIFO (First-In, First-Out).
Safety First: Minimized accident risks and racking damage since trucks don't enter the structure.
