Supplies Steel Welded Wire Gas Cylinder Bottle Storage Cage

Customization:	Available
After-sales Service:	2
Warranty:	2

i

Basic Information

Model NO.

LJ-WWC-001

Type

Fencing, Trellis & Gates

Size

1000mm*800mm

Load Capacity

800kg

Folded

Mesh Spacing

50mm×50mm

Wire Diameter

3.0/4.0mm

Scale

Light Duty

Welding

Full Welding

Usage

Gas Cylinder Storage Cage

Color

Black or Other

Certification

CE/RoHS/ISO9001

Surface Treatment

Powder Coating and Galvanized

Frame Material

Metal

P

Product Description

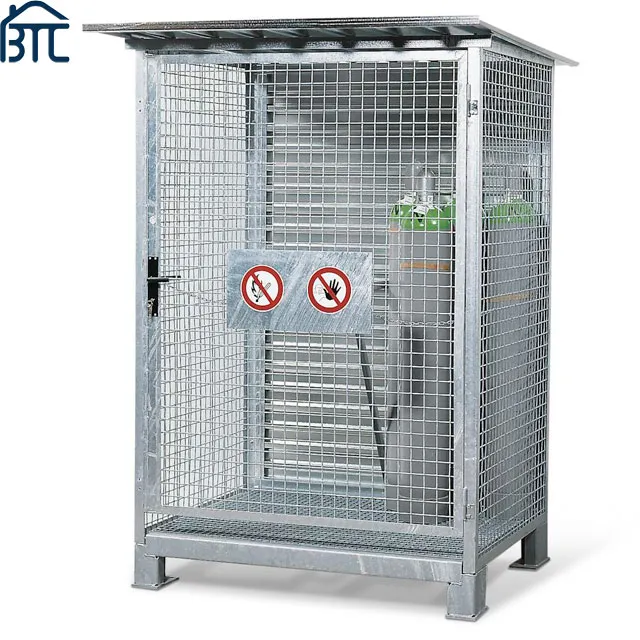

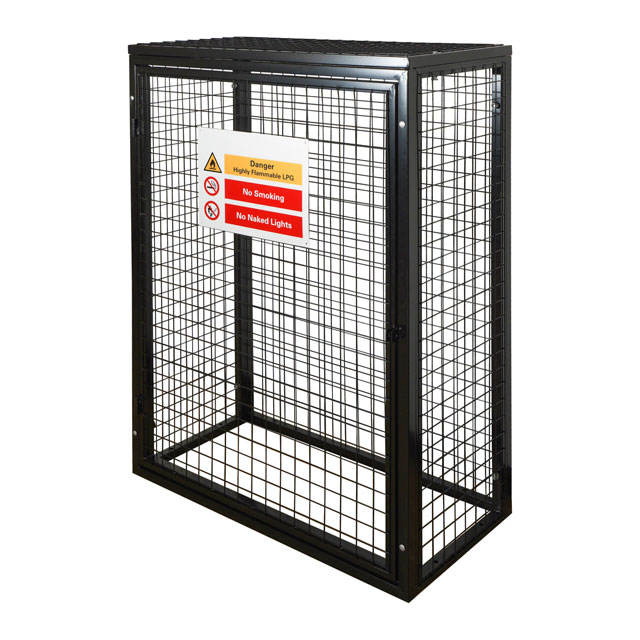

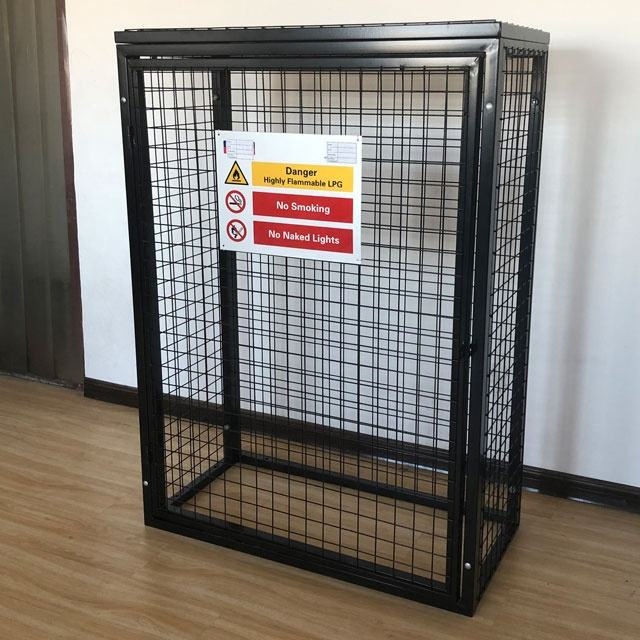

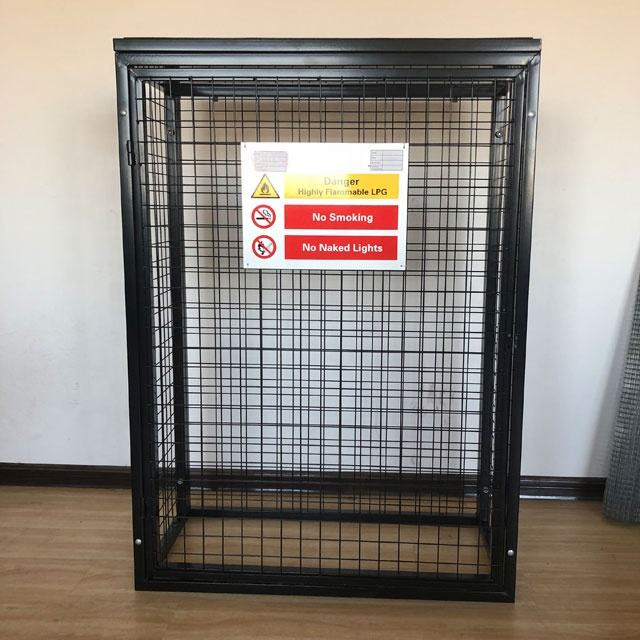

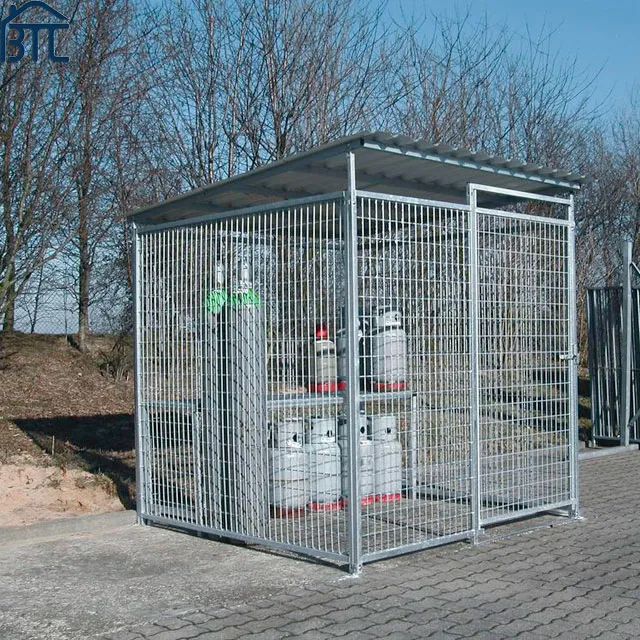

Gas Cylinder Bottle Storage Cage

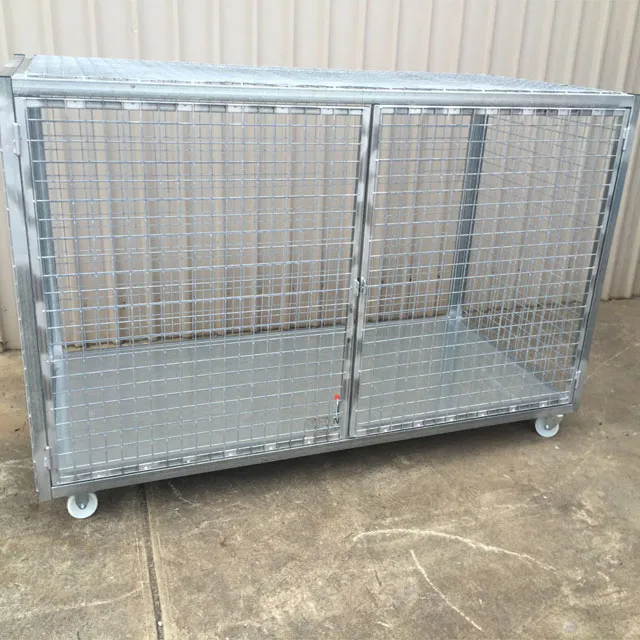

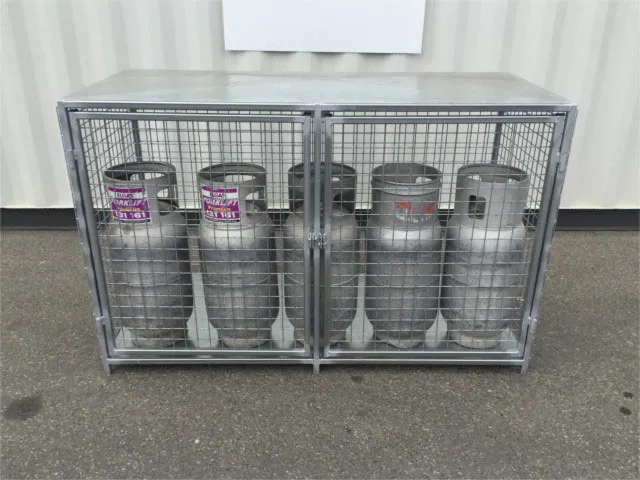

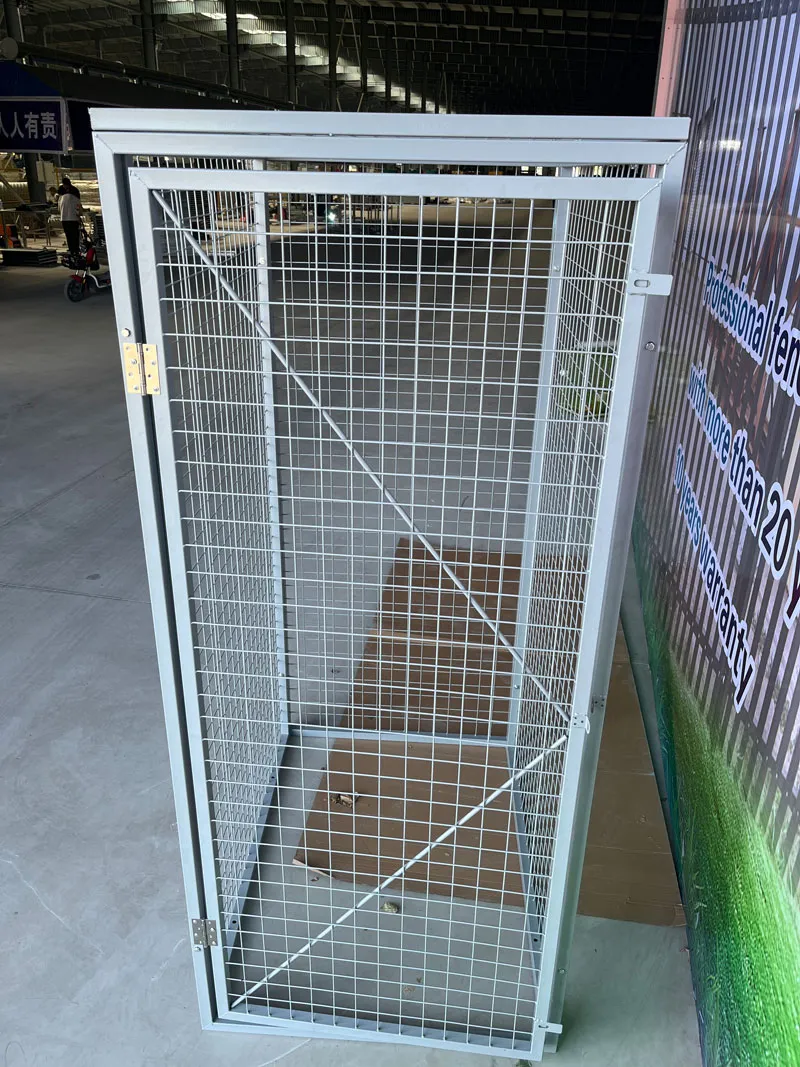

Gas cylinder mesh cage with hinged door, complete with hasp and staple for padlock. Choice of finishes - Hot Dip Galv for use outside or Powder Coated Black for internal use. Sturdy cages will protect gas cylinders when not in use. A robust, security cage, ideal for storing gas cylinders. Simple, bolt-together gas bottle storage cage. Flat-packed cage complete with all fixings required.

S

Specification

Materials & Construction

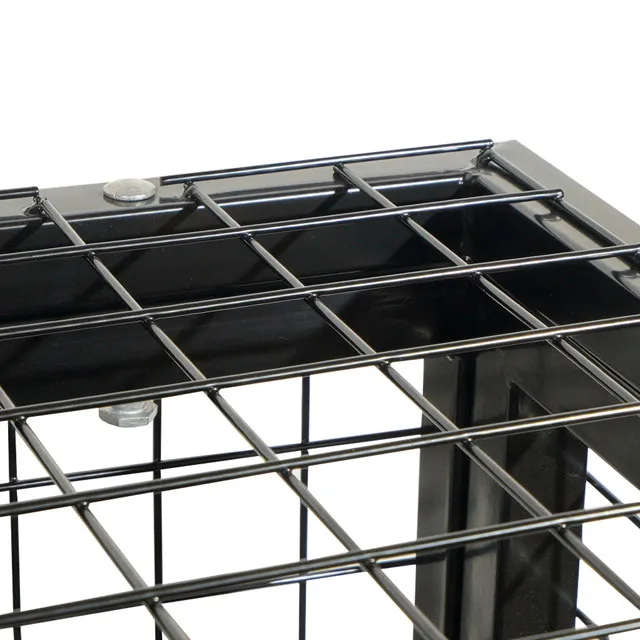

Manufactured from 25 x 25 mm ERW box section
50 x 50 x 3 mm weld mesh

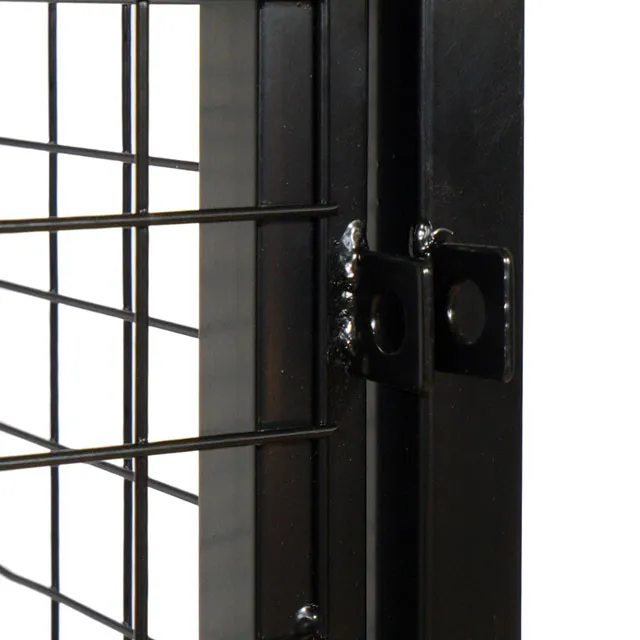

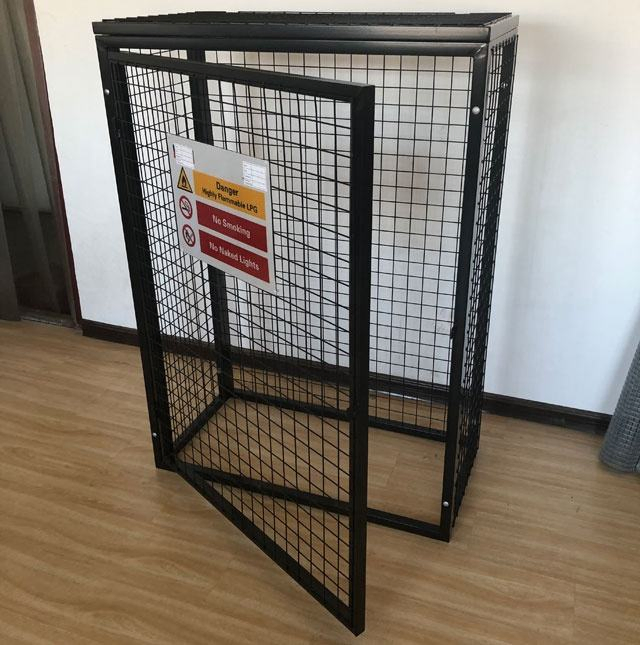

Hinged door with hasp and staple (padlock not supplied)

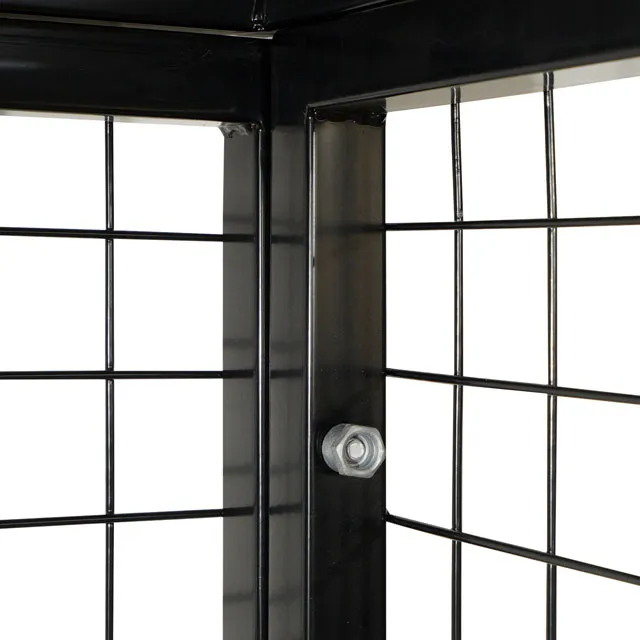

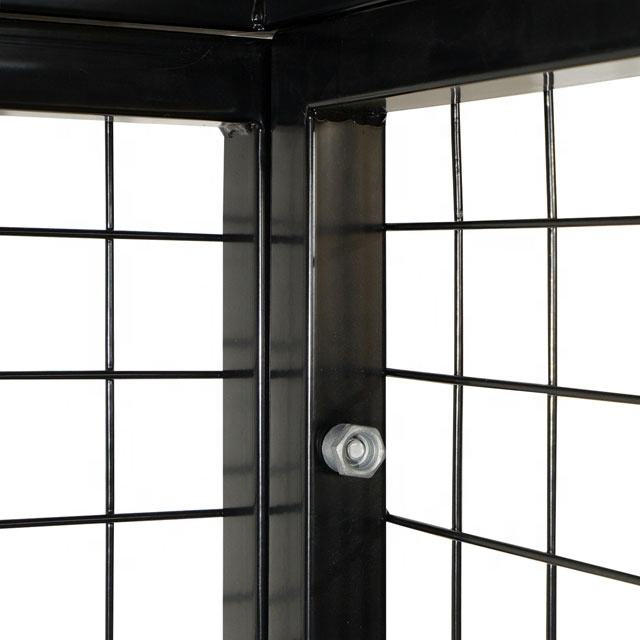

Fixing points for bolting to solid surface
Supplied Flat Packed with easy to use assembly fixings and instructions
Includes H&S signage
All dimensions are external

Product Ref	Specification	Size (H x W x D)
LJ-GC001	2 x 19kg cylinders	900mm x 700mm x 500mm
LJ-GC002	3 x 19kg cylinders	900mm x 1000mm x 500mm
LJ-GC003	2 x 47kg cylinders	1400mm x 1000mm x 500mm
LJ-GC004	6 x 19kg cylinders	1700mm x 1000mm x 500mm
LJ-GC005	4 x 47kg cylinders	1800mm x 900mm x 900mm
LJ-GC006	9 x 19kg cylinders	1200mm x 1200mm x 1200mm
LJ-GC007	9 x 47kg cylinders	1800mm x 1200mm x 1200mm
LJ-GC008	8 x 47kg cylinders	1800mm x 1800mm x 900mm
LJ-GC009	12 x 47kg cylinders	1800mm x 1800mm x 1200mm
LJ-GC010	20 x 47kg cylinders	1800mm x 1800mm x 1800mm
