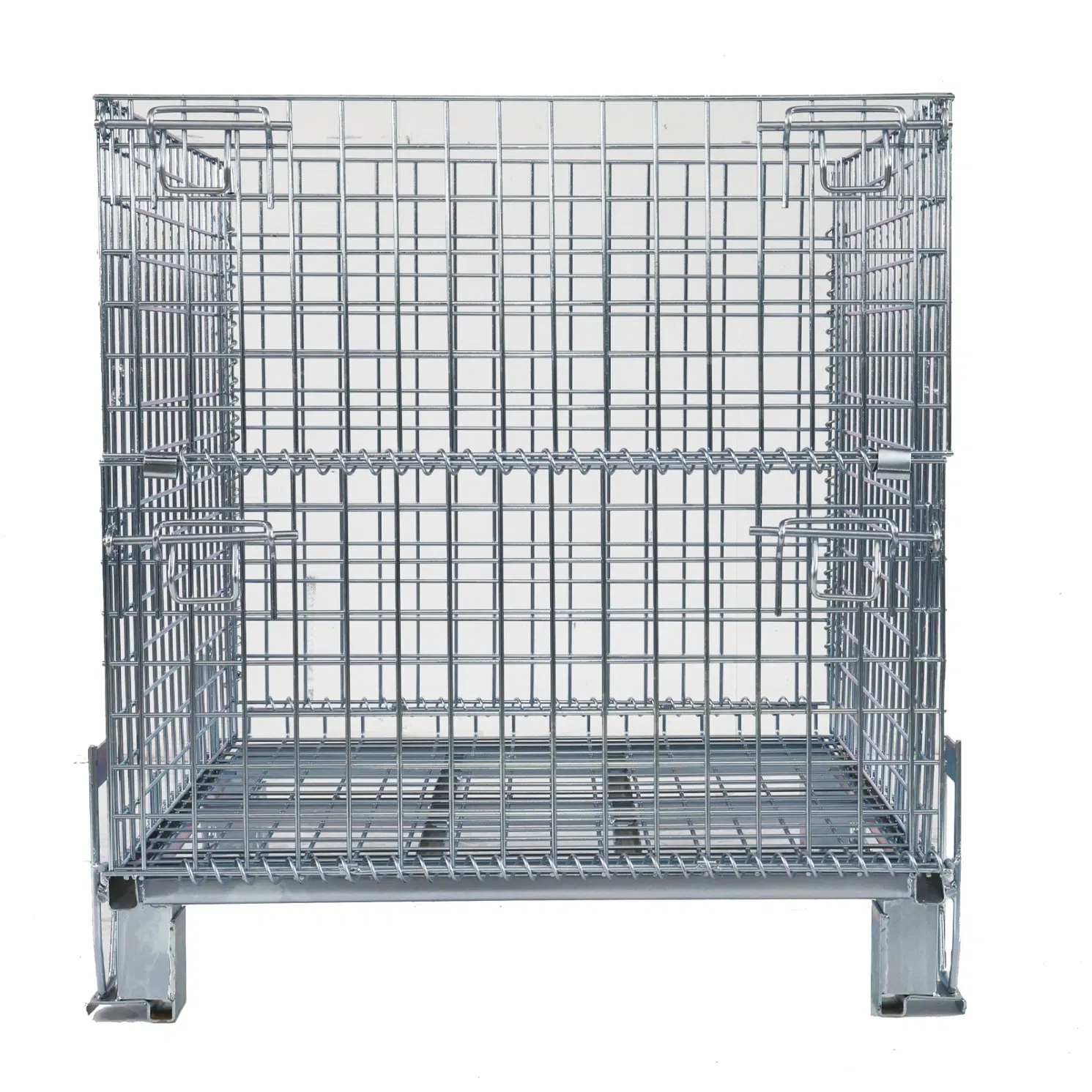

■ Basic Specifications
Type:
Foldable Storage Cage
Foldable:
Yes, Collapsible
Wire Diameter:
5.5mm - 5.8mm
Finish:
Zinc / Hot DIP Galvanized / Powder Coating
Capacity:
12000 Sets / Month
■ Product Features & Benefits
✔
Space-Saving Design: Collapsible structure saves significant space when not in use, ideal for return journeys.
✔
High Visibility: Open wire mesh design allows for full visibility for inventory checks and excellent ventilation.
✔
Durability: Fully welded construction providing a long-lasting, economical alternative to disposable packaging.
✔
Accessibility: Features a standard half-hinged gate for easy access to goods even when stacked.
■ Technical Parameters
| MODEL |
Exterior Dimension (mm) |
Wire Dia. |
Grid Size |
Weight |
Capacity |
Qty/40HQ |
| L |
W |
H |
mm |
mm |
kg |
kg |
pcs |
| JM-JP001 | 1030 | 840 | 850 | 5.5 | 50*50 | 44.5 | 1000 | 470 |
| JM-JP002 | 1230 | 1040 | 890 | 6.2 | 50*100 | 70 | 1700 | 320 |
| JM-JP003 | 1030 | 840 | 500 | 6.0 | 50*50 | 39.5 | 800 | 470 |
| JM-JP006 | 700 | 600 | 540 | 6.0 | 50*50 | 33.2 | 500 | 720 |
| JM-JP010 | 1200 | 1000 | 1250 | 4.8 | 25*50 | 83.65 | 800 | 216 |
| JM-JP028 | 1200 | 1000 | 1140 | 5.0 | 50*100 | 55.5 | 1000 | 270 |

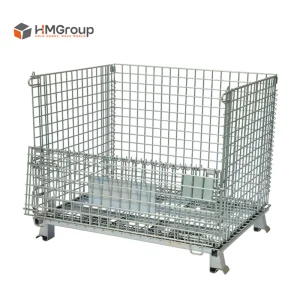

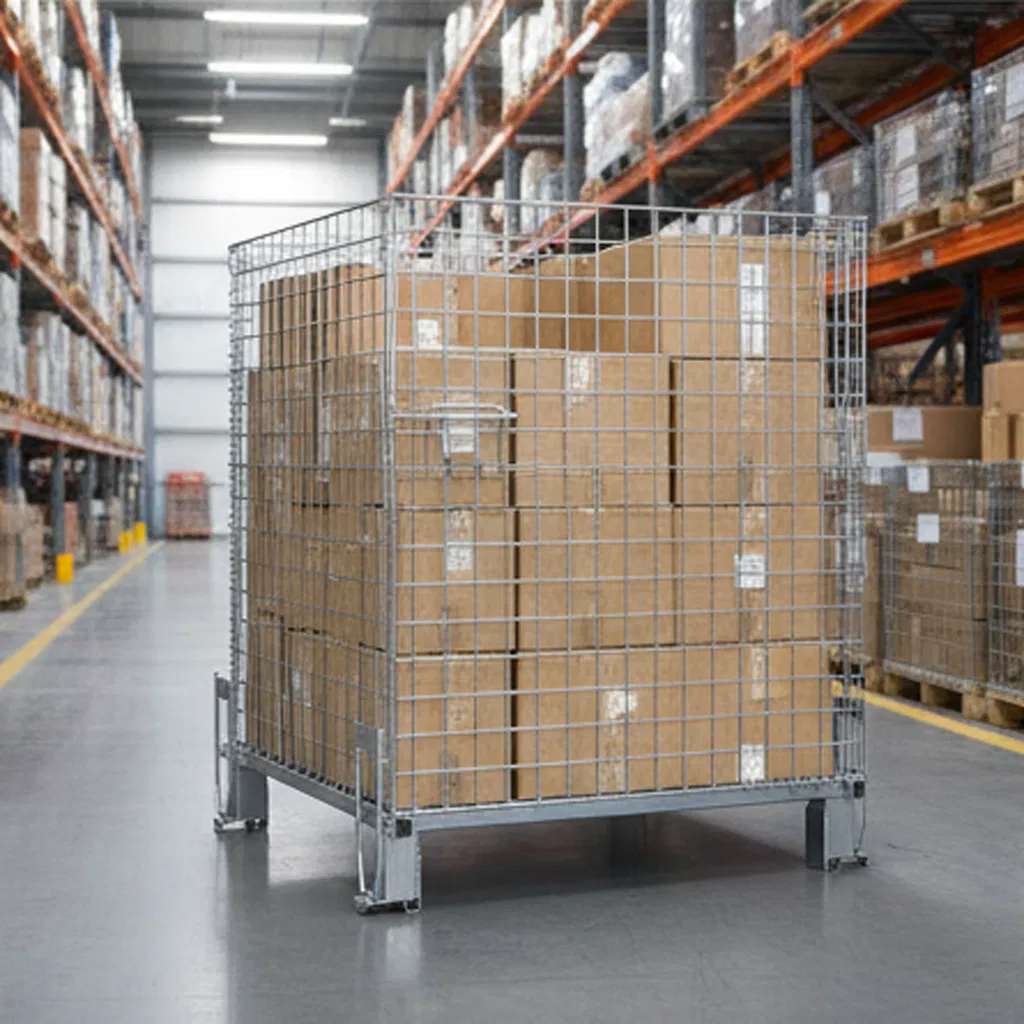

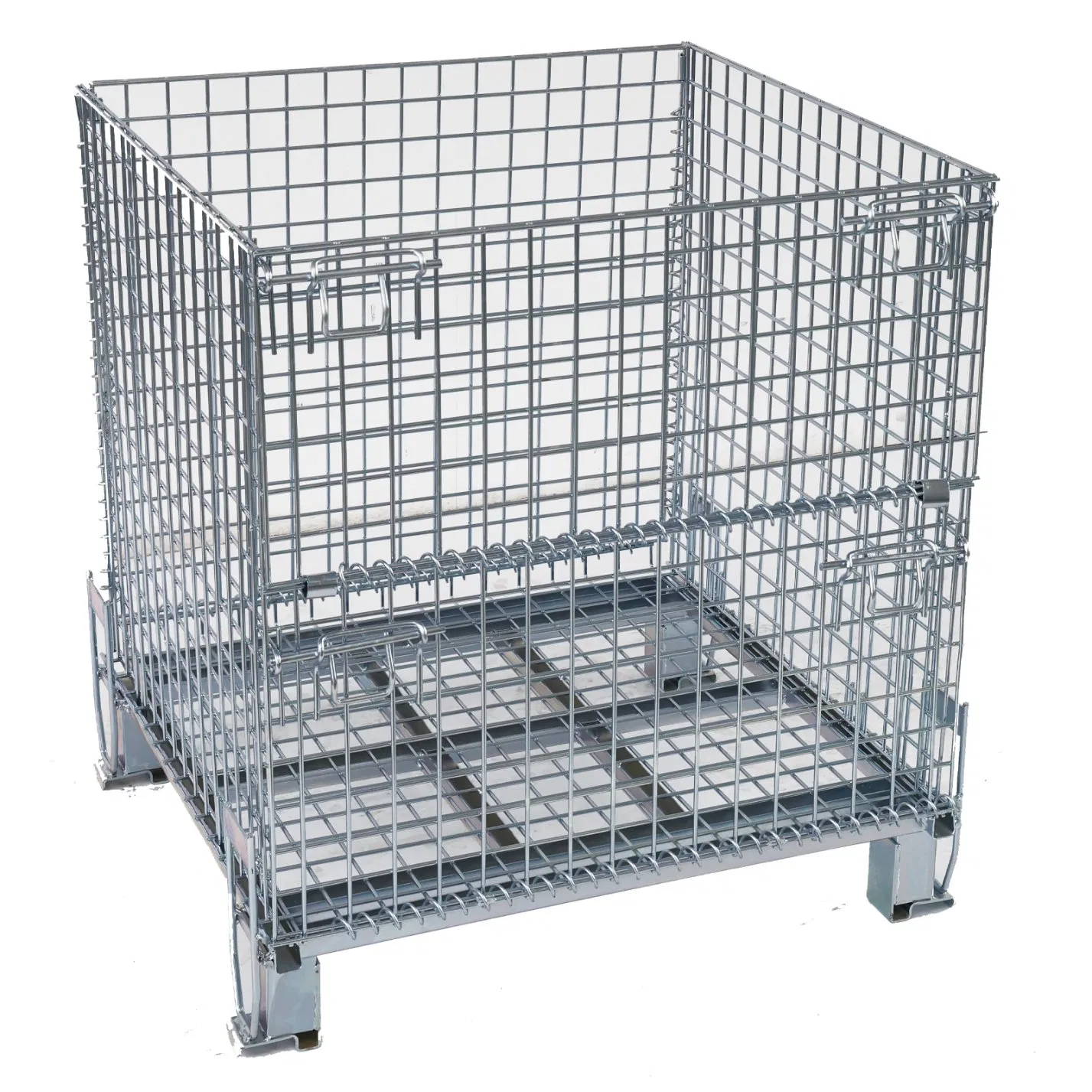

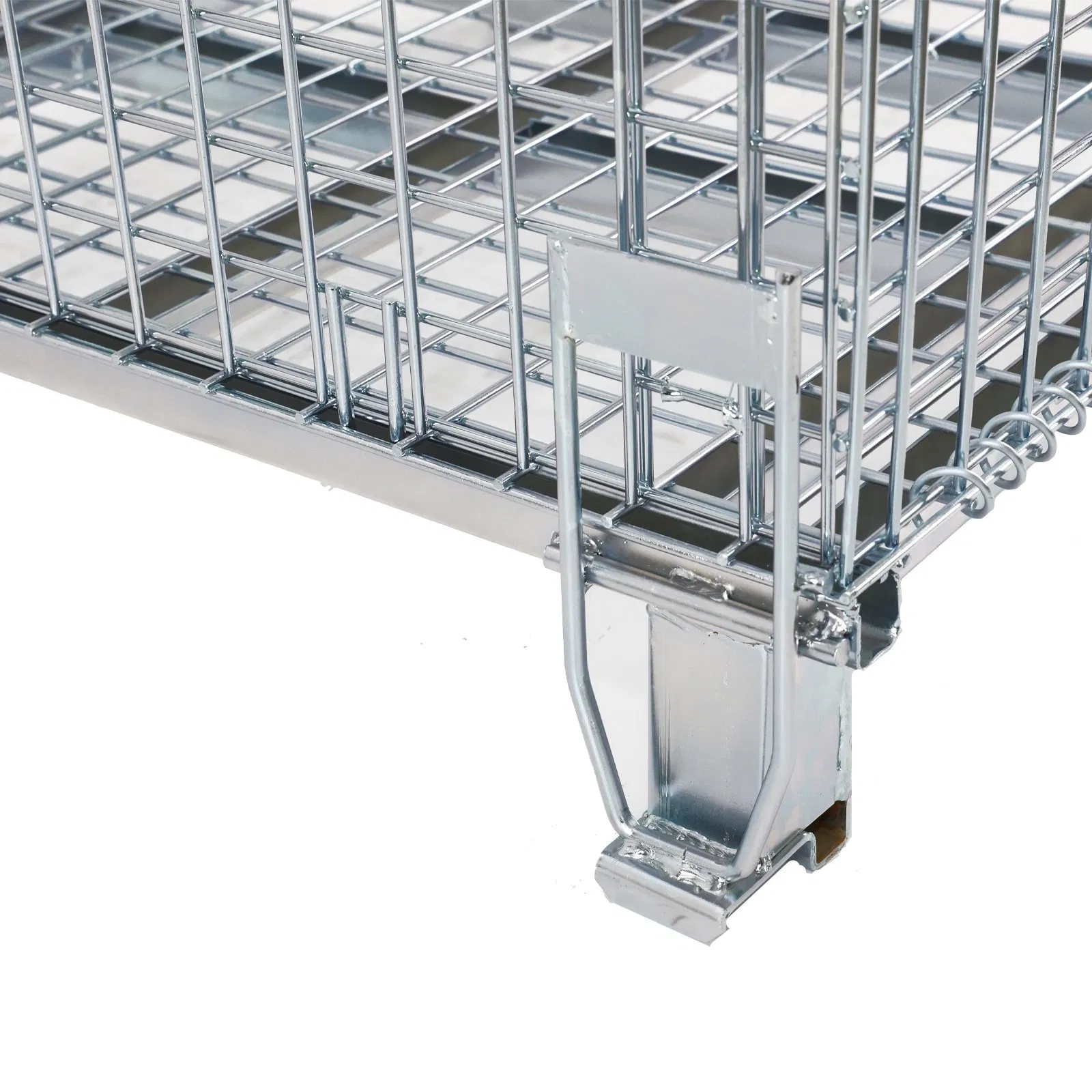

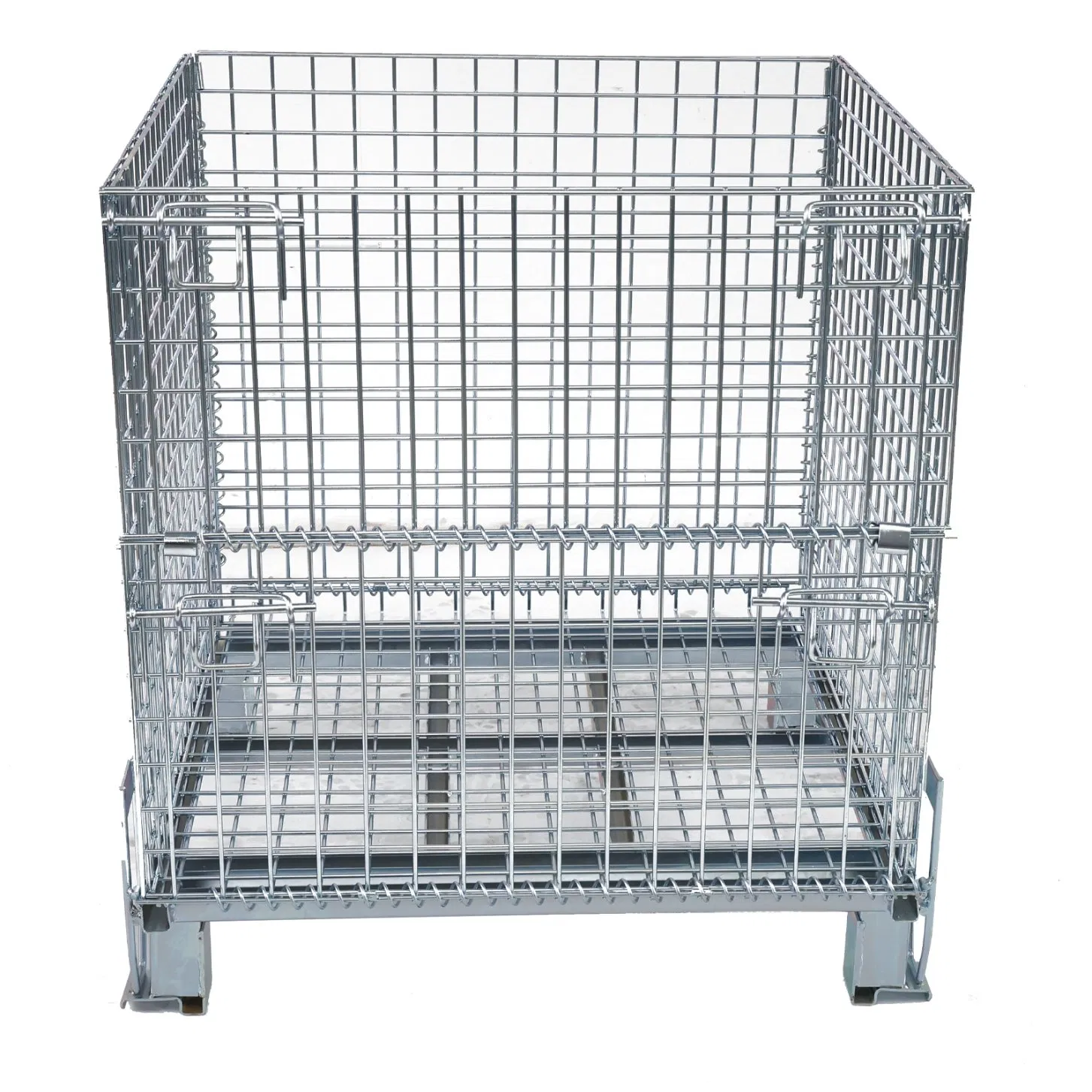

■ Product Gallery
■ Frequently Asked Questions
Q1: What is the maximum load capacity of these storage cages?
The standard models typically support 800kg to 1700kg, with the JM-JP001 model handling up to 1000kg.
Q2: Can these wire mesh containers be stacked?
Yes, they are designed to be stackable, allowing you to maximize vertical storage space in your warehouse.
Q3: What surface treatments are available for rust prevention?
We offer Zinc plating, Hot-Dip Galvanization, and Powder Coating to ensure durability in different environments.
Q4: Are the cages easy to access when stacked?
Yes, most models feature a half-drop gate design, allowing for easy access to items even when the containers are stacked.
Q5: Is customization available for specific sizes?
Yes, we provide full support for customized sizes and OEM requirements to fit your specific logistics needs.

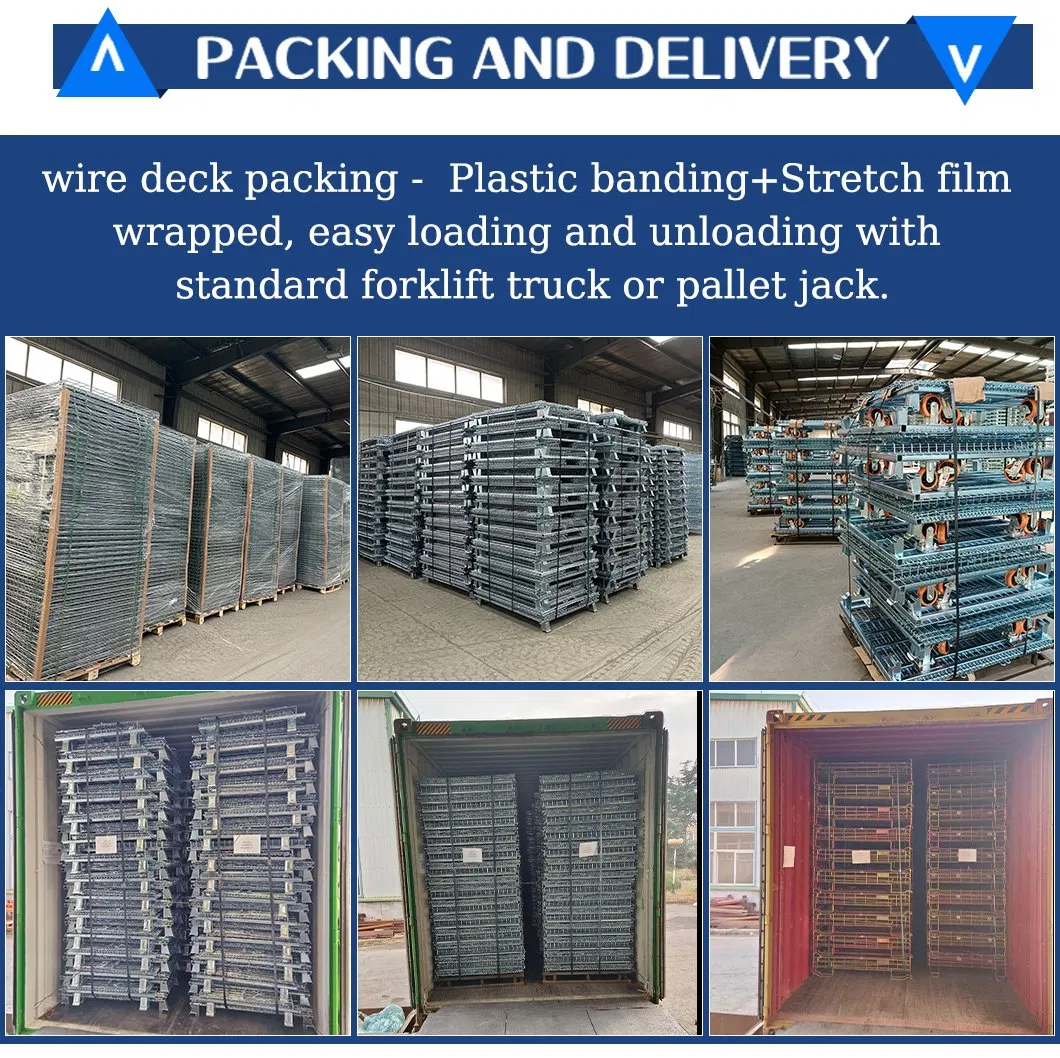

Q6: How are the containers packaged for transport?
They are packed using plastic banding and stretch film wrapping to ensure safe and easy loading/unloading during transport.
