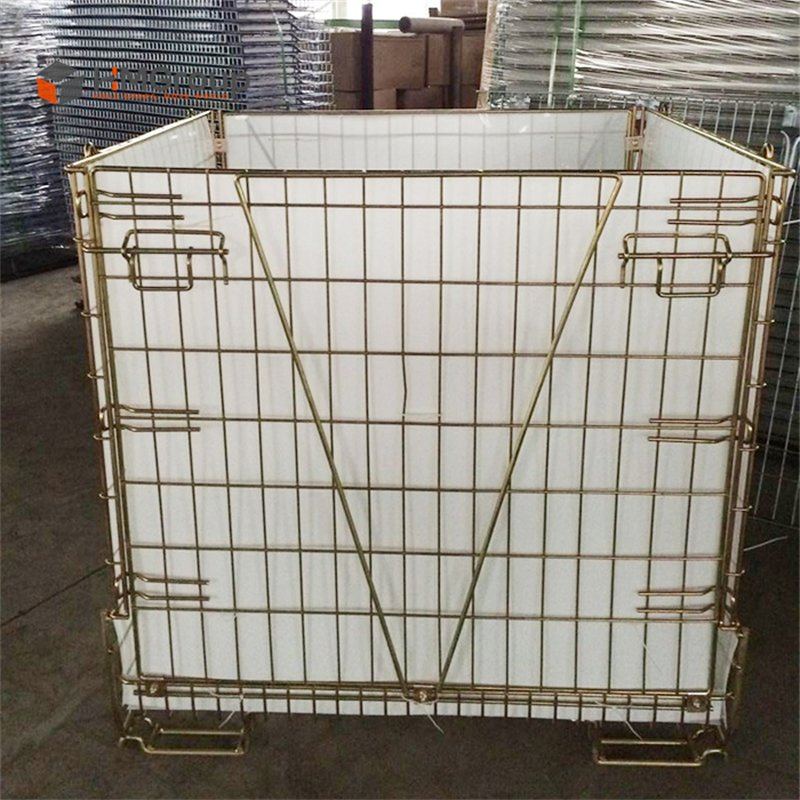

Wire mesh cages are 4-sided mesh structured containers specifically designed with PP liners for storing and transporting within the PET Preform industry. These collapsible solutions provide excellent protection and efficiency for warehouse logistics.

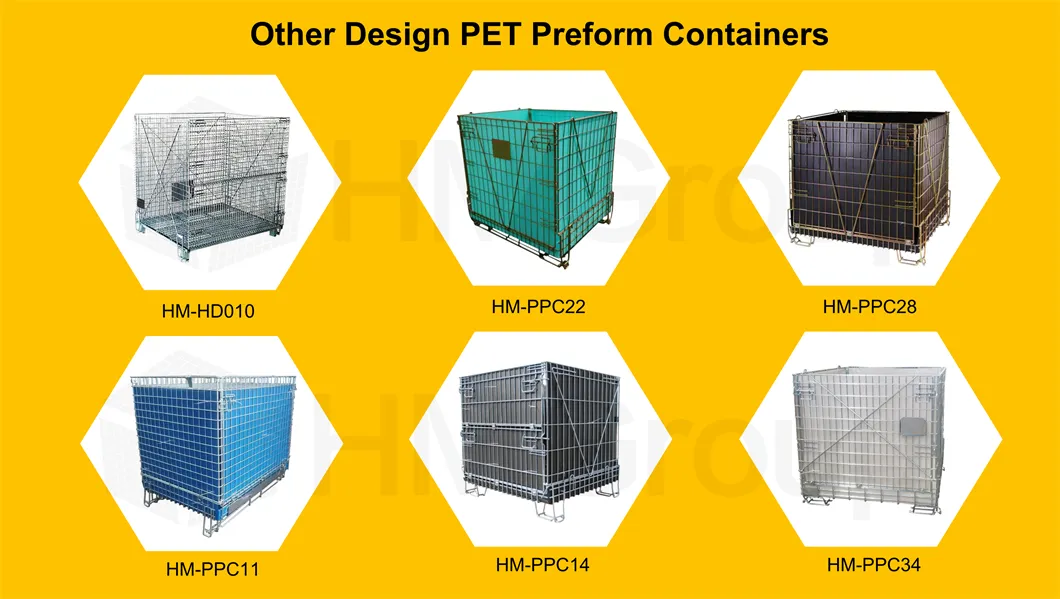

| Model No. | Ext. Dim. (LxWxH mm) | Wire Gauge (mm) | Grid Dim. (mm) | Load Capacity (kg) | 40HQ Load (sets) |
|---|---|---|---|---|---|
| HM-PPC22 | 1196x1008x1174 | 4.8-12 | 62x125 | 600 | 170 |
| HM-PPC11 | 1245x1020x1120 | 5-12 | 55x113 | 400 | 189 |
| HM-PPC14 | 1120x971x1050 | 6-12 | 54x160 | 800 | 240 |
| HM-PPC28 | 1200x1010x1200 | 5-12 | 62x125 | 800 | 170 |
| HM-HD010 | 1200x1000x1250 | 6 | 25x50 | 800 | 216 |

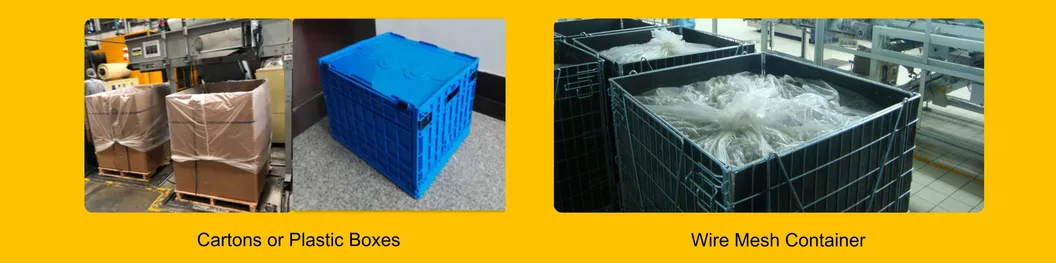

| Feature | Cardboard Boxes | Plastic Crates | Wire Mesh Containers |
|---|---|---|---|
| Load Capacity | 10-50 kg | ≤200 kg | 400-800 kg |
| Recyclable | No (not durable) | Limited (easily damaged) | Yes (Galvanized Steel) |
| Fireproof | No | No | Yes |
| Durability | Low | Medium | High (Built for years) |

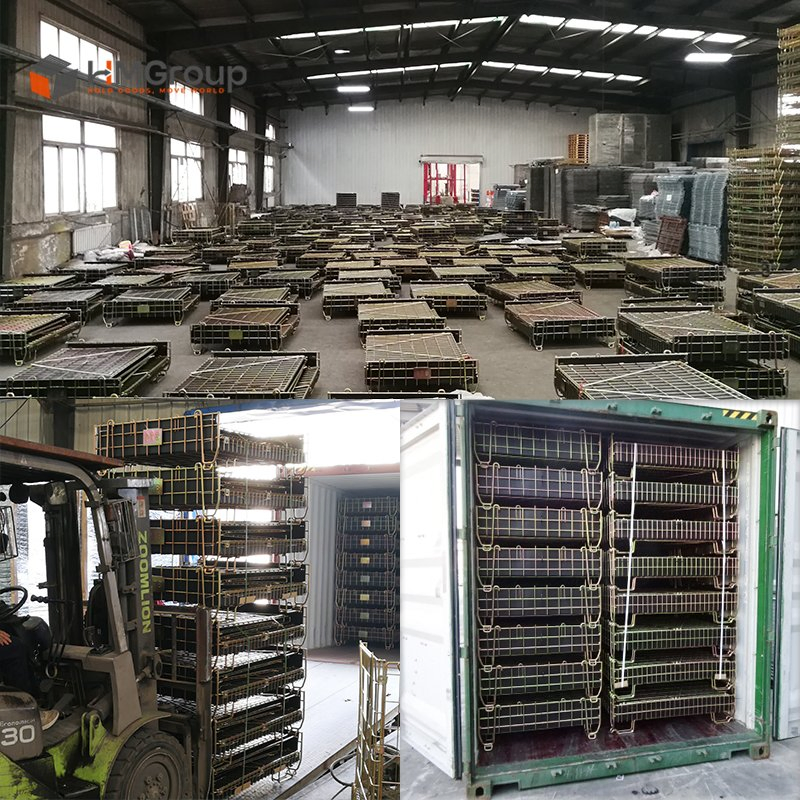

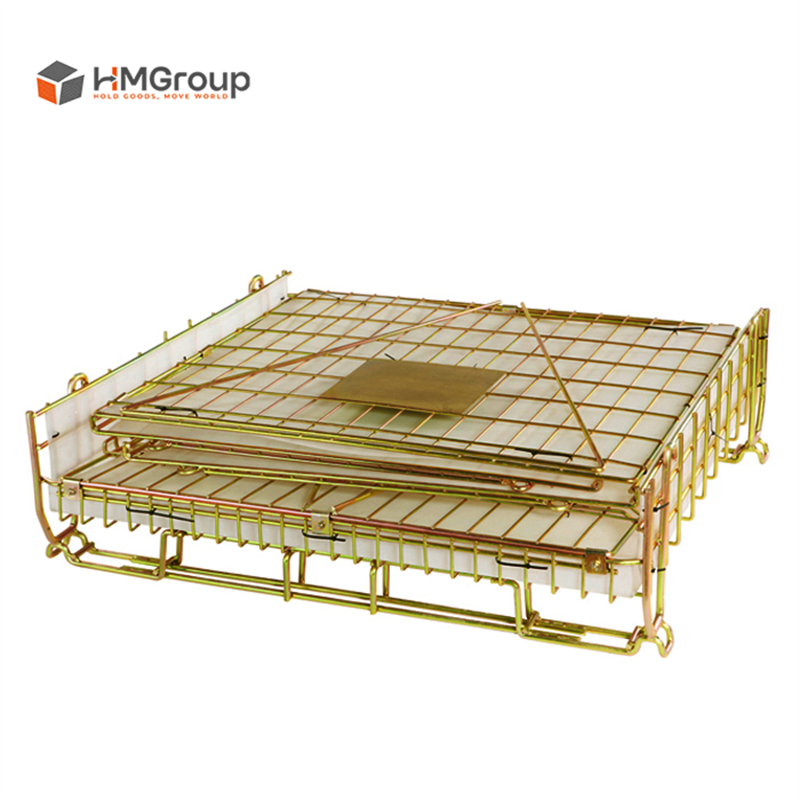

Saves significant space when not in use, ideal for return journeys and warehouse optimization.
Prevents deformation and surface damage from pressure. PP liners block light and dust.

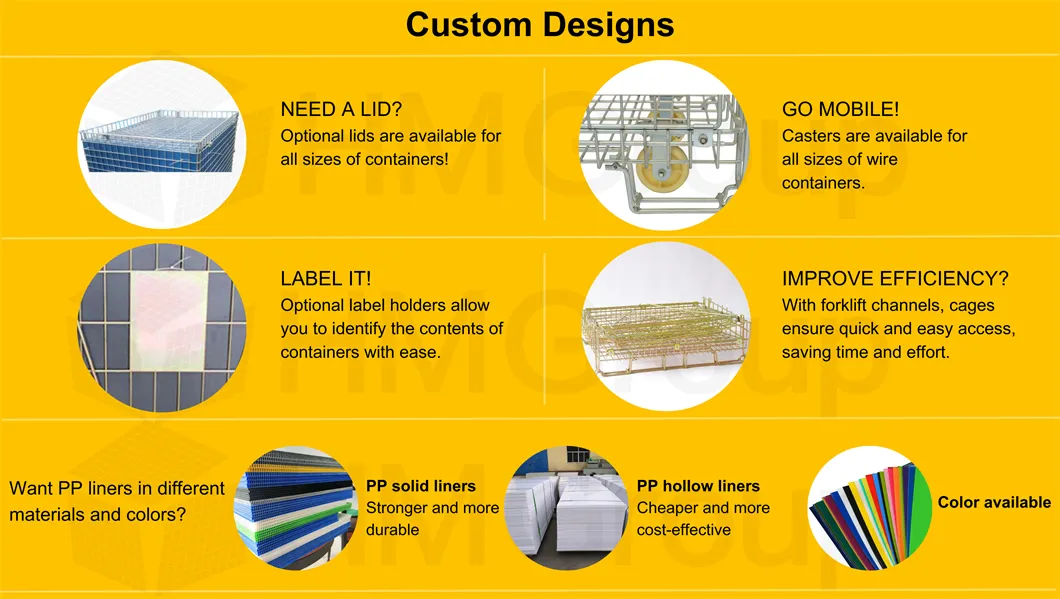

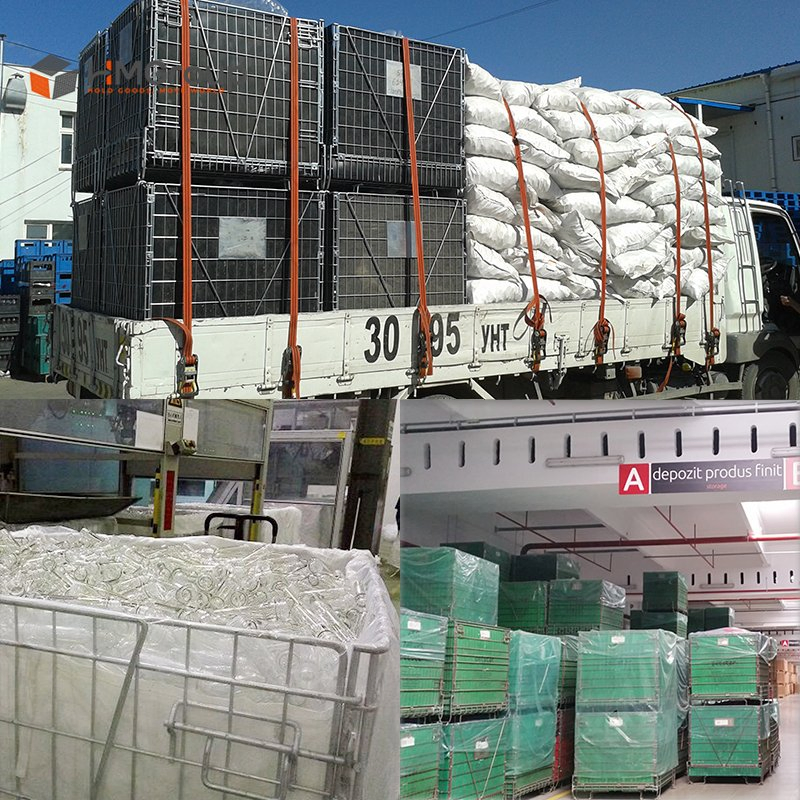

Designed for easy movement by forklift even when fully loaded. Wheels can be added for manual movement.

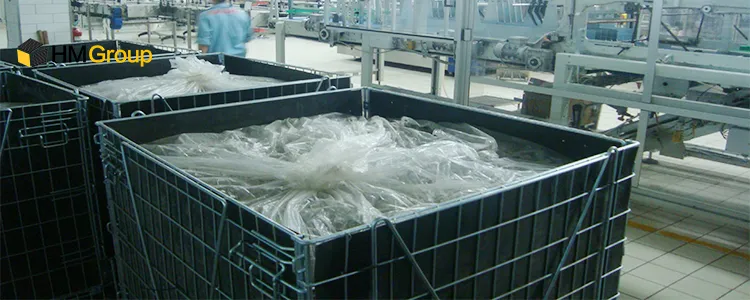

"We use wire mesh containers on our production line to store bottle preforms. They ensure the integrity of the preforms and significantly reduce damage caused by compression."

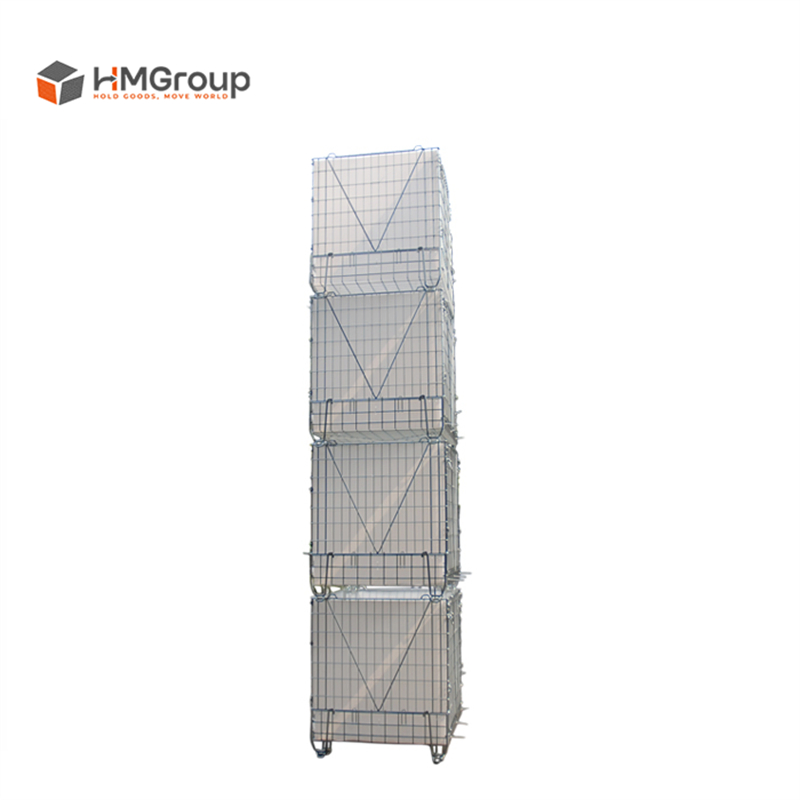

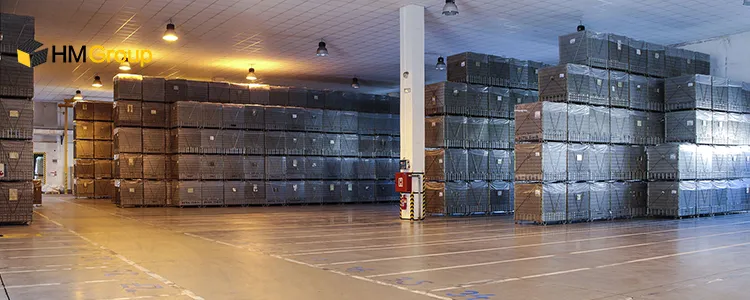

"The bottle preform cages solved our storage challenges. They can be stacked 4 to 6 layers high, significantly increasing the utilization of vertical space in our warehouse."

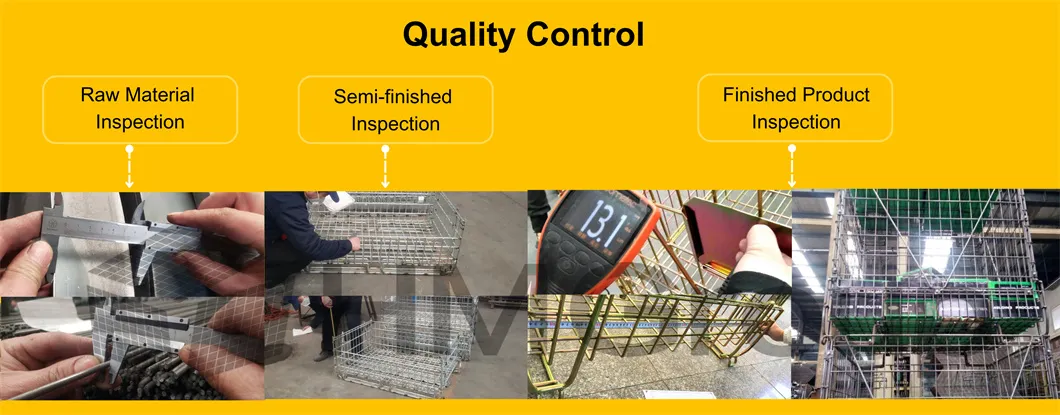

Our products undergo rigorous testing and meet international standards including ISO9001, TUV, BV, and SGS to ensure the highest reliability.
